APC SMT1000I

APC SMT1000I, Line-Interactive, 1 kVA, 700 W, Square, 151 V, 302 V

Documentation:

SKU: SMT1000I Category: Brand:

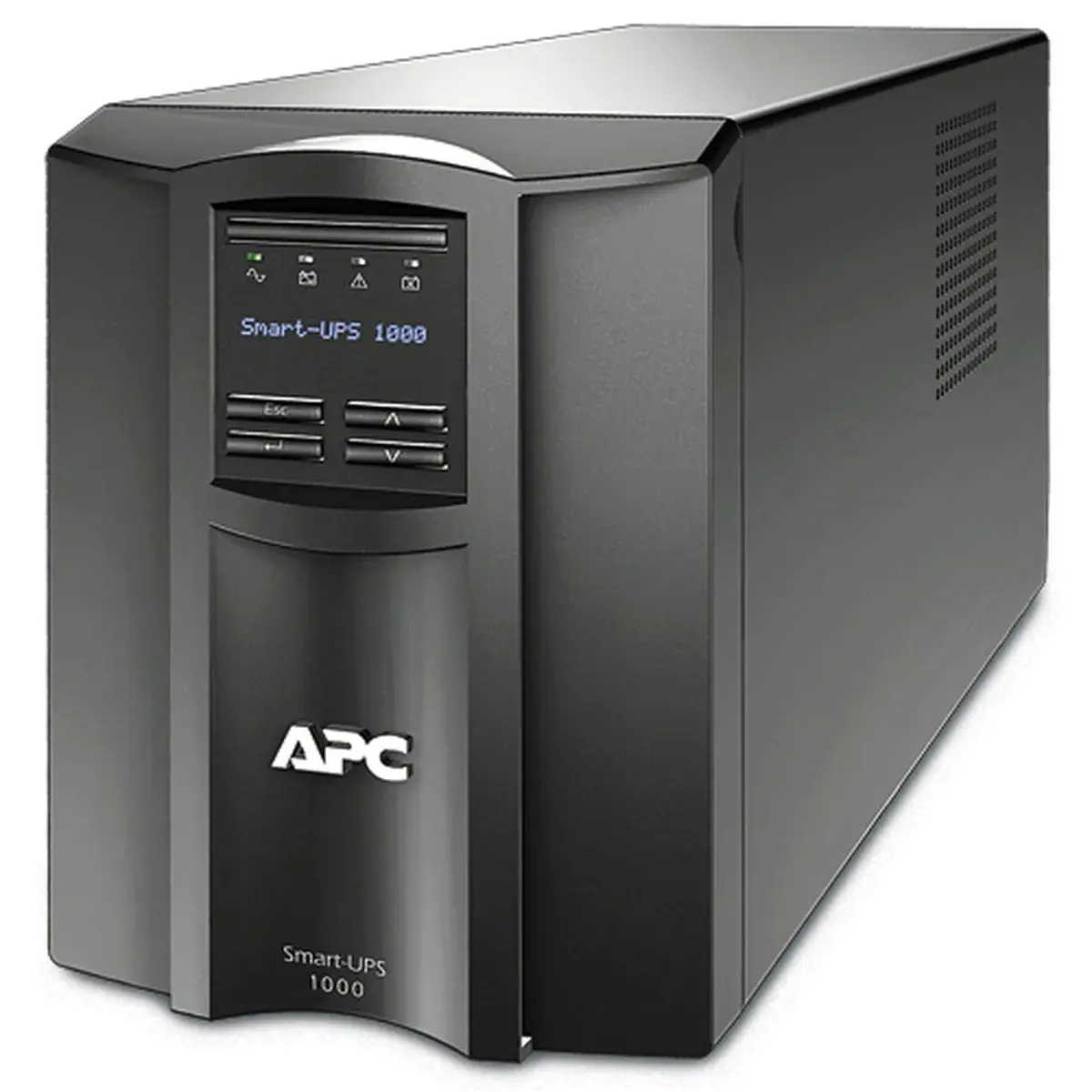

The APC SMT1000I is an uninterruptible power supply designed for line interactive operation. It features a square waveform output and operates within input voltage ranges of 151V to 302V at frequencies of 50Hz or 60Hz. With a capacity of 1 kVA and providing up to 700W of continuous power, it includes eight AC outlets suitable for various devices such as computers and servers.

The UPS has a battery technology of Sealed Lead Acid (VRLA) which offers a typical backup time of 5.8 minutes under full load conditions. Its efficiency stands at 98.6%, making it highly energy-efficient. The product comes in black color and uses LCD display for monitoring purposes.

It supports automatic voltage regulation, surge protection, and emergency power off functionalities, ensuring reliable performance during critical situations. Compliance certifications like RoHS, CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, and EOLI are met by this unit, guaranteeing its safety standards meet international requirements.

Product highlights

  • Model: APC SMT1000I
  • Colour: Black
  • Weight: 18.9 kg
  • Width: 171 mm
  • Depth: 439 mm
  • Height: 219 mm
  • Frequency: 50/60 Hz
  • Noise level: 41 dB

Additional information

UPS topology

Line-Interactive

Output power capacity

1 kVA

Output power

700 W

Waveform

Square

Input operation voltage (min)

151 V

Input operation voltage (max)

302 V

Input frequency

50/60 Hz

Automatic Voltage Regulation (AVR)

Yes

Surge energy rating

459 J

Efficiency

98.6%

Emergency Power Off (EPO)

O

Noise level

41 dB

Audible alarm(s)

Yes

Audible alarm modes

Low battery alarm, Overload alarm

Auto-restart

Yes

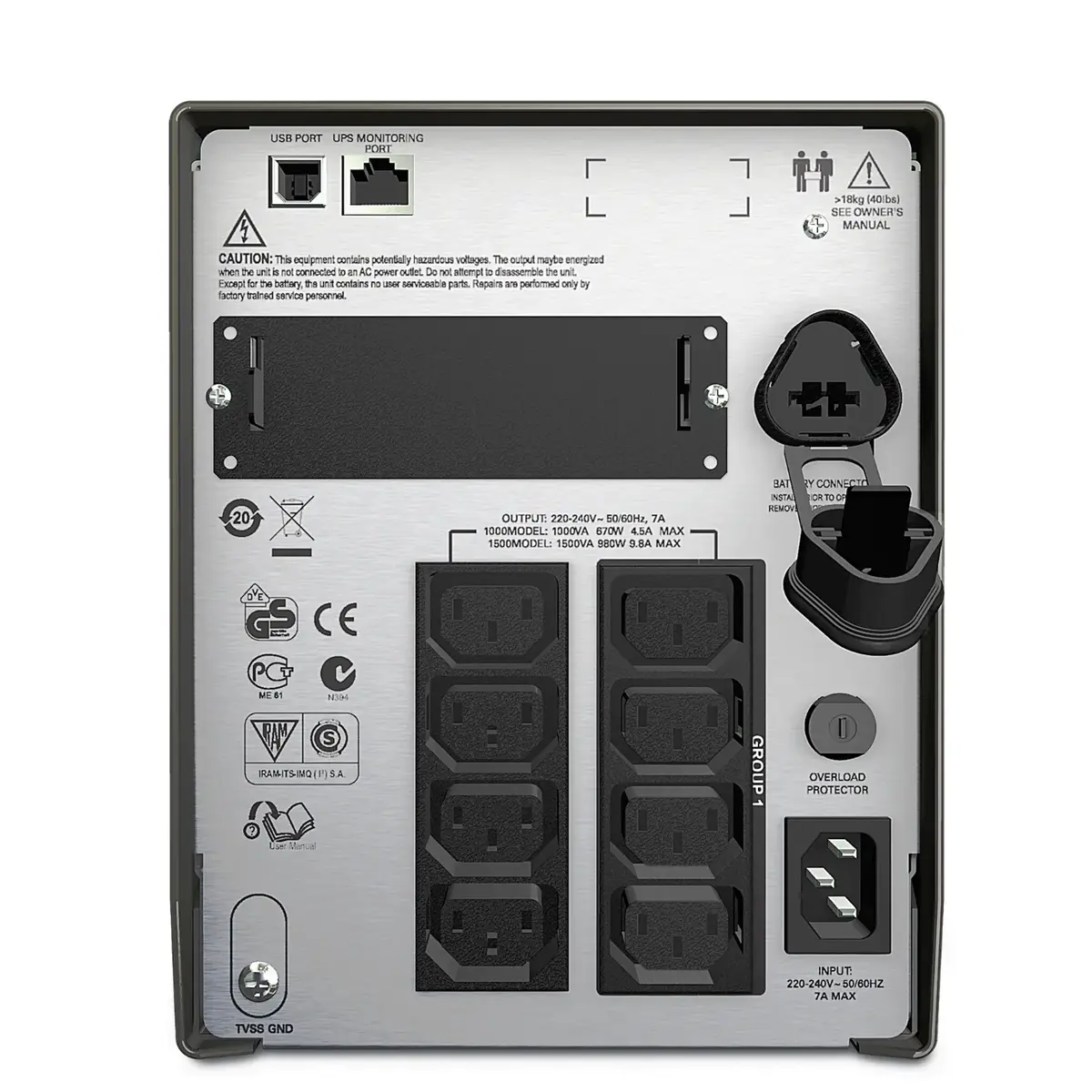

AC outlet types

C13 coupler

Power plug

C14 coupler

AC outlets quantity

8 AC outlet(s)

Number of output IEC jumpers

2

USB port

Yes

SmartSlot

Yes

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

264 VAh

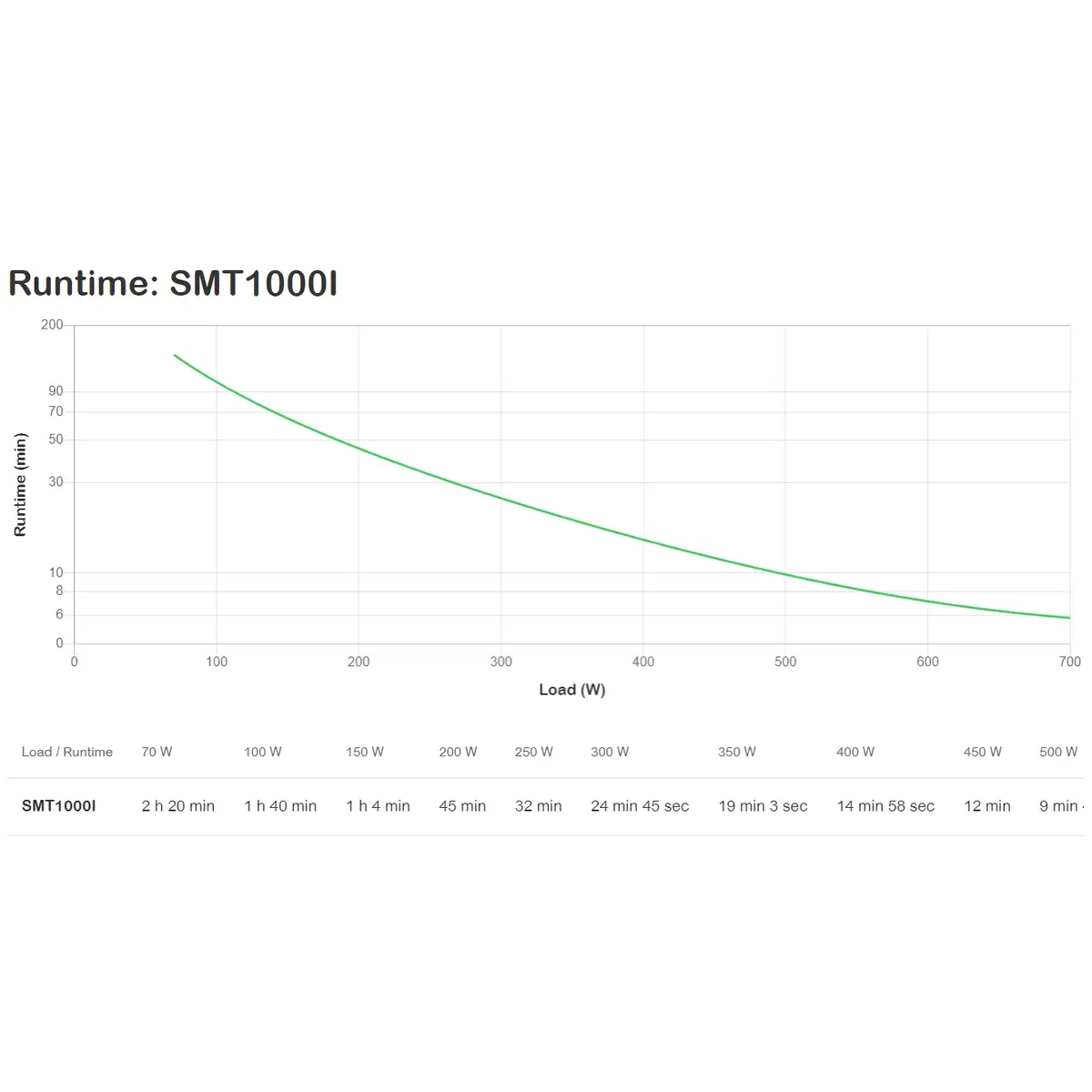

Typical backup time at full load

5.8 min

Typical backup time at half load

19 min

Battery life (max)

5 year(s)

Battery recharge time

3 h

Hot-swap battery

No

Automatic battery test

Yes

Cold start

Yes

Form factor

Tower

Product colour

Black

Display type

LCD

LED indicators

Yes

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-15 – 45 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Operating altitude

0 – 3000 m

Non-operating altitude

0 – 15000 m

Compliance certificates

RoHS

Certification

CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI

Cables included

RS-232, USB cable

Quick installation guide

Yes

Sustainability certificates

ENERGY STAR, Green Premium

Width

171 mm

Depth

439 mm

Height

219 mm

Weight

18.9 kg

Software CD

Yes
