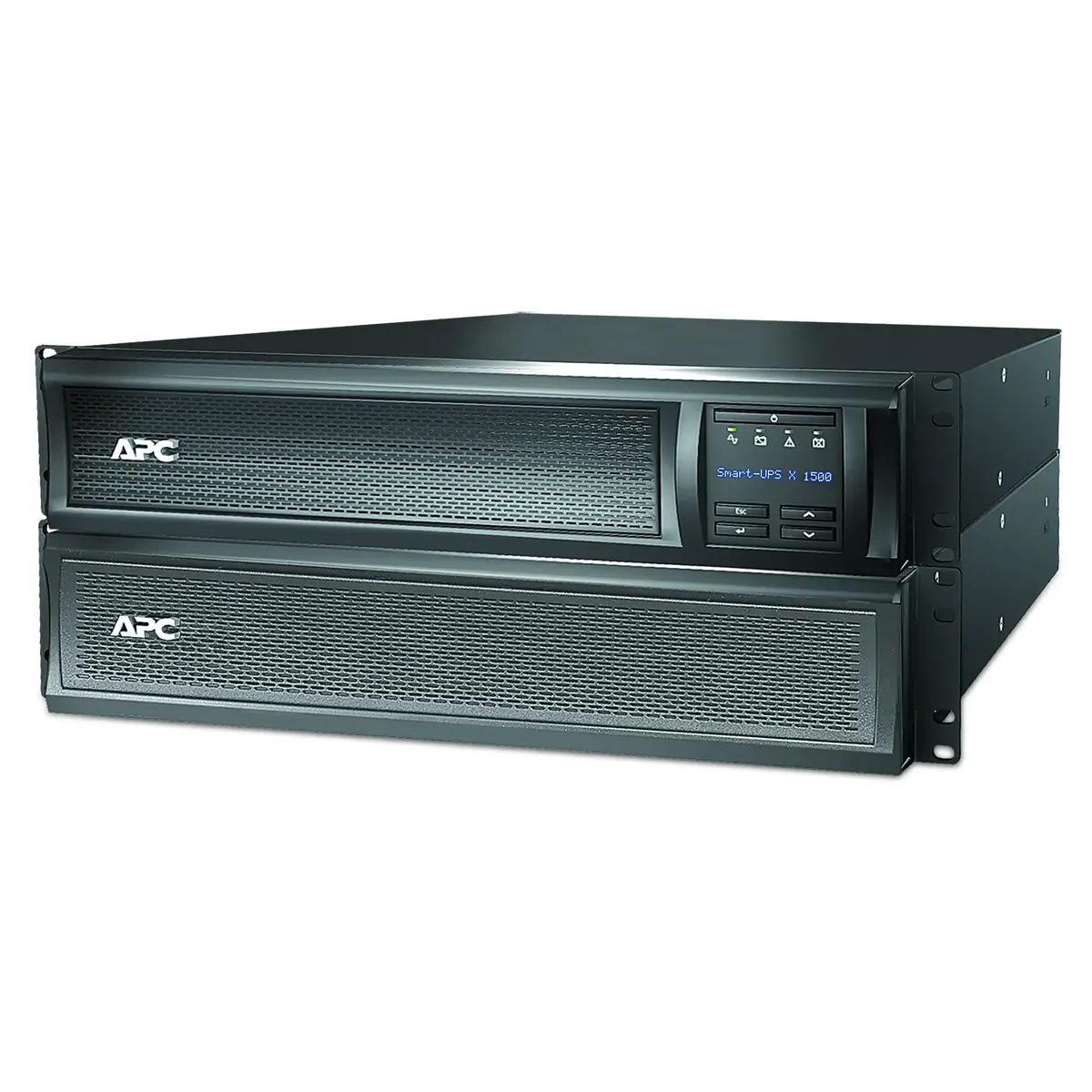

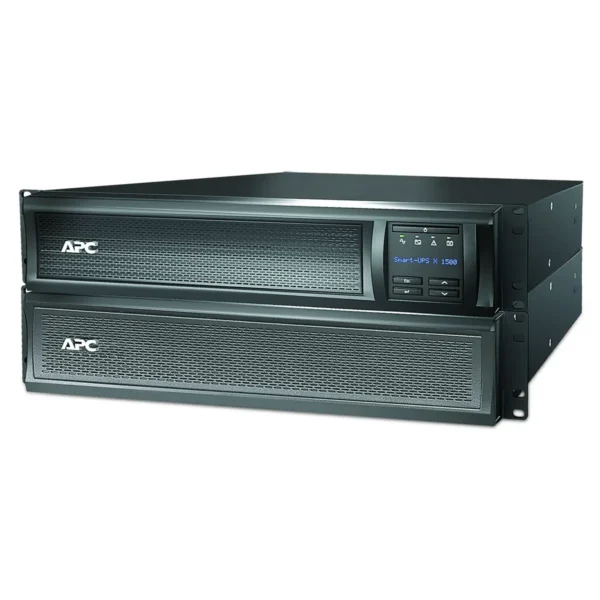

The APC Smart-UPS X SMX1500RMI2UNC is an uninterruptible power supply designed for reliable backup in various environments. With a nominal output of 1500VA and a maximum power capability of 1200W at full load, this UPS offers robust protection against voltage fluctuations and power outages. Its Line-Interactive topology ensures efficient operation under normal conditions while providing immediate backup when needed.

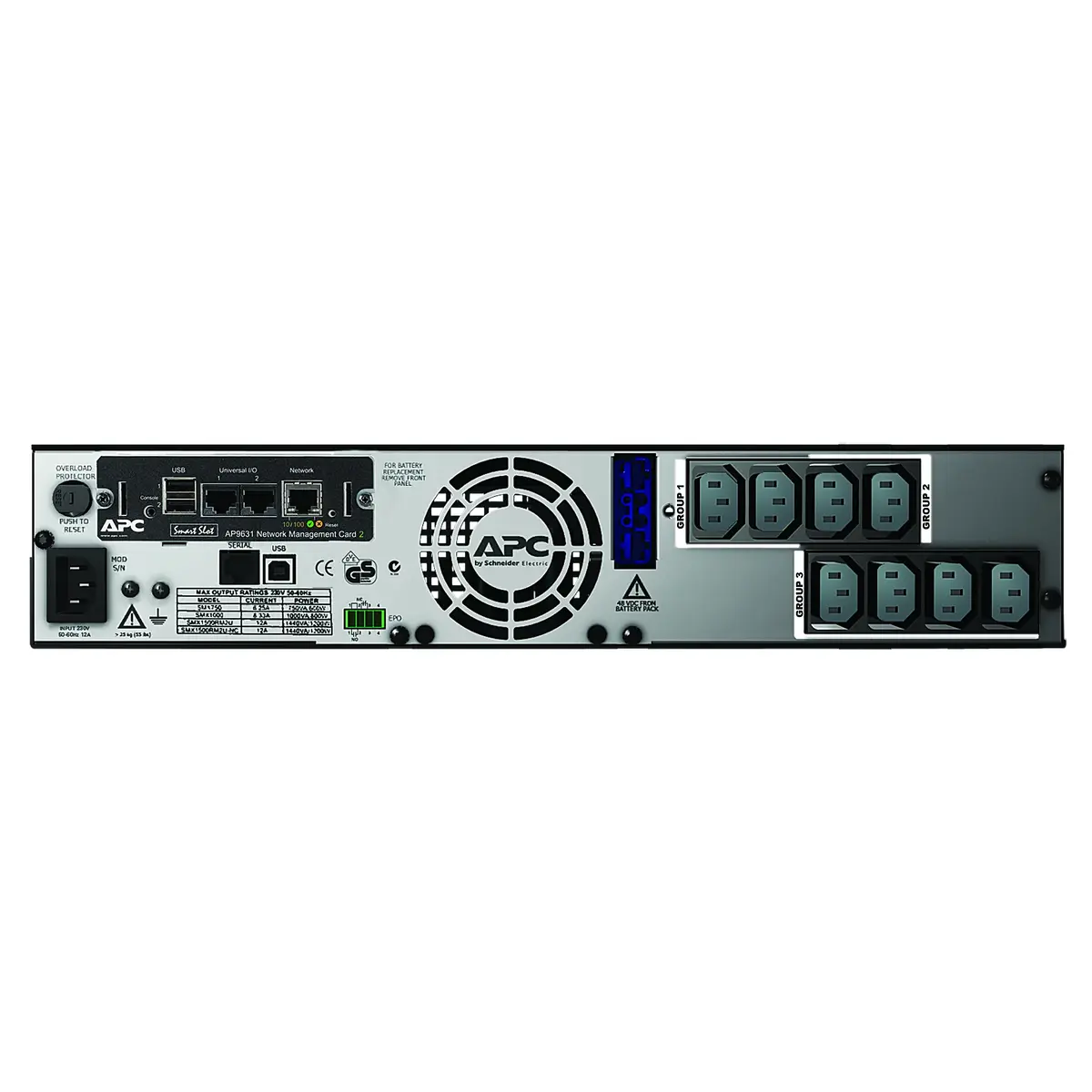

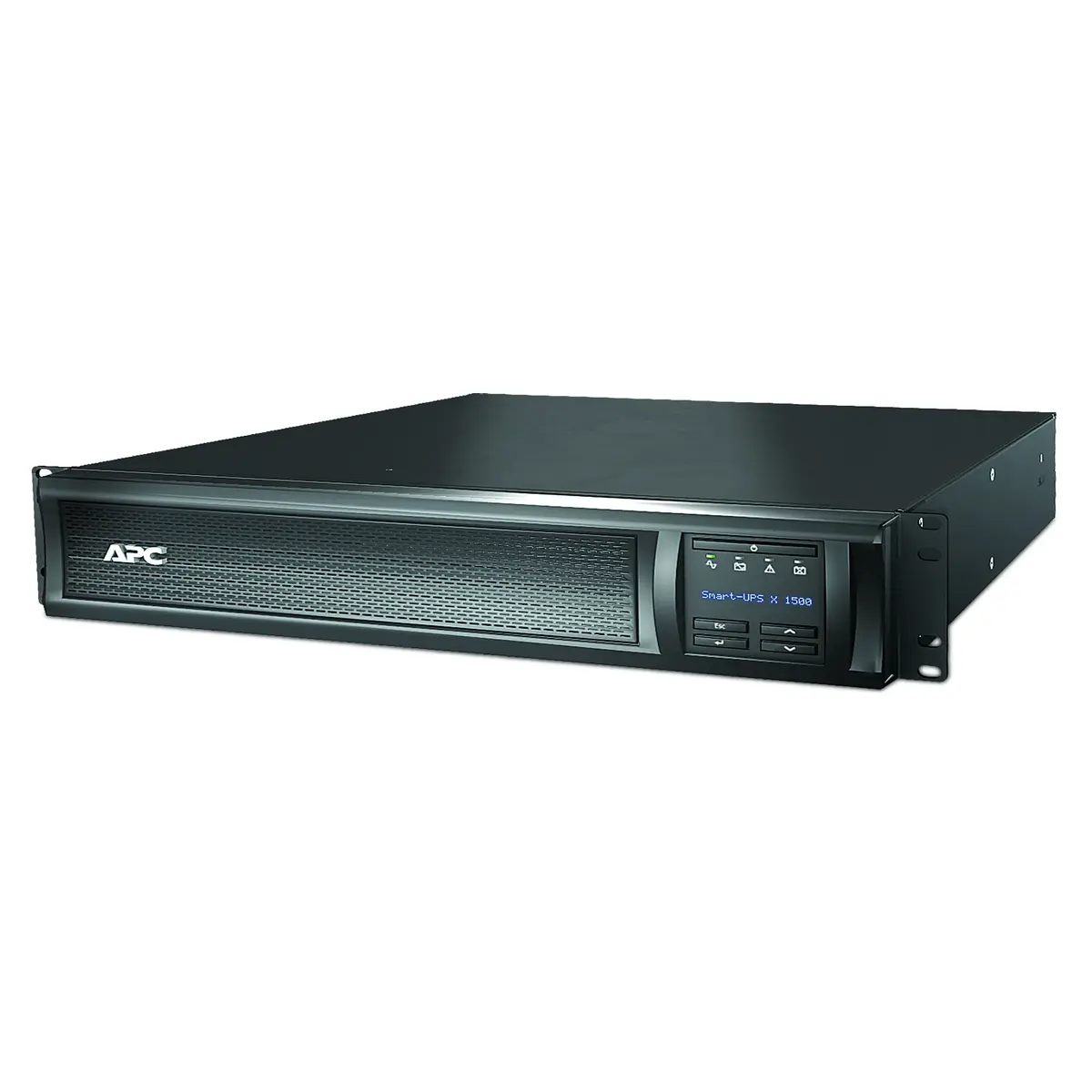

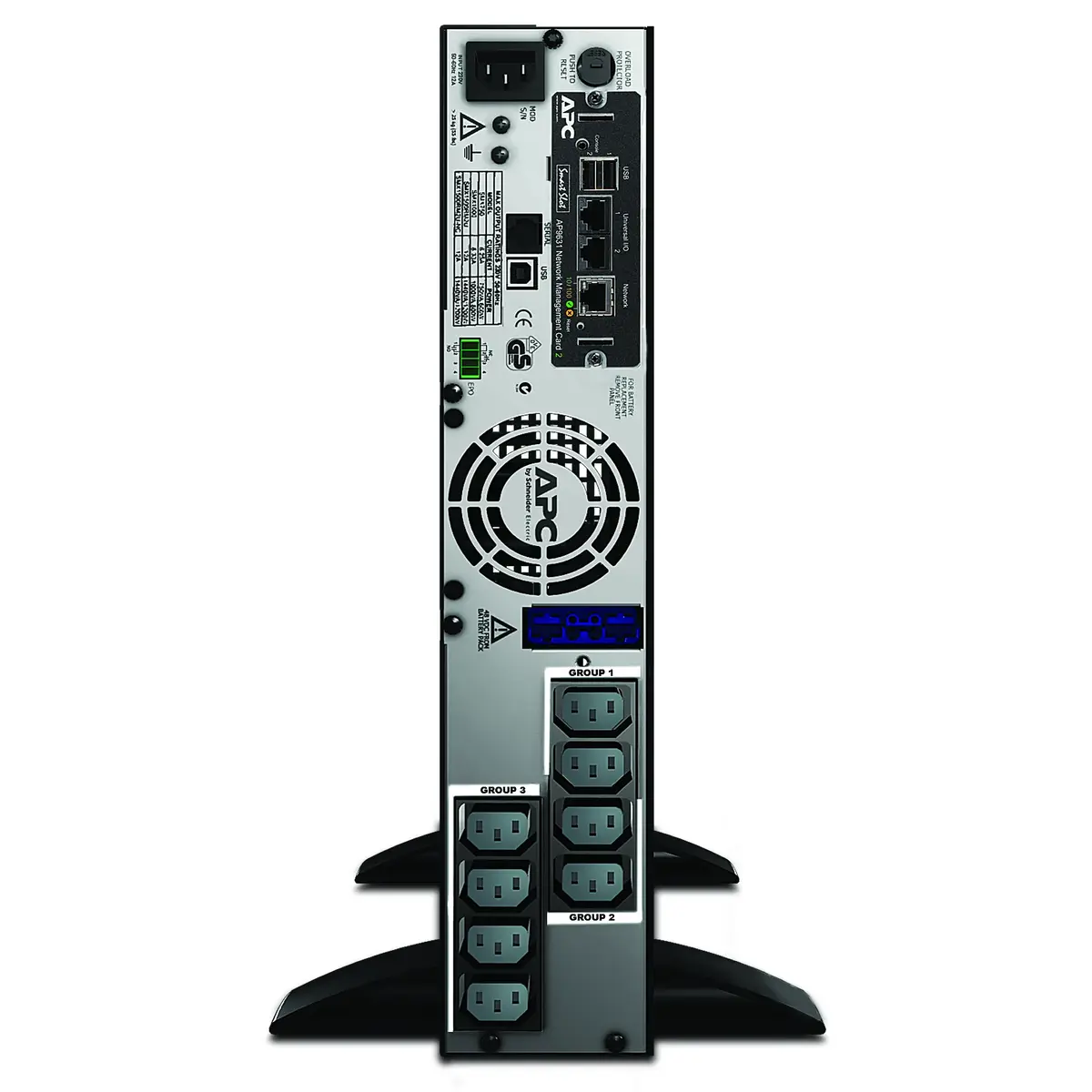

Equipped with eight AC outlets compatible with standard C13 couplers, it supports multiple devices simultaneously during a power outage. Additionally, it features two hot-swap battery units that allow easy replacement without shutting down the system, enhancing both efficiency and reliability. The unit’s compact design allows for rackmounting up to 2U high, making it suitable for small office settings or server rooms where space optimization is crucial.

The product boasts a noise level of just 40 dB, ensuring minimal disturbance even when operating near sensitive equipment. It includes essential accessories such as a RS-232 cable and a USB connection port, offering flexibility in connectivity options. Moreover, its compliance with RoHS regulations underscores its commitment to environmental sustainability throughout its lifecycle.

Feature summary

  • Model: APC Smart-UPS X SMX1500RMI2UNC – 1500VA, 8x C13 output, USB, expandable runtime, NMC
  • Colour: Black
  • Width: 432 mm
  • Frequency: 50/60 Hz
  • Noise level: 40 dB
  • Display: LCD
  • Battery capacity: 311 VAh
  • sku: SMX1500RMI2UNC

Additional information

UPS topology

Line-Interactive

Output power capacity

1.5 kVA

Output power

1200 W

Waveform

Sine

Input operation voltage (min)

151 V

Input operation voltage (max)

302 V

Input frequency

50/60 Hz

Output frequency regulation

50/60 Hz

Automatic Voltage Regulation (AVR)

Yes

Surge energy rating

645 J

Efficiency

98.5%

Emergency Power Off (EPO)

Yes

Noise level

40 dB

Surge protection

Yes

Audible alarm(s)

Yes

Audible alarm modes

Low battery alarm, Overload alarm

Auto-restart

Yes

AC outlet types

C13 coupler

Power plug

C14 coupler

AC outlets quantity

8 AC outlet(s)

Number of output IEC jumpers

2

USB port

Yes

SmartSlot

Yes

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

311 VAh

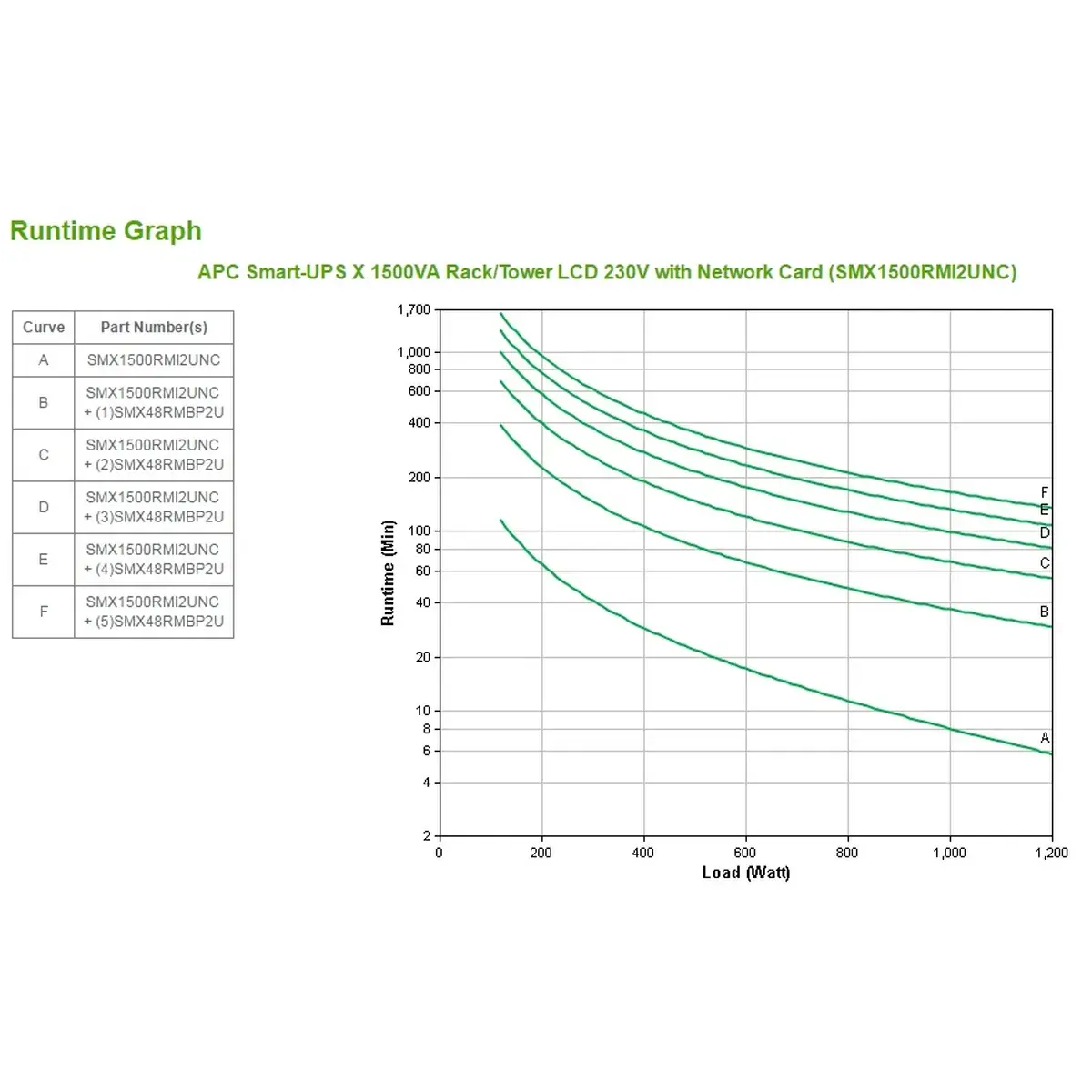

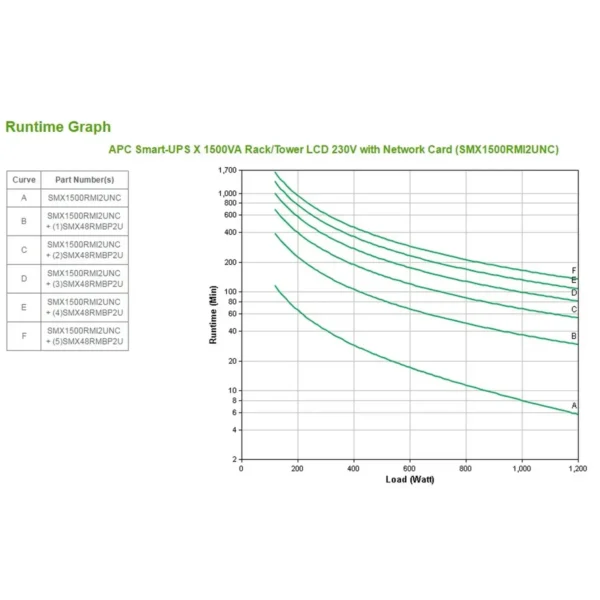

Typical backup time at full load

5.8 min

Typical backup time at half load

17.2 min

Battery life (max)

5 year(s)

Battery recharge time

3 h

Hot-swap battery

Yes

Automatic battery test

Yes

Cold start

Yes

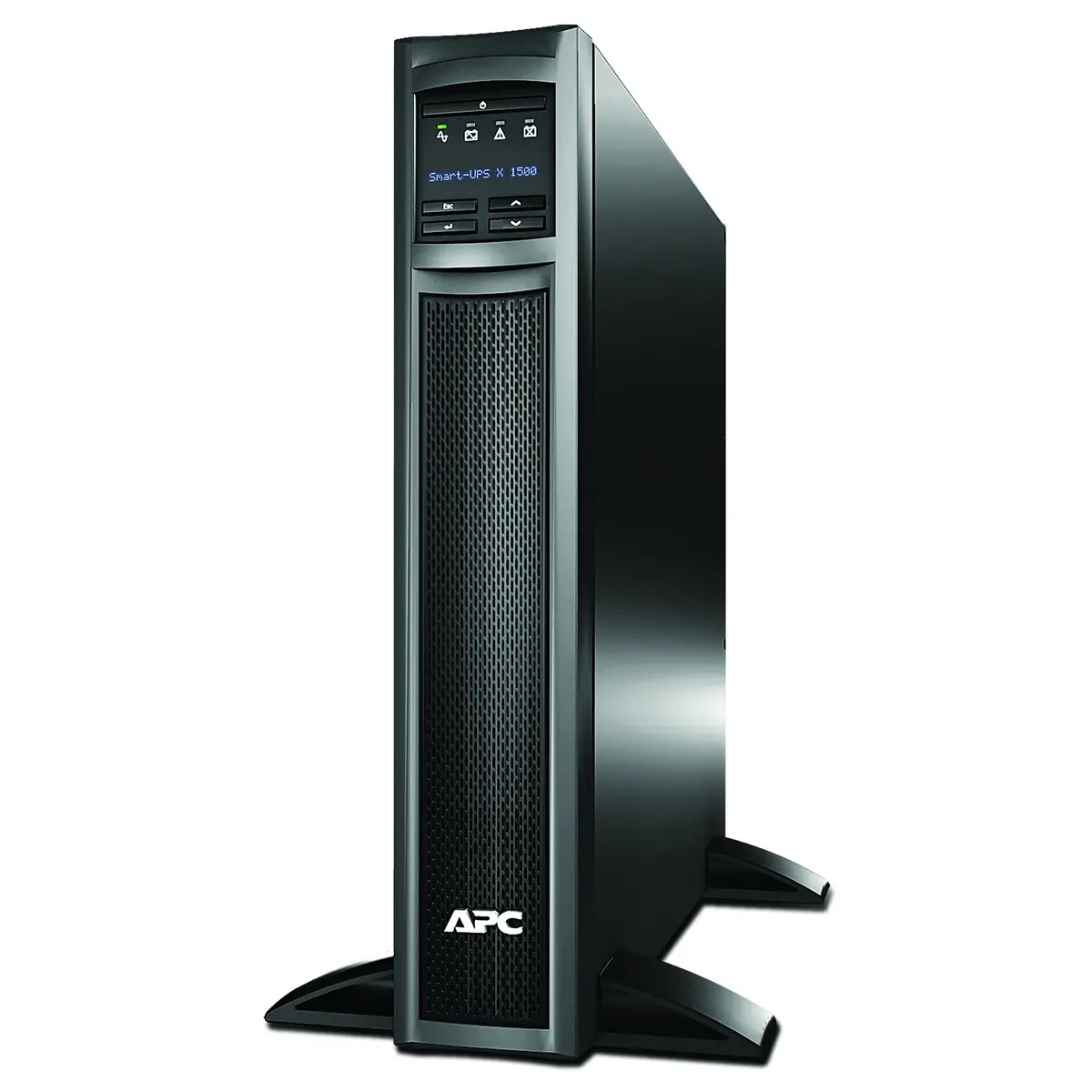

Form factor

Rackmount/Tower

Product colour

Black

Rack capacity

2U

Cable length

1.83 m

Display type

LCD

LED indicators

Yes

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-15 – 45 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Operating altitude

0 – 3000 m

Non-operating altitude

0 – 15000 m

Compliance certificates

RoHS

Certification

C-tick, CE, EN 50091-1, EN 50091-2, VDE, REACH, PEP, EOLI

Rack mount kit

Yes

Cables included

RS-232, USB cable

Quick installation guide

Yes

Width

432 mm
