. The APC Smart-UPS SC 450VA 230V is an uninterruptible power supply designed for line interactive operation. It features a nominal output of 280 W at 0.45 kVA, suitable for various applications such as servers, workstations, and other sensitive equipment requiring reliable power protection.

The UPS operates within a voltage range from 151 to 302 volts AC, providing stability across different electrical conditions. With its Sealed Lead Acid (VRLA) battery technology, it offers a capacity of 108 VAh, ensuring sufficient backup time under full load conditions up to five minutes and half-load conditions up to nineteen point four minutes.

This model supports multiple AC outlets via C13 coupler plugs and includes surge energy rating capabilities against common electronic devices like DSLs, fax machines, modems, and networks. Additionally, it comes equipped with automatic restart functionality in case of power disruptions, enhancing system reliability.

Technical details

  • Model: APC Smart-UPS SC 450VA 230V – 1U Rackmount/Tower
  • Colour: Grey
  • Width: 432 mm
  • Depth: 383 mm
  • Height: 44 mm
  • Frequency: 50/60 Hz
  • Noise level: 38 dB
  • Battery capacity: 108 VAh

Additional information

UPS topology

Line-Interactive

Output power capacity

0.45 kVA

Output power

280 W

Waveform

Sine

Input operation voltage (min)

151 V

Input operation voltage (max)

302 V

Input frequency

50/60 Hz

Automatic Voltage Regulation (AVR)

Yes

Surge energy rating

320 J

Hold time (min)

4 ms

Hold time (max)

8 ms

Noise level

38 dB

Surge protection

Yes

Surge protection features

Digital Subscriber Line (DSL), Fax, Modem, Network

Audible alarm(s)

Yes

Audible alarm modes

Low battery alarm, Overload alarm

Auto-restart

Yes

AC outlet types

C13 coupler

Power plug

C14 coupler

AC outlets quantity

4 AC outlet(s)

Number of output IEC jumpers

2

Serial interface

Yes

Serial interface type

RS-232

Serial ports quantity

1

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

108 VAh

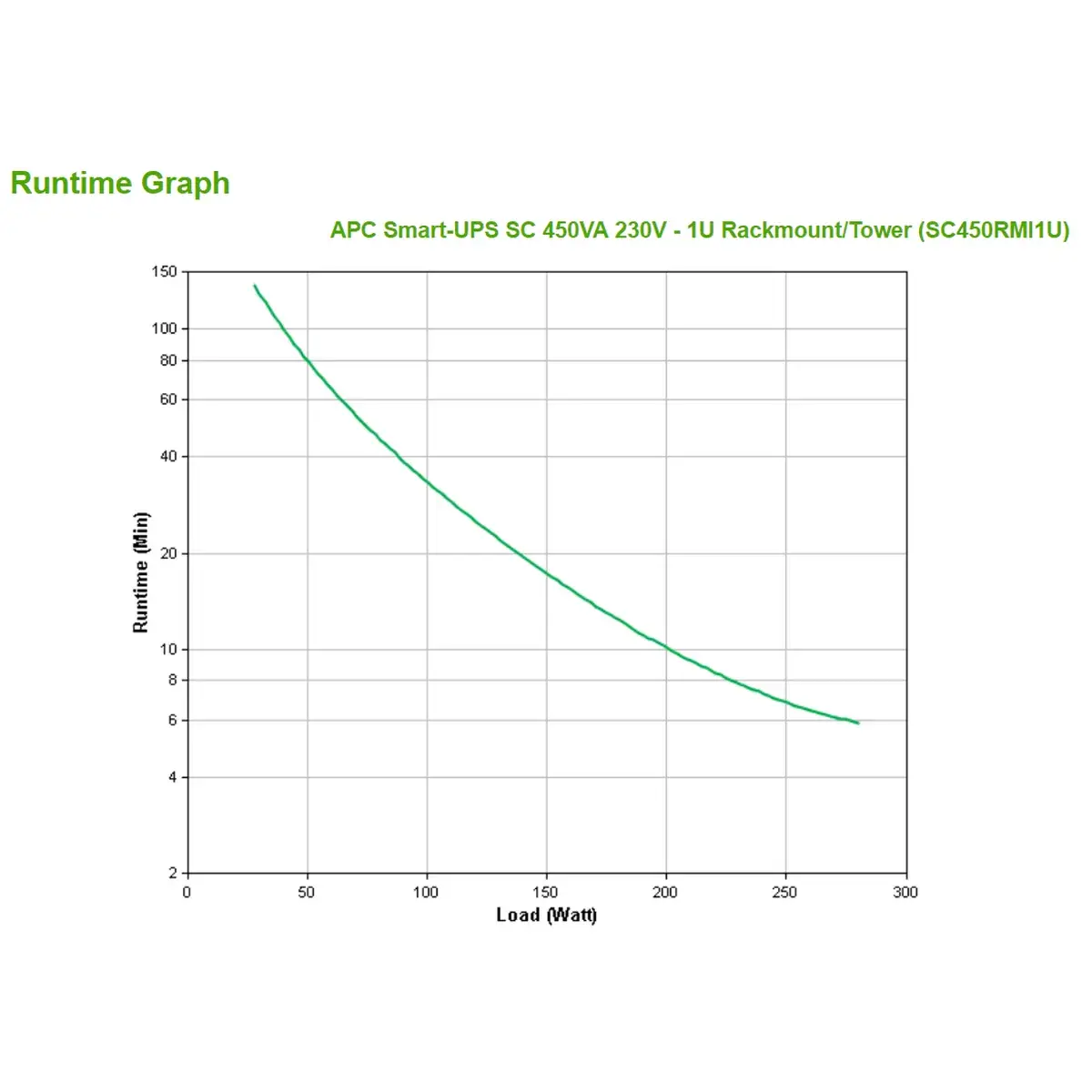

Typical backup time at full load

5.9 min

Typical backup time at half load

19.4 min

Battery life (max)

5 year(s)

Battery recharge time

5 h

Hot-swap battery

Yes

Automatic battery test

Yes

Form factor

Rackmount/Tower

Product colour

Grey

Rack capacity

1U

LED indicators

Battery replacement

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-15 – 45 °C

Operating relative humidity (H-H)

0 – 95%

Storage relative humidity (H-H)

0 – 95%

Operating altitude

0 – 3000 m

Non-operating altitude

0 – 15000 m

Compliance certificates

RoHS

Certification

C-tick, CE, GOST, VDE, PEP, EOLI

Rack mount kit

Yes

Cables included

RS-232

Manual

Yes

Width

432 mm

Depth

383 mm

Height

44 mm
