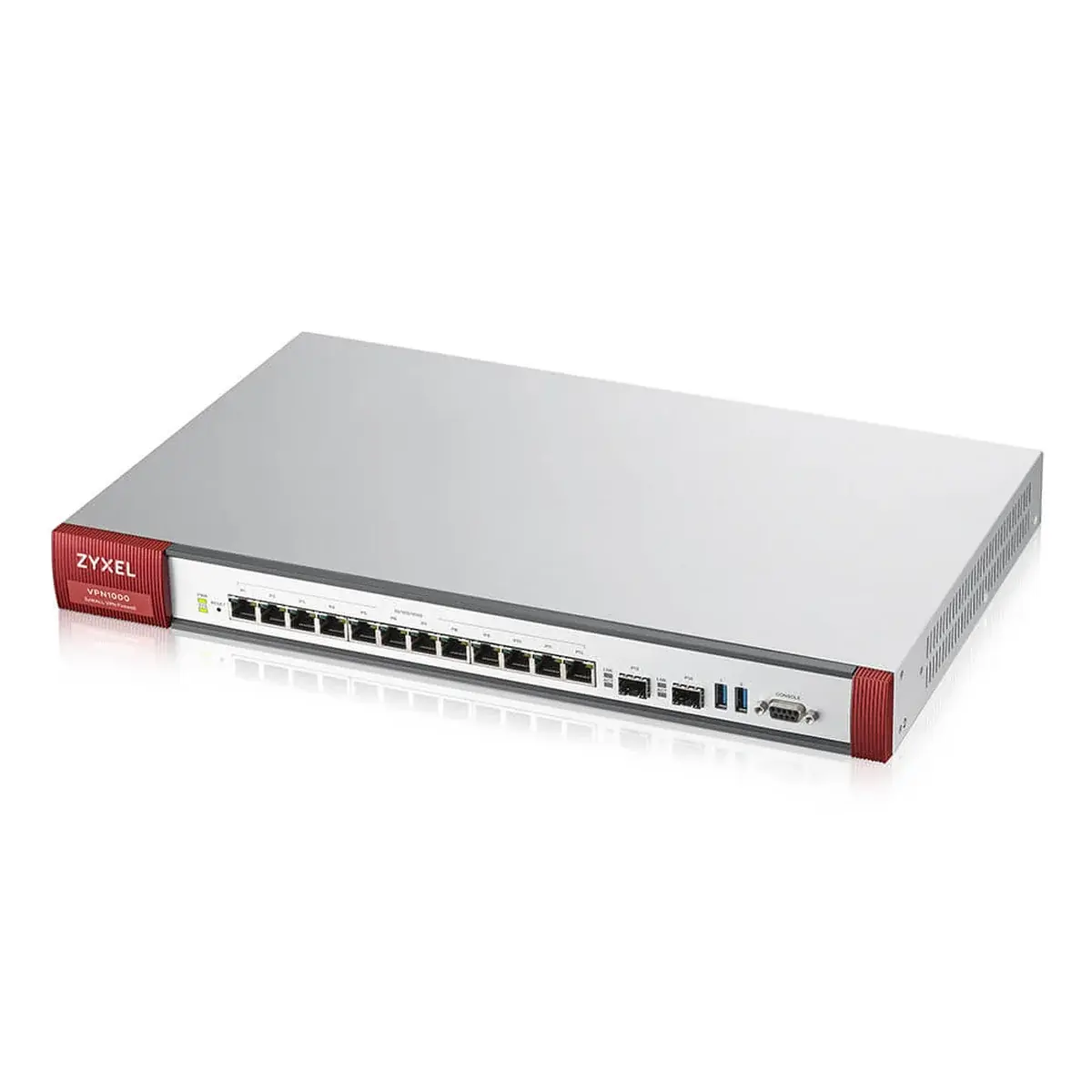

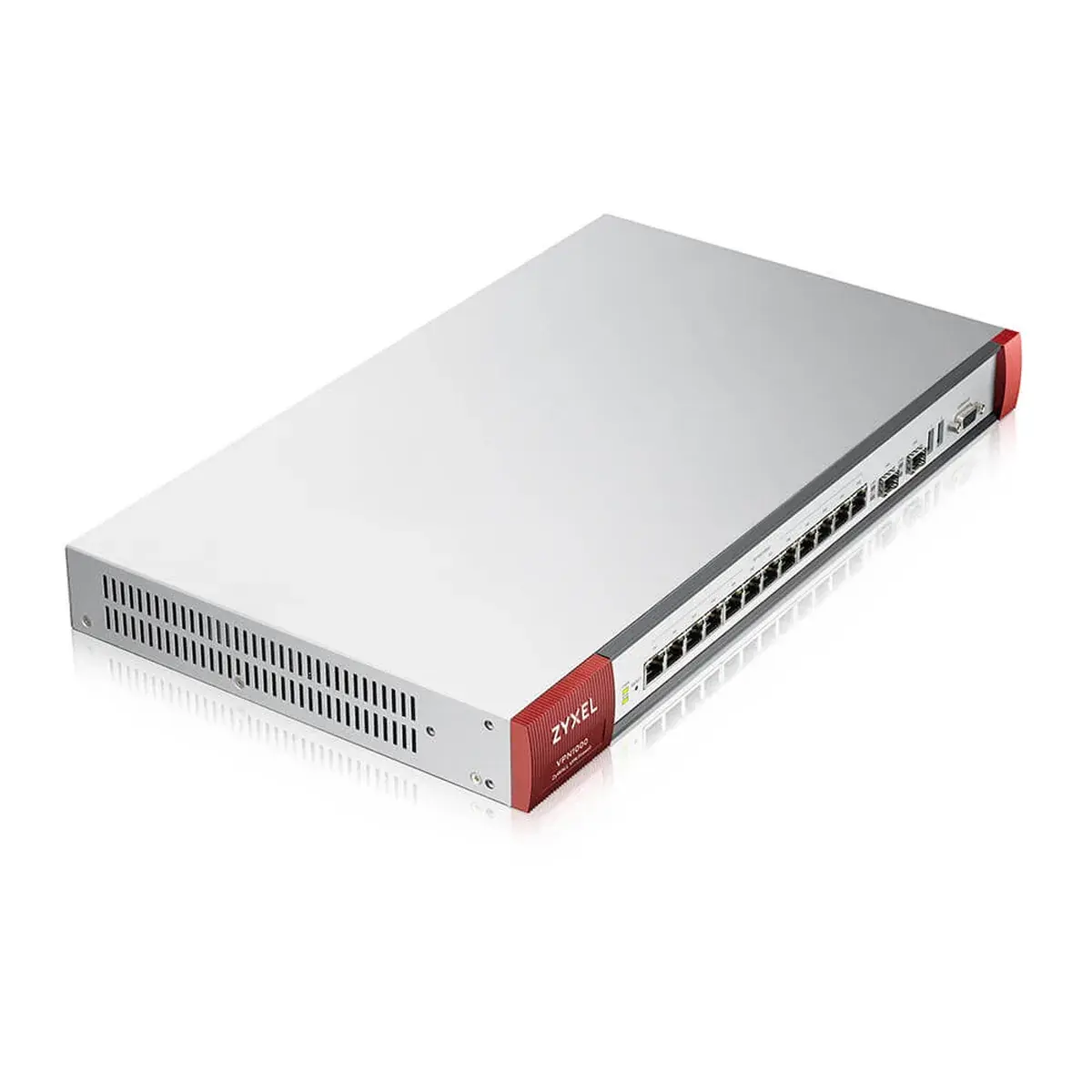

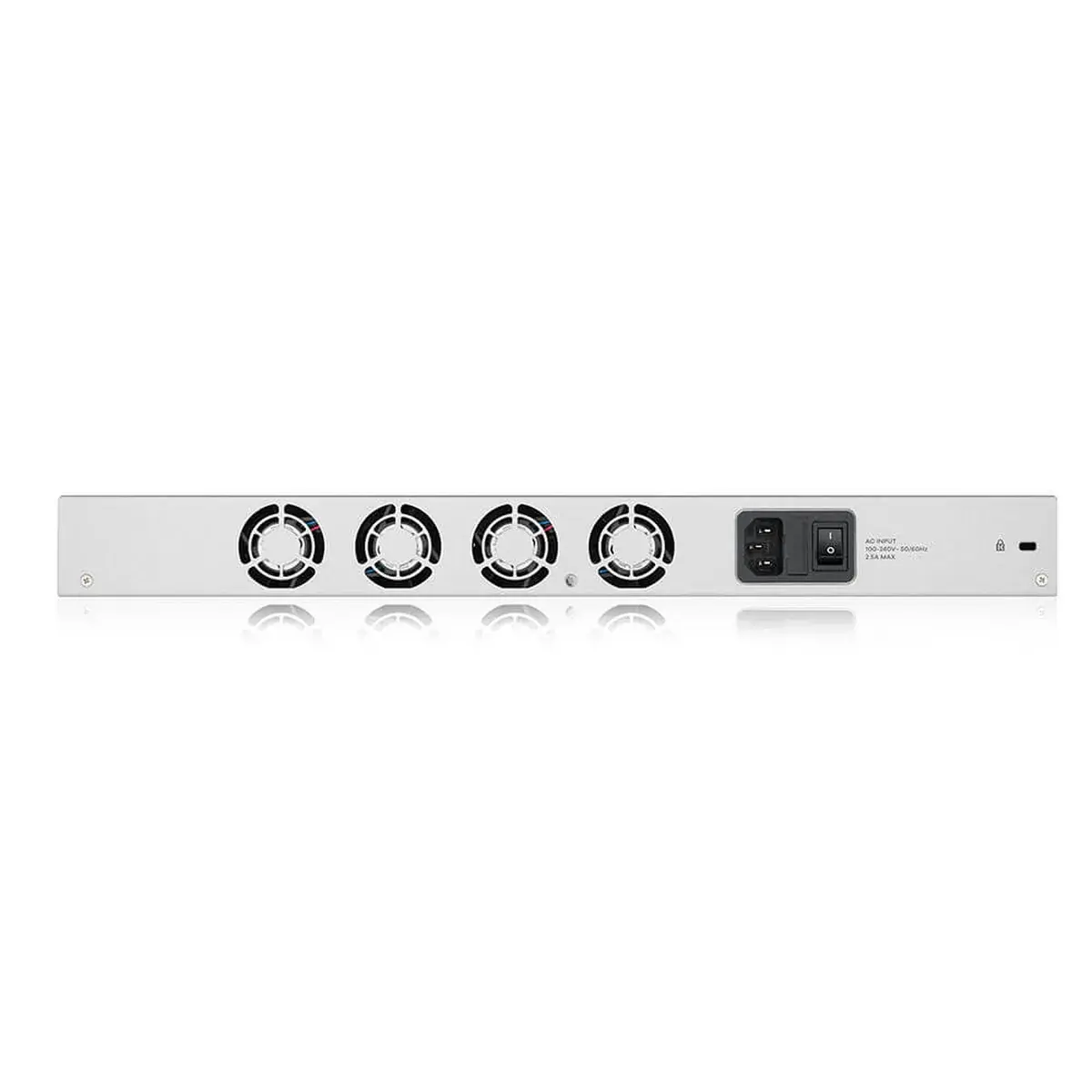

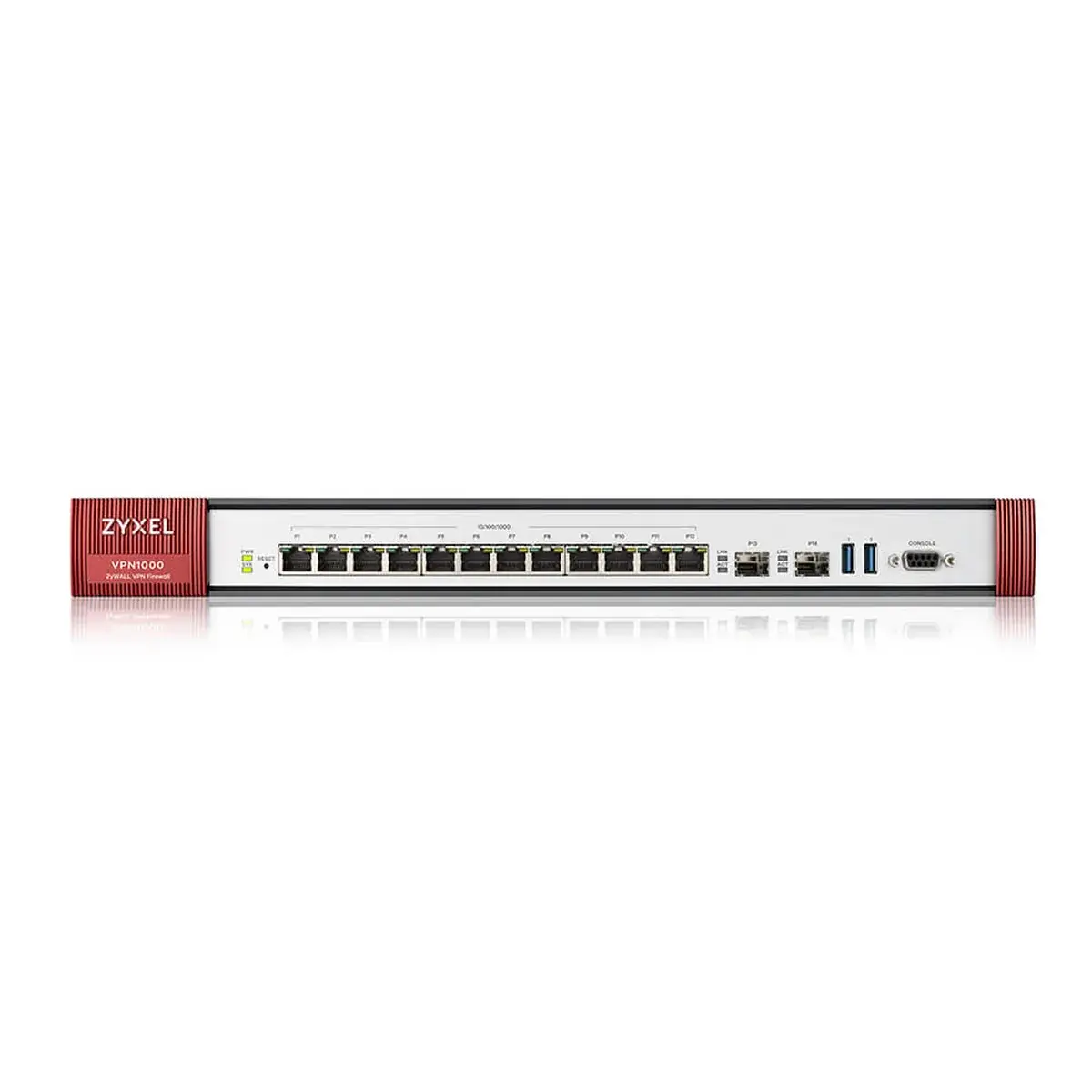

Zyxel VPN1000 hardware firewall 8 Gbit/s

Zyxel VPN1000, 8 Gbit/s, 1 Gbit/s, 1.5 Gbit/s, 120.1 BTU/h, 444930 h, 3DES, 256-bit AES, DES

Documentation:

SKU: VPN1000-EU0101F Category: Brand:

The Zyxel VPN1000 is an advanced hardware firewall designed for high-performance networking environments.

It boasts impressive throughput capabilities of up to 8 Gbit/s for general traffic management and 1 Gbit/s for maximum data transfer rates.

For secure communication over virtual private networks (VPNs), it offers a dedicated throughput rate of 1.5 Gbit/s. In terms of security, the device supports robust encryption algorithms including 3DES, 256-bit AES, and DES. This ensures that sensitive information transmitted through its network remains protected from unauthorized access. Additionally, the firewall can manage multiple SSL/VPN connections simultaneously, supporting up to 500 concurrent sessions at its peak capacity. The Zyxel VPN1000 also includes several connectivity options such as wired Gigabit Ethernet ports, which are essential for connecting devices within local networks efficiently. Furthermore, it comes equipped with USB Type-A ports for additional functionalities like dynamic DNS services and DHCP server/client support. This powerful firewall model complies with various international standards ensuring compliance in different regions while maintaining stringent quality control measures throughout production processes. Its compact size makes it suitable for installation into standard racks making setup straightforward without compromising on performance requirements set by modern businesses demanding reliable internet infrastructure solutions today.

Product highlights

  • Model: Zyxel VPN1000 hardware firewall 8 Gbit/s
  • Firewall throughput: 8000 Mbit/s
  • Maximum data transfer rate: 1000 Mbit/s
  • VPN throughput: 1500 Mbit/s
  • Heat dissipation: 120.1 BTU/h
  • Mean time between failures (MTBF): 444930 h
  • Concurrent SSL/VPN connections (default): 250
  • Concurrent SSL/VPN connections (maximum): 500

Additional information

Firewall throughput

8000 Mbit/s

Maximum data transfer rate

1000 Mbit/s

VPN throughput

1500 Mbit/s

Heat dissipation

120.1 BTU/h

Mean time between failures (MTBF)

444930 h

Concurrent SSL/VPN connections (default)

250

Concurrent SSL/VPN connections (maximum)

500

VPN tunnels quantity

1000

Dynamic DNS (DDNS)

Yes

Number of VLANs

128

DHCP server

Yes

DHCP client

Yes

Point-to-point protocol over Ethernet (PPPoE)

Yes

Security algorithms

3DES, 256-bit AES, DES

Management protocols

SNMP v1, v2c, v3

Connectivity technology

Wired

Gigabit Ethernet (copper) ports quantity

12

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Number of console ports

1

SFP module slots quantity

2

Rack mounting

Yes

AC input voltage

100-240 V

AC input frequency

50 – 60 Hz

Input current

2.5 A

Power consumption (max)

46 W

Certification

FCC Part 15 (Class A),CE EMC (Class A),C-Tick (Class A),BSMI

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-30 – 70 °C

Operating relative humidity (H-H)

10 – 90%

Storage relative humidity (H-H)

10 – 90%

Width

400 mm

Depth

250 mm

Height

44 mm

Weight

3.3 kg

Package width

519 mm

Package height

392 mm

Package depth

163 mm

Package weight

4.8 kg

Cables included

AC

Rack mount kit

Yes

Harmonized System (HS) code

85176990
