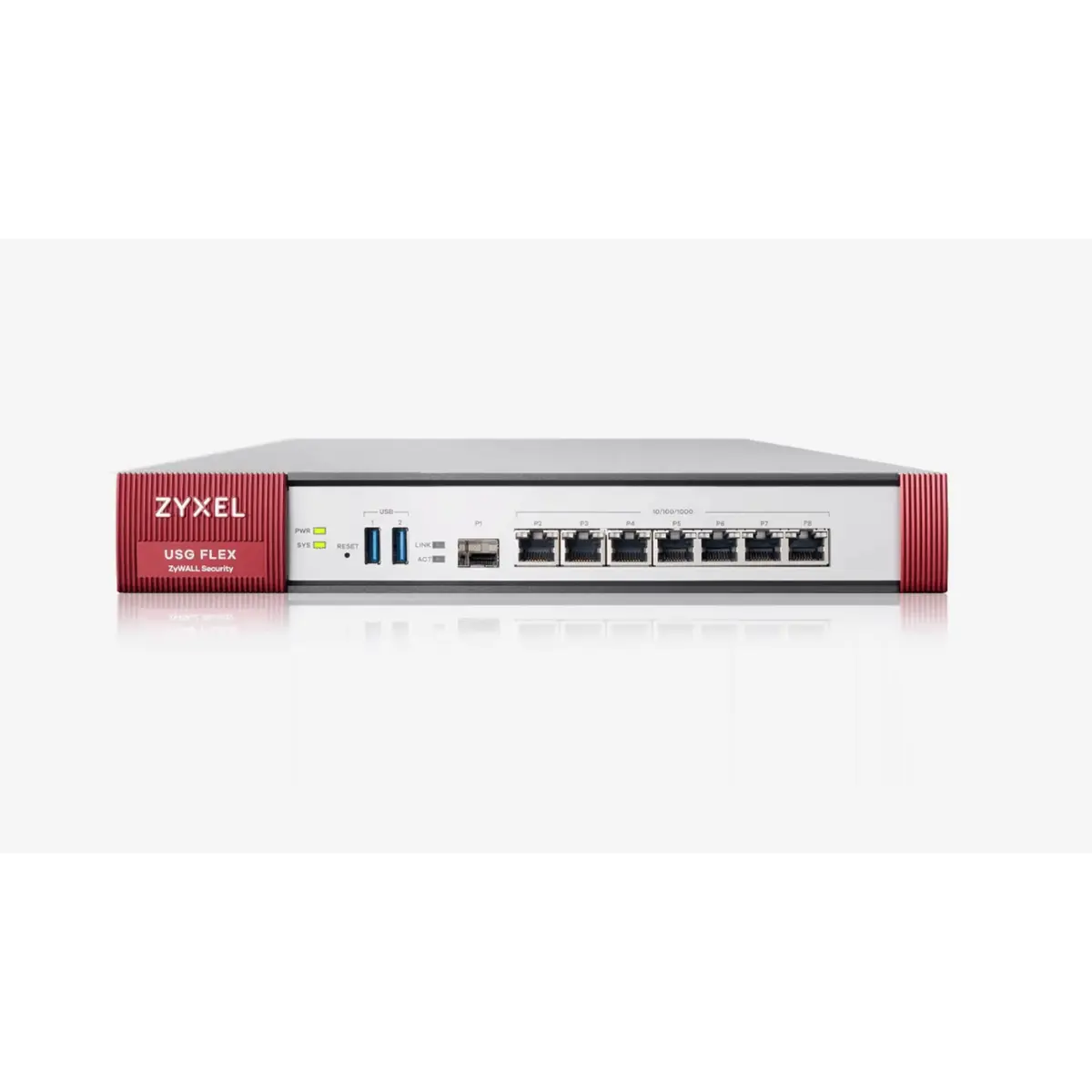

The Zyxel USG Flex 200 is a hardware firewall designed for robust security solutions in network environments.

It boasts impressive throughput capabilities, supporting both VPNs at 450 Mbps and IPSec tunnels up to 100 Gbps.

With its heat dissipation rate of 45.38 BTU/hour, it efficiently manages thermal performance under heavy load scenarios. The device features a variety of connectivity options including Ethernet LAN data rates ranging from 10 Mbit/s to 1000 Mbit/s, USB Type-A ports compatible with USB 3.2 Gen 1 standards, and an SFP module slot for enhanced networking flexibility. Its compact dimensions make it suitable for various deployment settings, measuring just 272mm wide by 187mm deep by 36mm high. Equipped with built-in fanless operation, this firewall ensures quiet running while maintaining efficiency. Certified globally with DCC, CE, C-Tick, LVD approvals, it meets stringent safety and regulatory requirements. Operating within a temperature range of -30°C to +40°C and humidity levels between 10% and 90%, the Zyxel USG Flex 200 offers reliable performance across diverse environmental conditions. Additionally, its weight of 1.4 kg makes it portable yet powerful enough for enterprise-level applications. This comprehensive description highlights key technical specifications and operational characteristics that cater to demanding network infrastructures effectively. For further details or inquiries about specific configurations, please refer to our detailed product page where additional information can be found. The device features a variety of connectivity options including Ethernet LAN data rates ranging from 10 Mbit/s to 1000 Mbit/s, USB Type-A ports compatible with USB 3.2 Gen 1 standards, and an SFP module slot for enhanced networking flexibility. Its compact dimensions make it suitable for various deployment settings, measuring just 272mm wide by 187mm deep by 36mm high.

Notable features

  • Model: Zyxel USG Flex 200 hardware firewall 1.8 Gbit/s
  • Firewall throughput: 1800 Mbit/s
  • VPN throughput: 450 Mbit/s
  • IPSec VPN throughput: 100 Gbit/s
  • SSL performance: 60 transactions/sec
  • Heat dissipation: 45.38 BTU/h
  • Mean time between failures (MTBF): 529688.2 h
  • Concurrent SSL/VPN connections (default): 60

Additional information

Firewall throughput

1800 Mbit/s

VPN throughput

450 Mbit/s

IPSec VPN throughput

100 Gbit/s

SSL performance

60 transactions/sec

Heat dissipation

45.38 BTU/h

Mean time between failures (MTBF)

529688.2 h

Concurrent SSL/VPN connections (default)

60

Concurrent SSL/VPN connections (maximum)

200

Number of VLANs

16

Active TCP connections (max)

600000

Security algorithms

IPSEC, SSL/TLS

VPN support

IKEv2, IPSec, SSL, L2TP/IPSec

URL filtering

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Ethernet LAN data rates

10,100,1000 Mbit/s

Console port

DB9

Number of console ports

1

Ethernet DMZ ports quantity

4

SFP module slots quantity

1

Built-in fan

No

Input current

2.5 A

Power consumption (max)

13.3 W

Certification

DCC, CE, C-Tick, LVD

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-30 – 70 °C

Operating relative humidity (H-H)

10 – 90%

Storage relative humidity (H-H)

10 – 90%

Width

272 mm

Depth

187 mm

Height

36 mm

Weight

1.4 kg

Package width

427 mm

Package height

247 mm

Package depth

73 mm

Harmonized System (HS) code

85176990
