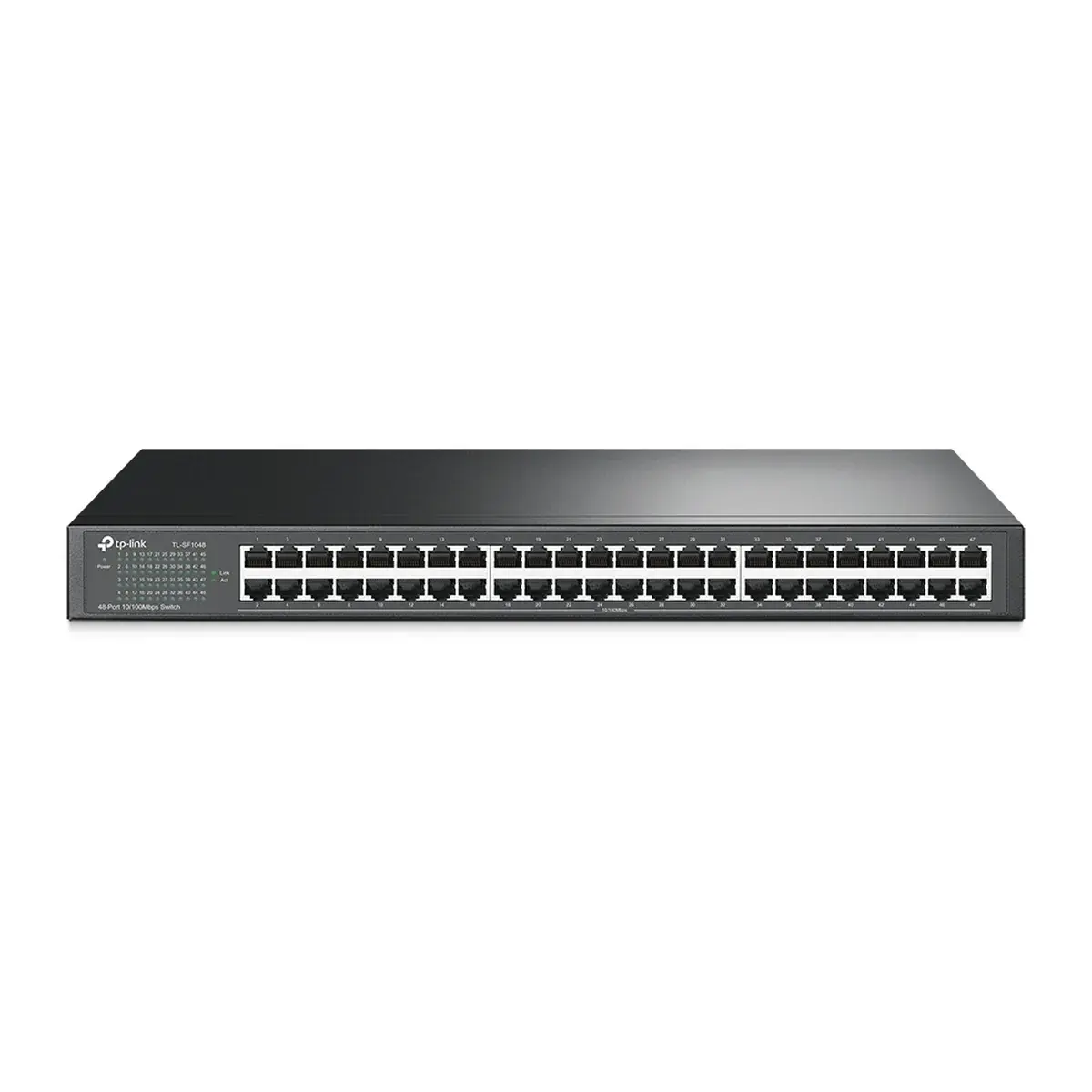

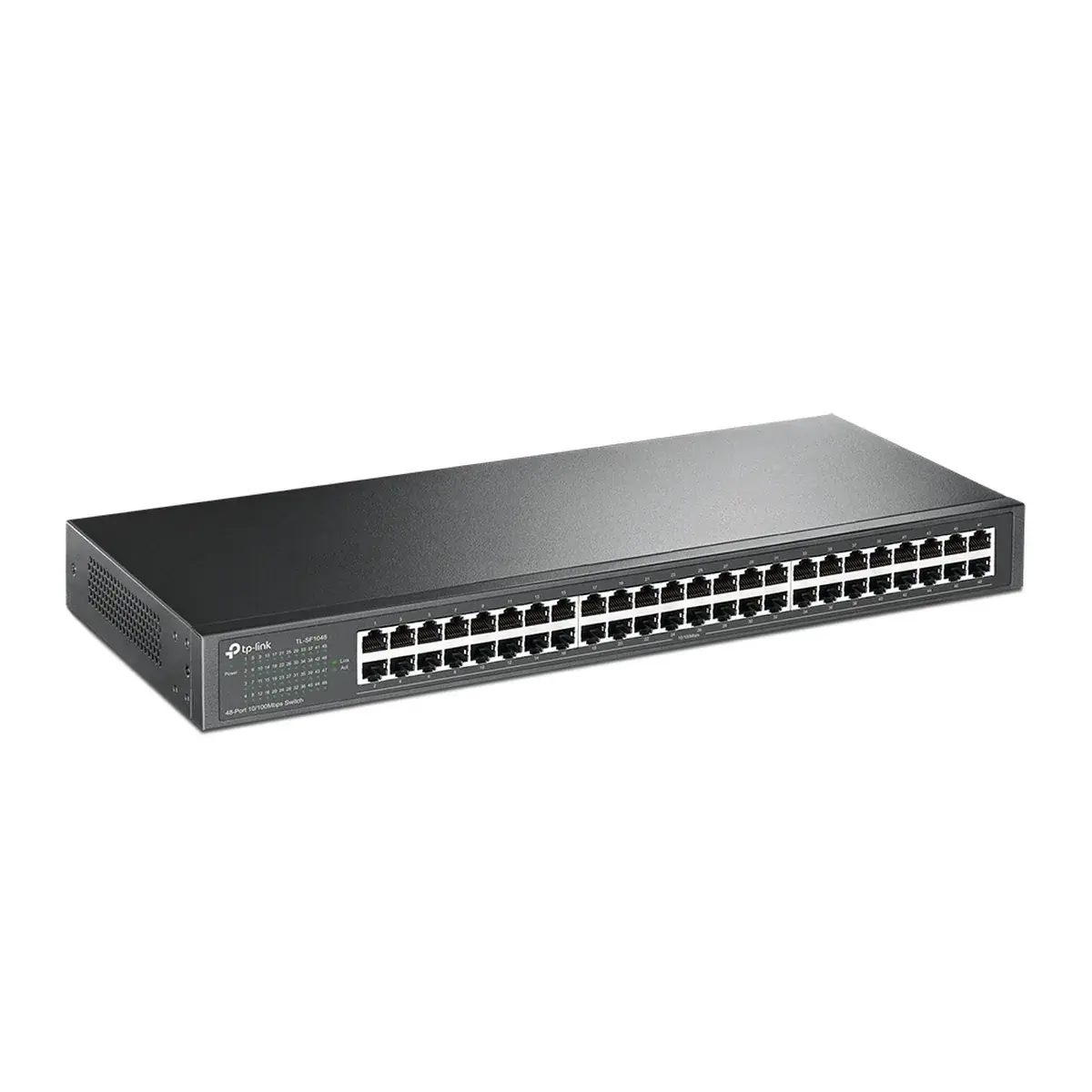

TP-Link 48-Port 10/100Mbps Rackmount Network Switch

The TP-Link TL-SF1048 V7 is an unmanaged network switch designed for rack mounting, featuring 48 RJ-45 Fast Ethernet ports supporting speeds of up to 100 Mbps. It operates within the IEEE standards IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x, ensuring compatibility across various networking environments.

This device has a switching capacity of 9.6 Gbit/s and supports Auto MDI/MDI-X functionality, allowing seamless connectivity through copper cables such as Cat3, Cat5e, Cat4, and Cat5. With its store-and-forward forwarding rate of 7.14 Mpps, it efficiently handles data packets without delays. The switch includes LED indicators for monitoring operational status and comes equipped with a user manual and rack-mounting kit, making setup straightforward.

The TP-Link TL-SF1048 V7 also features fanless operation, reducing noise levels in server rooms, while maintaining high reliability under varying environmental conditions from -40°C to +70°C storage temperature and 0°C to +40°C operating temperatures. Its compact form factor of 1U allows efficient use of space in racks, and it meets stringent safety certifications including FCC, CE, and RoHS, contributing to sustainability efforts.

Technical details

• Model: TP-Link 48-Port 10/100Mbps Rackmount Network Switch
• Colour: Black
• Width: 440 mm
• Depth: 260 mm
• Height: 44 mm
• Package weight: 2.62 kg
• Power source: AC
• sku: TL-SF1048 V7
