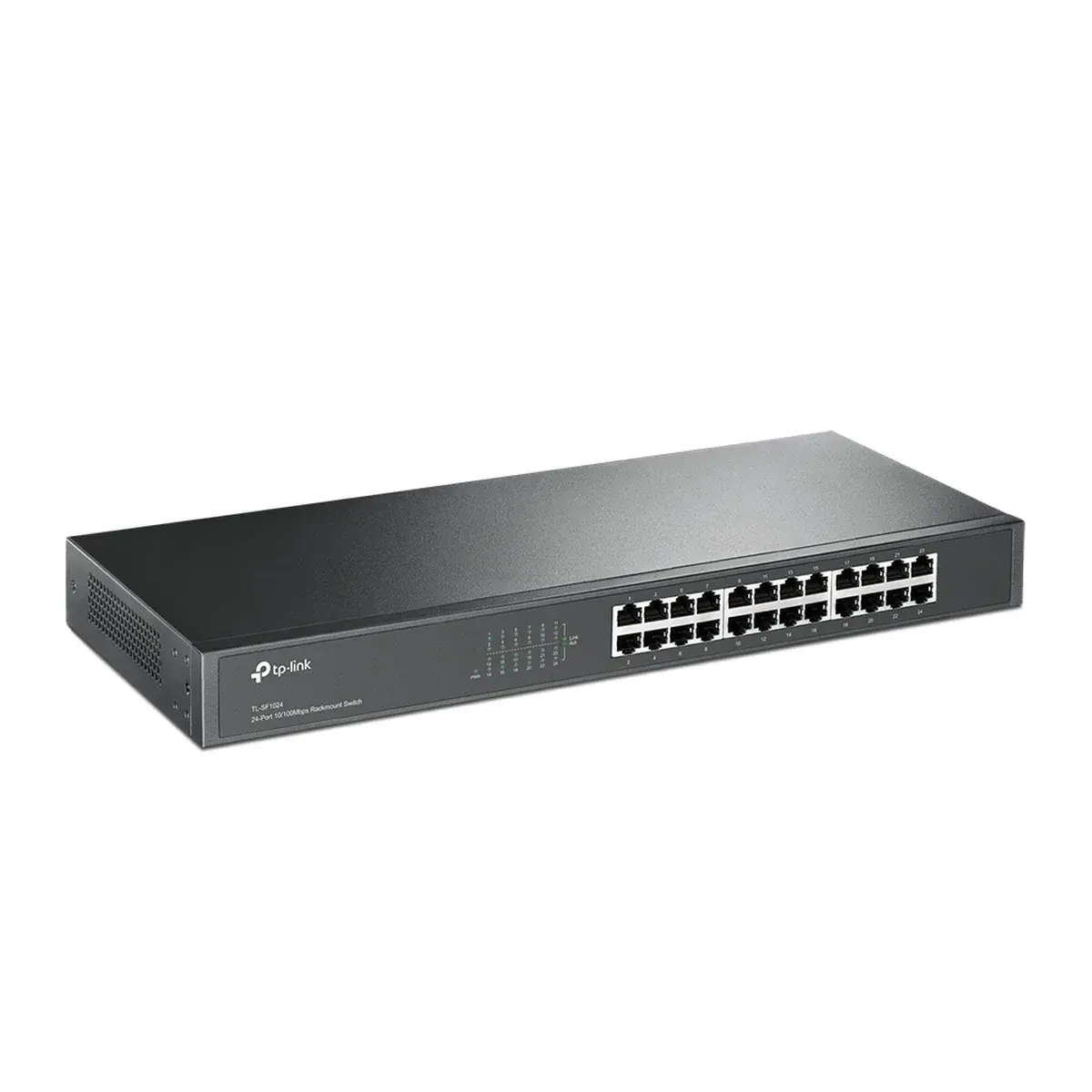

TP-Link 24-Port 10/100Mbps Rackmount Network Switch

The TP-Link TL-SF1024 V9 is an unmanaged network switch designed for rack mounting applications. It features 24 RJ-45 Fast Ethernet ports capable of operating at speeds up to 100 Mbps in both full and half duplex modes. This switch supports IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x standards, ensuring compatibility across various networking environments.

The device has a switching capacity of 4.8 Gbit/s, which allows it to handle multiple data streams efficiently. It includes a MAC address table that can store up to 8000 entries, providing ample room for managing devices connected through this switch. Additionally, the switch offers auto-negotiation capabilities, allowing seamless communication between different types of Ethernet cables such as Cat3, Cat4, Cat5, and Cat5e without manual configuration adjustments.

Powering options are simple; users connect the AC-in jack directly into their power source within the range of 100 – 240 Volts and 50/60 Hz frequency. With its compact size (Width x Depth x Height = 440mm x 180mm x 44mm) and fanless design, the TP-Link TL-SF1024 V9 provides reliable performance while maintaining low heat dissipation levels.

Main specifications

• Model: TP-Link 24-Port 10/100Mbps Rackmount Network Switch
• Colour: Grey
• Width: 440 mm
• Depth: 180 mm
• Height: 44 mm
• Power source: AC
• sku: TL-SF1024 V9
• Switch type: Unmanaged
