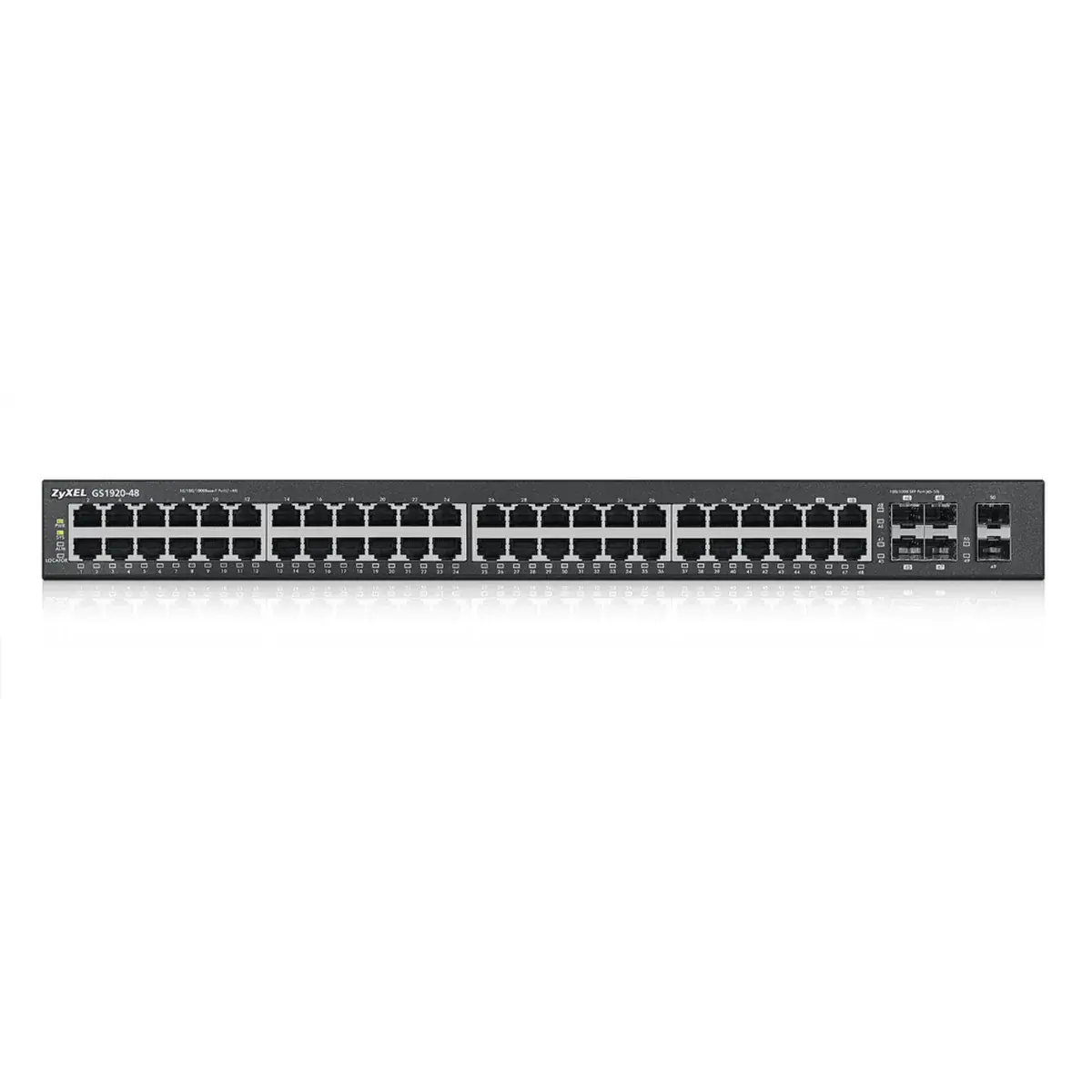

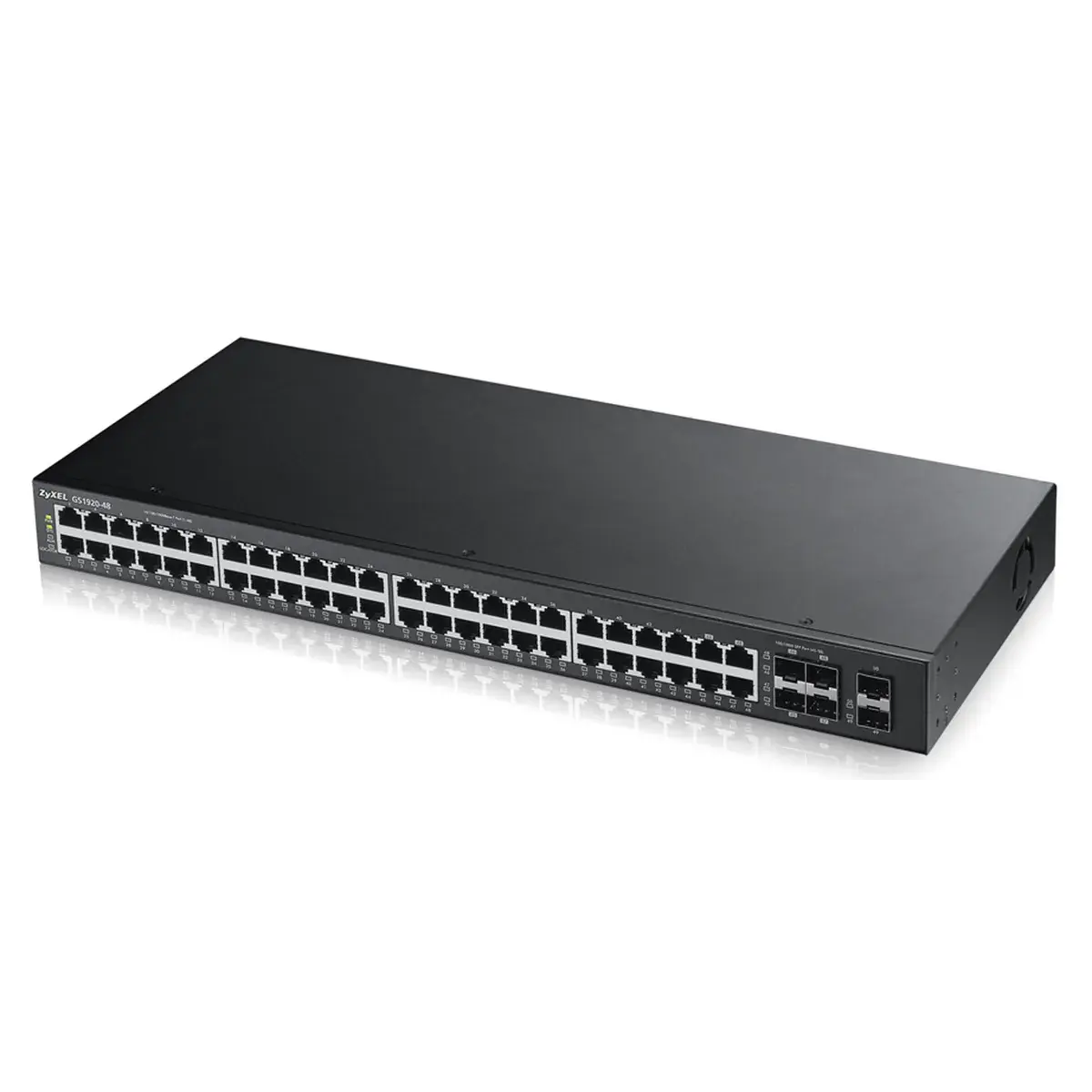

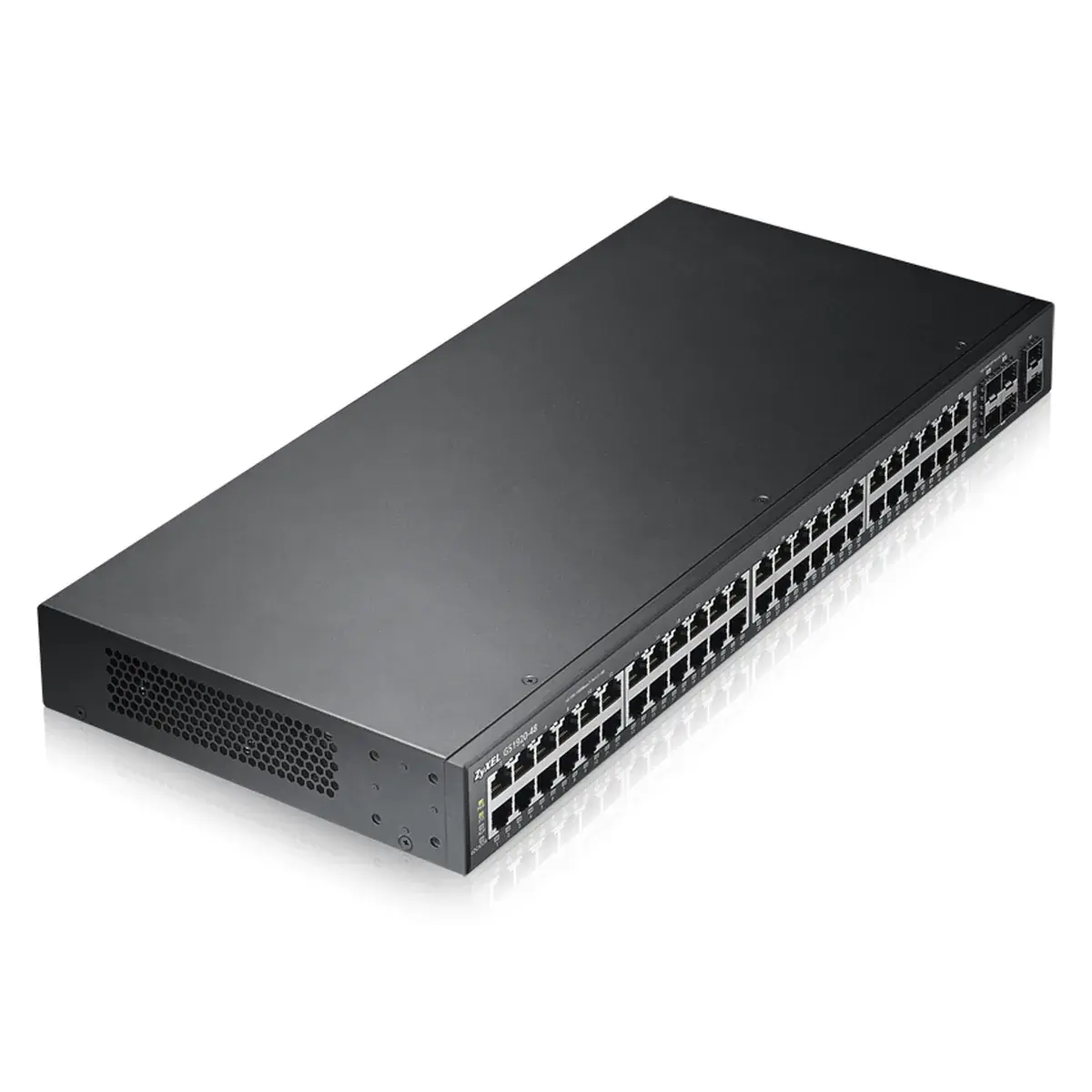

Zyxel GS1920-48 Managed L2 Gigabit Ethernet (10/100/1000) Black

Zyxel GS1920-48, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting

Documentation:

SKU: GS1920-48-EU0101F Category: Brand:

The Zyxel GS1920-48 is an enterprise-grade managed Layer 2 switch designed for high-speed data transmission in network environments. It supports Gigabit Ethernet ports at speeds of 10/100/1000 Mbps, providing robust connectivity across various devices within local networks. With a total of 44 RJ-45 Gigabit Ethernet ports available, this switch offers ample capacity to manage multiple connections efficiently.

The Zyxel GS1920-48 also includes two SFP slots that support gigabit fiber optics, enhancing its capability for long-distance communication over optical fibers. This switch complies with numerous networking standards including IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p Quality of Service (QoS), and IEEE 802.1x Security protocols.

Additionally, it features comprehensive security measures such as SSH and SSL/TLS encryption, ensuring secure access control through Access Control Lists (ACL) and IGMP snooping functionalities. In terms of power management, the switch uses DC input jacks and has a typical power consumption of 40 watts when operating under normal conditions.

Main specifications

  • Model: Zyxel GS1920-48 Managed L2 Gigabit Ethernet (10/100/1000) Black
  • Colour: Black
  • Weight: 3.04 kg
  • Width: 440 mm
  • Depth: 200 mm
  • Height: 44.5 mm
  • Package weight: 4.1 kg
  • Typical power consumption: 40 W

Additional information

Switch type

Managed

Switch layer

L2

Quality of Service (QoS) support

Yes

Web-based management

Yes

Basic switching RJ-45 Ethernet ports quantity

44

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

44

Combo SFP ports quantity

4

SFP module slots quantity

2

Console port

RJ-45

Power connector

DC-in jack

Networking standards

IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Yes

Full duplex

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

VLAN support

Yes

MAC address table

16000 entries

Switching capacity

100 Gbit/s

Throughput

74 Mpps

Jumbo frames support

Yes

DHCP features

DHCP client

Access Control List (ACL)

Yes

IGMP snooping

Yes

Security algorithms

SSH, SSL/TLS

SSH/SSL support

Yes

Multicast support

Yes

Rack mounting

Yes

Product colour

Black

LED indicators

Yes

Safety

LVD, BSMI

Mean time between failures (MTBF)

255580 h

AC input voltage

100 – 240 V

AC input frequency

50 – 60 Hz

Power consumption (typical)

40 W

Power over Ethernet (PoE)

No

Operating temperature (T-T)

0 – 50 °C

Storage temperature (T-T)

-40 – 70 °C

Operating relative humidity (H-H)

10 – 90%

Storage relative humidity (H-H)

10 – 95%

Heat dissipation

136.4 BTU/h

Width

440 mm

Depth

200 mm

Height

44.5 mm

Weight

3.04 kg

Package width

512 mm

Package depth

293 mm

Package height

98 mm

Package weight

4.1 kg

Certification

FCC Part 15, CE EMC, BSMI ENC, RoHS
