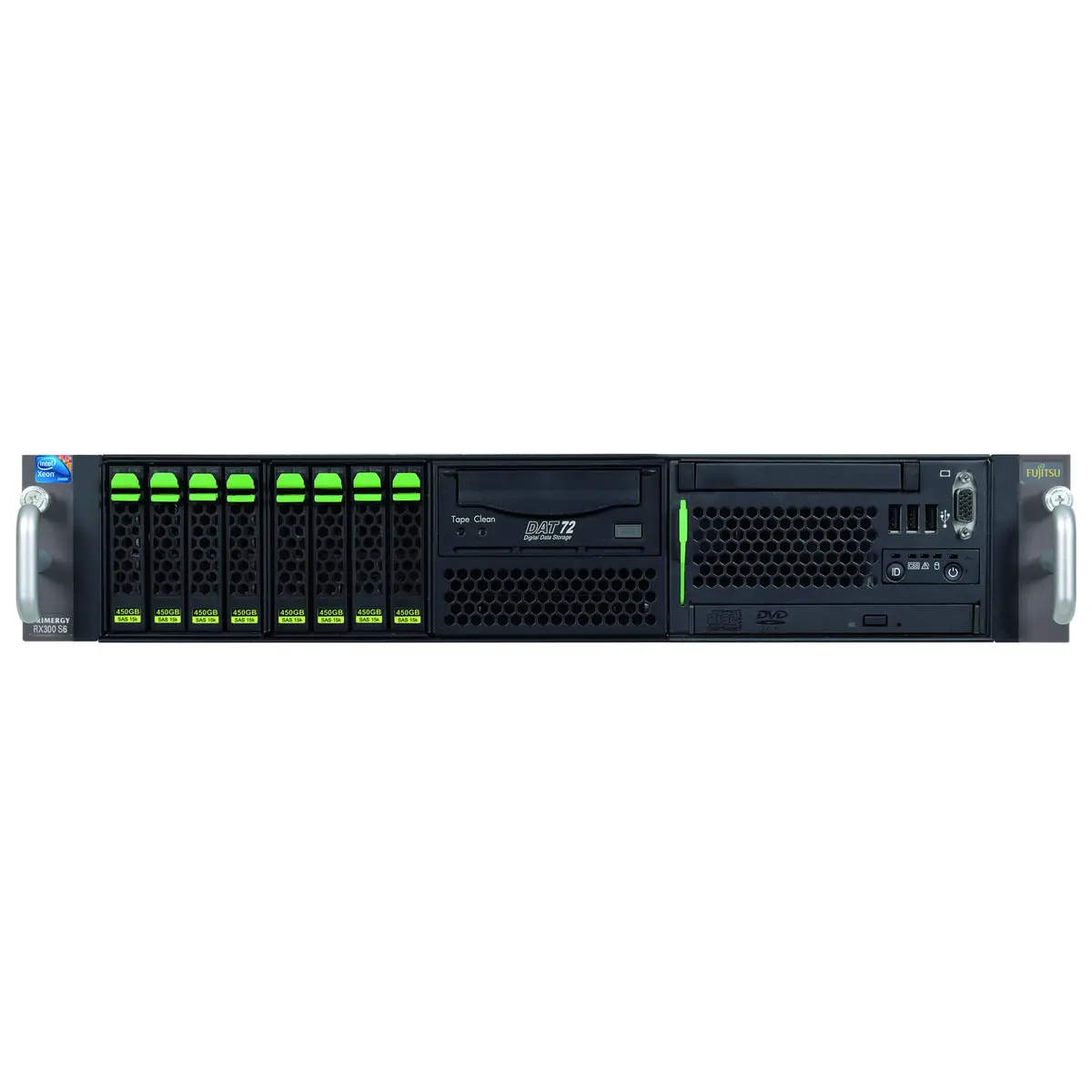

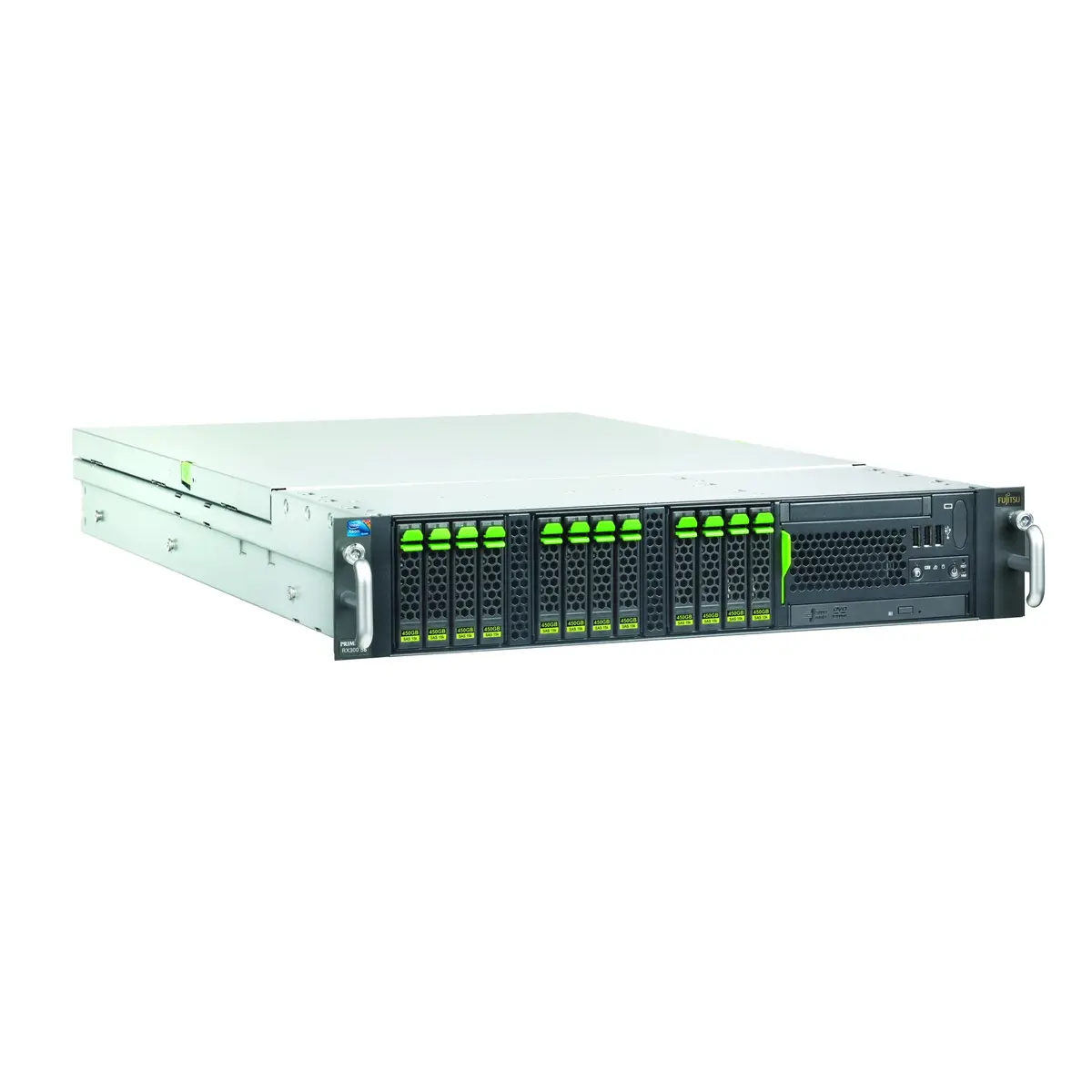

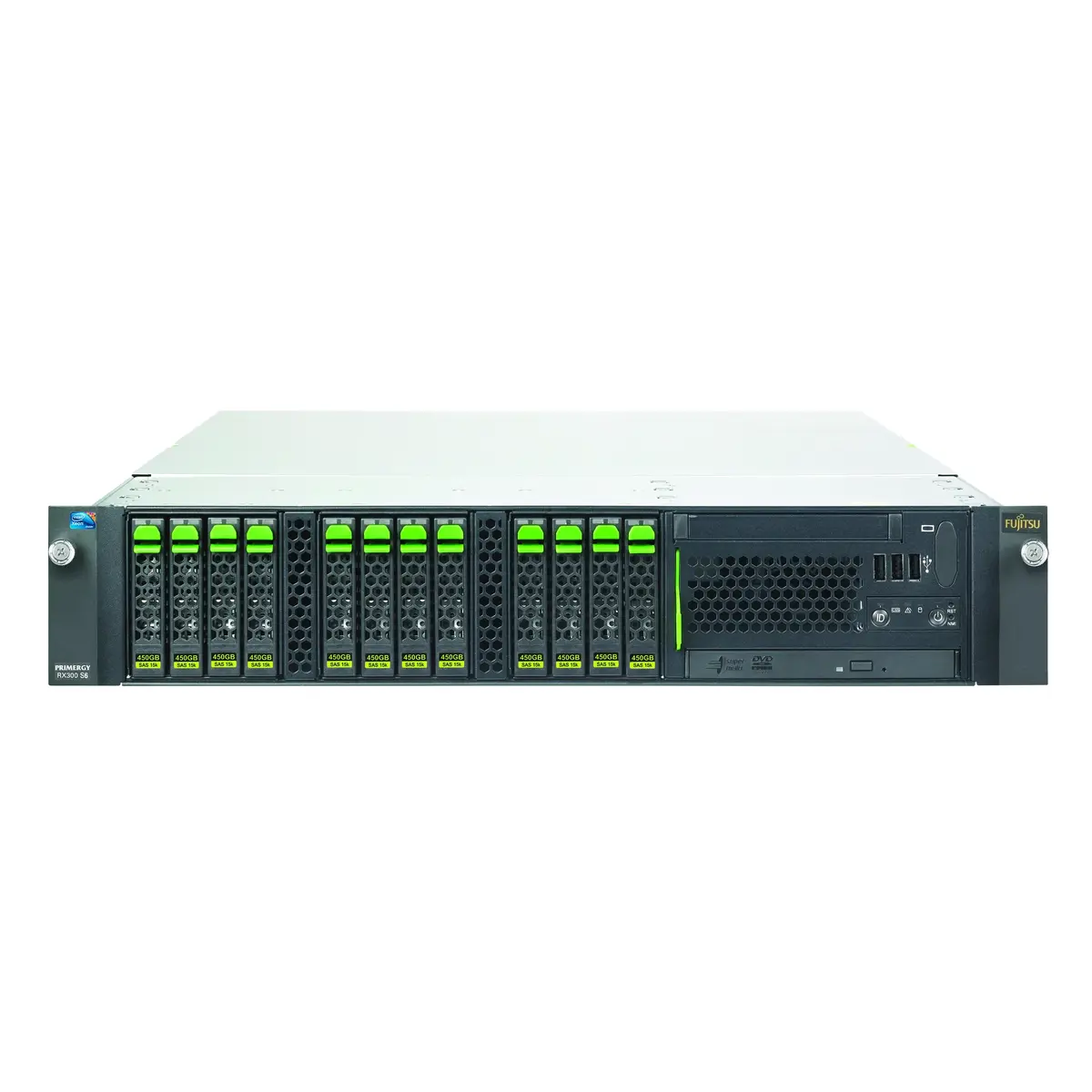

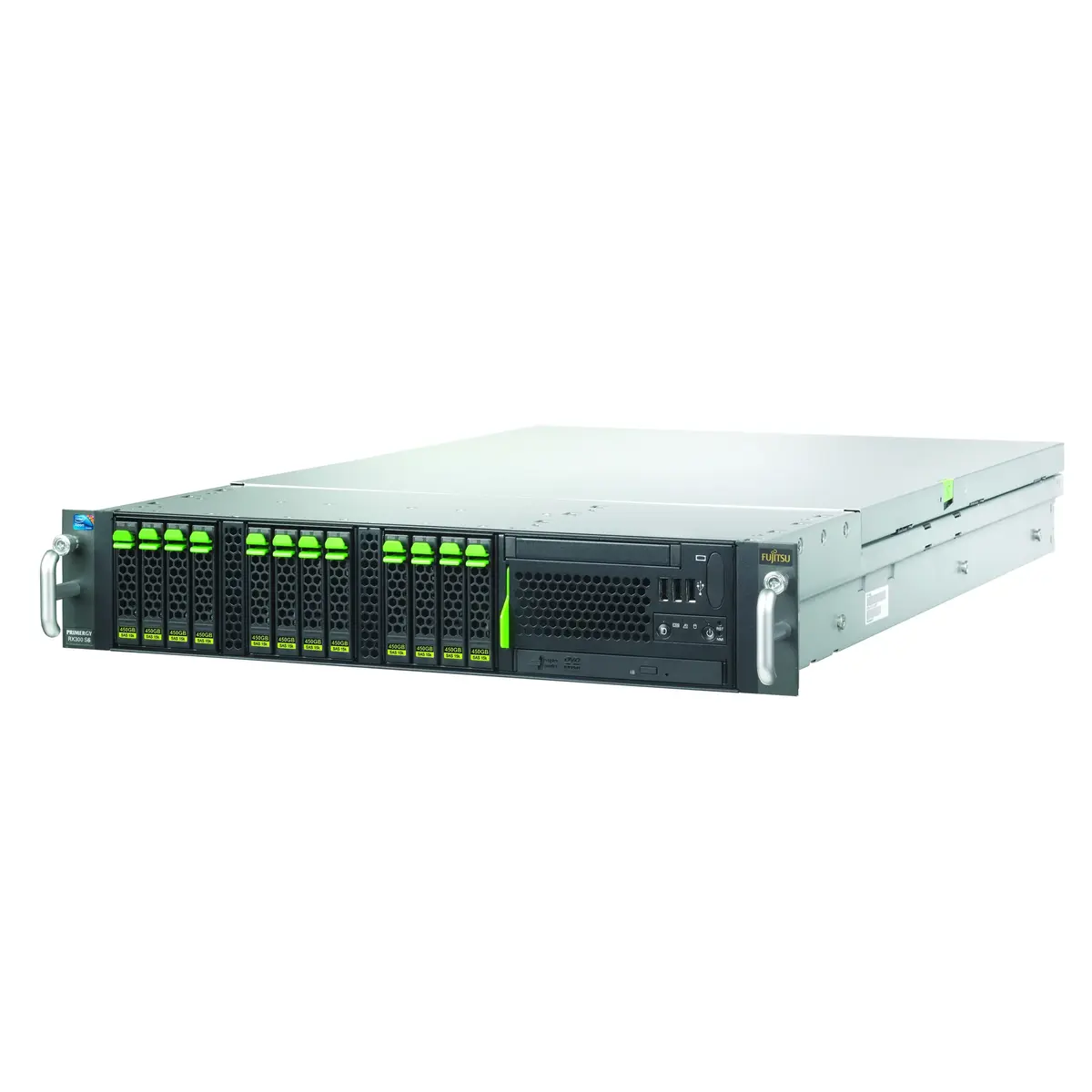

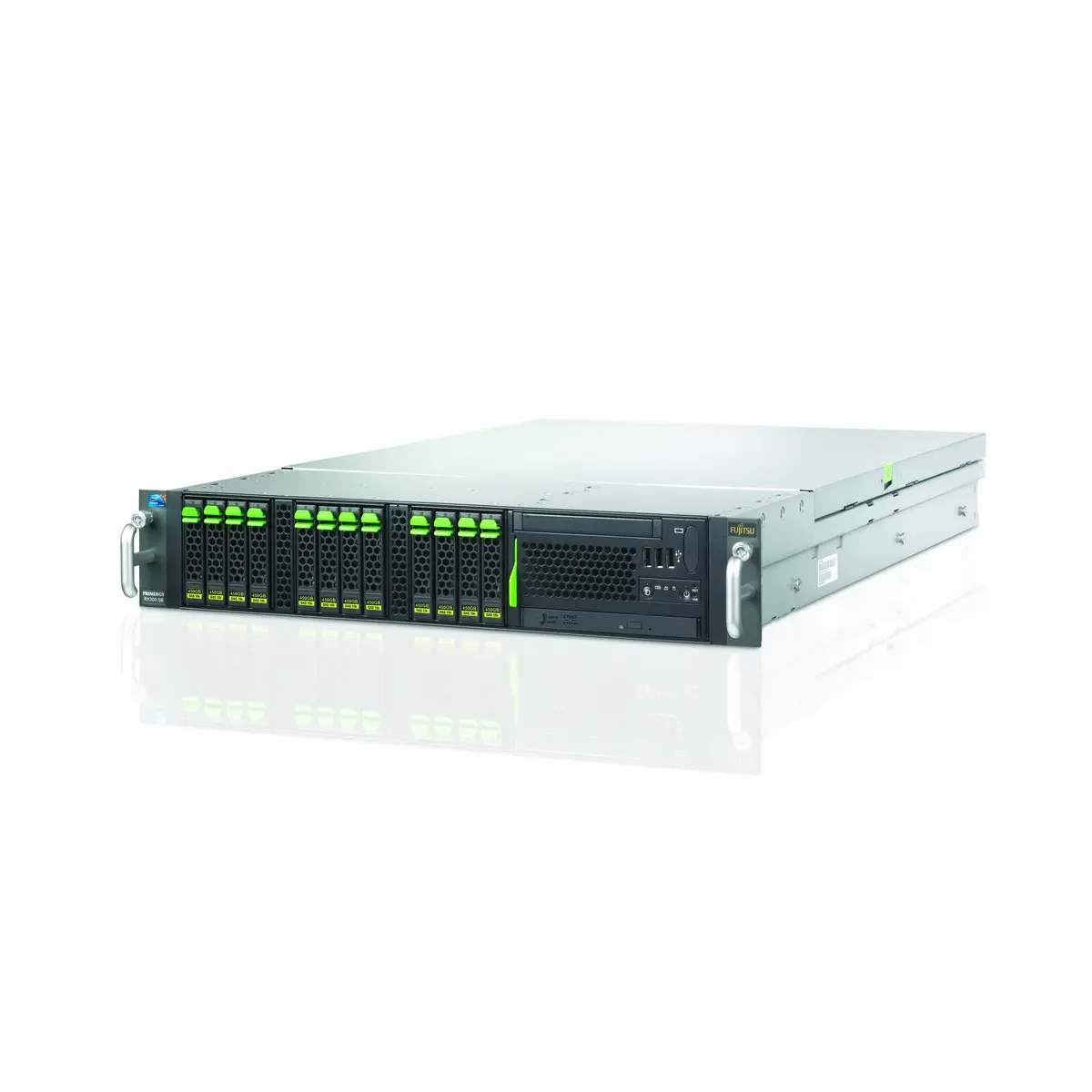

Fujitsu PRIMERGY RX300 S6 server 0 GB Rack (2U) Intel® Xeon® 5000 Sequence E5620 2.4 GHz 4 GB DDR3-SDRAM 800 W

The Fujitsu PRIMERGY RX300 S6 server is equipped with an Intel® Xeon® 5000 Sequence E5620 processor running at 2.4 GHz frequency, featuring a boost up to 2.66 GHz. It supports four cores and has a total of eight threads. The system bus rate operates at 5.86 GT/s, and it uses Smart Cache for improved performance.

The motherboard chipset used in this model is Intel® 5520, supporting three memory channels per processor core. This server can handle up to 288GB of RAM using DDR3-SDRAM modules operating at speeds between 800MHz and 1066MHz. With a maximum supported bandwidth of 25.6GB/s, the processor also includes features like Execute Disable Bit (EDB) and Idle States for energy efficiency.

For storage options, there’s no built-in hard disk space available; however, the server accommodates two 2.5″ drives via the Ethernet LAN port. An internal optical drive slot provides access to media such as DVDs. Powering the unit requires an 800W power supply capable of handling redundant power supply requirements.

Technical details

• Model: Fujitsu PRIMERGY RX300 S6 server 0 GB Rack (2U) Intel® Xeon® 5000 Sequence E5620 2.4 GHz 4 GB DDR3-SDRAM 800 W
• Processor: E5620
• CPU frequency: 2.4 GHz
• sku: VFY:R3006SF010GB
• Processor family: Intel® Xeon® 5000 Sequence
• Processor manufacturer: Intel
• Processor boost frequency: 2.66 GHz
• Processor cores: 4
