Fujitsu PRIMERGY TX150 S6 server 320 GB Tower Intel® Xeon® E3110 3 GHz 1 GB DDR2-SDRAM 350 W

Fujitsu PRIMERGY TX150 S6 server 320 GB Tower Intel® Xeon® E3110 3 GHz 1 GB DDR2-SDRAM 350 W

Next

Fujitsu PRIMERGY RX200 S5 server 146 GB Rack (1U) Intel® Xeon® 5000 Sequence E5504 2 GHz 2 GB DDR3-SDRAM 770 W

Fujitsu PRIMERGY RX200 S5 server 146 GB Rack (1U) Intel® Xeon® 5000 Sequence E5504 2 GHz 2 GB DDR3-SDRAM 770 W

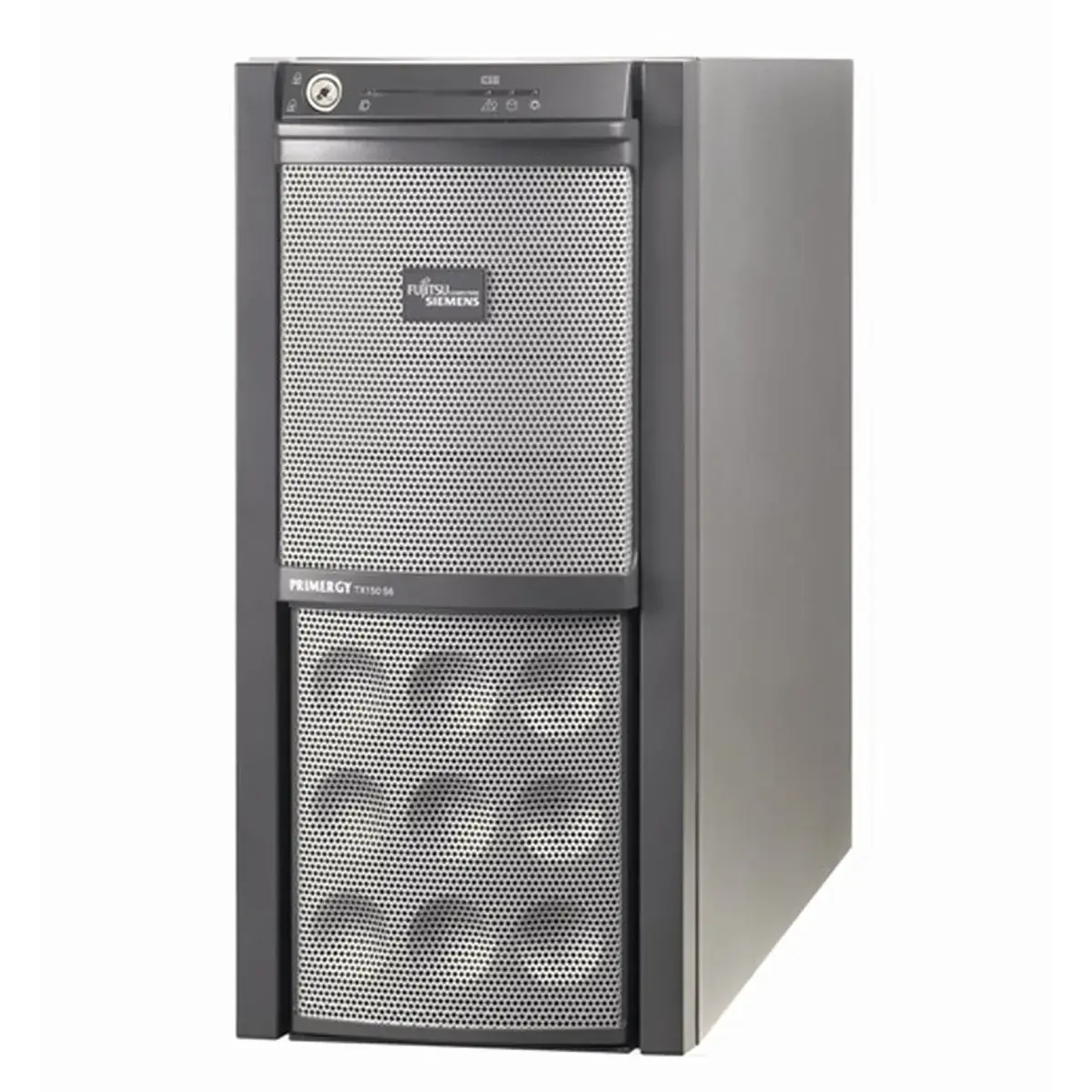

The Fujitsu PRIMERGY TX150 S6 server is equipped with an Intel® Xeon® processor family, specifically model X3220 running at 2.4 GHz frequency. It supports up to 8 GB of DDR2-SDRAM memory in total. This server offers ample storage capacity of 146 GB through its HDD interface, which can be expanded by using additional drives available via hot-swap bays.

Network connectivity includes onboard 10/100/1000 Mbps Ethernet capable of supporting multiple RJ-45 connections, along with various other I/O options such as USB 2.0, PS/2, VGA, serial, and PCIe for enhanced system flexibility. The Fujitsu PRIMERGY TX150 S6 serves as a robust tower chassis designed to handle demanding workloads efficiently while offering expandable storage solutions and versatile networking capabilities.

Its compact design allows it to fit into tight spaces commonly found in data centers or small office environments where space optimization is crucial. With these specifications, users benefit from reliable performance, scalability potential due to support for higher internal memory capacities, and compatibility with essential peripherals necessary for modern computing tasks.

Notable features

  • Model: Fujitsu PRIMERGY TX150 S6 server 146 GB Tower Intel® Xeon® X3220 2.4 GHz 2 GB DDR2-SDRAM
  • Processor: X3220
  • CPU frequency: 2.4 GHz
  • sku: VFY:T1506SF060NL
  • Processor family: Intel® Xeon®
  • Processor manufacturer: Intel
  • Processor cores: 4
  • Processor cache: 8 MB

Additional information

Processor family

Intel® Xeon®

Processor manufacturer

Intel

Processor model

X3220

Processor frequency

2.4 GHz

Processor cores

4

Processor cache

8 MB

Number of processors installed

1

Thermal Design Power (TDP)

105 W

Processor cache type

L2

Processor front side bus

1066 MHz

Processor socket

LGA 775 (Socket T)

Processor lithography

65 nm

Processor threads

4

Processor operating modes

64-bit

Stepping

B3

FSB Parity

No

Bus type

FSB

Processor codename

Kentsfield

Tcase

62.2 °C

ECC supported by processor

No

Execute Disable Bit

Yes

Idle States

Yes

Thermal Monitoring Technologies

Yes

Processor package size

37.5 x 37.5 mm

Processor code

SL9UP

Physical Address Extension (PAE)

32 bit

Embedded options available

No

Number of Processing Die Transistors

582 M

CPU multiplier (bus/core ratio)

9

Processing Die size

286 mm²

Processor series

Intel Xeon 3200 Series

Conflict-Free processor

No

Internal memory

2 GB

Internal memory type

DDR2-SDRAM

Maximum internal memory

8 GB

Memory slots

4

ECC

Yes

Total storage capacity

146 GB

Optical drive type

DVD Super Multi

HDD interface

Serial ATA

Hot-swap

No

Internal drive bays

4 x 3.5" non hot-plug SATA, 4 x 3.5" hot-plug SAS/ SATA, 8 x 2.5" hot-plug SAS, 8 x 2.5" hot-plug SAS, 4 x 3.5" hot-plug SAS/ SATA, 4 x 3.5" hot-plug SAS/ SATA, 8 x 2.5" hot-plug SAS, 8 x 2.5" hot-plug SAS

Networking features

10/100/1000 MBits on-board

Ethernet LAN (RJ-45) ports

1

USB 2.0 ports quantity

8

Supports EPP and ECP

Yes

PS/2 ports quantity

2

VGA (D-Sub) ports quantity

1

Serial ports quantity

2

PCI Express x4 slots

1
