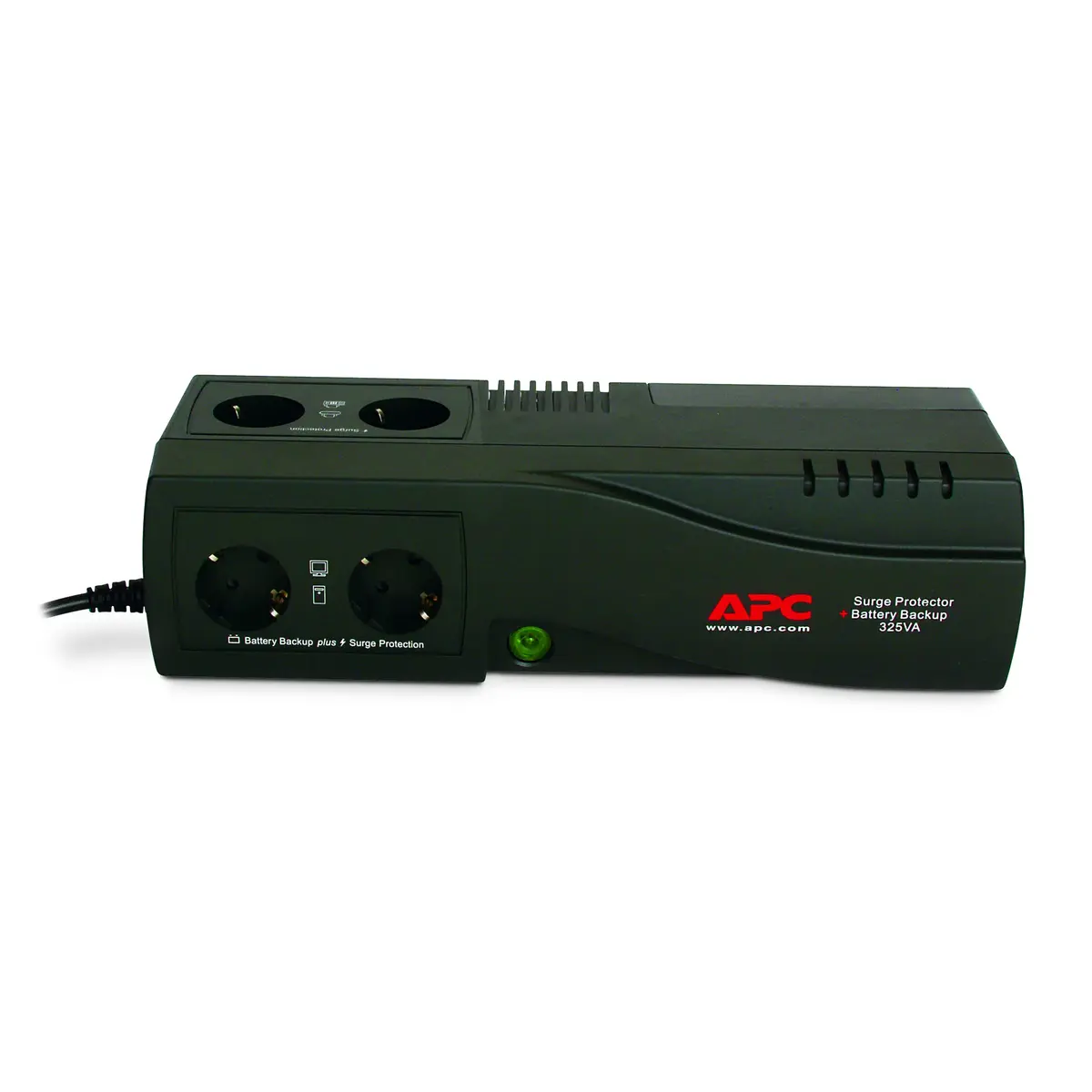

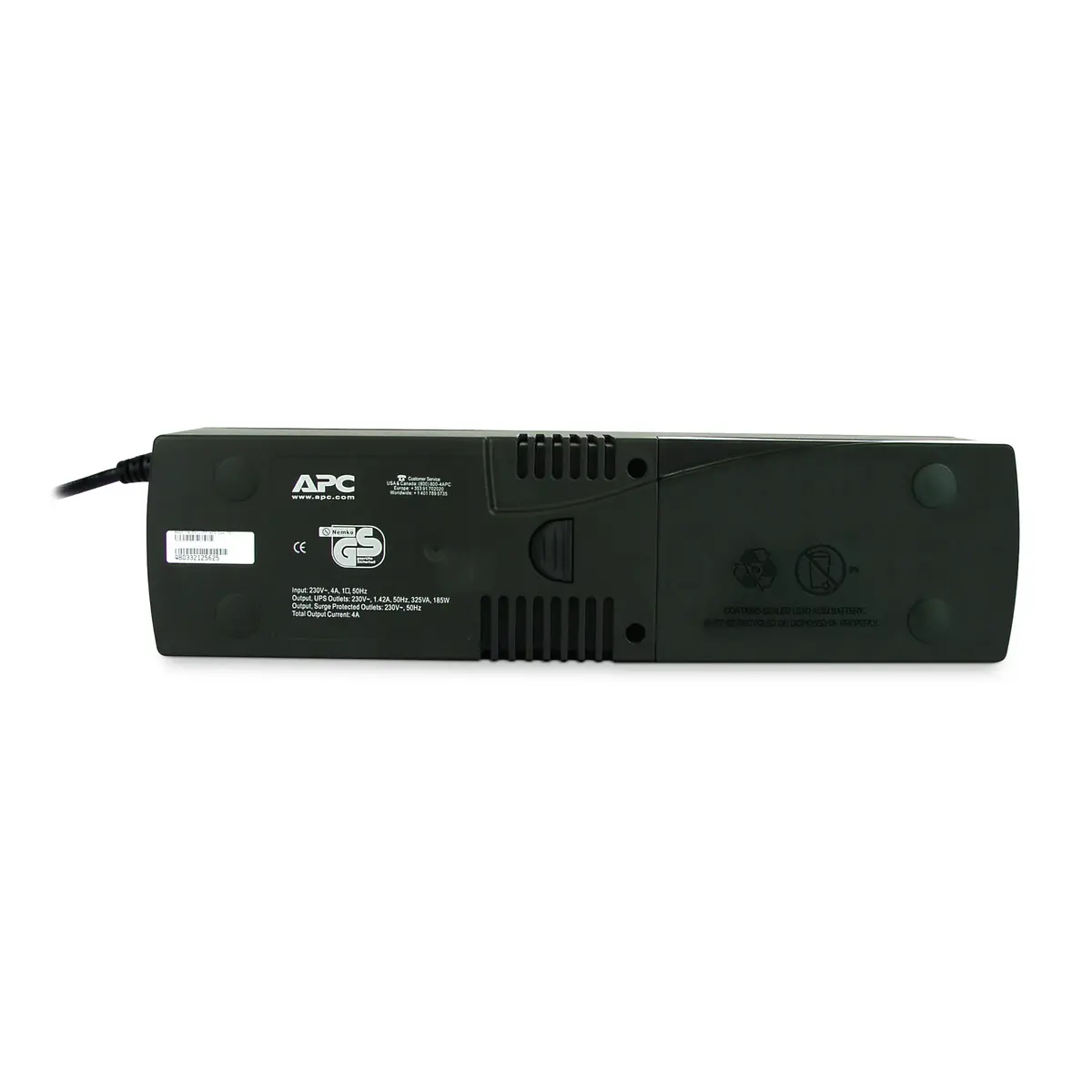

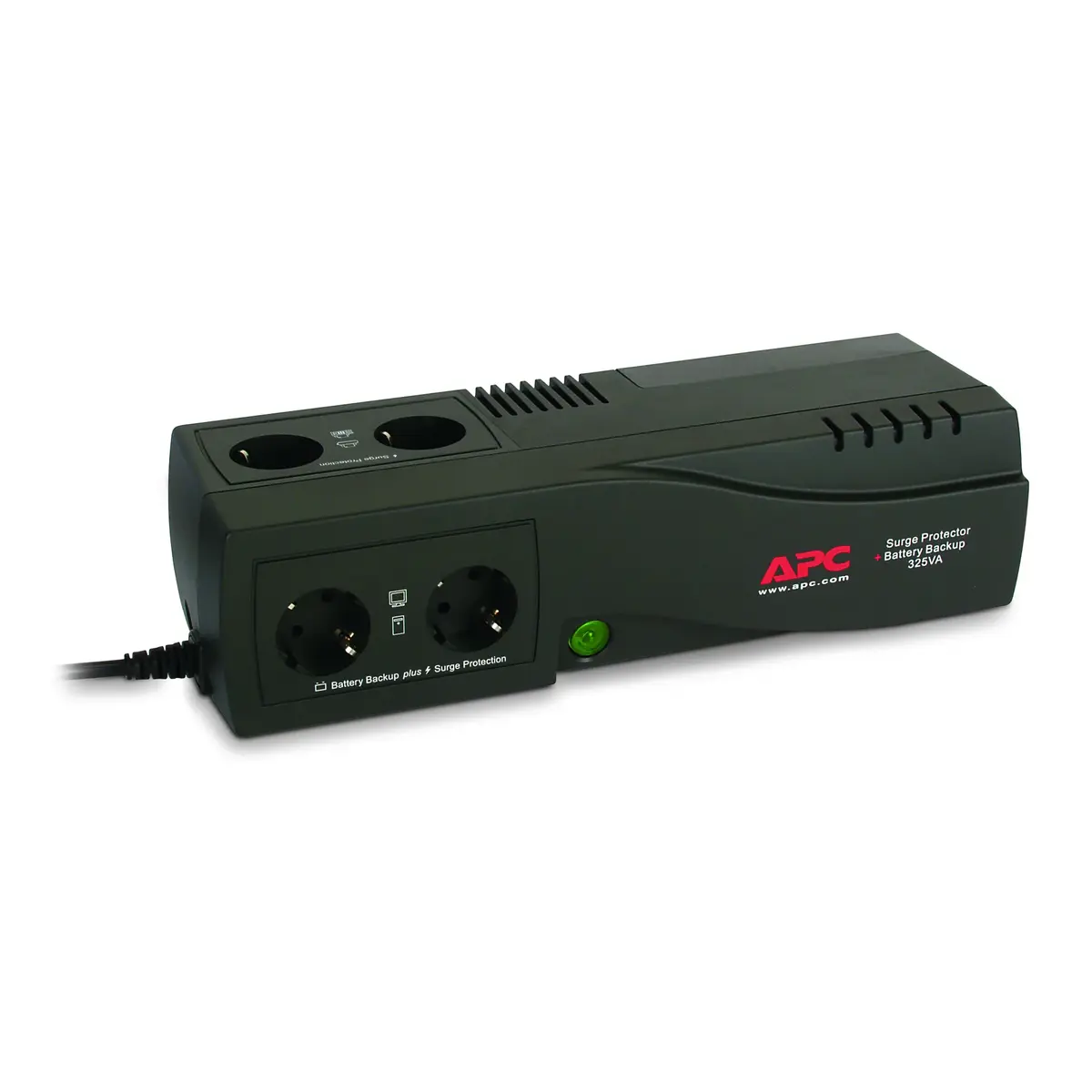

The APC Back-UPS is an uninterruptible power supply designed for standby operation in offline mode, offering a capacity of 0.325 kVA at 185 W output power. It features a sealed lead acid (VRLA) battery system capable of providing up to 43 VAh of energy storage, which can support full load operations for approximately one minute before needing recharge, though it can sustain half-load conditions for around six minutes longer.

The UPS supports Type F AC outlets and includes four outputs suitable for various devices. With a compact form factor measuring 360 x 95 x 115 millimeters, this unit weighs 4 kilograms when fully assembled but reduces to just 4.6 kilograms packed into its outer case. Designed for use within operating temperatures ranging from -15°C to 45°C and relative humidity levels between 5% and 95%, it’s also compatible with altitudes up to 3000 meters while maintaining performance down to 15000 meters without operational issues.

Certifications such as RoHS compliance ensure environmental safety standards are met; additional certifications like PEP, EOLI, CE, EN 50091-1, EN 50091-2, GS Mark, NEMKO validate quality assurance across multiple regions. This product comes equipped with LED indicators for status monitoring and offers surge protection against common threats including DSL, Fax, and Modem signals, enhancing overall reliability during critical moments requiring uninterrupted power access.

Product highlights

  • Model: APC Back-UPS uninterruptible power supply (UPS) Standby (Offline) 0.325 kVA 185 W
  • Colour: Black
  • Weight: 4 kg
  • Width: 360 mm
  • Depth: 95 mm
  • Height: 115 mm
  • Package weight: 4.6 kg
  • Frequency: 50 Hz

Additional information

UPS topology

Standby (Offline)

Output power capacity

0.325 kVA

Output power

185 W

Waveform

Sine

Input frequency

50 Hz

Output frequency regulation

47 – 63 Hz

Maximum current

4 A

Surge energy rating

310 J

Hold time (min)

4 ms

Hold time (max)

8 ms

Efficiency

95.5%

Noise level

45 dB

Surge protection

Yes

Surge protection features

Digital Subscriber Line (DSL), Fax, Modem

Audible alarm(s)

Yes

AC outlet types

Type F

Number of type F outputs

4

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

43 VAh

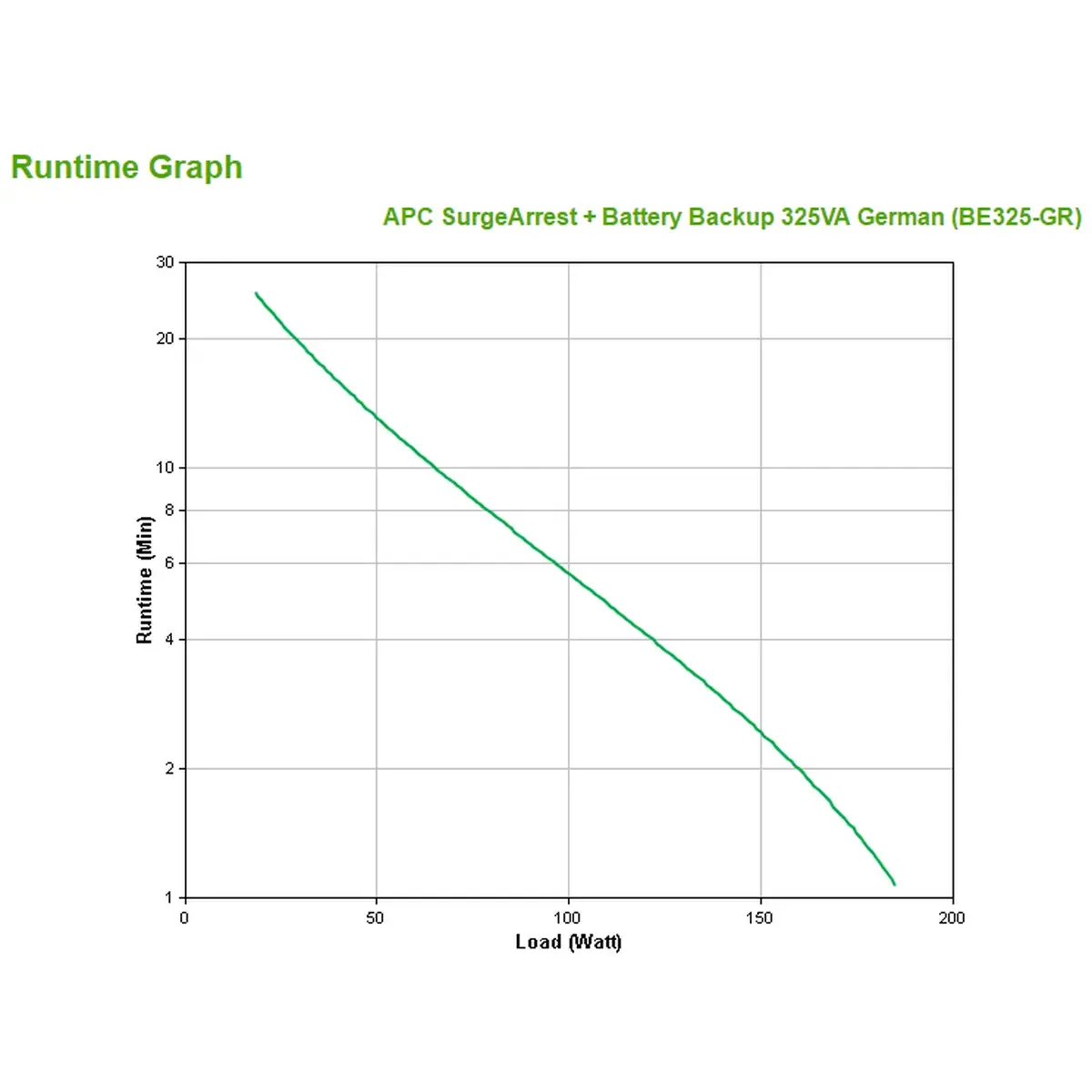

Typical backup time at full load

1.1 min

Typical backup time at half load

6.5 min

Battery life (max)

5 year(s)

Battery recharge time

24 h

Automatic battery test

Yes

Form factor

Compact

Product colour

Black

Cable length

1.83 m

LED indicators

Status

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-15 – 45 °C

Operating relative humidity (H-H)

5 – 95%

Storage relative humidity (H-H)

5 – 95%

Operating altitude

0 – 3000 m

Non-operating altitude

0 – 15000 m

Compliance certificates

RoHS

Certification

PEP, EOLI, CE, EN 50091-1, EN 50091-2, GS Mark, NEMKO

Manual

Yes

Width

360 mm

Depth

95 mm

Height

115 mm

Weight

4 kg

Package width

465 mm

Package depth

116 mm

Package height

153 mm

Package weight

4.6 kg

Products per pallet

64 pc(s)

Harmonized System (HS) code

85078000

Products per master (outer) case

1 pc(s)
