StarTech.com VGA Video Extender over Cat5 / UTP. Type: AV transmitter & receiver, Maximum resolution: 1600 x 1200 pixels, Cable types supported: Cat5, Cat5e. Connectivity technology: Wired. AC input voltage: 100 – 240 V, Input current: 0.2 A, Output current: 0.6 A. Package width: 20 mm, Package depth: 125 mm, Package height: 223 mm. Master (outer) case width: 514 mm, Master (outer) case length: 408 mm, Master (outer) case height: 320 mm

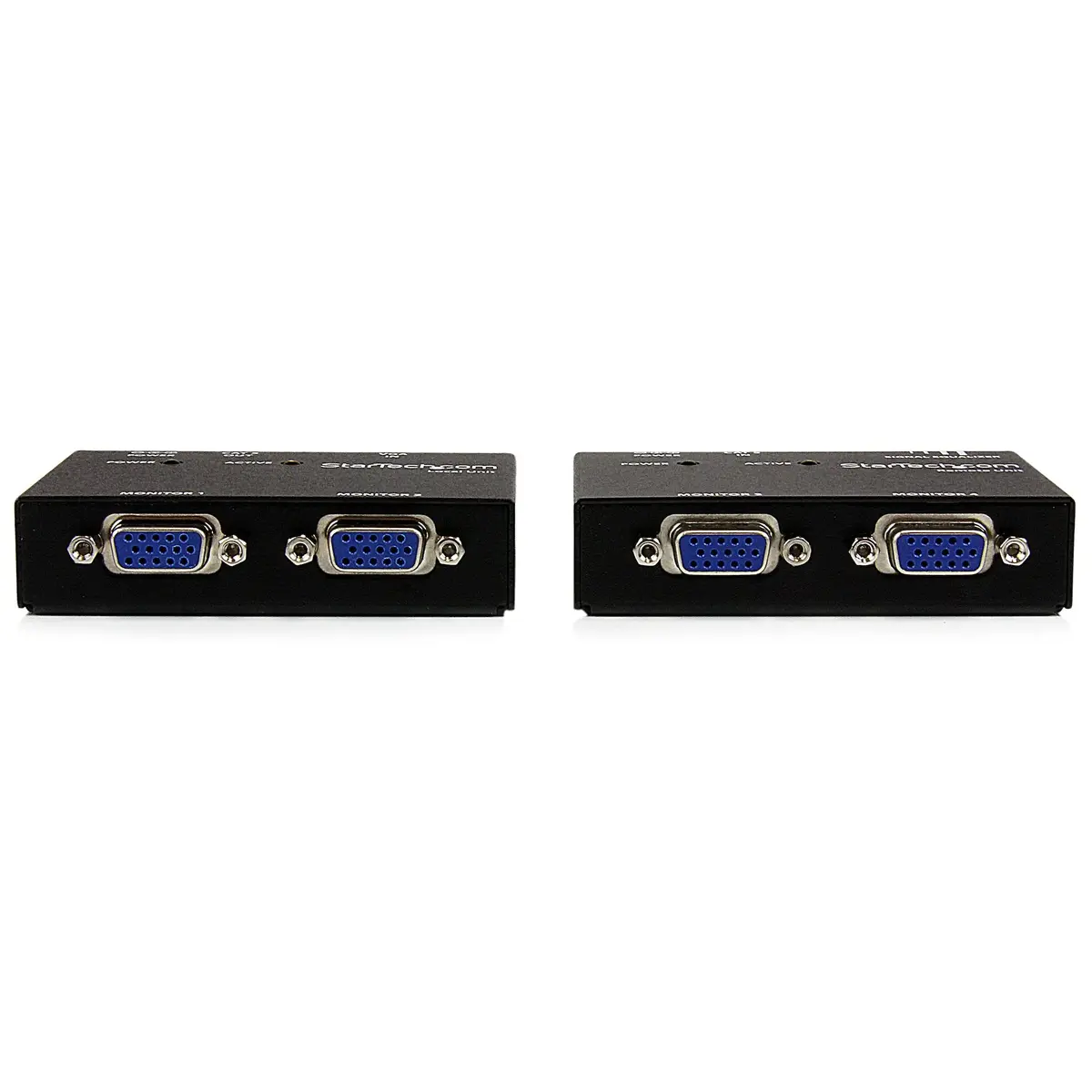

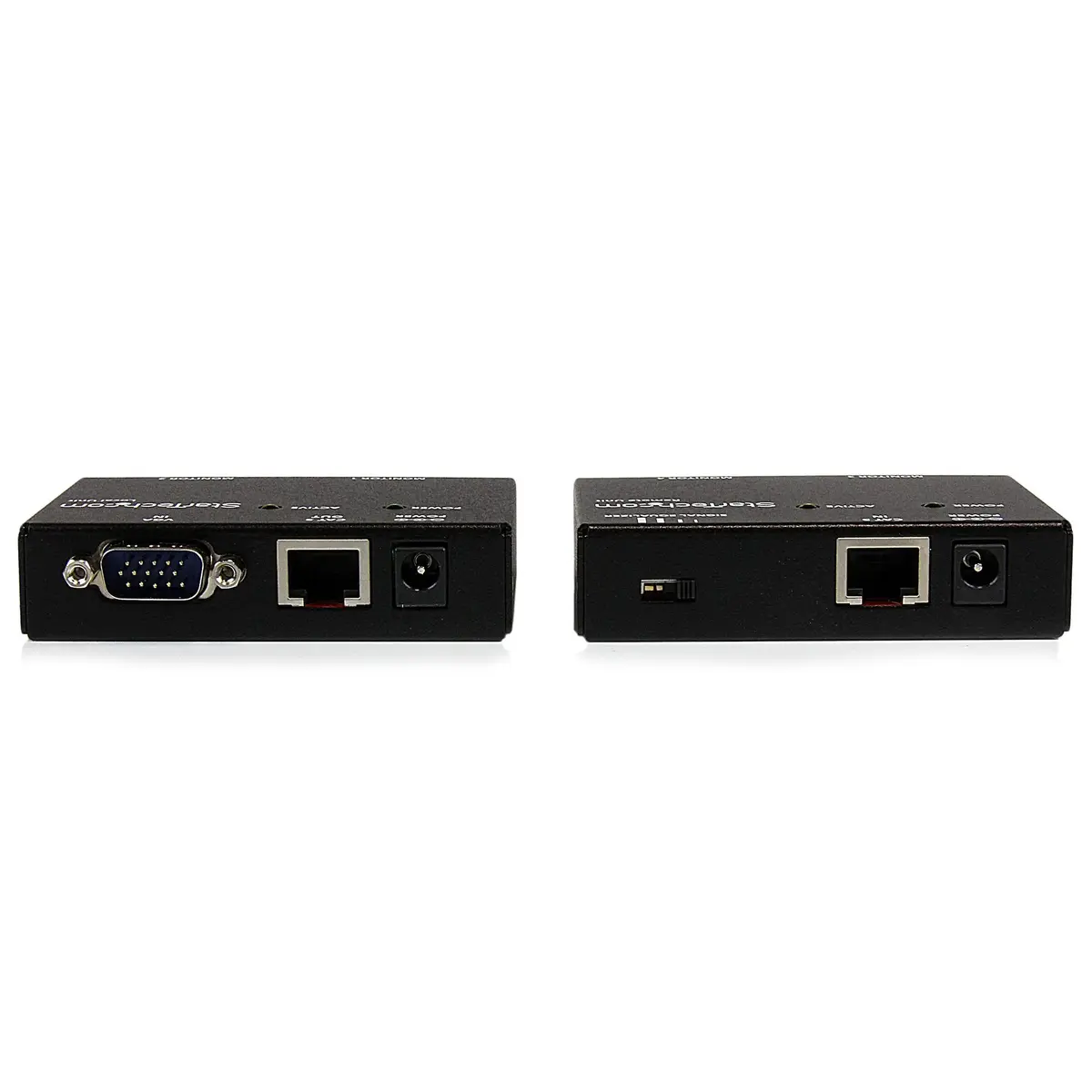

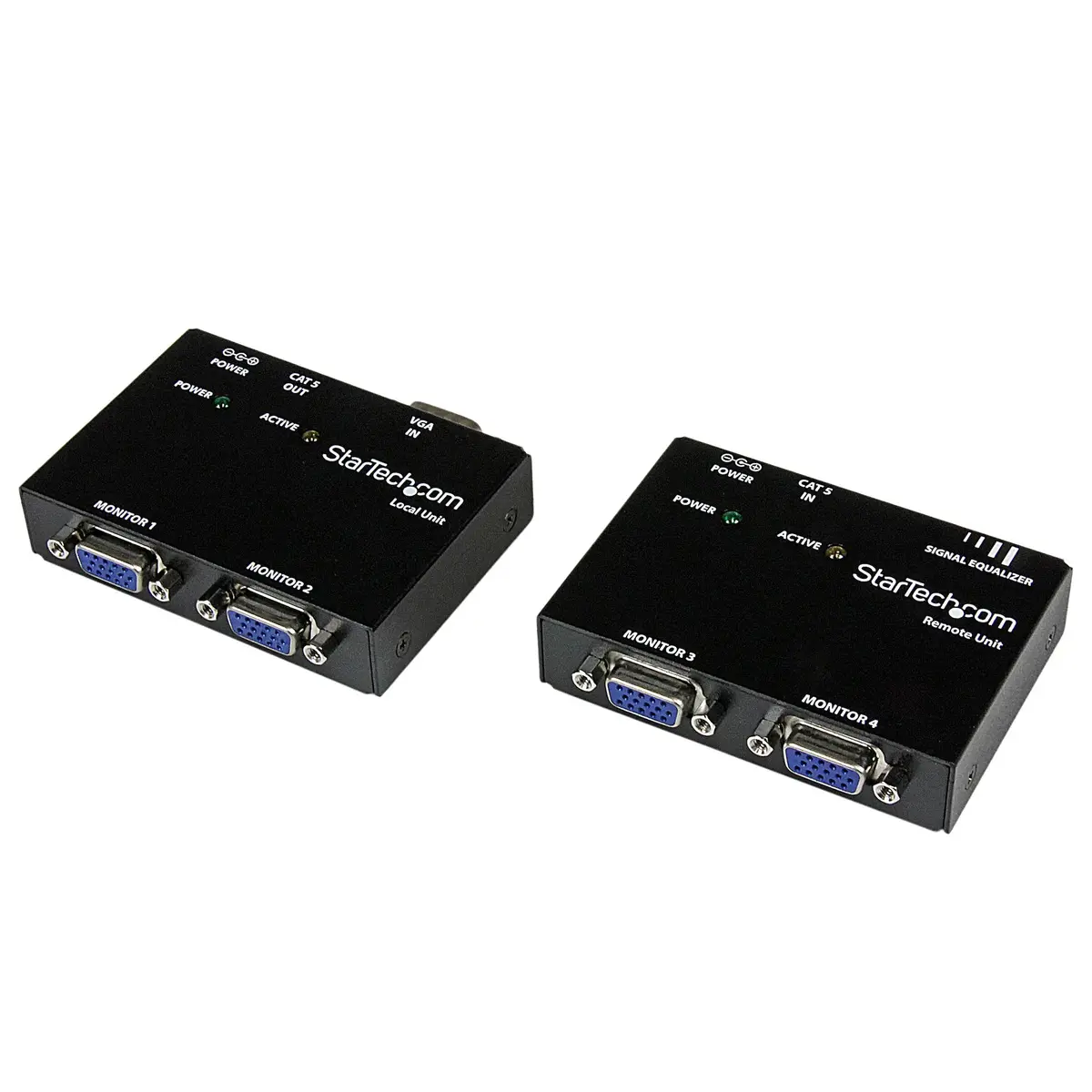

StarTech.com VGA Video Extender over Cat5 / UTP
StarTech.com VGA Video Extender over Cat5 / UTP, 1600 x 1200 pixels, AV transmitter & receiver, 150 m, Wired, Black
Documentation:
Additional information
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 1600 x 1200 pixels |
| Cable types supported | Cat5, Cat5e |
| Maximum transfer distance | 150 m |
| Maximum refresh rate | 85 Hz |
| Bandwidth | 212 MHz |
| Material | Aluminium |
| Daisy chain | No |
| Rubber feet | Yes |
| Product colour | Black |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 4 |
| AC input voltage | 100 – 240 V |
| Input current | 0.2 A |
| Output current | 0.6 A |
| Power consumption (typical) | 5.4 W |
| Power plug type | Type M |
| Package width | 20 mm |
| Package depth | 125 mm |
| Package height | 223 mm |
| Package weight | 1.66 kg |
| AC adapter included | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| Compliance certificates | CE, RoHS |
| Master (outer) case width | 514 mm |
| Master (outer) case length | 408 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 150 pc(s) |
