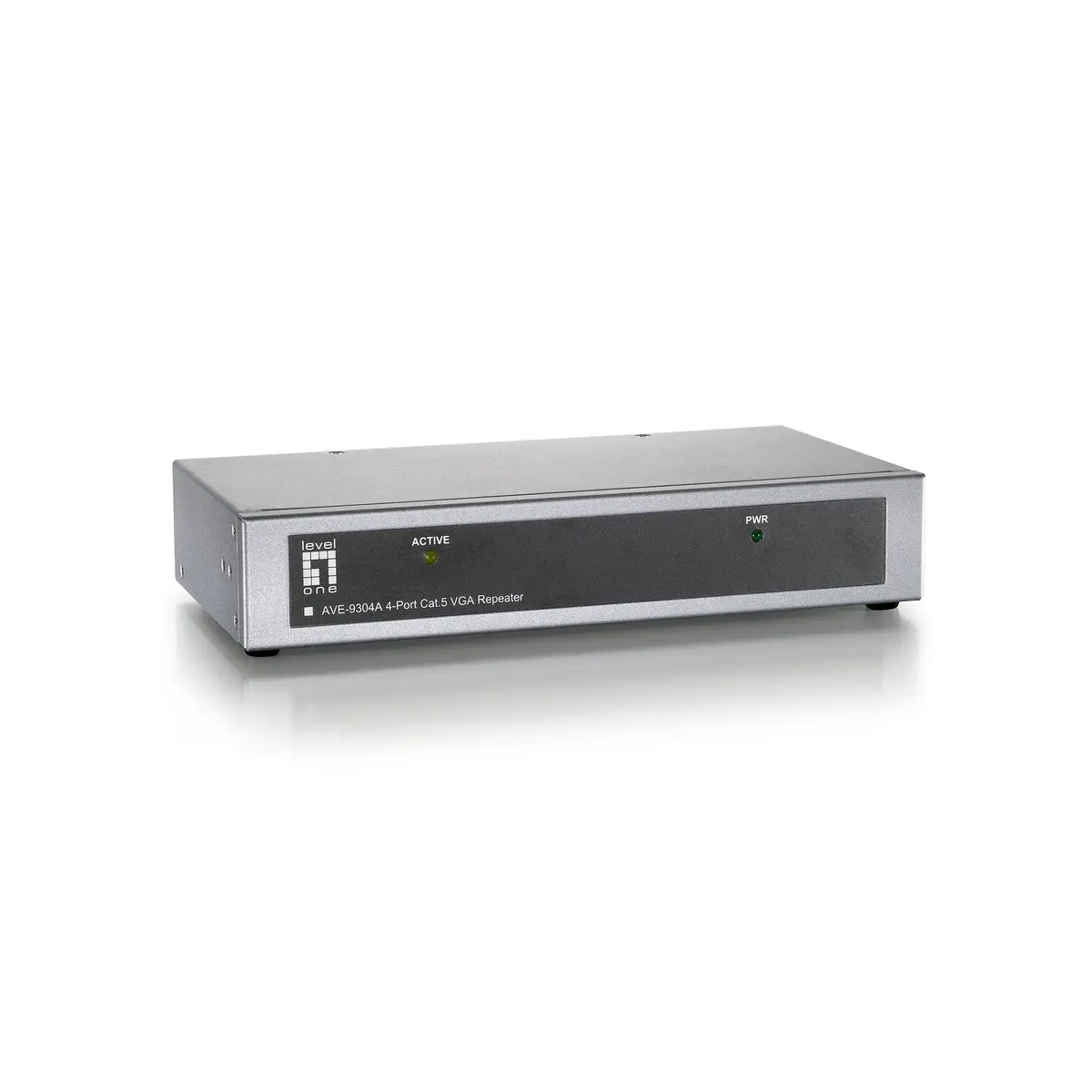

LevelOne 4-Port Cat.5 VGA Repeater

The LevelOne 4-Port Cat.5 VGA Repeater is an essential component for extending video signals over long distances without degradation in quality. It supports resolutions up to 2048 x 1536 pixels, making it suitable for high-definition applications such as presentations and professional displays.

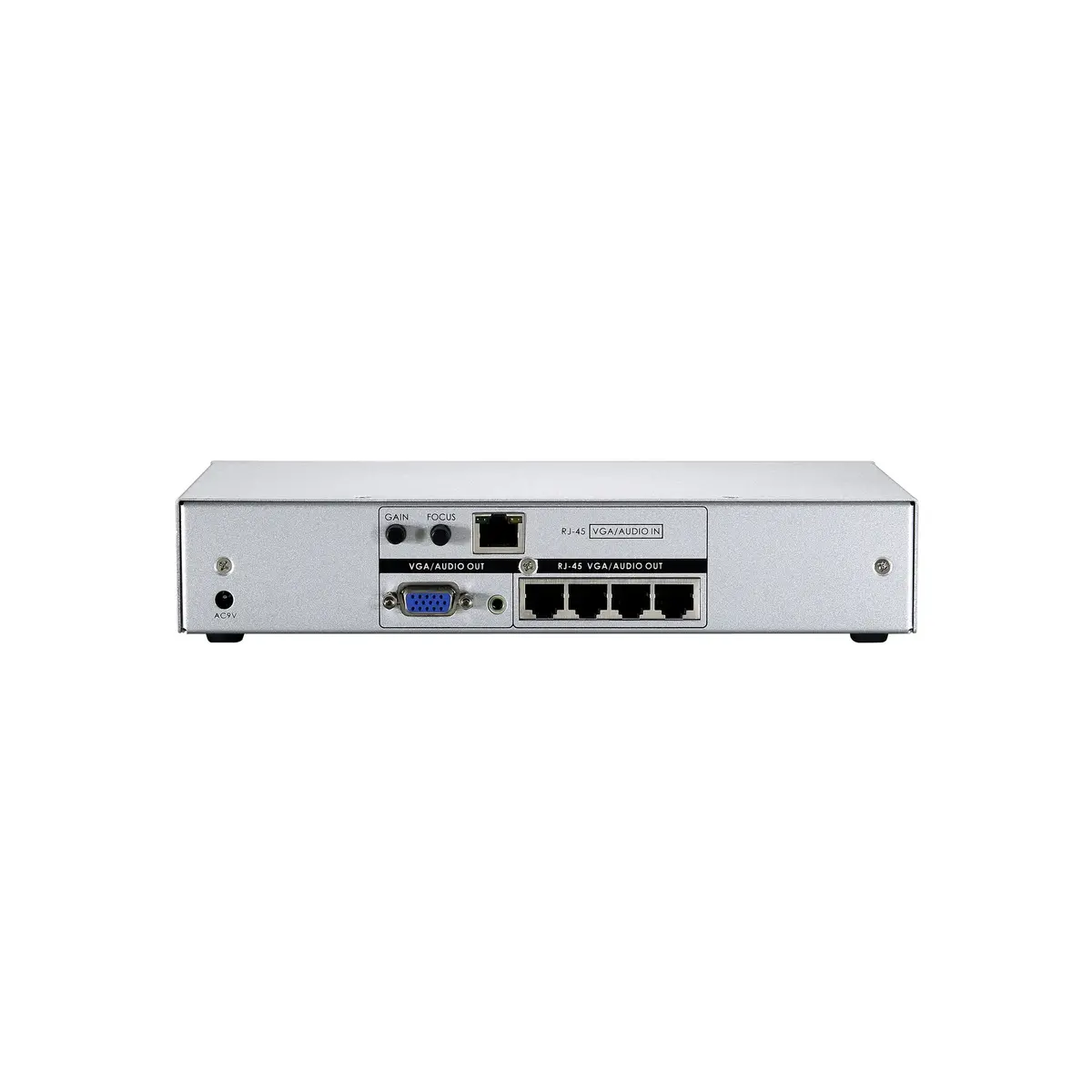

The repeater features four RJ-45 input/output ports and one D-sub VGA port, allowing multiple devices to be connected simultaneously. With support for both Cat5 and higher standards like Cat6 and Cat7 cables, this product ensures compatibility across various networking infrastructures. Operated at 5V DC power supply, it draws approximately 2A current during operation, providing reliable performance under normal conditions within specified operating temperatures ranging from -20°C to +50°C.

For added convenience, built-in LED indicators provide visual confirmation of activity status and power levels. Its compact design measures 240mm wide by 130mm deep by 144mm tall when mounted on a standard rack, while its packaging dimensions are slightly larger at 195mm wide, 85mm deep, and 370mm high.

Essential specs

• Model: LevelOne 4-Port Cat.5 VGA Repeater
• Colour: Black, Silver
• Dimensions (W×D×H): 240 x 130 x 144 mm
• Package weight: 2.18 kg
• Current: 2 A
• sku: AVE-9304A
• Type: AV repeater
• Maximum resolution: 2048 x 1536 pixels
