StarTech.com Newer version available USB2002EXT2NA: 2 Port USB 2.0 over Cat5 or Cat6 Extender Kit – Locally or Remotely Powered – 330 ft (100 m) – USB Extender – USB to Ethernet

StarTech.com Newer version available USB2002EXT2NA: 2 Port USB 2.0 over Cat5 or Cat6 Extender Kit – Locally or Remotely Powered – 330 ft (100 m) – USB Extender – USB to Ethernet

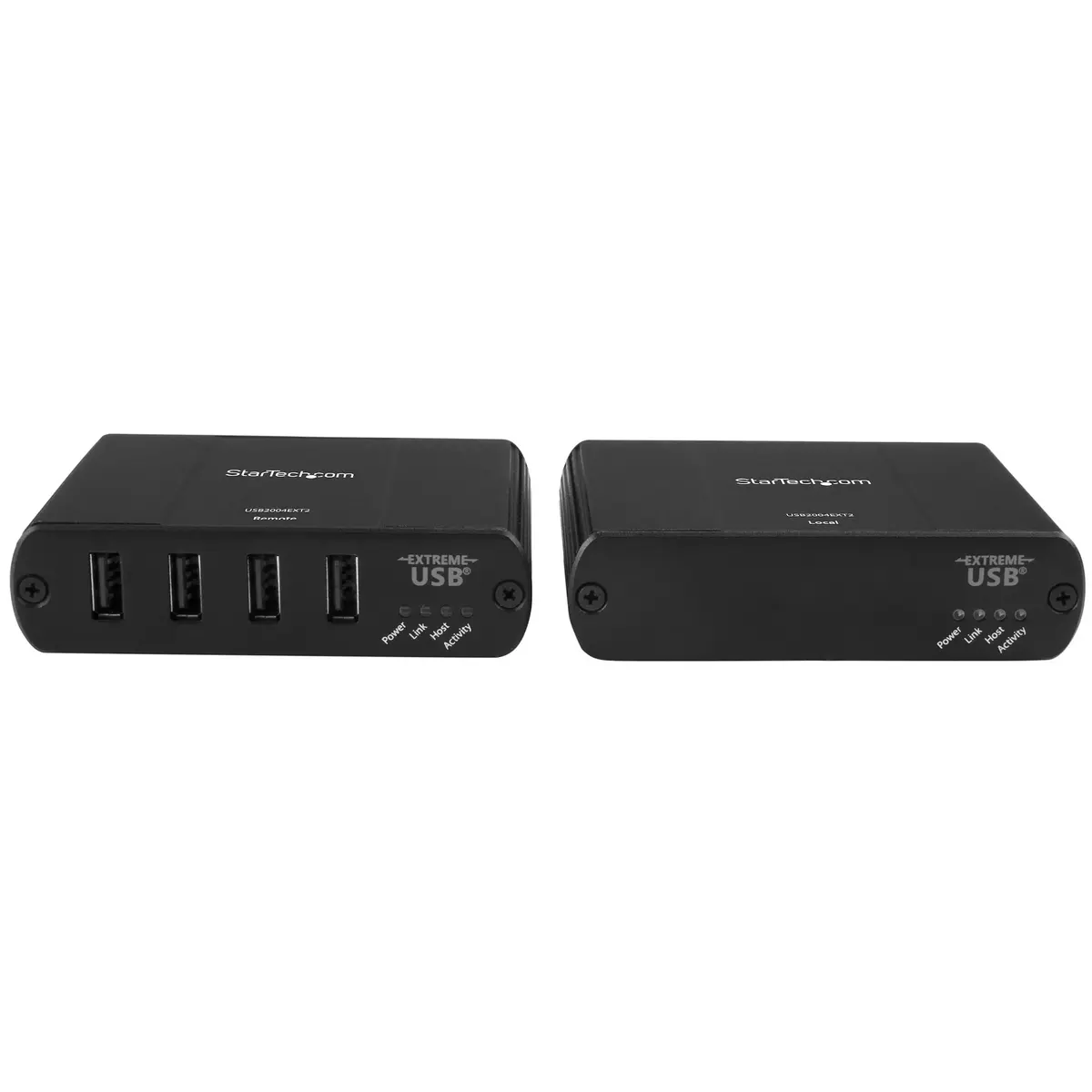

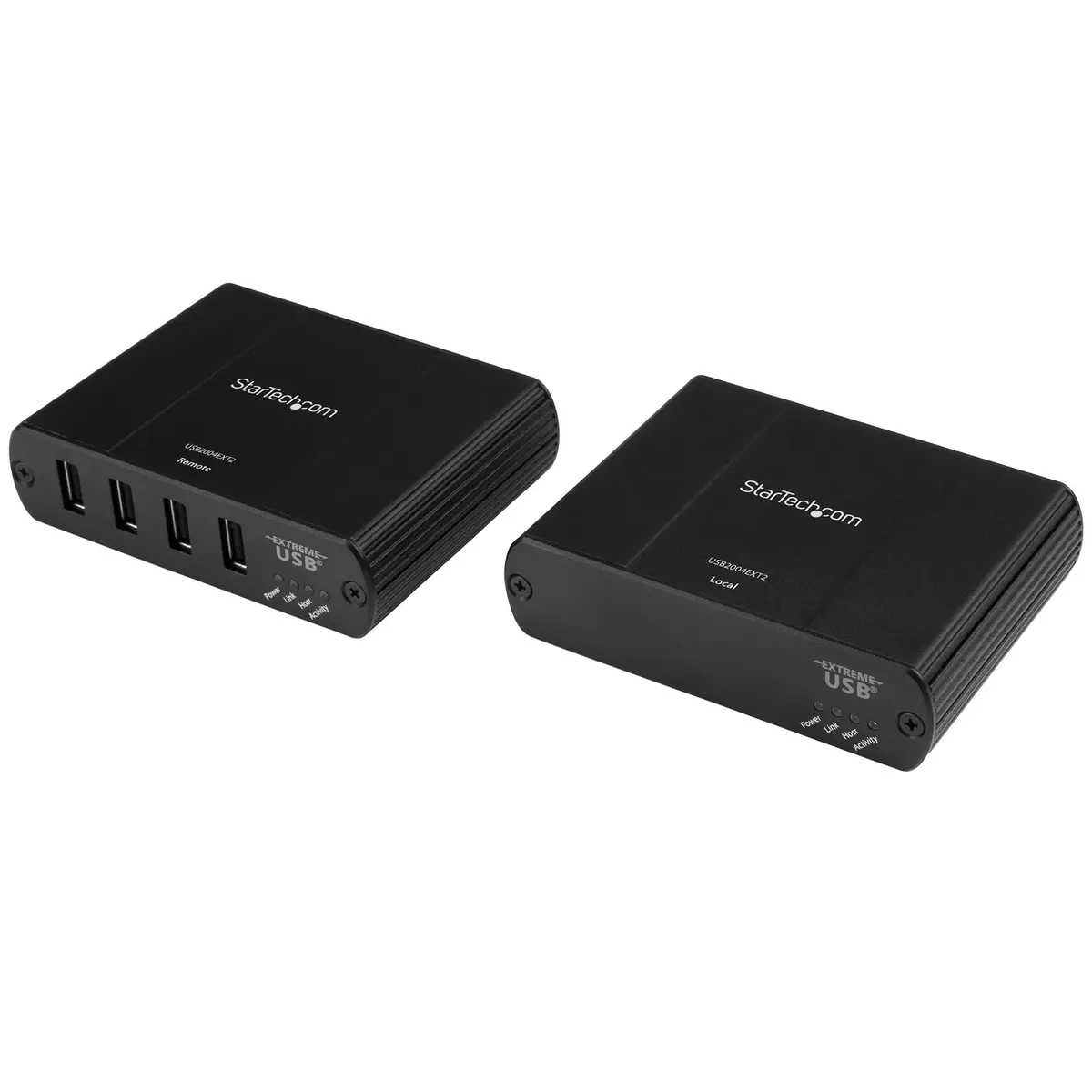

The StarTech.com Newer version available USB2004EXT2NA is an advanced USB extender designed to extend your USB connections over long distances using standard Cat5/Cat6 Ethernet cables up to 330 feet (100 meters). It supports data transfer rates of up to 480 Mbps for reliable communication between devices.

This product features four USB 2.0 Type-A ports on one side and one USB 2.0 Type-B port on the other side, along with two RJ-45 ports that allow you to connect it directly to your network switch or router. Its compact design measures 76mm wide by 100mm deep by 26mm high, making it easy to install in most environments without taking up much space.

The extender includes all necessary components such as AC power adapter, USB cable, mounting kit, quick start guide, and LED indicators for activity monitoring, link status confirmation, and power detection. With its aluminum housing and plastic casing, this device offers durability while maintaining lightweight performance characteristics.

Technical details

  • Model: StarTech.com Newer version available USB2004EXT2NA; 4-Port USB Extender – Up to 330 ft (100m) USB 2.0 over Cat5/Cat6 Extender – 480 Mbps USB Over Ethernet Extender
  • Colour: Black
  • Weight: 600 g
  • Width: 76 mm
  • Depth: 100 mm
  • Height: 26 mm
  • Package weight: 1.3 kg
  • Typical power consumption: 15 W

Additional information

Type

Console transmitter & receiver

Data transfer rate

480 Mbit/s

Maximum transfer distance

100 m

Product colour

Black

Housing material

Aluminium, Plastic

LED indicators

Activity, Link, Power

Cable types supported

Cat5, Cat6

Compliance certificates

RoHS

Certification

CE, FCC

USB 2.0 Type-A ports quantity

4

USB 2.0 Type-B ports quantity

1

RJ-45 ports quantity

2

Width

76 mm

Depth

100 mm

Height

26 mm

Weight

600 g

Package width

195 mm

Package depth

245 mm

Package height

110 mm

Package weight

1.3 kg

Operating temperature (T-T)

0 – 50 °C

Storage temperature (T-T)

-20 – 70 °C

Operating relative humidity (H-H)

10 – 90%

Cables included

AC, USB

Mounting kit

Yes

Quick start guide

Yes

AC adapter included

Yes

Power consumption (typical)

15 W

Input voltage

100 – 240 V

Input current

1 A

Output voltage

5 V

Output current

3 A

Power plug type

Type M

Harmonized System (HS) code

84733020

Master (outer) case width

196 mm

Master (outer) case length

560 mm

Master (outer) case height

107 mm

Products per master (outer) case

28 pc(s)
