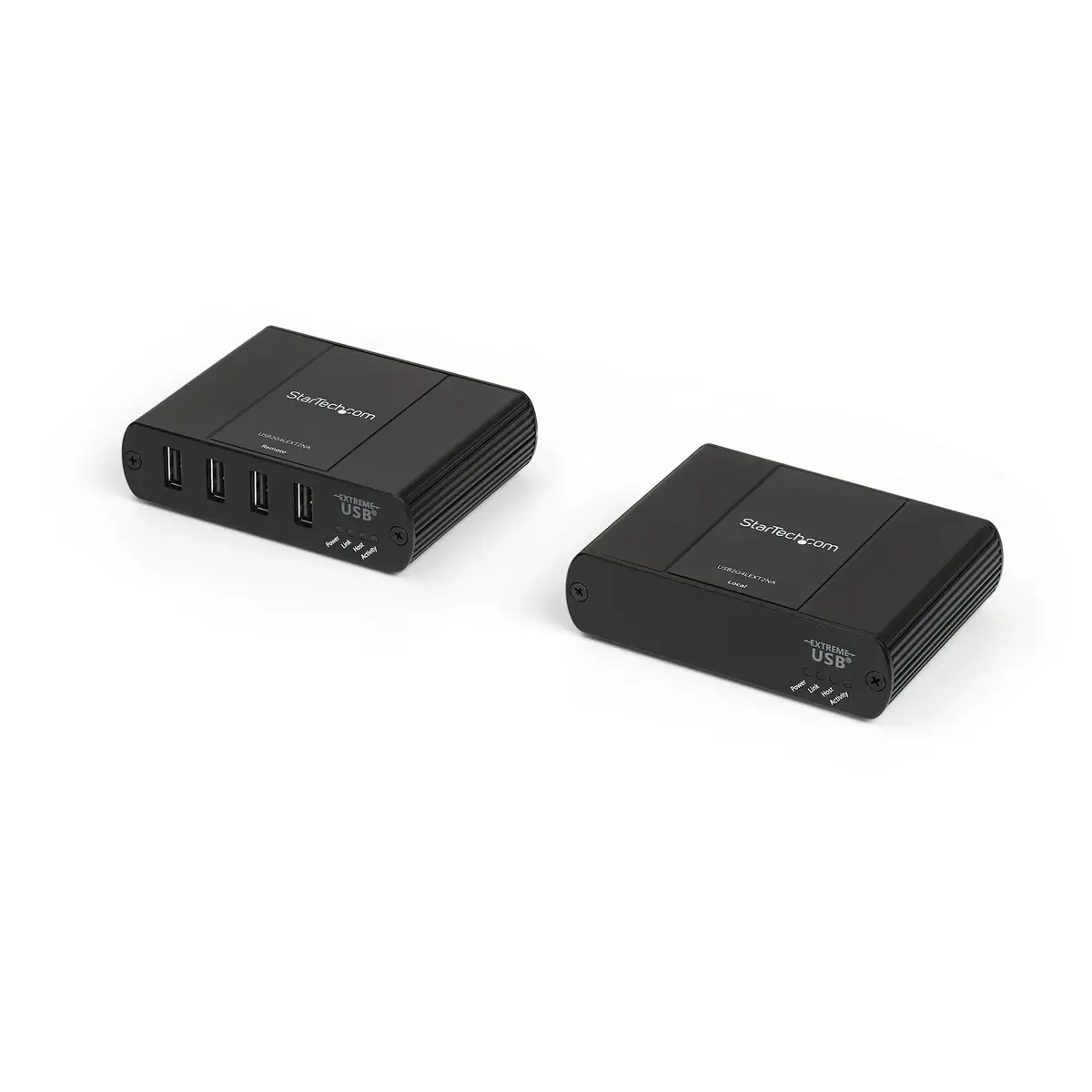

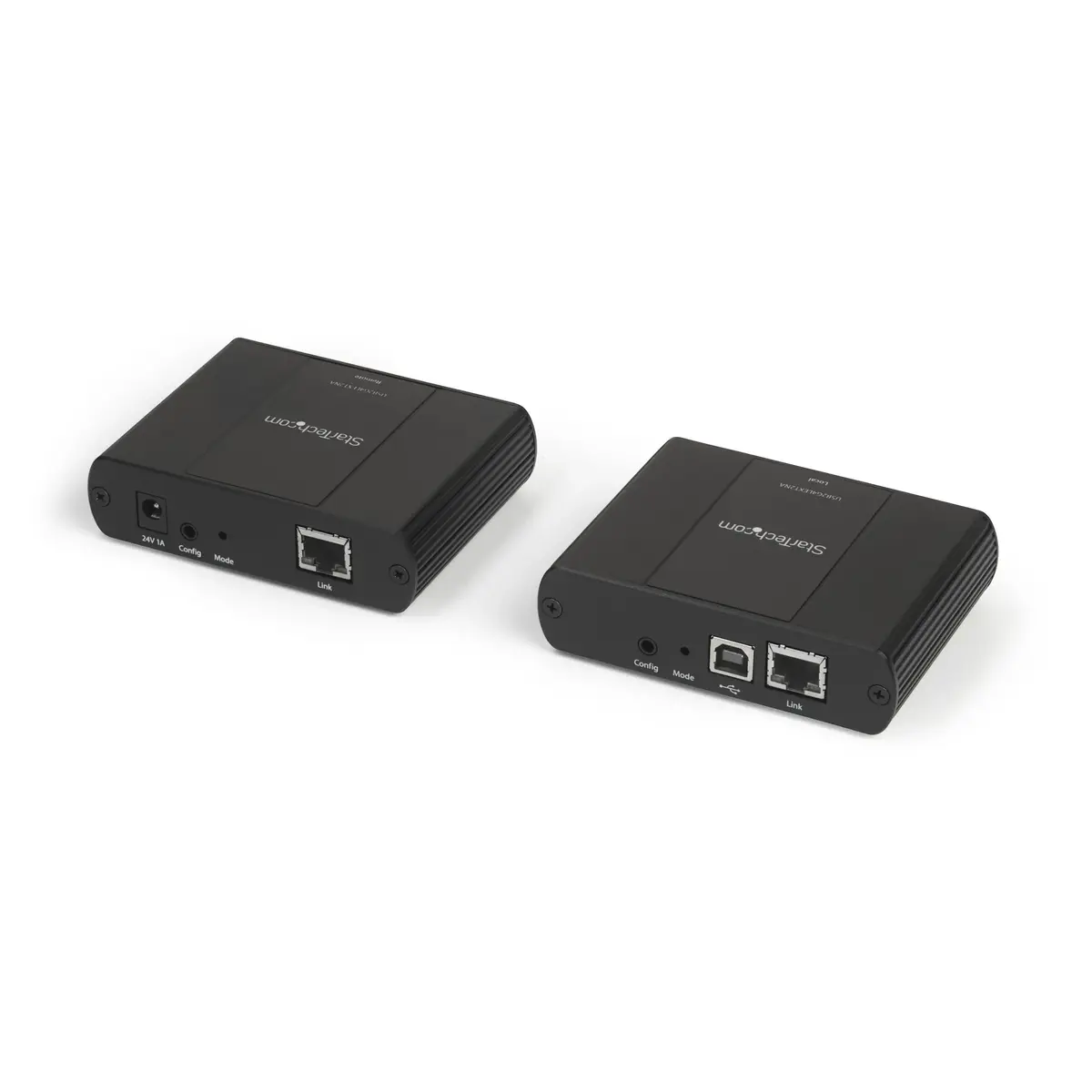

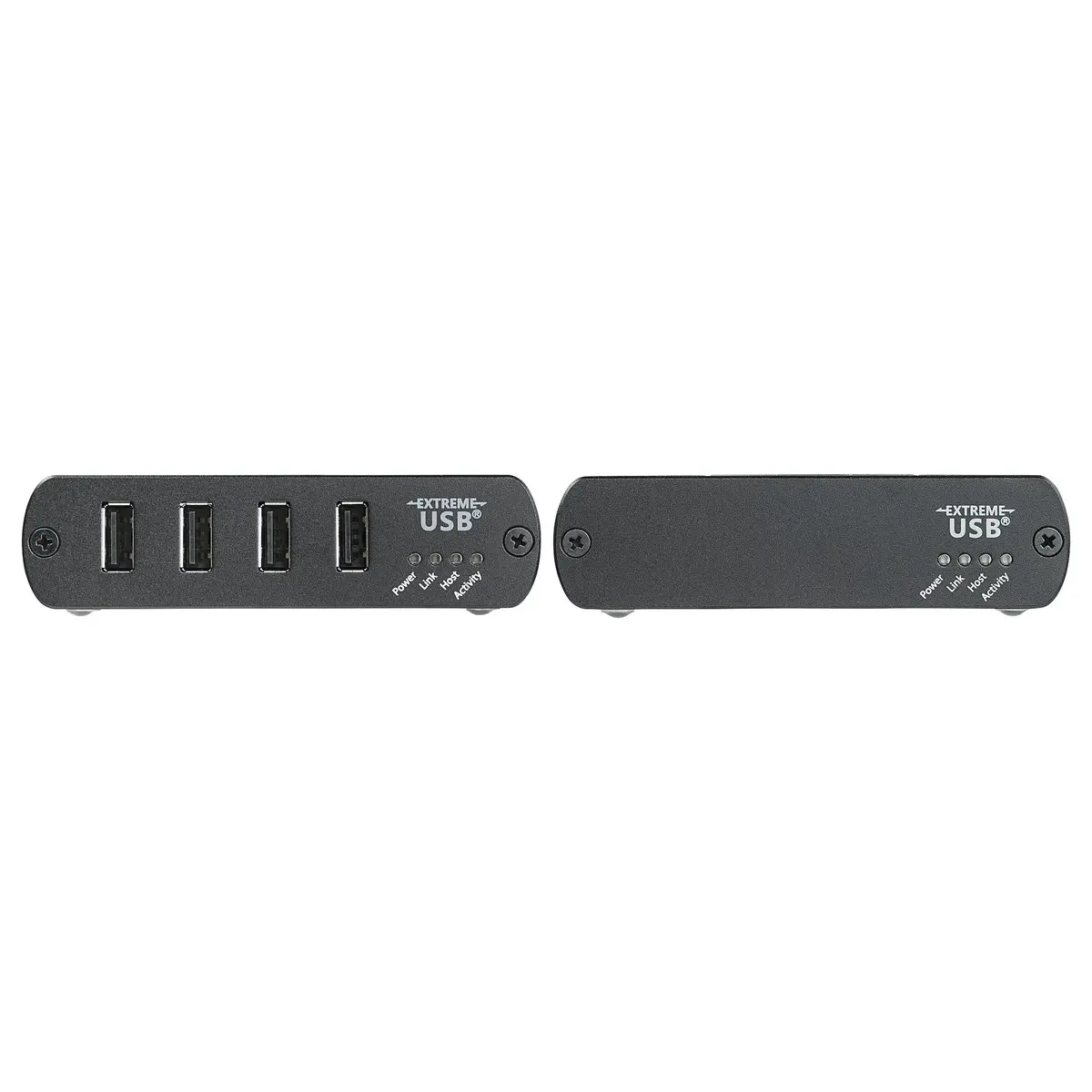

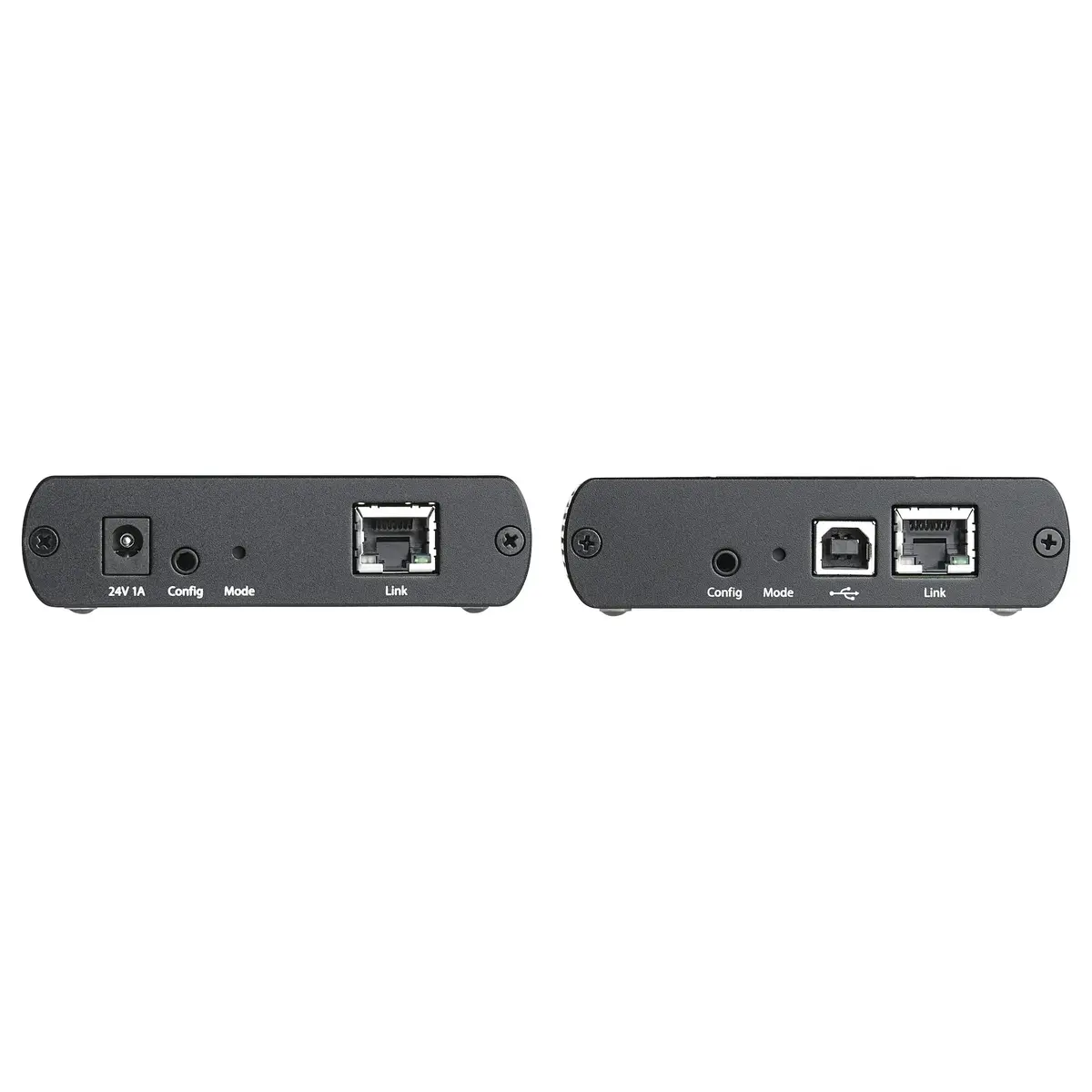

The StarTech.com Newer version available USB2002EXT2NA is an advanced USB extender kit designed to extend your USB connections over distances up to 100 meters using Cat5 or Cat6 cables. This product supports data transfer rates of 480 Mbps for reliable communication between devices. The extender features two RJ-45 ports on both the transmitter and receiver sides, allowing you to connect multiple peripherals simultaneously without interruption.

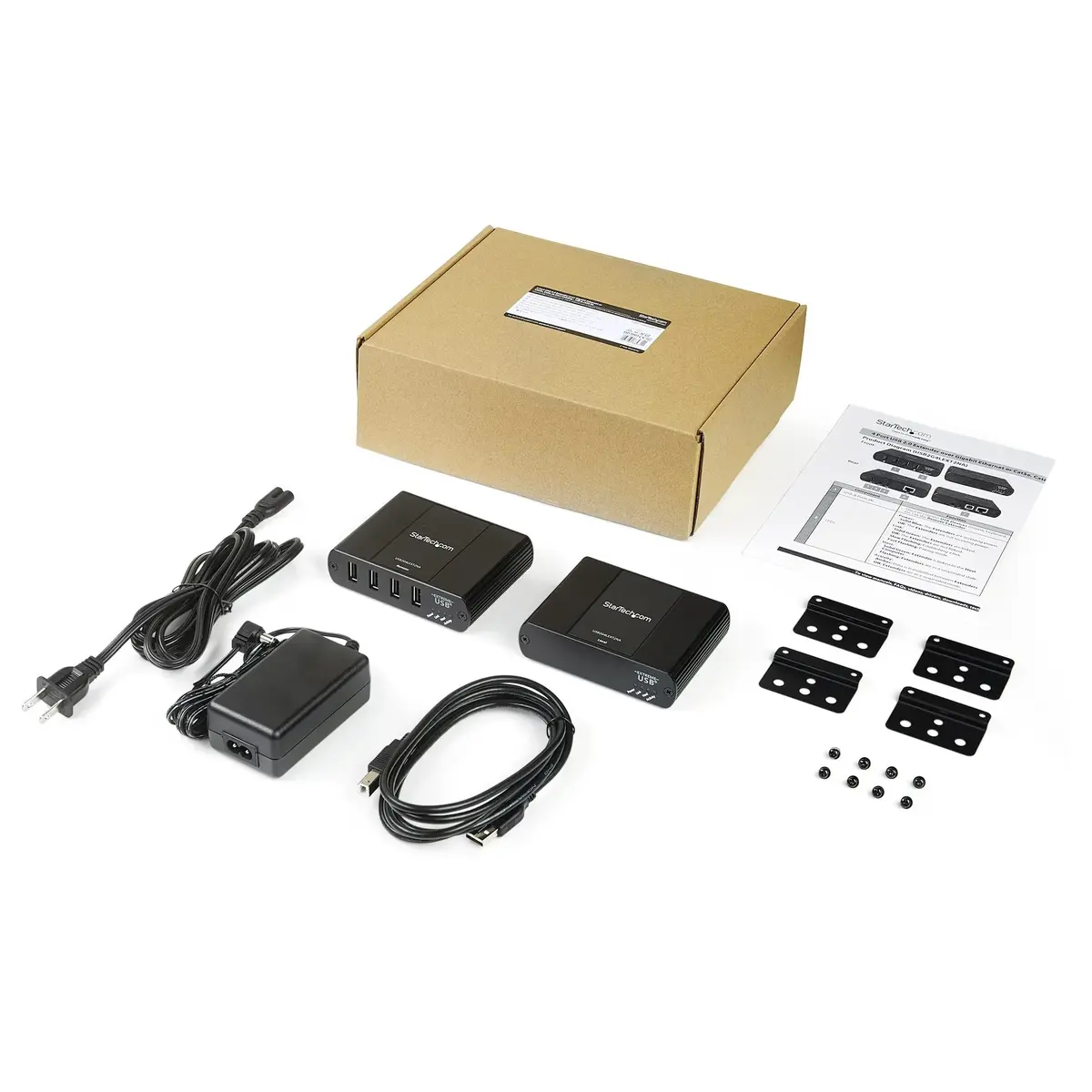

It includes all necessary components such as a power supply unit that can be locally powered via an AC adapter or remotely powered through Ethernet, making it versatile in its usage scenarios. Additionally, this device complies with RoHS standards ensuring environmental safety during manufacturing processes.

This particular model offers easy setup capabilities thanks to Plug & Play functionality which simplifies installation procedures significantly reducing potential errors associated with manual configuration tasks. Furthermore, comprehensive documentation including quick start guides are provided alongside the product packaging enhancing user experience by guiding them step-by-step throughout their initial use phase effectively minimizing learning curve associated with new technologies adoption within professional environments where efficiency matters most.

Main specifications

  • Model: StarTech.com Newer version available USB2002EXT2NA: 2 Port USB 2.0 over Cat5 or Cat6 Extender Kit – Locally or Remotely Powered – 330 ft (100 m) – USB Extender – USB to Ethernet
  • Colour: Black
  • Weight: 600 g
  • Width: 76 mm
  • Depth: 100 mm
  • Height: 26 mm
  • Package weight: 1.2 kg
  • Typical power consumption: 24 W

Additional information

Type

Console transmitter & receiver

Data transfer rate

480 Mbit/s

Maximum transfer distance

100 m

Product colour

Black

Housing material

Aluminium, Plastic

Cable types supported

Cat5, Cat6

Compliance certificates

RoHS

Plug and Play

Yes

Certification

CE, FCC

USB 2.0 Type-B ports quantity

1

RJ-45 ports quantity

2

DC-in jack

Yes

Width

76 mm

Depth

100 mm

Height

26 mm

Weight

600 g

Transmitter weight

600 g

Receiver weight

600 g

Package width

195 mm

Package depth

248 mm

Package height

108 mm

Package weight

1.2 kg

Operating temperature (T-T)

0 – 50 °C

Storage temperature (T-T)

-20 – 70 °C

Operating relative humidity (H-H)

10 – 90%

Cables included

AC, USB

Mounting kit

Yes

Quick start guide

Yes

AC adapter included

Yes

Power consumption (typical)

24 W

Input voltage

100 – 240 V

Input current

0.6 A

Output voltage

24 V

Output current

1 A

Power plug type

Type M

Harmonized System (HS) code

84733020

Master (outer) case width

409 mm

Master (outer) case length

553 mm

Master (outer) case height

271 mm

Products per master (outer) case

20 pc(s)
