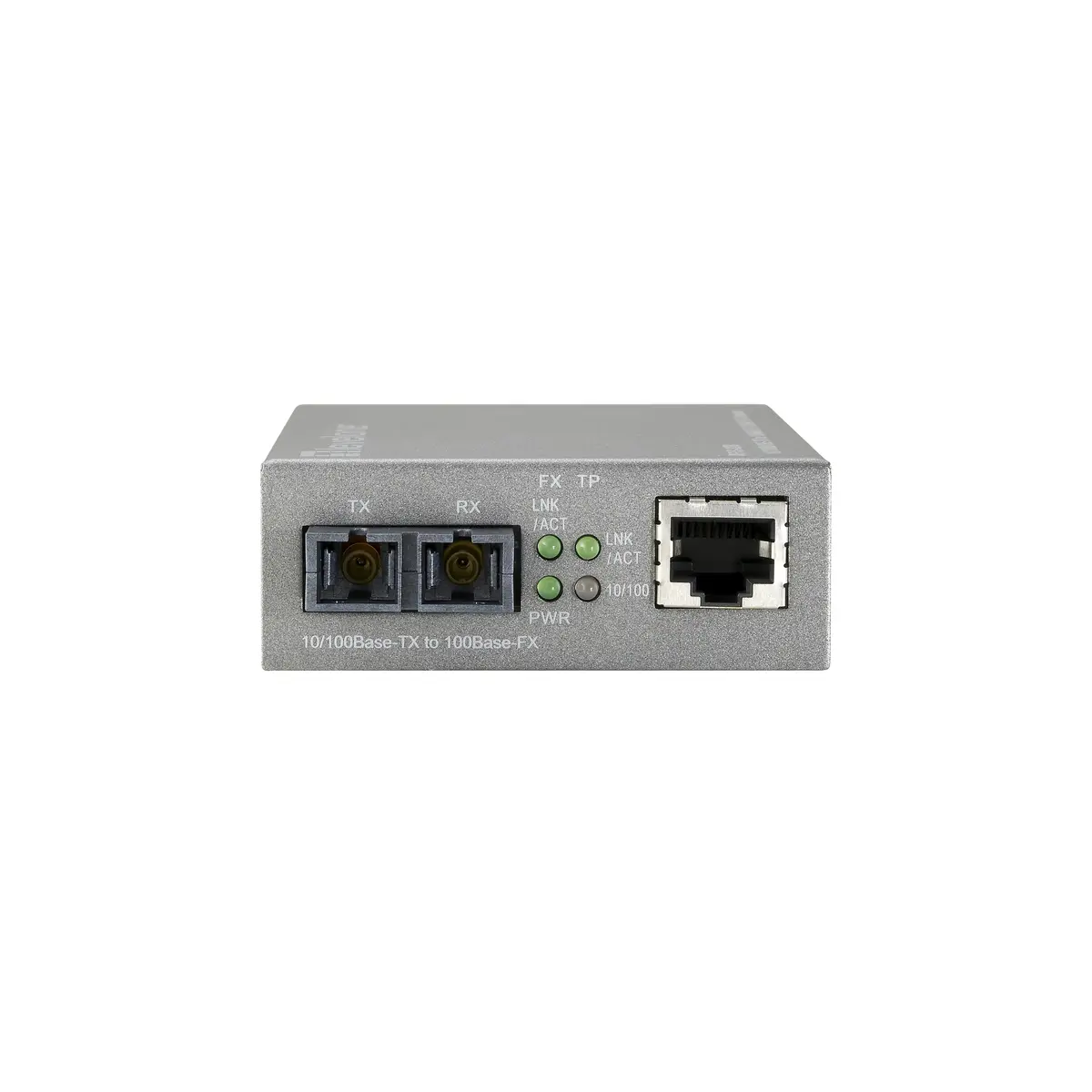

The LevelOne RJ45 to SC Managed Fast Ethernet Media Converter is designed for single-mode fiber networking applications up to a maximum distance of 20km at a data transfer rate of 100 Mbit/s. It supports IEEE standards including IEEE 802.1Q, IEEE 802.3, IEEE 802.3ah, IEEE 802.3u, and IEEE 802.3x. This converter has one RJ-45 input interface compatible with both 10Base-T and 100Base-TX speeds and an output interface supporting 100Base-LX speed over single-mode fiber cables with core/cladding diameters ranging from 3/125 to 10/125 µm.
Its compact design measures 70.3 x 94 x 26.2 millimeters in size and weighs 460 grams. It operates within temperature ranges of 0°C to 50°C and humidity levels between 5% and 90%. The product comes with a manual and is certified by both FCC Part 15 Class A and CE standards, ensuring compliance with regulatory requirements.

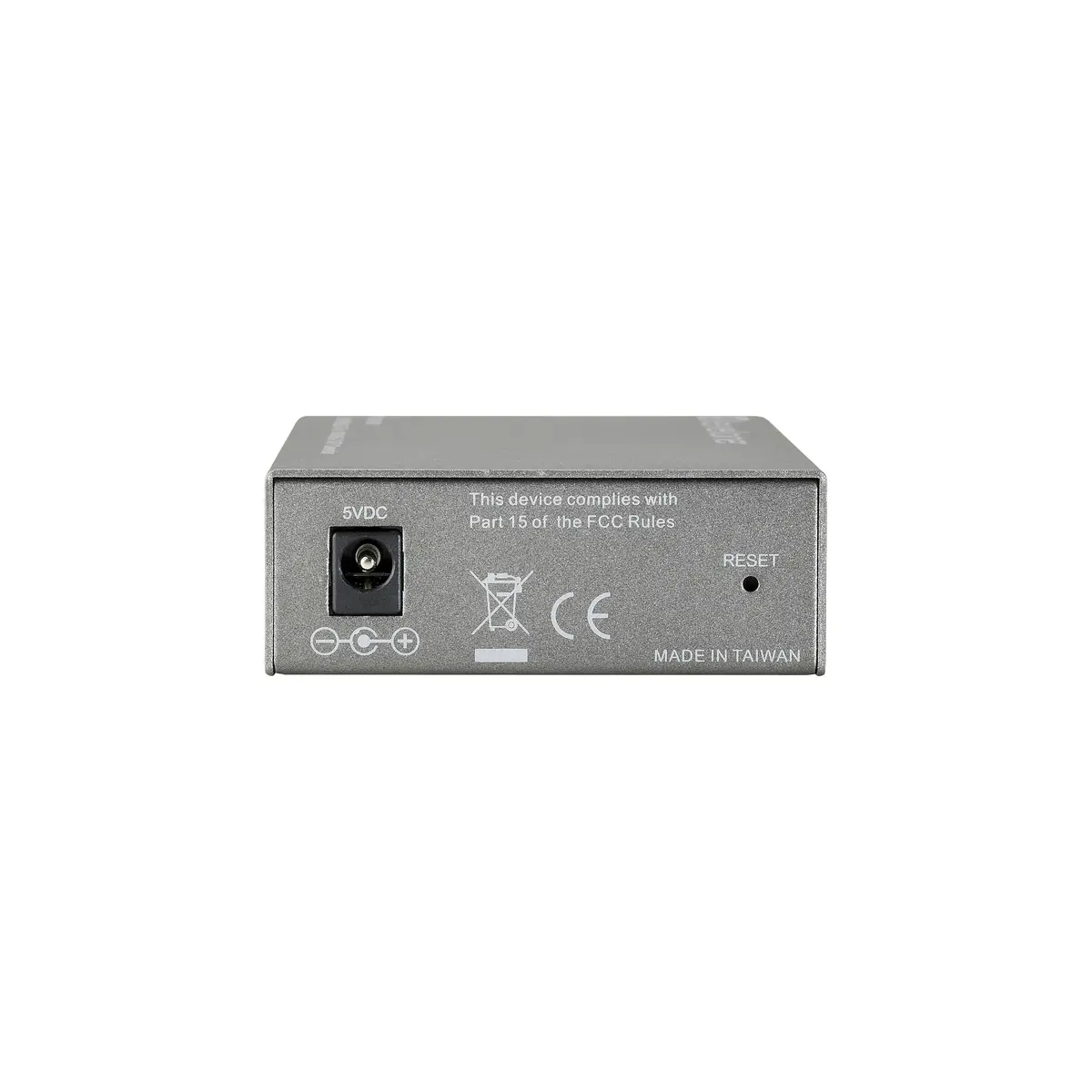

Additionally, it includes a DC-in jack capable of accepting a voltage of 5V and current of 1A, consuming approximately 1.5W when operating. External power adapters are also available as part of its package which dimensions measure 160 x 220 x 60 millimeters. Overall, this device offers reliable wired connectivity suitable for various network infrastructures requiring high-speed transmission across long distances using single-mode fiber technology.
Technical details
- Model: LevelOne RJ45 to SC Managed Fast Ethernet Media Converter, Single-Mode Fiber, 20km
- Colour: Grey
- Width: 70.3 mm
- Depth: 94 mm
- Height: 26.2 mm
- Package weight: 460 g
- Typical power consumption: 1.5 W
- Input voltage: 5 V
