LevelOne Gigabit PoE Splitter, 802.3at/af PoE, 5-12V DC Output

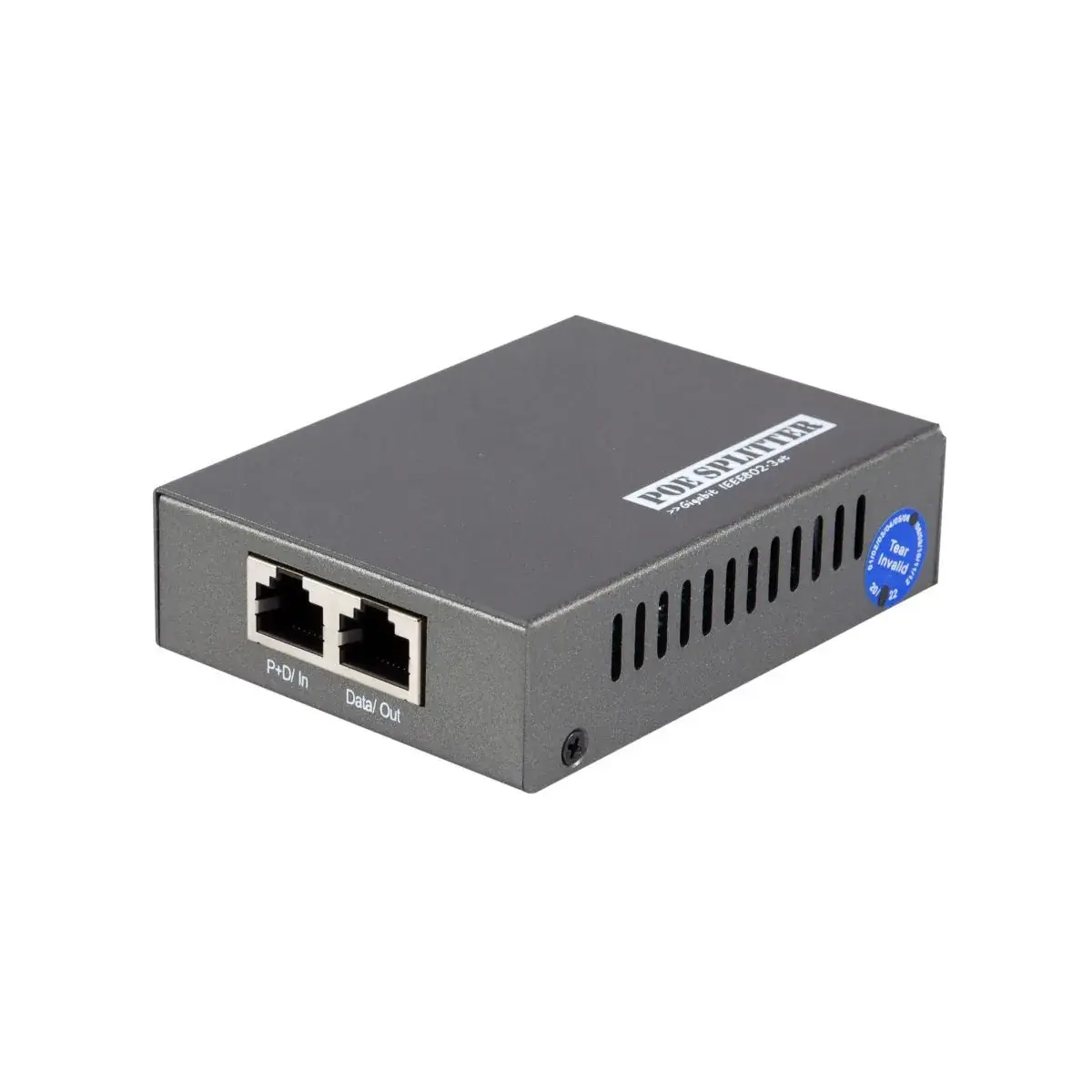

The LevelOne Gigabit PoE Splitter is designed to provide high-speed networking capabilities through its support for various IEEE standards including IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3u. It features two RJ-45 LAN ports on one side and an RJ-45 port on the other, allowing flexible network configurations.

This device supports power over Ethernet (PoE), enabling it to supply both data transmission and electrical power simultaneously via standard Ethernet cables. With a maximum operating temperature of 0°C to 45°C and an operating relative humidity range from 5% to 95%, this splitter can operate effectively in most environments.

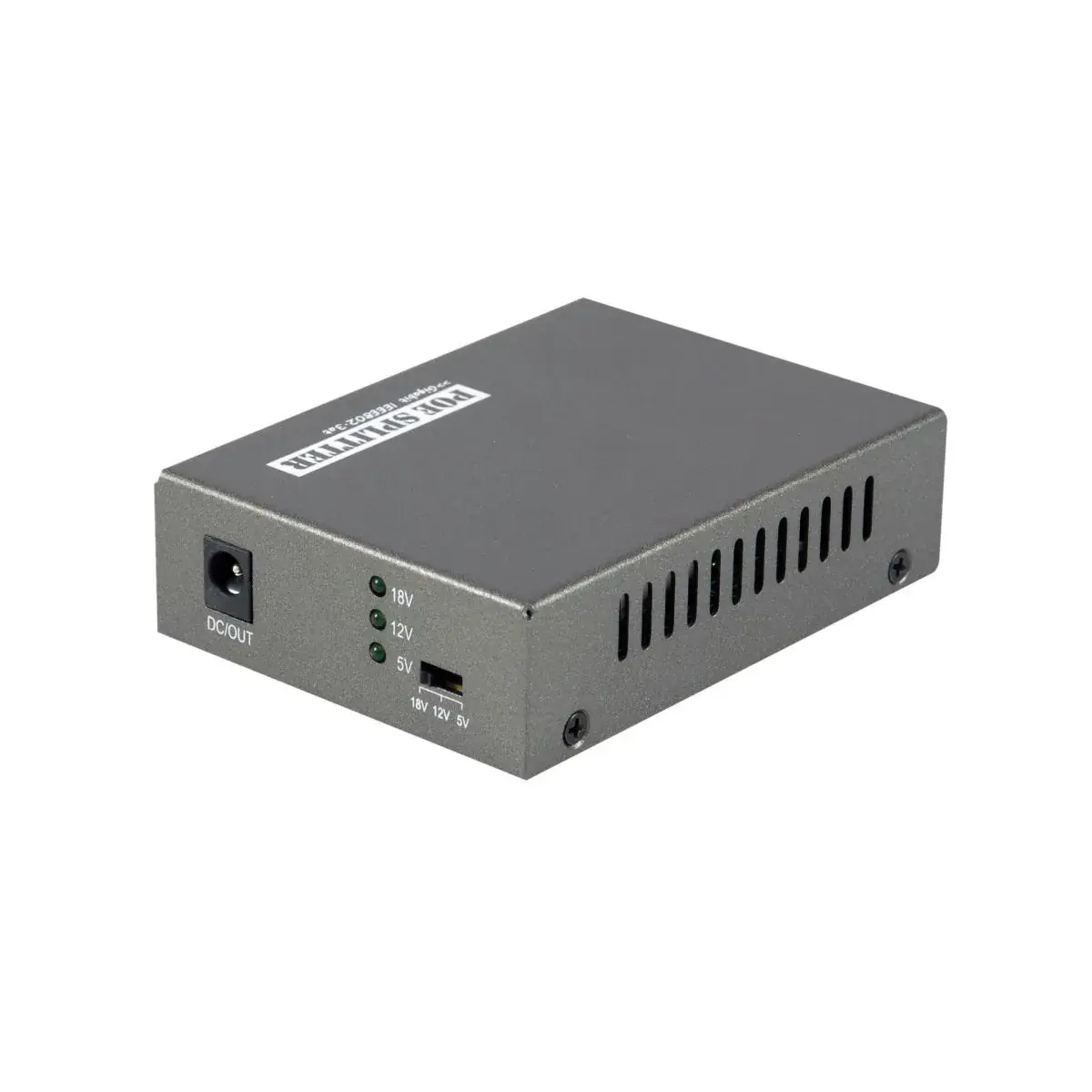

Its compact design measures 92mm wide by 60mm deep by 27mm tall, weighing just 85 grams, making it easy to install and maintain. The LevelOne Gigabit PoE Splitter includes LED indicators for monitoring operational status, plug-and-play functionality simplifies setup procedures, and adjustable output voltage options allow users flexibility when connecting devices that require different voltages.

Feature summary

• Model: LevelOne Gigabit PoE Splitter, 802.3at/af PoE, 5-12V DC Output
• Colour: Black
• Weight: 85 g
• Width: 92 mm
• Depth: 60 mm
• Height: 27 mm
• sku: POS-3000
• Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
