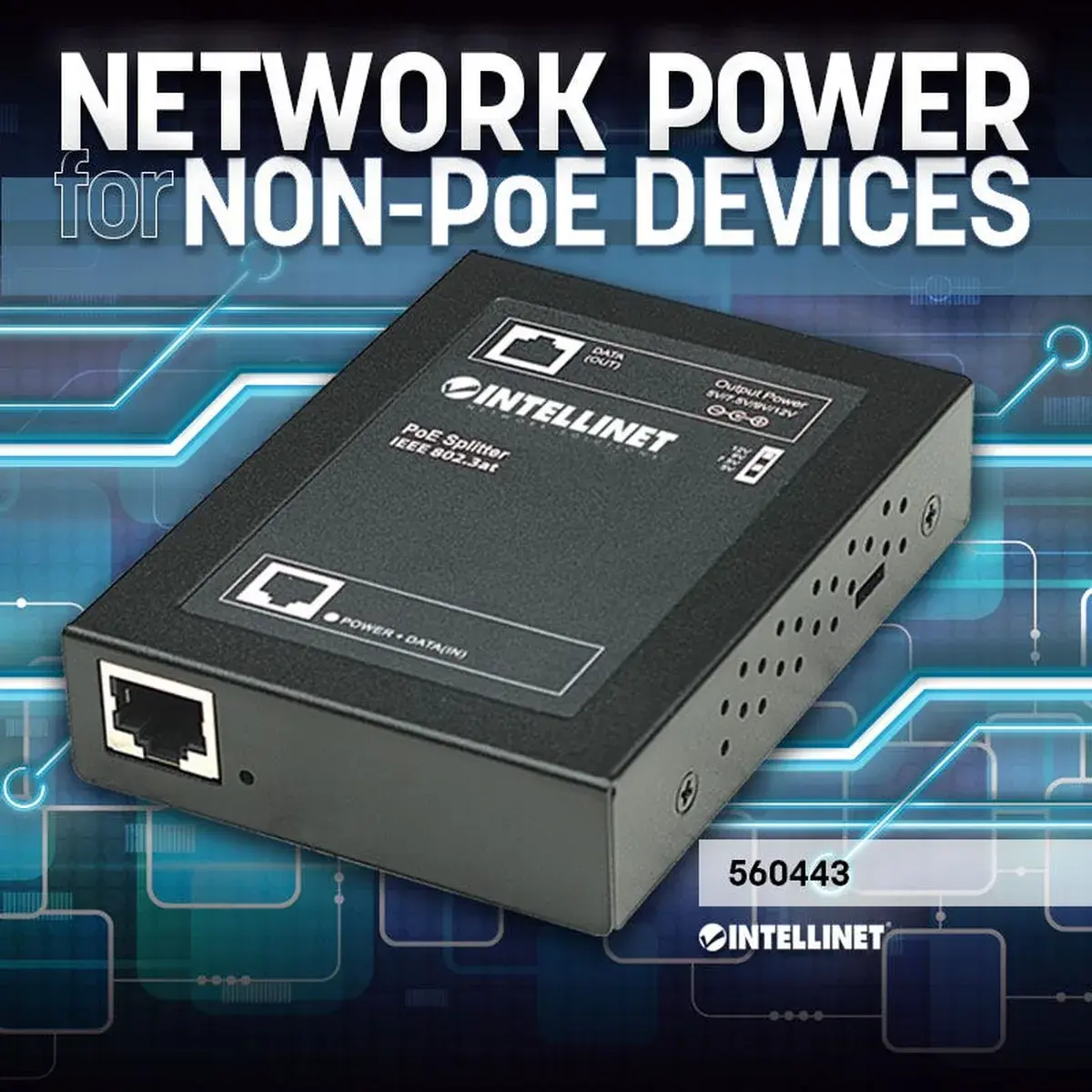

Intellinet Power over Ethernet (PoE+) Splitter, IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage

The Intellinet Power over Ethernet (PoE+) Splitter is designed to provide PoE+ support according to IEEE 802.3 at standards for various DC output voltages including 5V, 7.5V, 9V, and 12V. It supports networking via both 10Base-T and 100Base-TX cabling technologies using Category 5 cables. This splitter features two RJ-45 Ethernet LAN ports suitable for connecting devices that require PoE functionality such as IP cameras, wireless access points, and other network-enabled equipment.

The device has been certified by the FCC under Class A and meets European Union’s CE standard, ensuring it complies with relevant safety regulations. Constructed from metal housing material, this splitter offers durability and reliability in harsh environments where high temperatures are common. Its dimensions of width 74mm, depth 102mm, and height 22mm make it compact enough for integration into various network setups without occupying much space.

With an operating temperature range from -20°C to +60°C and storage capabilities down to -20°C and up to +90°C, the Intellinet PoE+ Splitter can withstand extreme conditions while maintaining performance stability throughout its operational cycle. It includes one AC cable included per pack which allows users flexibility depending on their specific needs regarding power supply requirements within their networks.

Main specifications

• Model: Intellinet Power over Ethernet (PoE+) Splitter, IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage
• Colour: Black
• Weight: 445 g
• Width: 74 mm
• Depth: 102 mm
• Height: 22 mm
• sku: 560443
• Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
