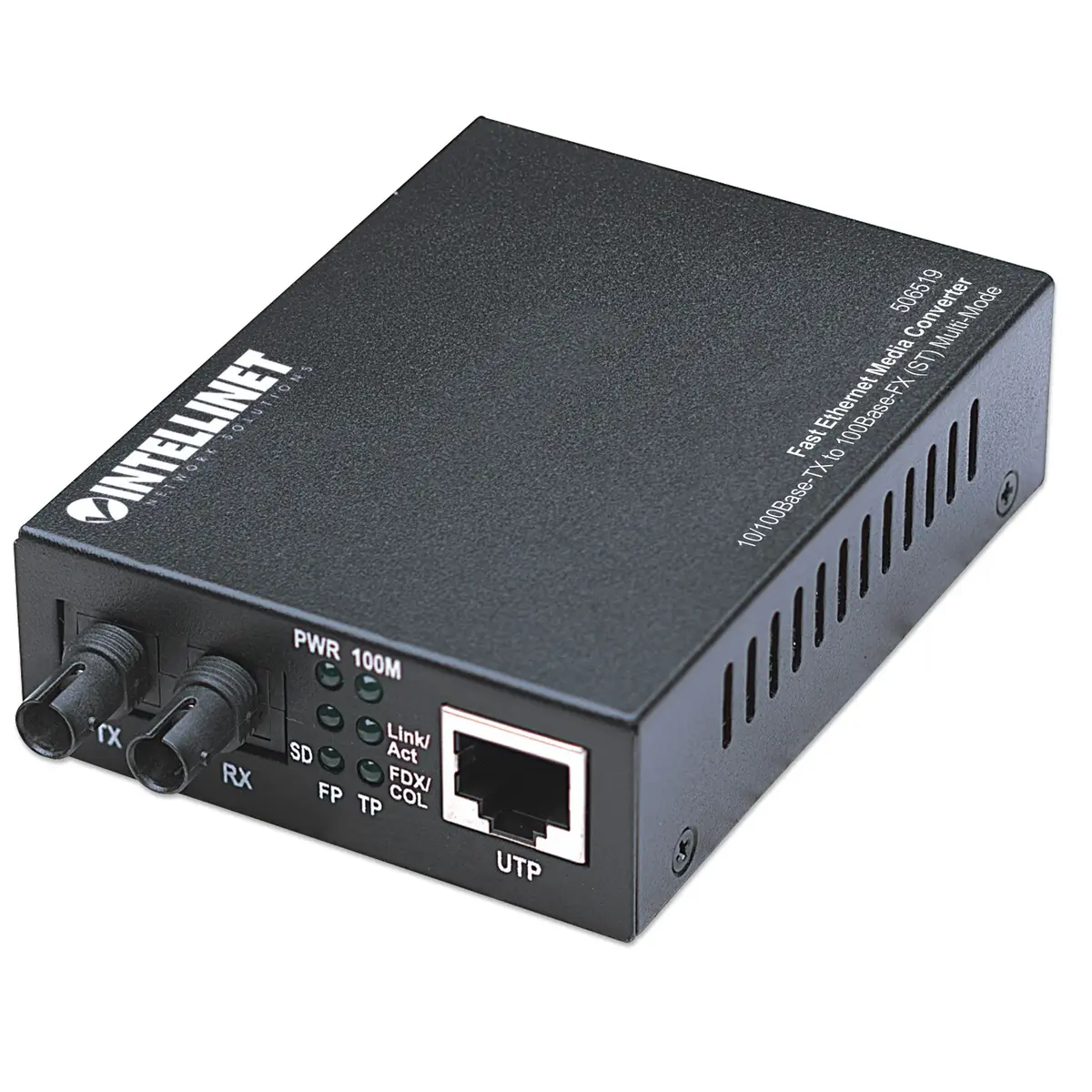

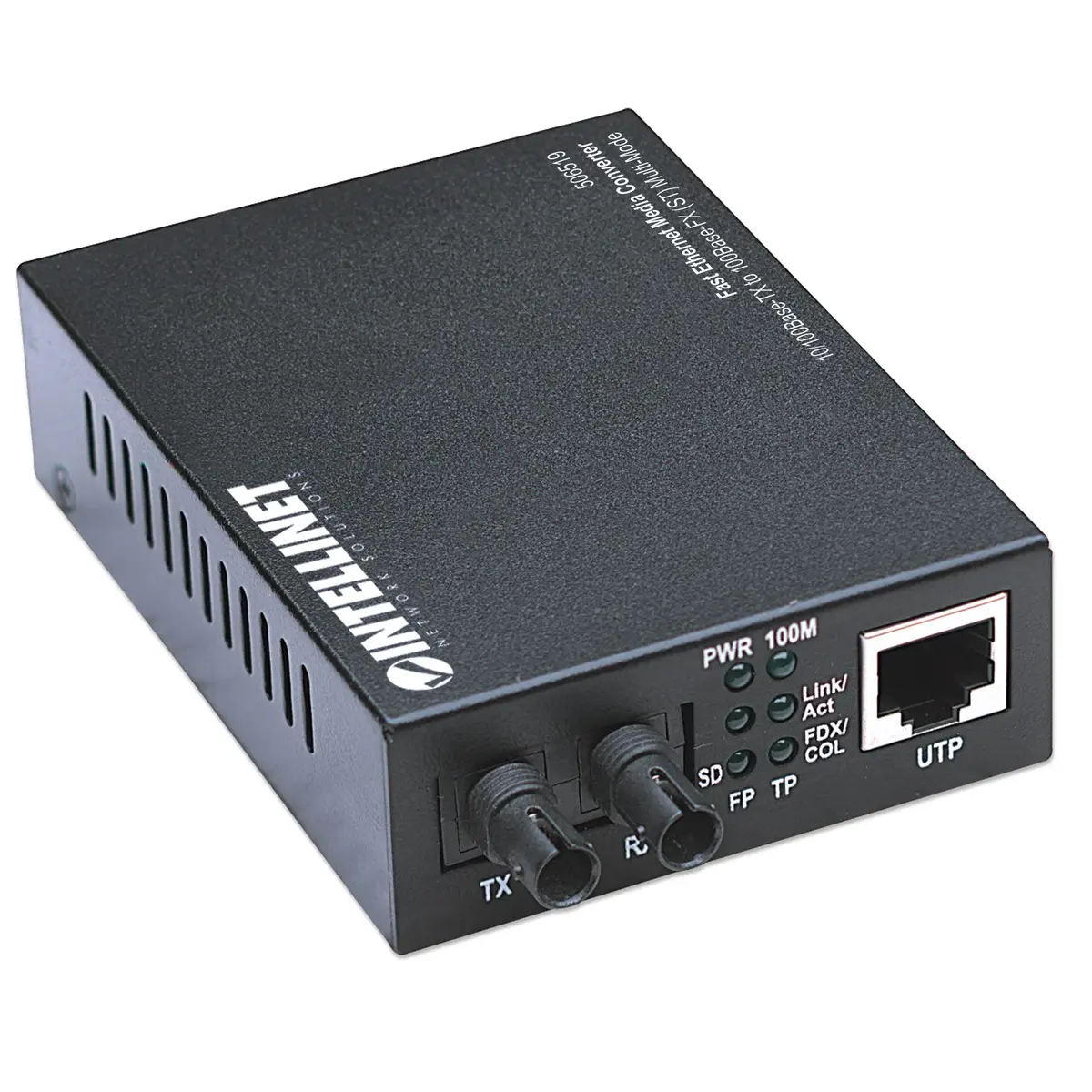

Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi)

The Intellinet Fast Ethernet Media Converter is designed to facilitate network connectivity between devices using different types of fiber optics cables. It supports data transfer rates up to 100 Mbit/s over distances ranging from 1.24 miles to 2 kilometers in multi-mode fiber-optic cable configurations.

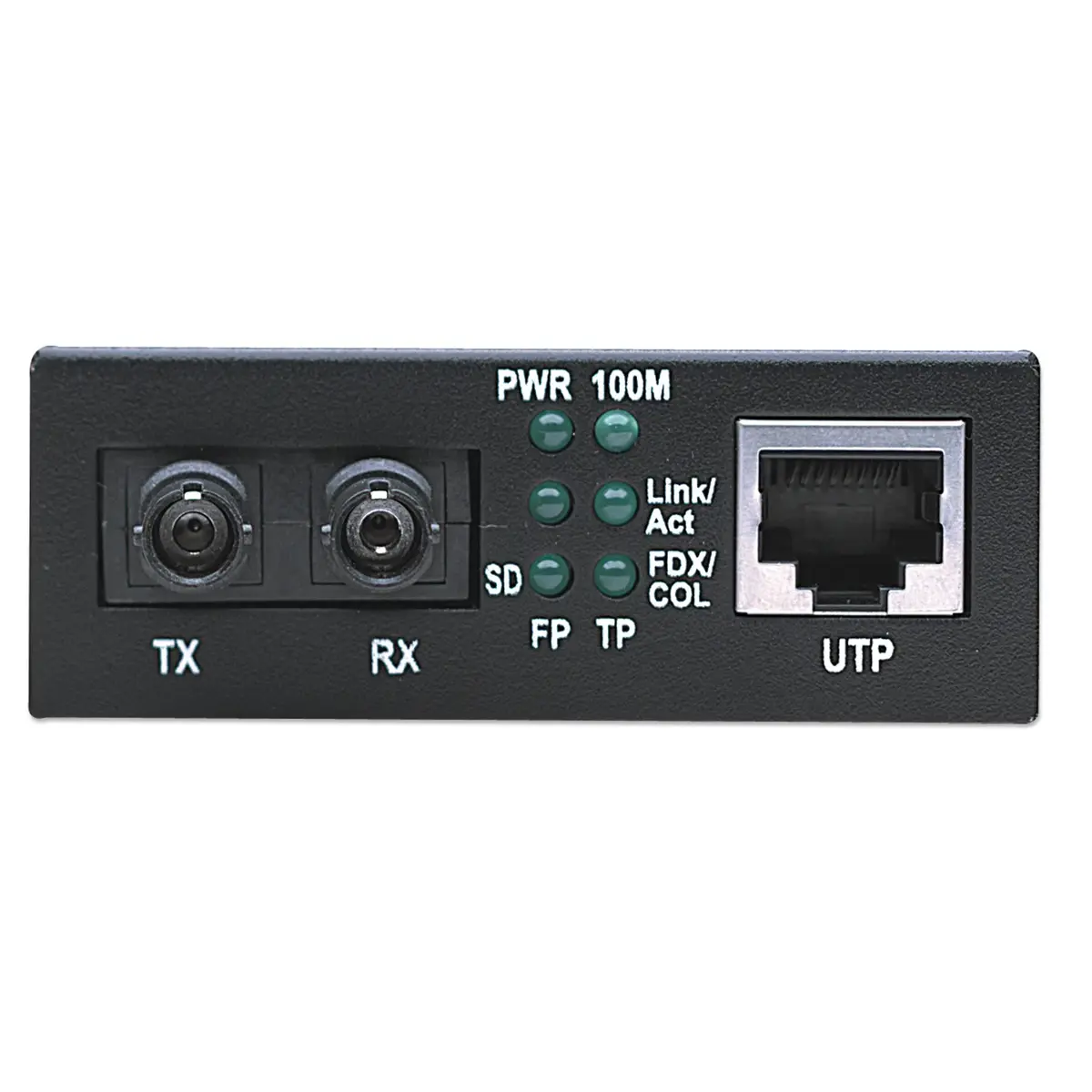

This converter adheres to IEEE standards for fast Ethernet networking, ensuring compatibility with various hardware platforms. The device features an LED indicator system that includes LAN status, link establishment confirmation, and power supply monitoring functionalities, providing users with real-time feedback on operational conditions.

Constructed primarily from metal housing material, it offers durability suitable for industrial environments while maintaining compact dimensions at just 70mm wide by 107mm deep by 26mm high, weighing approximately 500 grams. For optimal performance, this media converter operates within specified environmental parameters; specifically, operating temperatures range from 0°C to 70°C, storage capabilities extend down to -45°C and rise as high as +85°C, and acceptable levels of relative humidity are maintained between 10% and 90%.

Main characteristics

• Model: Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi)
• Colour: Black
• Weight: 500 g
• Width: 70 mm
• Depth: 107 mm
• Height: 26 mm
• sku: 506519
• Maximum data transfer rate: 100 Mbit/s
