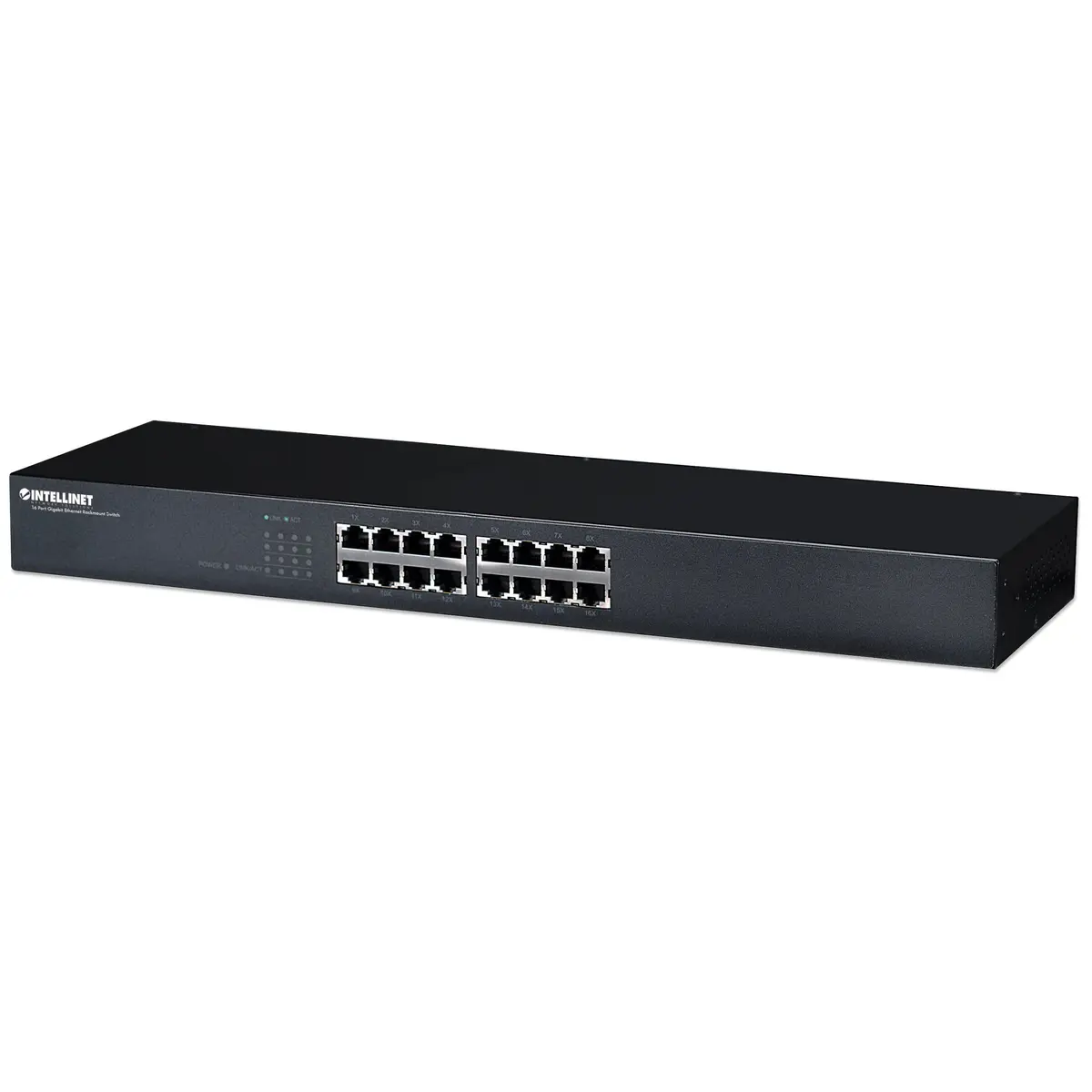

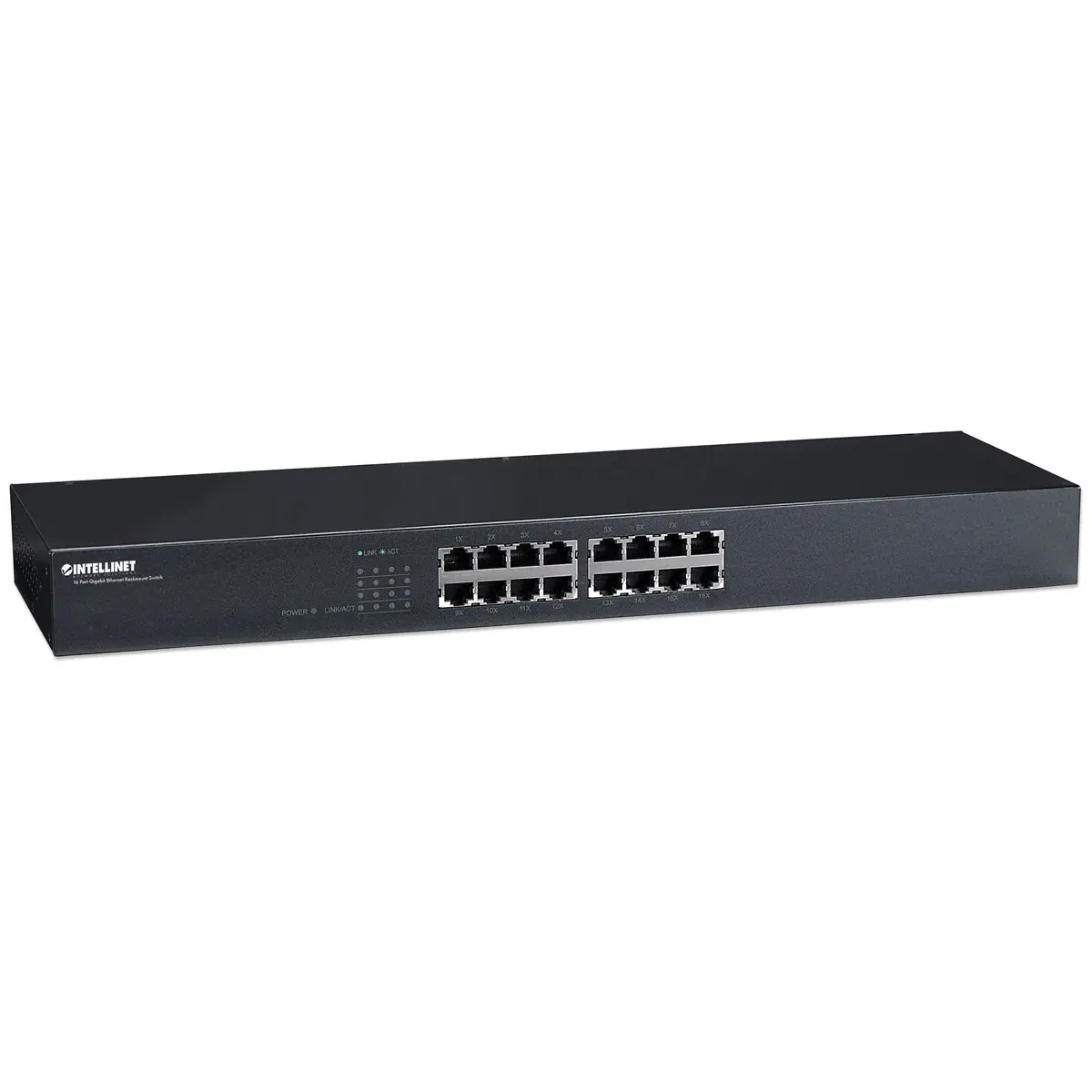

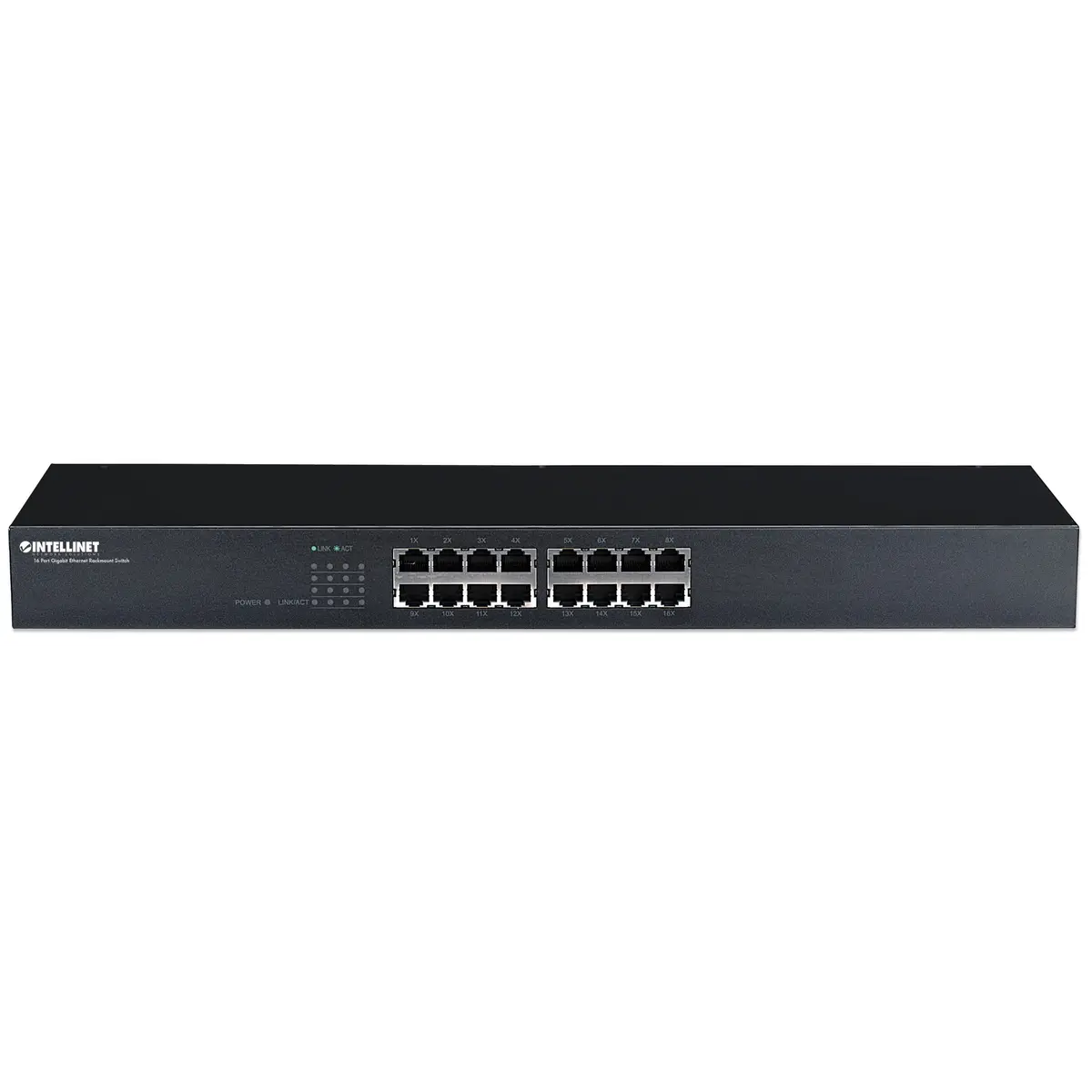

Intellinet 16-Port Gigabit Ethernet Switch, 16-Port RJ45 10/100/1000 Mbps, IEEE 802.3az Energy Efficient Ethernet, 19″ Rackmount, Metal (Euro 2-pin plug)

The Intellinet 16-Port Gigabit Ethernet Switch is an unmanaged switch designed for network connectivity in a 1U rackmount format. It supports IEEE 802.3az Energy Efficient Ethernet standards to minimize power consumption while maintaining high-speed data transfer capabilities up to 10/100/1000 Mbps through its 16 RJ45 ports equipped with full-duplex functionality.

This device complies with various networking standards including IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, ensuring compatibility across different networks. With a switching capacity of 32 Gbit/s and a MAC address table size of 8192 entries, it offers robust performance suitable for moderate-sized enterprise environments.

The switch features auto MDI/MDI-X capability, packet buffer memory of 0.256 MB, and includes LED indicators for LAN status monitoring. It operates within a temperature range from -40°C to +70°C and humidity range from 10%RH to 90%, making it versatile for diverse operational conditions. A manual and rack mounting kit are provided as standard accessories along with a certification that meets both FCC Class B and CE standards.

Feature summary

• Model: Intellinet 16-Port Gigabit Ethernet Switch, 16-Port RJ45 10/100/1000 Mbps, IEEE 802.3az Energy Efficient Ethernet, 19" Rackmount, Metal (Euro 2-pin plug)
• Colour: Black
• Weight: 1.98 kg
• Width: 440 mm
• Depth: 130 mm
• Height: 44 mm
• sku: 524148
• Switch type: Unmanaged
