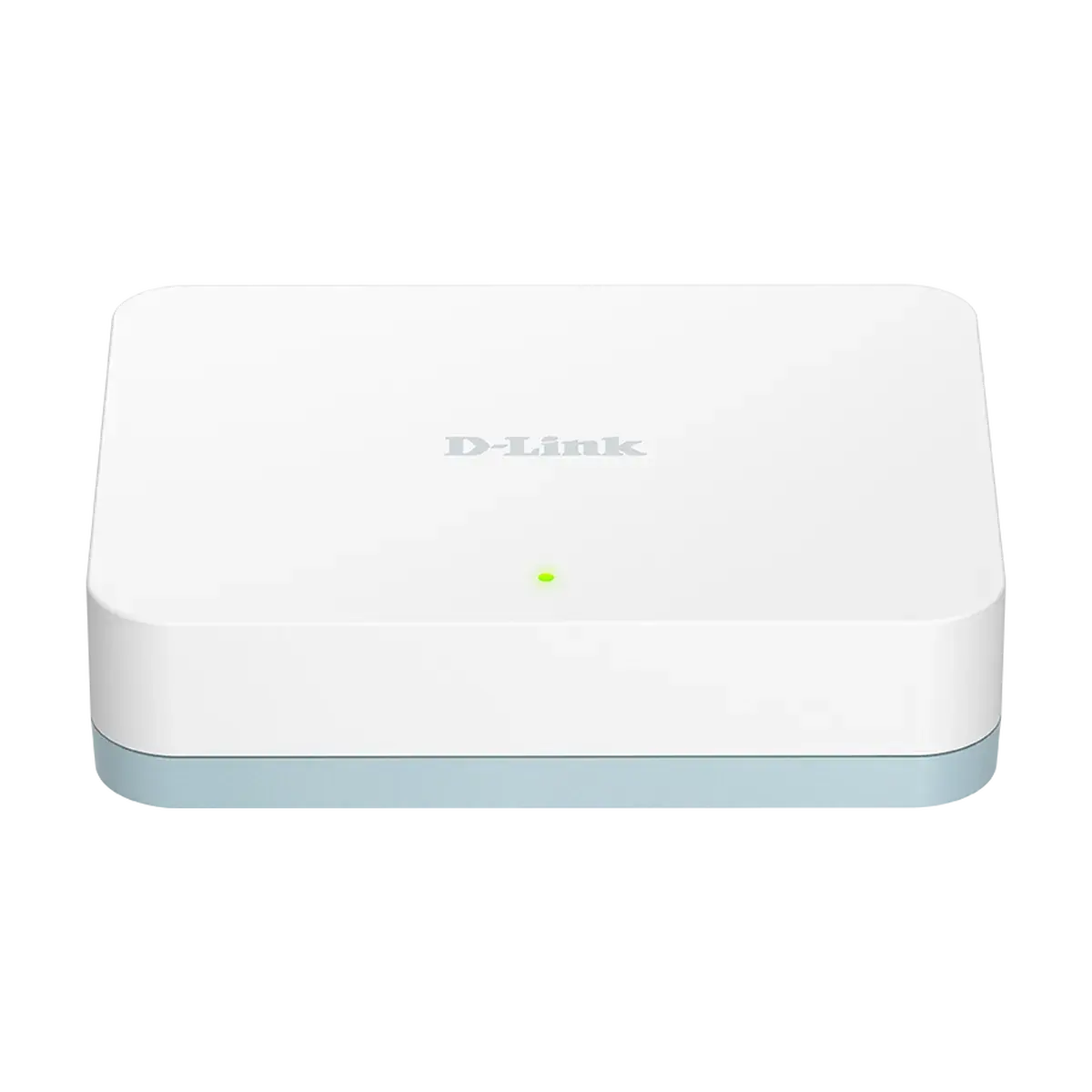

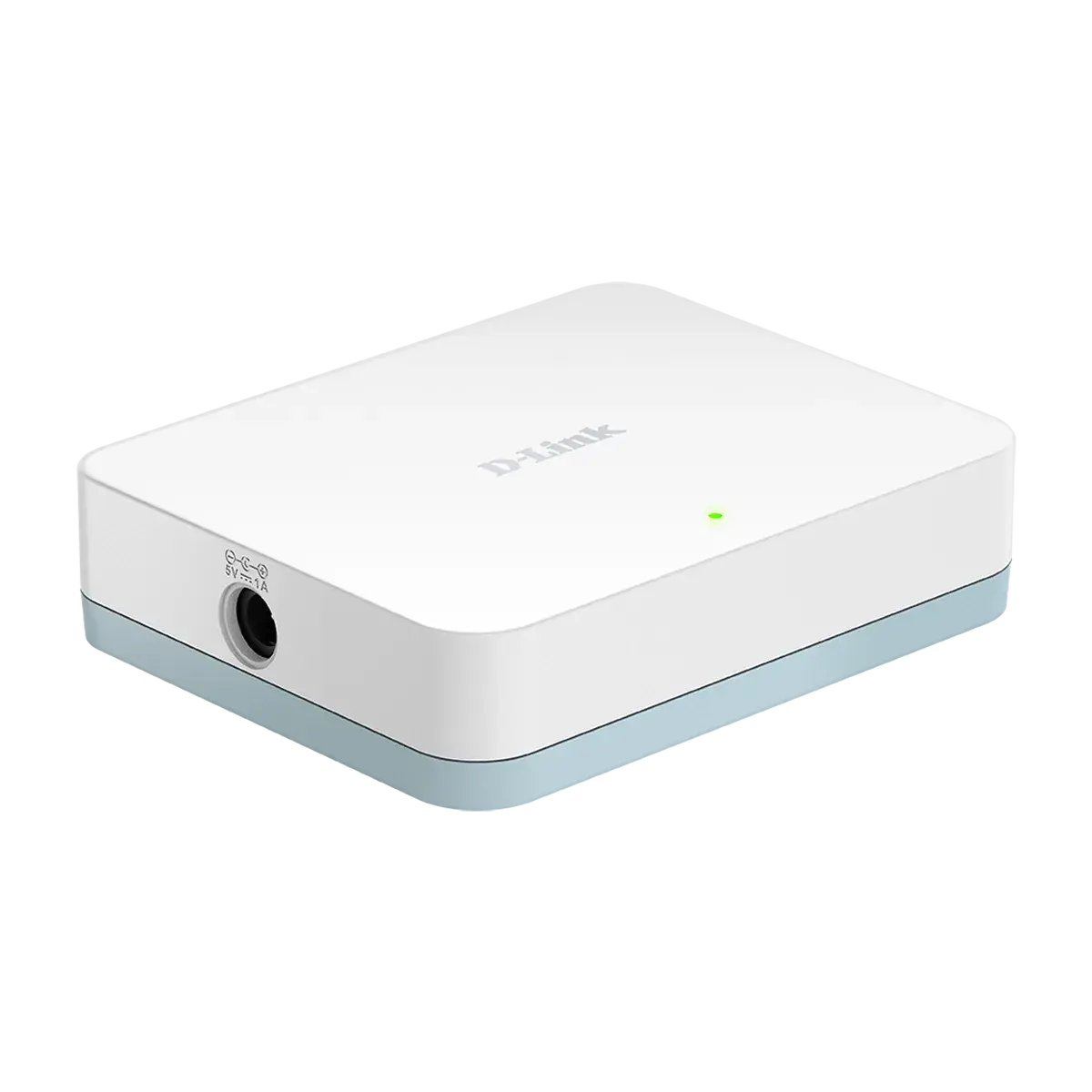

D-Link DGS-1005D/E network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

The D-Link DGS-1005D/E is an unmanaged Layer 2 Gigabit Ethernet switch featuring five RJ-45 ports supporting speeds of 10/100/1000 Mbit/s in full duplex mode. It supports IEEE 802.1p for Quality of Service (QoS), has a MAC address table capable of storing up to 2000 entries, and boasts a switching capacity of 10 Gbit/s. This network device operates within temperatures ranging from 0°C to 40°C during operation and from -10°C to 70°C when stored. Its power requirements are modest, requiring a DC input voltage of 5V at 1A, resulting in a maximum power consumption of 2.01W. Despite its compact size—measuring just 111mm wide by 75mm deep by 30mm high—it packs impressive performance capabilities suitable for small networks or access layer deployments where cost-effectiveness is prioritized over advanced features such as Power OverEthernet support. Additionally, it includes LED indicators for status monitoring and comes equipped with a manual guide for users. Specifications:

• Name: D-Link DGS-1005D/E Network Switch
• SKU: DGS-1005D/E

• Type: Unmanaged
• Layer: L2

• Ports: Five RJ-45 Gigabit Ethernet (10/100/1000)
• Full Duplex Supported

• QoS Support: Yes
• MAC Address Table Entries: Up to 2000

• Switching Capacity: 10 Gbps
• Standards Compliance: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u

Additional Features Include:

Store-and-forward Packet Forwarding
Auto MDI/MDIX Connectivity
Mean Time Between Failures (MTBF): 1142330 hours
Operating Temperature Range: 0°C – 40°C
Storage Temperature Range: -10°C – 70°C
Relative Humidity Operation & Storage: 10% – 90%
Weight: 80 grams
Dimensions: Width

Main specifications

• Model: D-Link DGS-1005D/E network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
• Colour: Black
• Weight: 80 g
• Width: 111 mm
• Depth: 75 mm
• Height: 30 mm
• sku: DGS-1005D/E
• Switch type: Unmanaged
