HP t5630w Thin Client 1 GHz 1.54 kg

HP t5630w Thin Client, 1 GHz, 1 GB, 2 GB, 64 MB, Citrix ICA 11.x, Microsoft RDP 6.1, Windows Media Player 11, Enhanced Write Filter, Symantec…, 50 W

Documentation:

SKU: FU259ET Category: Brand:

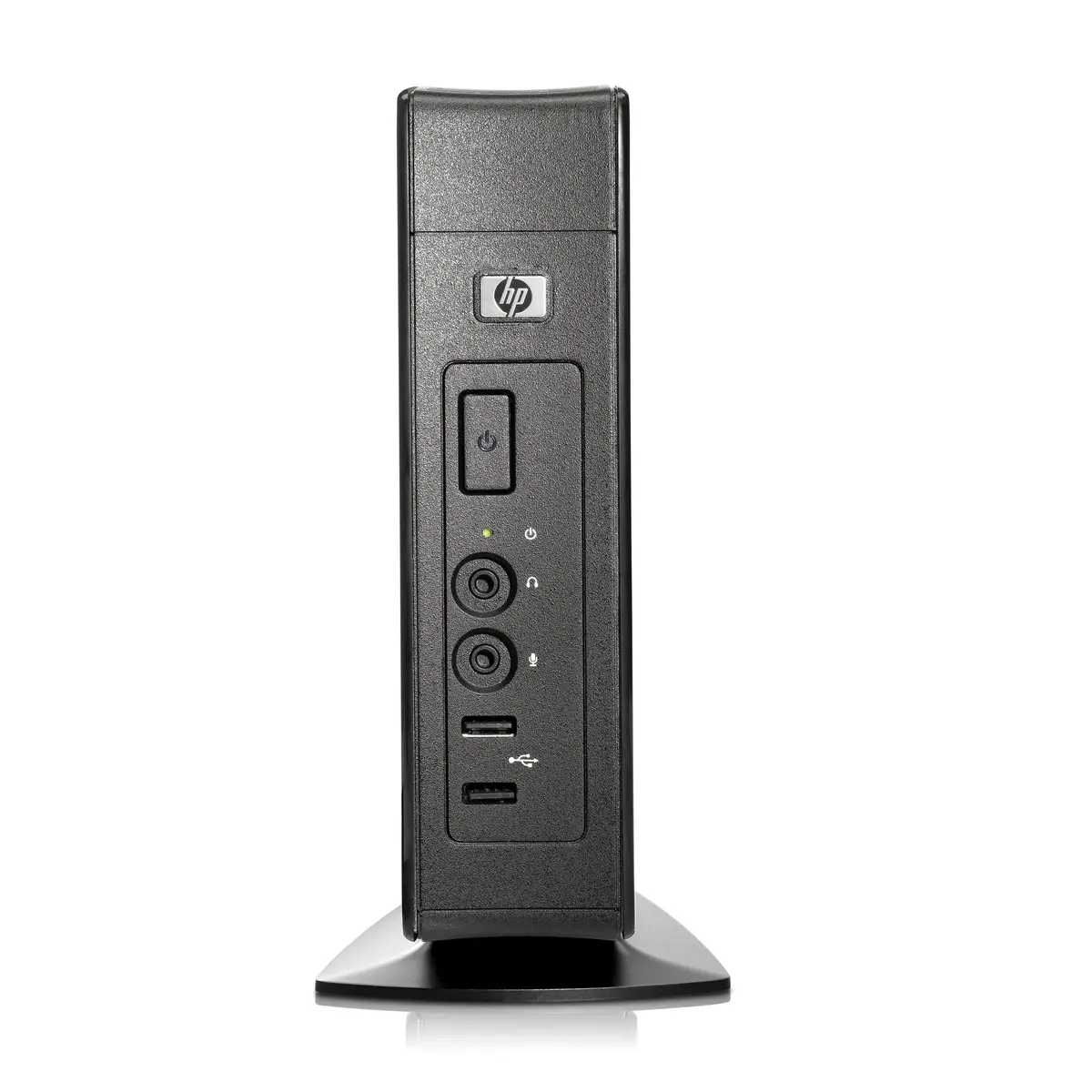

The HP t5630w Thin Client is an integrated solution designed for remote access in thin-client computing environments. It boasts a single processor frequency of 1 GHz, providing adequate processing power suitable for basic applications and limited user interactions. Equipped with 1 GB of internal memory, it can handle standard workloads efficiently without requiring additional expansion options.

For storage capacity, the device offers 2 GB total space, which includes both system and application data space. The graphics capabilities are modest but sufficient for typical office tasks such as word processing, spreadsheets, and simple presentations. However, users seeking higher resolution displays might find this limitation restrictive when dealing with demanding graphical applications like CAD or gaming.

This model supports network protocols including TCP/IP, DNS, DHCP, PPP, PPPoE, PPTP, L2TP, STNP, SNMP, WOL, PXE, and is compatible with operating systems such as Windows Server families, Citrix Presentation Server versions, VMware Virtual Desktop Infrastructure using RDP. With dimensions of 52 x 215.9 x 219.7 mm and weighing just 1.54 kg, the HP t5630w Thin Client provides compactness while maintaining essential features required for efficient remote access solutions.

Main characteristics

  • Model: HP t5630w Thin Client 1 GHz 1.54 kg
  • Weight: 1.54 kg
  • Dimensions (W×D×H): 52 x 215.9 x 219.7

Additional information

Processor frequency

1 GHz

Internal memory

1 GB

Total storage capacity

2 GB

Maximum graphics card memory

64 MB

Bundled software

Citrix ICA 11.x, Microsoft RDP 6.1, Windows Media Player 11, Enhanced Write Filter, Symantec Endpoint Protection, HP Remote Graphics Software Receiver 5.2, HP RDP Multimedia and USB Redirection Enhancement Software, HP TeemTalk Terminal Emulator 7.1, HP Universal Print Driver (available as a free download), ThinPrint .print TCP client (available as add-on)

Power supply

50 W

Operating temperature (T-T)

10 – 40 °C

Storage temperature (T-T)

-30 – 60 °C

Operating relative humidity (H-H)

10 – 90%

Country of origin

China

Weight

1.54 kg

Dimensions (WxDxH)

52 x 215.9 x 219.7 mm

Ergonomics

Safety: IEC60950-1, 12:2005, with CB Certificate and all National Deviations; US and Canada: UL 60950-1/CAN/CSA 22.2 No. 60950-1-03, 07:2006, Bi-National Standard for ITE Safety in the US and Canada and is published jointly by UL and CSA; Europe: EN 60950-1, 06:2003, Information Technology Equipment; RF Interference: FCC Class B, CE Mark, VCCI

Dimensions (W x D x H) with stand

52 x 215.9 x 219.7 mm

Pointing device

HP PS/2 2-Button Optical Scroll Mouse

Power requirements

100-240 VAC, 50-60 Hz

Graphics card

Chrome9 HC3

Supported network protocols

TCP/IP, DNS, DHCP, PPP, PPPoE, PPTP, L2TP, STNP, SNMP, WOL, PXE

Browser supported

Microsoft Internet Explorer 7.0

Compatible operating systems

Windows 2000/2003 Server families, Windows 2000/2003 Server Terminal Services, Windows Server 2008, Windows 2000 Advanced Server, Windows 2000 Advance Server Terminal Services, Citrix Presentation Server (up to 4.0), Citrix Metaframe Presentation Server 3.0, Citrix Metaframe XP Presentation Server, Citrix Metaframe 1.x, VMware Virtual Desktop Infrastructure using RDP

Networking features

Gigabit Ethernet

I/O ports

6 x USB 2.0
1 x VGA
1 x DVI-D
2 x PS/2
1 x serial
1 x parallel
1 x RJ-45

Audio included

Output: internal amplified speaker, 1/8-inch mini-jack, full 24-bit stereo, 192-kHz sample rate; Input: 1/8-inch microphone mini-jack, 20-bit stereo, 96-kHz sample rate

Configuration management description

Altiris Deployment Solution (full client license), HP Device Manager, HP ThinState for image capture and redeploy, support for HP Client Automation

Video card features

VIAChrome9 HC3 Integrated Graphics with support for high-resolution monitors up to 1920 x 1440 or up to 32-bit color depth

Keyboard type

HP USB Standard Keyboard

ROM type

Flash
