HP Compaq t5730 Thin Client 1 GHz 1.6 kg 2100+

HP Compaq t5730 Thin Client, 1 GHz, AMD Sempron, 2100+, 1 GB, 1 GB, 32 MB

Documentation:

SKU: NB793AA Category: Brand:

The HP Compaq t5730 Thin Client is equipped with an AMD Sempron processor running at 1 GHz, offering basic processing capabilities suitable for thin client applications. It features 1 GB of internal memory and 1 GB of total storage capacity, making it ideal for lightweight operating systems like Microsoft Windows XP Embedded.

With its Radeon X1250 integrated video card providing up to 32 MB of dedicated graphic memory, this device supports various network protocols including RDP, ICA, PPPoE, PPTP, L2TP, PXE, SNMP, and more. The system runs on standard power requirements of 100-240 VAC, 50-60 Hz, ensuring compatibility across different regions.

Its ergonomic design includes support from UL 1950, CSA 950, TÜV-GS (EN60 950), FCC Class B, CE Mark, EN55022B, and VCCI certifications, meeting international safety standards. This thin client also offers built-in security through HP Sygate Security Agent software and comes bundled with essential utilities such as Internet Explorer 6.0, Altiris Deployment Solution, and other add-on options available for enhanced functionality.

Feature summary

  • Model: HP Compaq t5730 Thin Client 1 GHz 1.6 kg 2100+
  • Weight: 1.6 kg
  • Dimensions (W×D×H): 45.7 x 215.1 x 266.7 mm
  • Processor: 2100+
  • CPU frequency: 1 GHz
  • sku: NB793AA
  • Processor family: AMD Sempron
  • Internal memory: 1 GB

Additional information

Processor frequency

1 GHz

Processor family

AMD Sempron

Processor model

2100+

Internal memory

1 GB

Total storage capacity

1 GB

Maximum graphics card memory

32 MB

Audio system

16-bit, 44 KHz

Supported protocols

RDP; ICA; TeemTalk for Windows (terminal emulator); HP PC Session Allocation Manager Software5 for the Consolidated Client Infrastructure; Citrix Desktop Broker for Virtual Desktop Infrastructure
Microsoft RDP 6.0; Citrix ICA 10.x Program Neighborhood; HP Neoware Teemtalk Terminal Emulator; HP PC Session Allocation Manager Software5 for the Consolidated Client Infrastructure; Citrix Desktop Broker for Virtual Desktop Infrastructure

Bundled software

Microsoft Windows XP Embedded, Microsoft Internet Explorer 6.0,
HP Sygate Security Agent, Altiris Deployment Solution (full client license). Altiris Deployment Solution 6.5 (management console) available as free download. ThinState for image capture and redeploy
Terminal emulation software, Citrix ICA, and Microsoft RDP
Windows Media Player 9. Other software available as add-ons.

Power supply

50 W

Operating temperature (T-T)

10 – 40 °C

Storage temperature (T-T)

-30 – 60 °C

Operating relative humidity (H-H)

20 – 80%

Certification

UL 1950; CSA 950; TUV-GS (EN60 950); FCC Class B; CE Mark; EN55022B; VCCI

Country of origin

China

Weight

1.6 kg

Dimensions (WxDxH)

45.7 x 215.1 x 266.7 mm

Ergonomics

UL 1950, CSA 950, TÜV-GS (EN60 950); RF: FCC Class B, CE Mark, EN55022B, VCCI

Dimensions (W x D x H) with stand

45.7 x 215.1 x 266.7 mm

Power supply type

Worldwide auto-sensing 100-240 VAC, 50-60 Hz energy-saving automatic power-down, surge-tolerant, 50-watt power supply

Pointing device

PS/2 2-button optical mouse

Power requirements

100-240 VAC, 50-60 Hz

Graphics card

Radeon X1250

Supported network protocols

TCP/IP + DNS & DHCP; PPP, PPPoE; PPTP; L2TP; WOL; PXE; SNMP

Browser supported

Microsoft IE 7.0

Compatible operating systems

Windows NT 4.0 Server, Windows NT 4.0 Terminal Server Edition, Windows 2000/2003 Server, Windows 2000/2003 Server Terminal Services, Windows 2000 Advance Server, Windows 2000 Advance Server Terminal Services, Citrix Presentation Server (- 4.5), Citrix MetaFrame Presentation Server 3.0, Citrix Metaframe XP Presentation Server, Citrix Metaframe 1.x, VMware Virtual Desktop Infrastructure / RDP

Networking features

10/100/1000 Gigabit

Wireless technology

802.11b/g

Chassis type

Standard Thin Client

Size (imperial)

4.57 cm (1.8")

Expansion slots

1 PCI Expansion Module (optional)

I/O ports

8x USB 2.0,
1x VGA,
1x DVI-D,
2x PS/2,
1x serial,
1x RJ-45

Video card features

ATI Radeon X1250

Keyboard type

PS/2 standard keyboard

Security management description

HP Sygate Security Agent

Weight (imperial)

with stand
3.5 lb

Dimension note (imperial)

with stand

Dimension note (metric)

with stand

Multimedia

1/8-inch mini microphone; Internal amplified speaker, 1/8-inch mini, full 16-bit stereo, 44-kHz sample rate; SiS74iGX Integrated/UMA graphics with 16 MB shared graphics memory.

Product dimensions (with stand, imperial)

45.7 x 215.1 x 266.7 mm (1.8 x 8.47 x 10.5")

Product dimensions (without stand, imperial)

45.7 x 215.1 x 254 mm (1.8 x 8.47 x 10")

ROM type

Flash ROM

Video card note

32 MB reserved for graphics memory

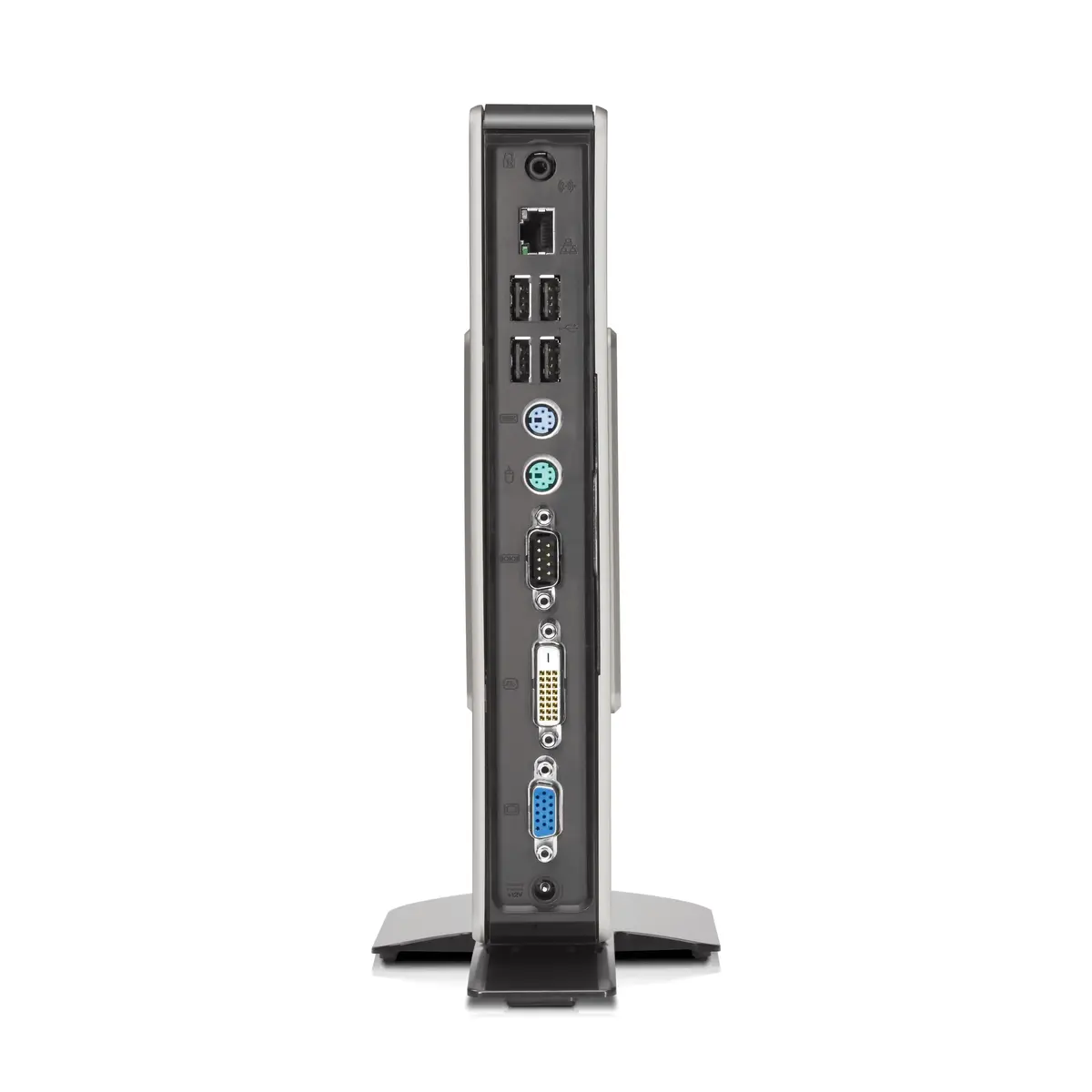

Rear ports note

4 USB 2.0; 1 VGA-in; 1 DVI-D; 2 PS/2; 1 RJ-45; 1 parallel; 1 serial
