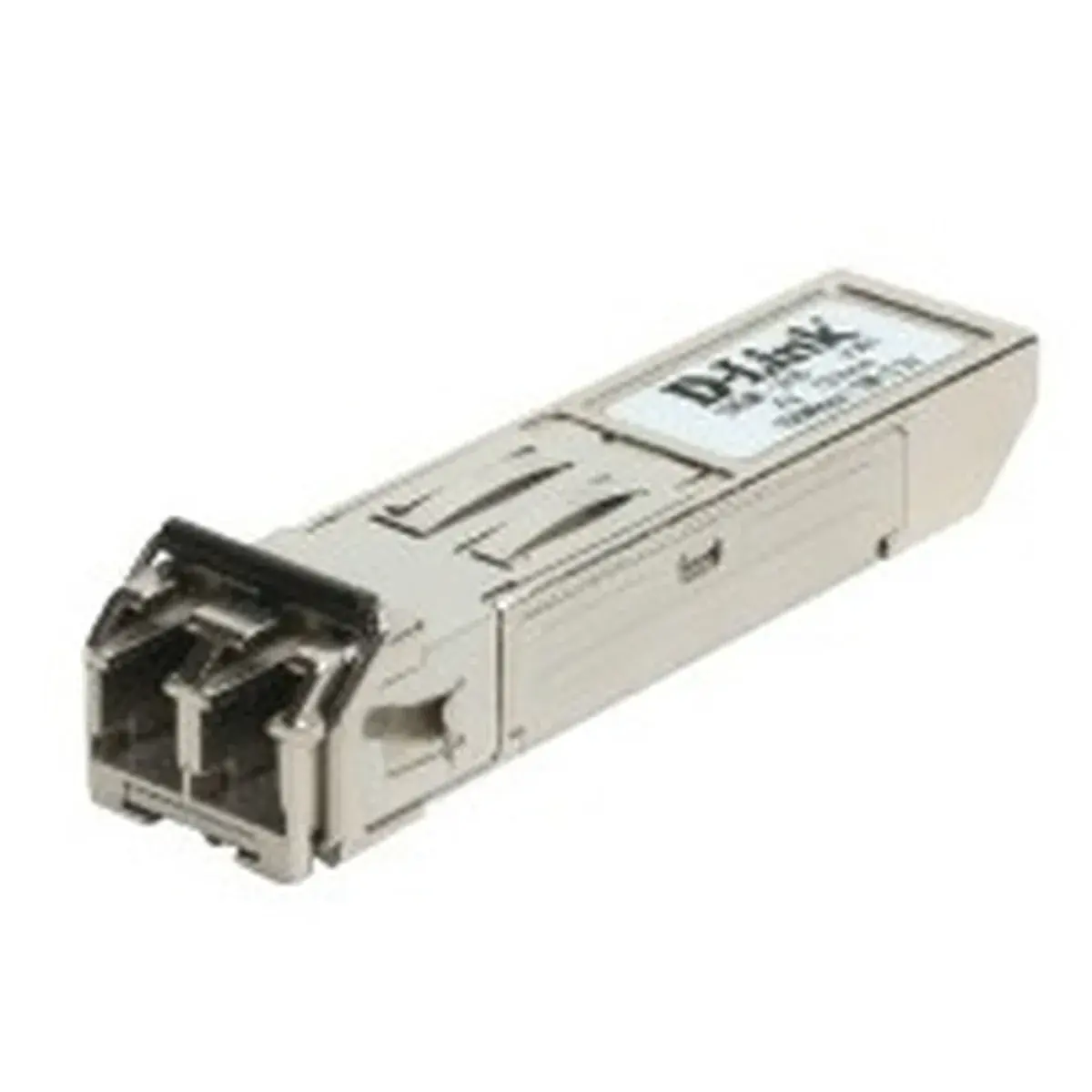

D-Link DEM-211 network transceiver module Fiber optic 100 Mbit/s SFP 1310 nm

The D-Link DEM-211 is an SFP transceiver module designed for fiber optic networking applications at speeds of up to 100 Mbit/s using multi-mode fiber optics (MMF). It supports wavelengths of 1310 nm and operates within a temperature range from -40°C to +85°C and humidity levels between 5% and 90%. This product comes in a metallic color and can be installed as a plug-in component into compatible devices such as DES-1228, DES-1228P, DES-3252P, DES-3228PA, DES-1252, and DGS-3612G networks.

The maximum transfer distance supported by this module is 2000 meters under standard conditions. It has been certified according to FDA/CDRH, TUV, UL standards and complies with RoHS regulations. Its dimensions are Width x Depth x Height measuring approximately 57.9 mm x 12.7 mm x 7.62 mm respectively.

When packaged individually, each unit weighs around 13.6 grams; however, when shipped in bulk, it packs efficiently into cases that measure about 74 mm wide, 131 mm deep, and 49 mm high, weighing roughly 64 grams per case. For transportation purposes, these modules ship securely packed inside shipping containers which have dimensions of 36 cm long, 26 cm wide, and 31 cm tall, carrying up to 50 pieces per inner container.

Technical details

• Model: D-Link DEM-211 network transceiver module Fiber optic 100 Mbit/s SFP 1310 nm
• Colour: Metallic
• Weight: 13.6 g
• Width: 57.9 mm
• Depth: 12.7 mm
• Height: 7.62 mm
• Package weight: 64 g
• sku: DEM-211
