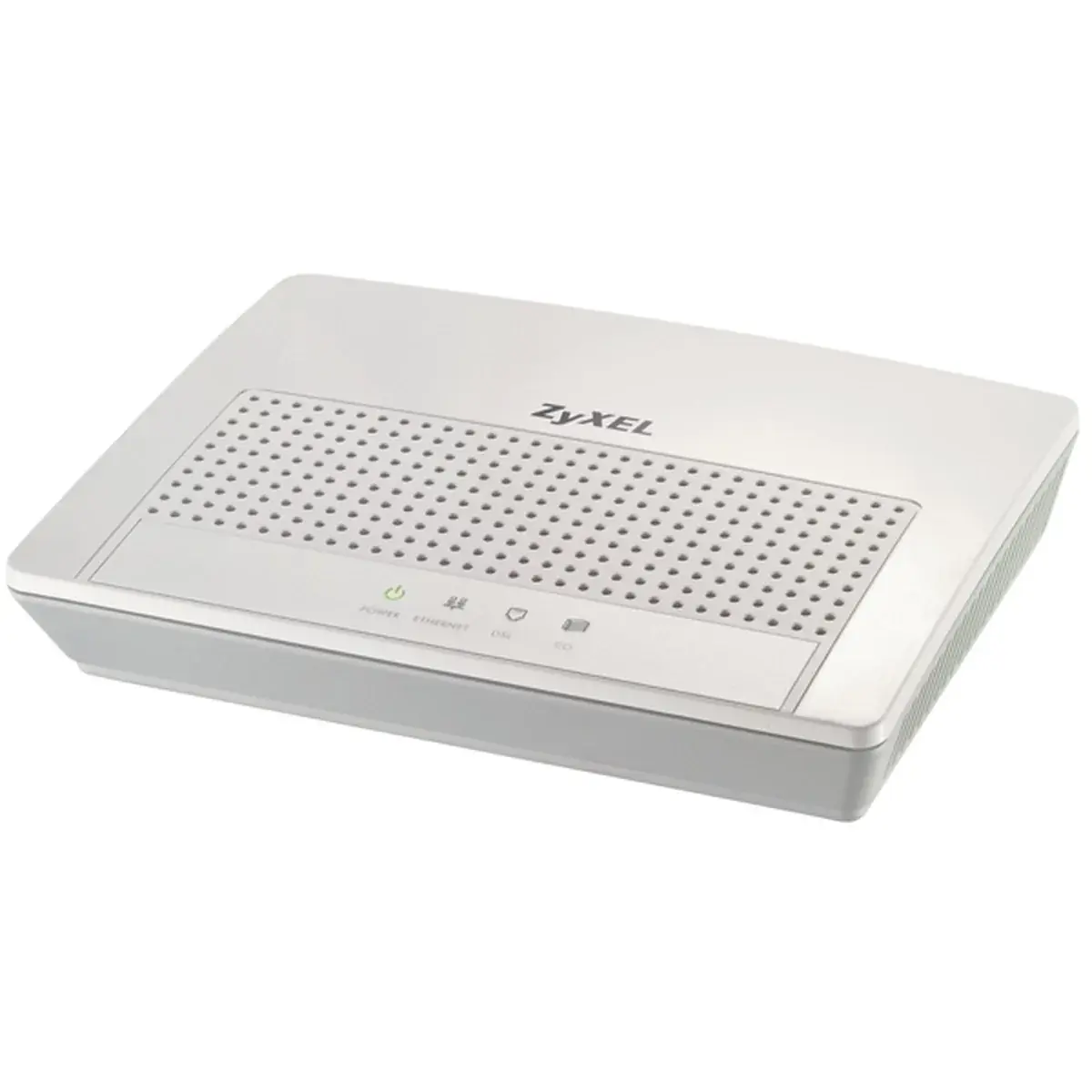

Zyxel P-871M modem

The Zyxel P-871M is an Ethernet-based VDSL modem designed for high-speed internet connectivity. It supports data rates of up to 80 Mbit/s downstream and 40 Mbit/s upstream over DSL lines. This device includes Ethernet and Fast Ethernet networking features and complies with various international standards such as Federal Communications Commission (FCC) Part 15 Class B, EN55022 Class B, and multiple other compliance certificates including EN61000-3-2: 2000, EN61000-3-3: 1995+A1:2001, and CSA 60950-1.

Additionally, it adheres to industry standards like IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.1D. The physical specifications of the Zyxel P-871M are compact yet robust; its dimensions are 132mm in depth, 40mm in height, and 189mm in width. It weighs just 307 grams and operates within specified temperature ranges from -20°C to 60°C and relative humidity ranging from 20% to 90%, non-condensing.

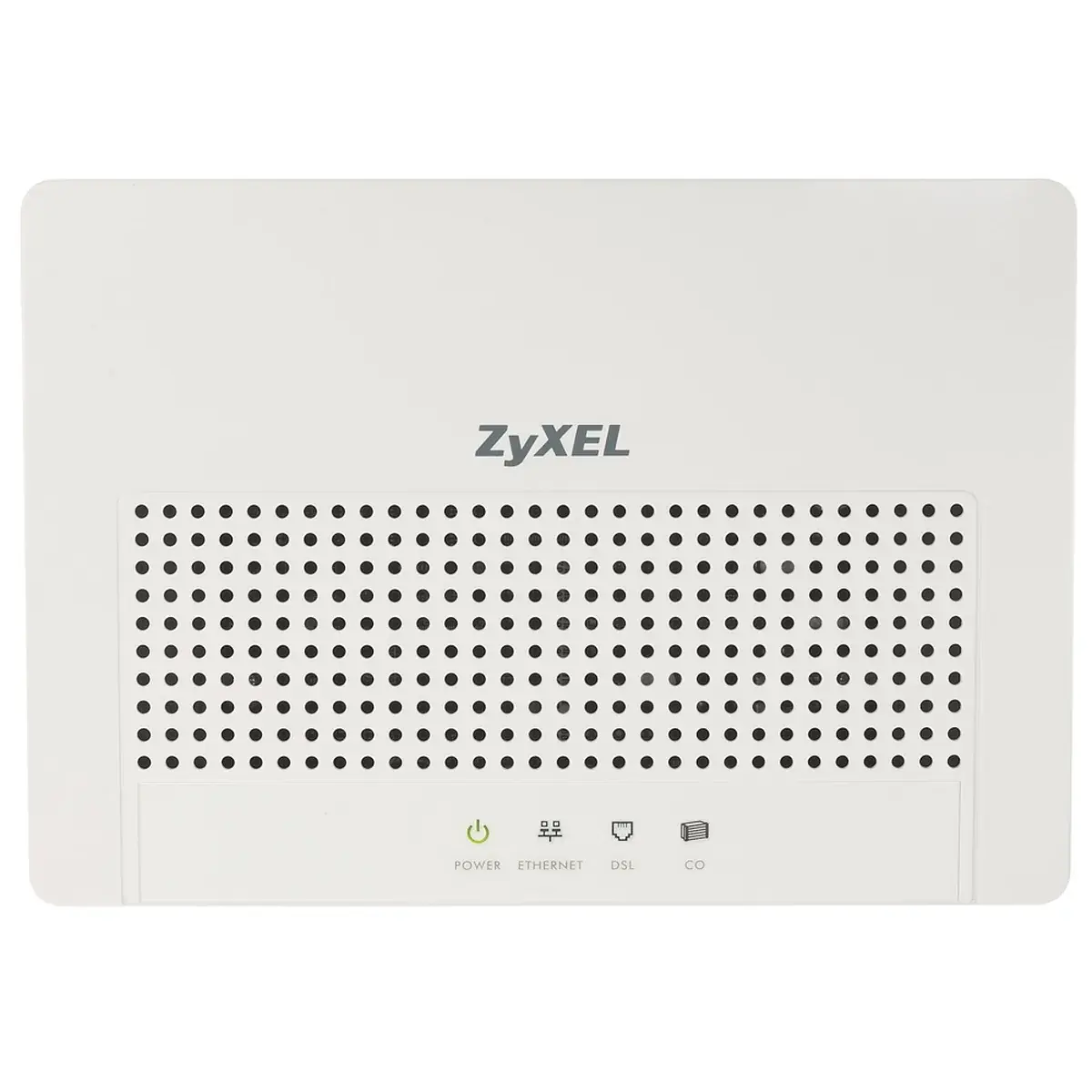

For power supply, there’s a DC-in jack available. The LED indicators on this model provide visual feedback about operational status, enhancing user monitoring capabilities. Overall, the Zyxel P-871M offers reliable performance suitable for home or small office environments requiring fast internet access through VDSL technology.

Main specifications

• Model: Zyxel P-871M modem
• Weight: 307 g
• Width: 189 mm
• Depth: 132 mm
• Height: 40 mm
• sku: ZYXPRE871M
• Upstream data rate: 40 Mbit/s
• Downstream data rate: 80 Mbit/s
