Zyxel NWA110AX 1000 Mbit/s White Power over Ethernet (PoE)

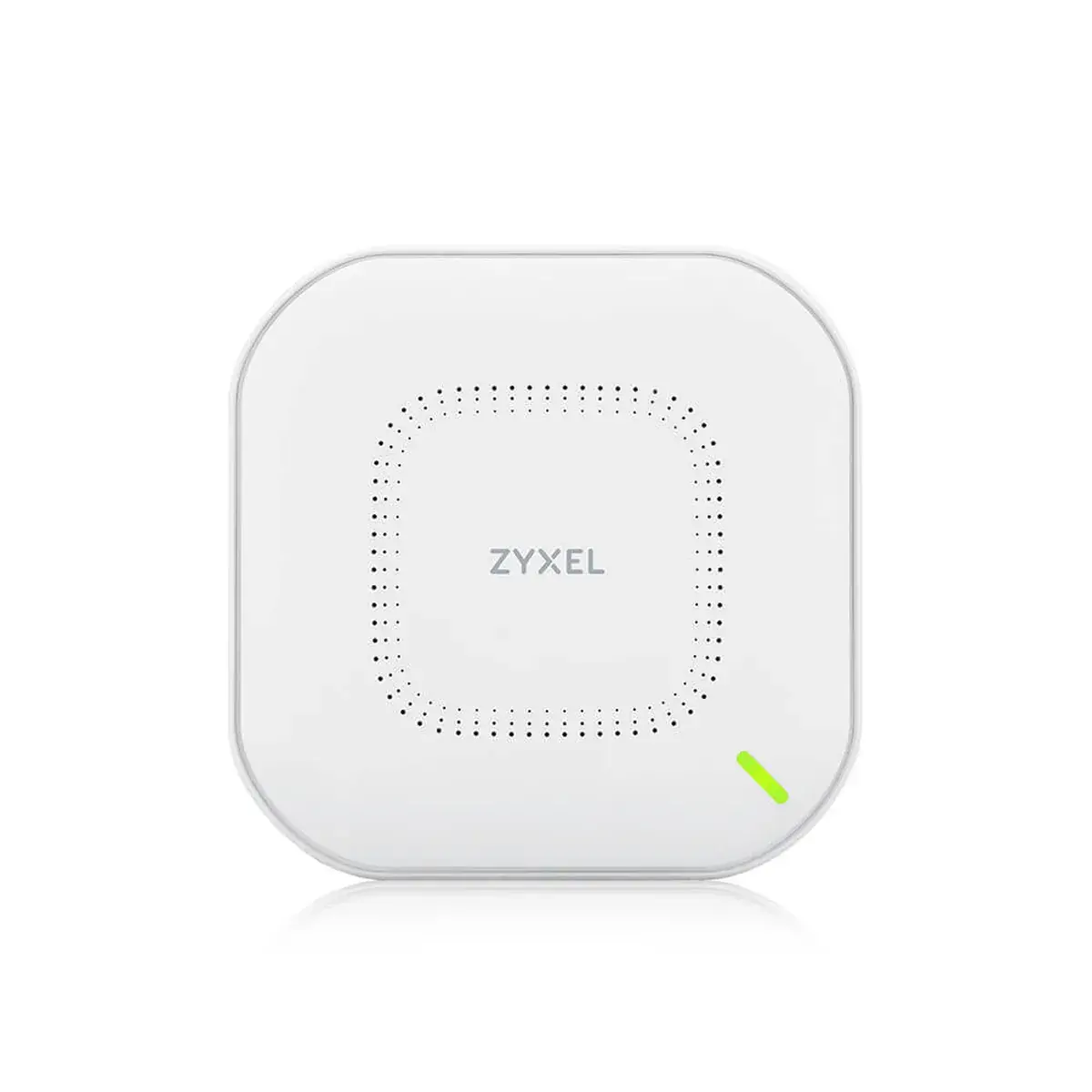

Zyxel NWA110AX is an access point designed for wireless network connectivity.

It supports both 2.4 GHz and 5 GHz frequency bands, offering maximum data transfer rates of up to 1000 Mbit/s in total across these frequencies.

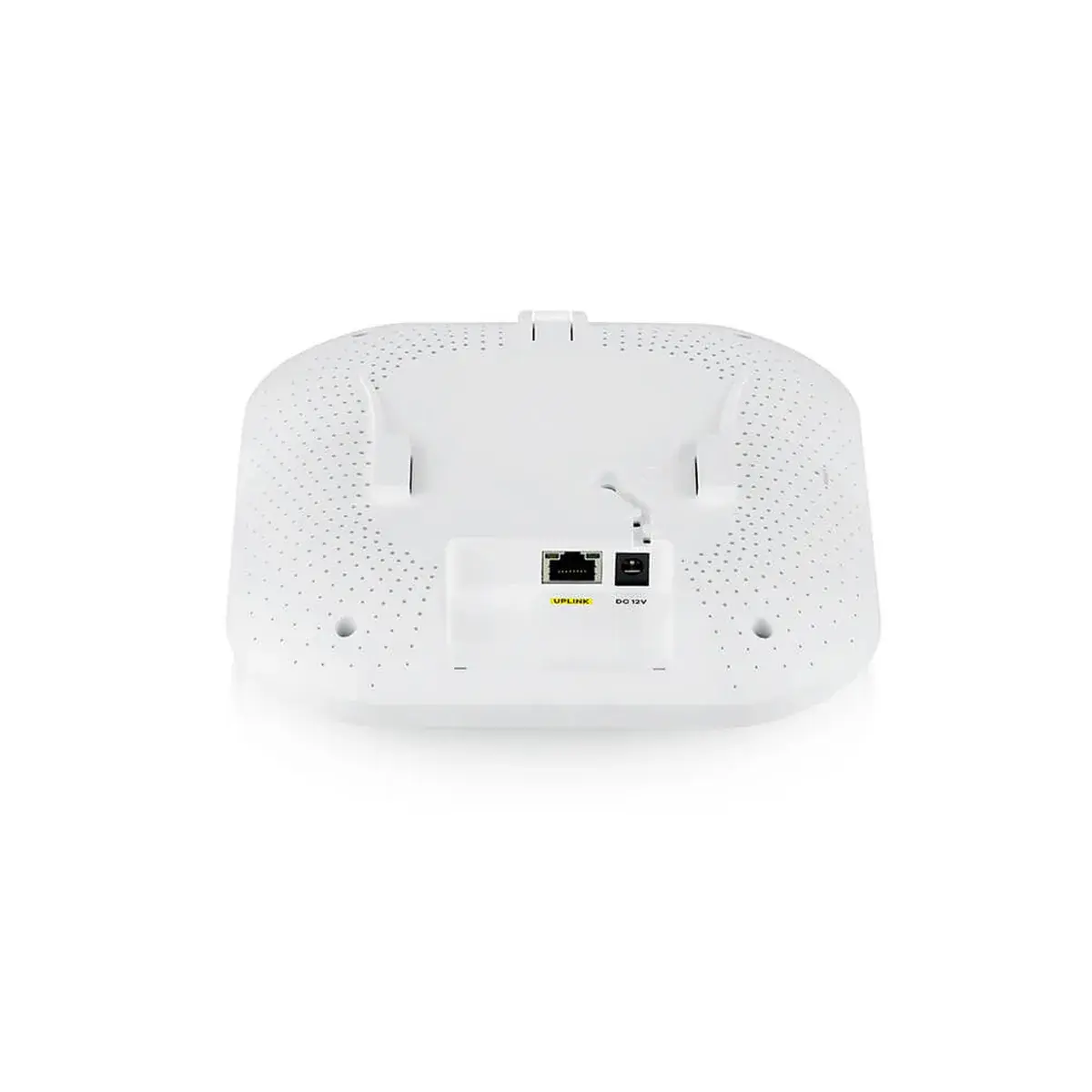

The device includes various security algorithms such as WPA, WPA-PSK, WPA2, WPA2-Enterprise, and WPA3, ensuring robust protection against unauthorized access. The Zyxel NWA110AX operates within IEEE 802.11a, IEEE 802.11ac, and IEEE 802.11ax standards, supporting multiple Wi-Fi multimedia features like WMM/WME (Wireless Quality of Service) and fast roaming capabilities. This model also integrates VLAN support through SSID-based VLAN assignment, making it suitable for complex networking environments. In terms of physical specifications, the unit has one Ethernet LAN port capable of speeds ranging from 10 to 1000 Mbit/s. Power over Ethernet (PoE) functionality allows for easier installation without additional power sources at remote locations. The product comes in white color and can be mounted on ceilings, tables, or walls. Additional features include automatic channel selection and scanning, dual polarization antennas providing gain levels up to 6 dBi, and LED indicators for easy monitoring. With dimensions of Width: 180 mm x Depth: 180 mm x Height: 39 mm and weighing only 453 grams, this compact yet powerful device offers flexibility in placement options while maintaining efficiency with its low power consumption of 17W under typical conditions. It complies with a range of certifications including FCC Part 15C/Part 15E, ETSI EN 300 328, etc., ensuring compliance with international safety regulations. Overall, the Zyxel NWA110AX is designed as an efficient solution for enhancing wireless network performance across various applications.

Product highlights

• Model: Zyxel NWA110AX 1000 Mbit/s White Power over Ethernet (PoE)
• 2.4 GHz: Yes
• 5 GHz: Yes
• Maximum data transfer rate: 1000 Mbit/s
• Maximum data transfer rate (2.4 GHz): 575 Mbit/s
• Maximum data transfer rate (5 GHz): 1200 Mbit/s
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Frequency band: 2.412 – 2.472, 5.470 – 5.725 GHz
