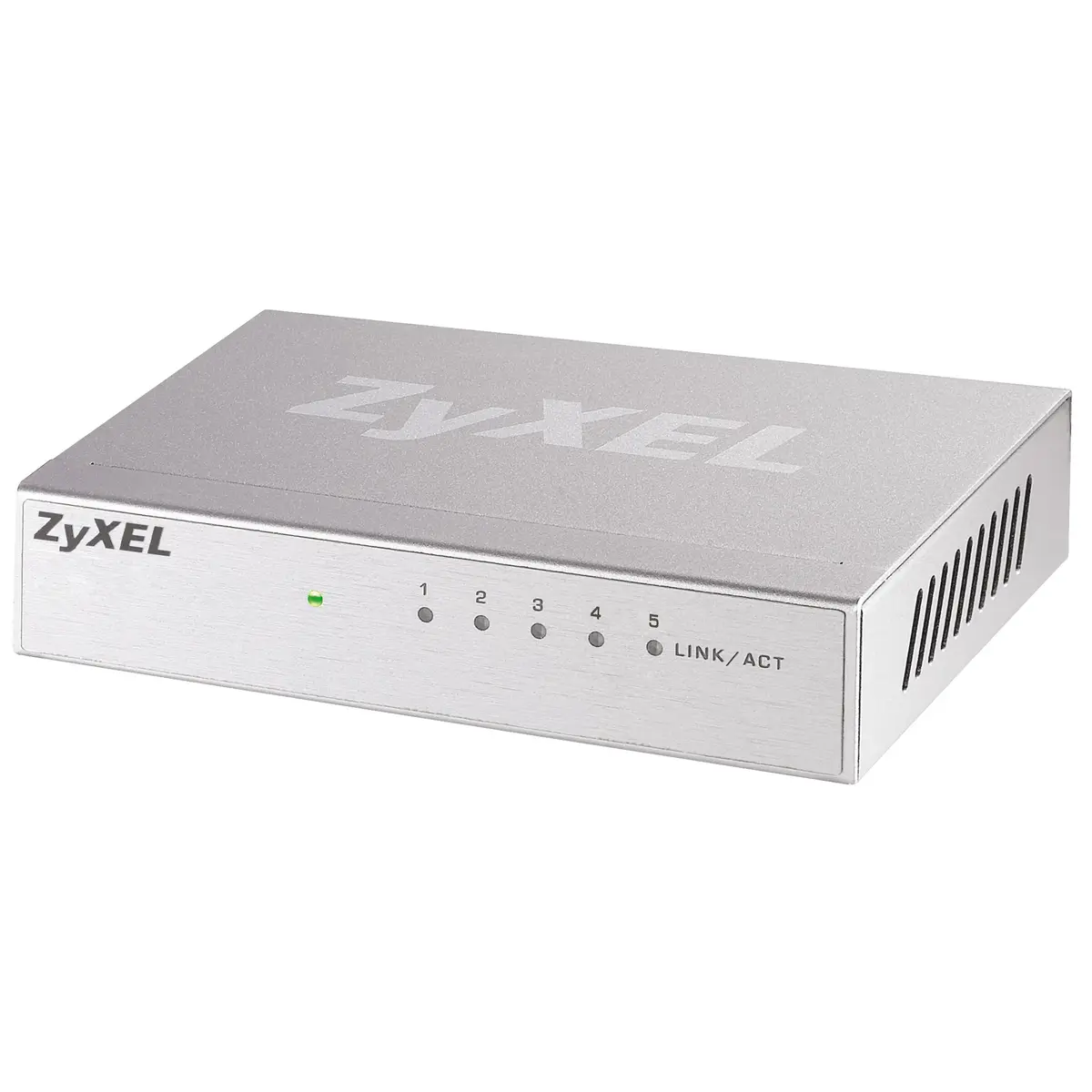

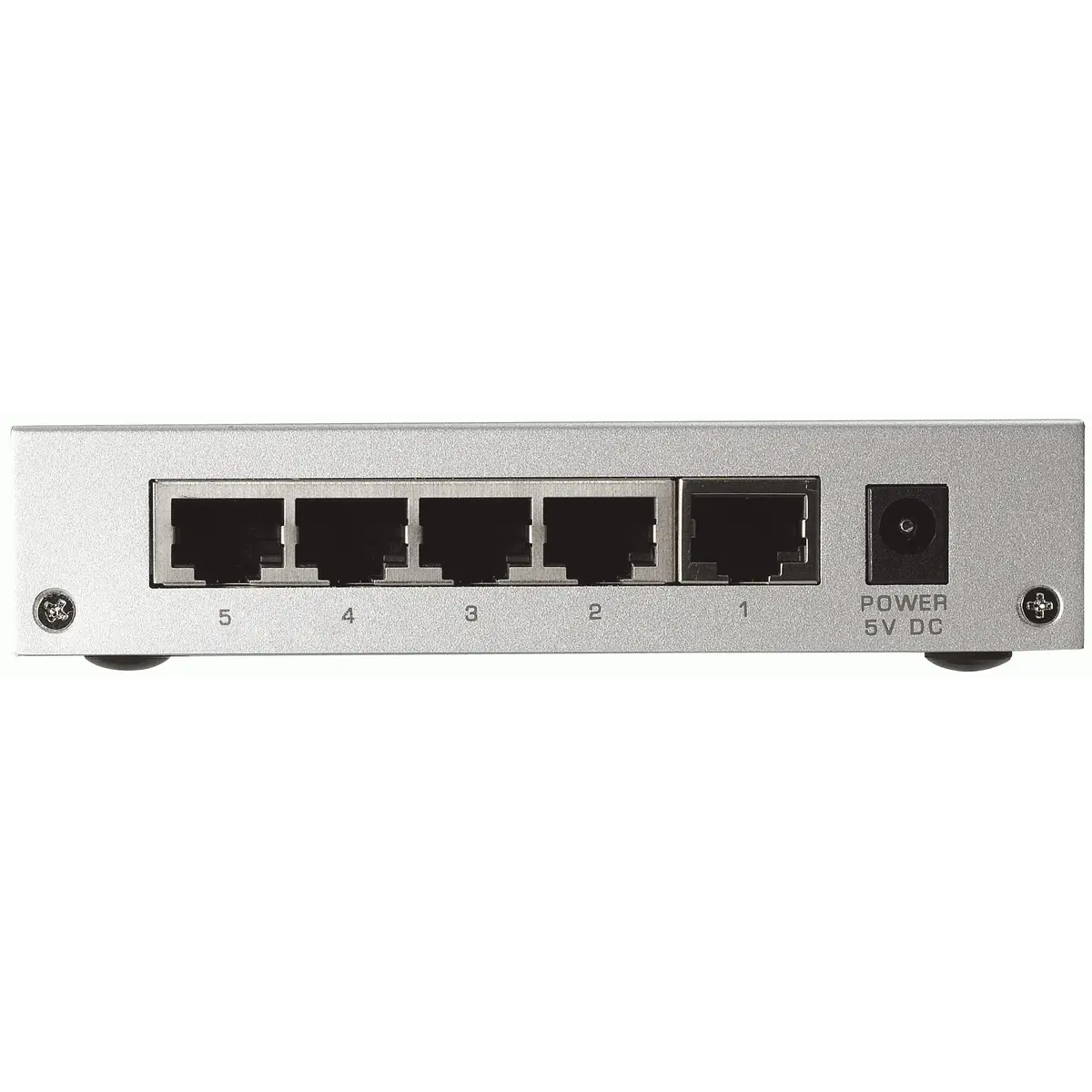

The Zyxel GS-105B is an unmanaged Layer 2 switch designed for basic network connectivity. It features five RJ-45 ports capable of full-duplex operation, supporting IEEE standards such as 802.3, 802.3ab, 802.3u, and 802.3x. With a switching capacity of 10 Gbit/s and up to 1000 entries in its MAC address table, it offers robust performance suitable for small networks requiring reliable data transfer at speeds ranging from 10/20 Mbps to 1000/2000 Mbps.
The switch supports store-and-forward packet processing and includes flow control support along with auto MDI/MDI-X functionality. It comes equipped with a DC-in jack power connector and operates within specified temperature ranges of 0°C to 50°C during use and -40°C to 70°C when stored. Its compact size makes it easy to install, measuring just 121 x 75 x 26 millimeters, while weighing 271 grams.
Additional certifications like CE, FCC Class A, and C-Tick ensure compliance with regulatory requirements. For ease of installation, there are connectivity LEDs included on the device. Overall, this switch provides efficient networking capabilities without the need for additional management software due to its unmanaged nature.
Notable features
- Model: Zyxel GS-105B Unmanaged L2 White
- Colour: White
- Weight: 271 g
- Dimensions (W×D×H): 121 x 75 x 26 mm
- Package weight: 565 g
- Typical power consumption: 3.15 W
- Input voltage: 100 – 240 V
- Power source: 5V DC, 1A
