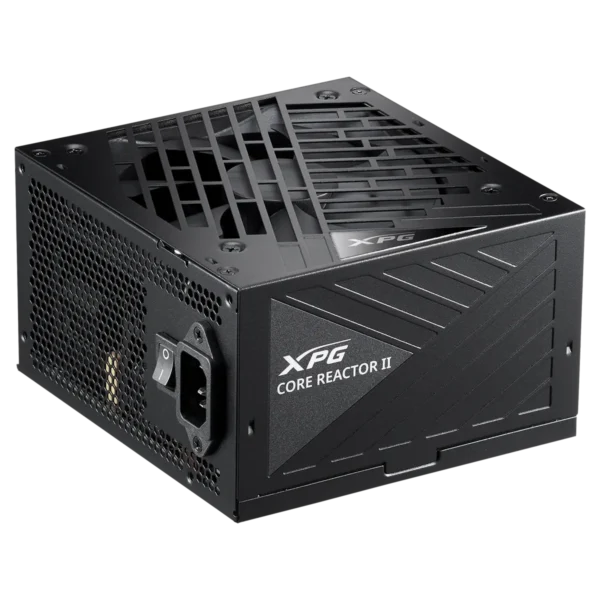

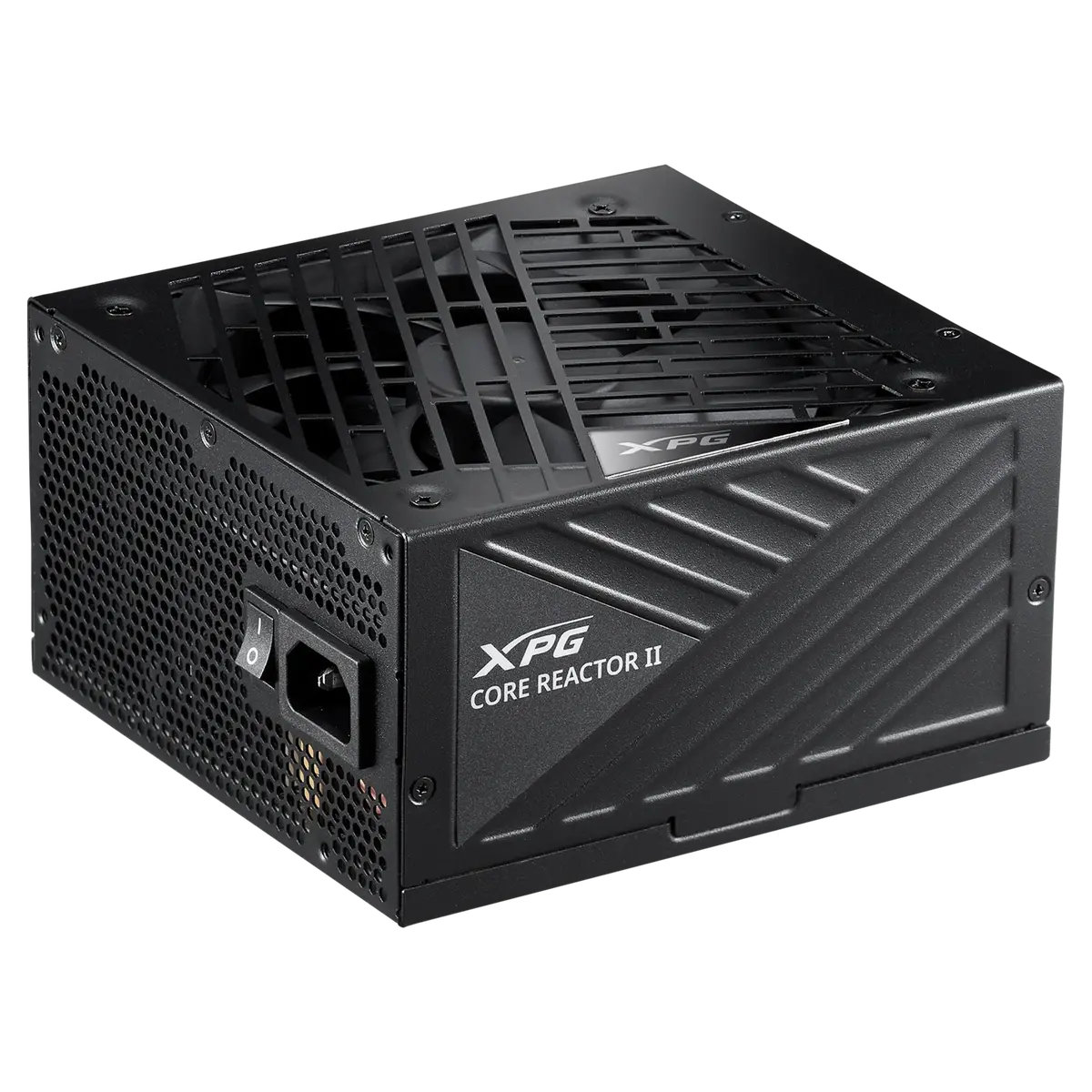

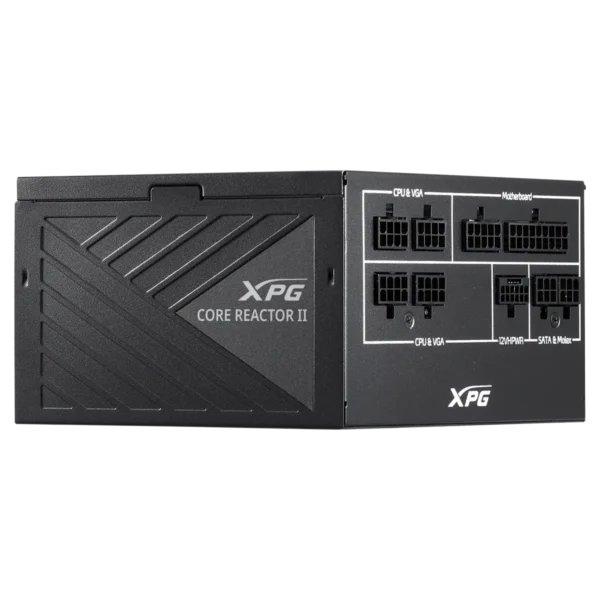

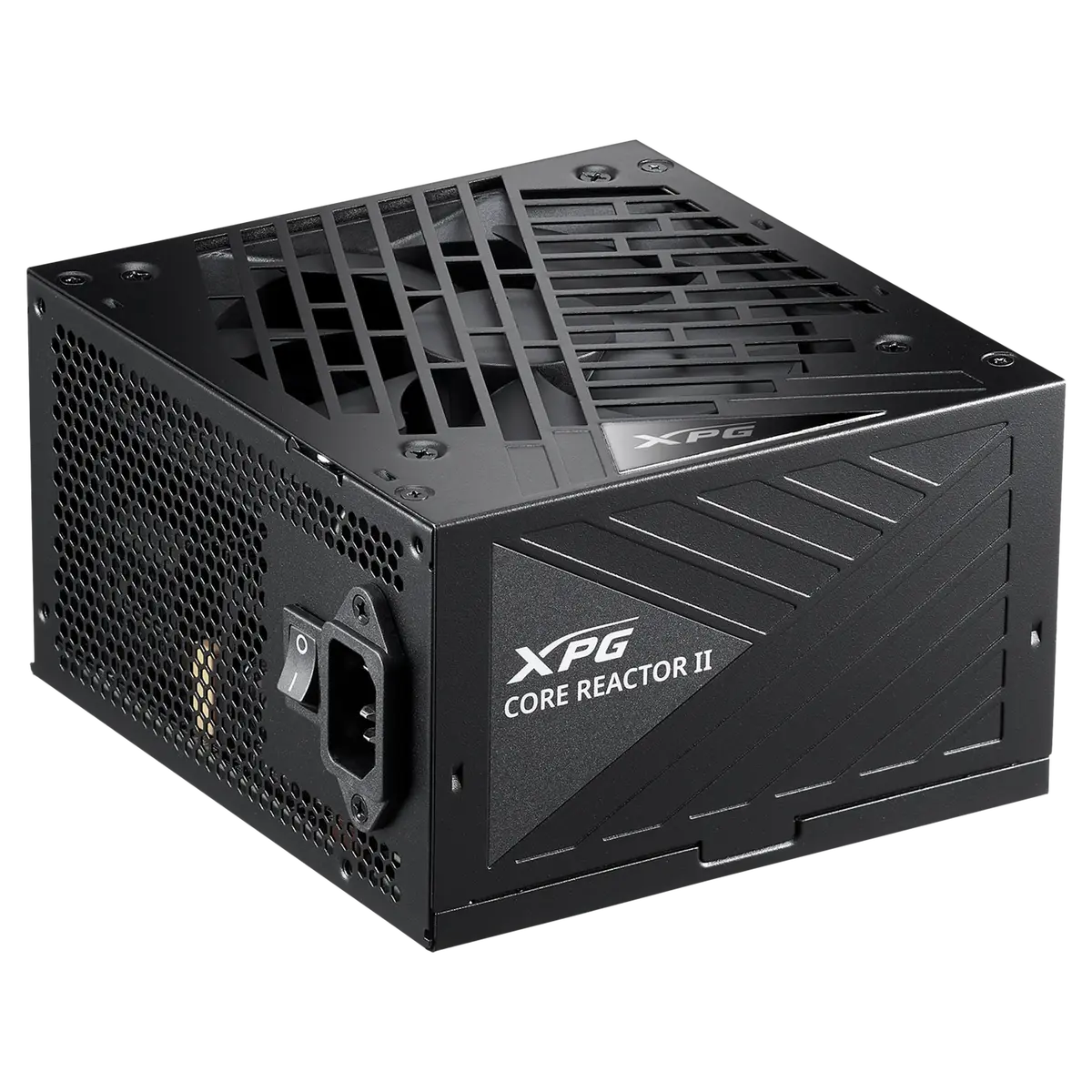

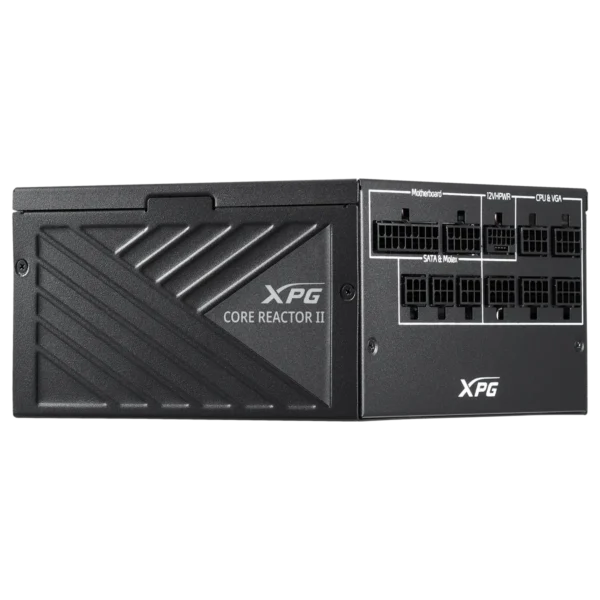

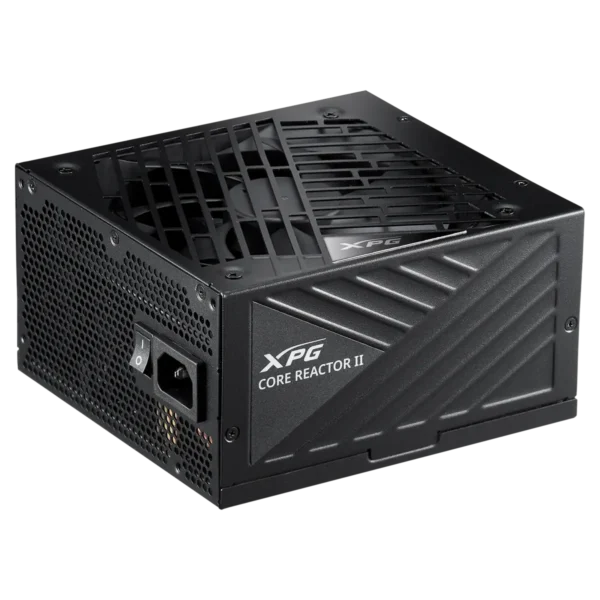

XPG COREREACTOR II 650W Power Supply

XPG COREREACTOR II 650W Power Supply, 650 W, 100 – 240 V, 47 – 63 Hz, 10 A, 20 A, 54.1 A

Documentation:

SKU: 75261173 Category: Brand:

The XPG COREREACTOR II 650W Power Supply is designed for PC enthusiasts seeking reliable power solutions. With a total output capacity of 650 watts, it can handle demanding workloads efficiently while maintaining high efficiency at an impressive 80 PLUS Gold certification level. This PSU supports various input voltage ranges from 100 to 240 volts across AC frequencies between 47 and 63 Hz, ensuring compatibility worldwide.

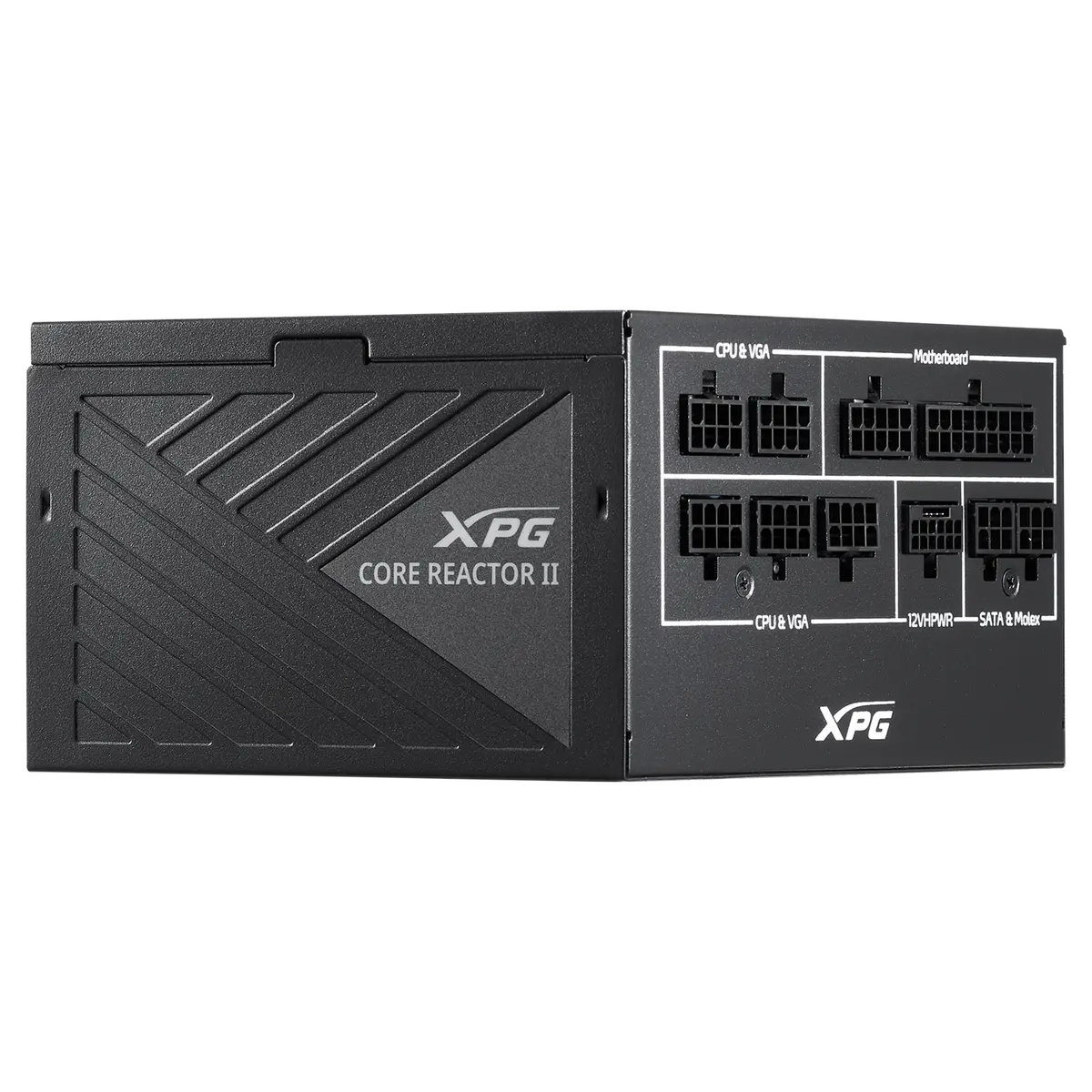

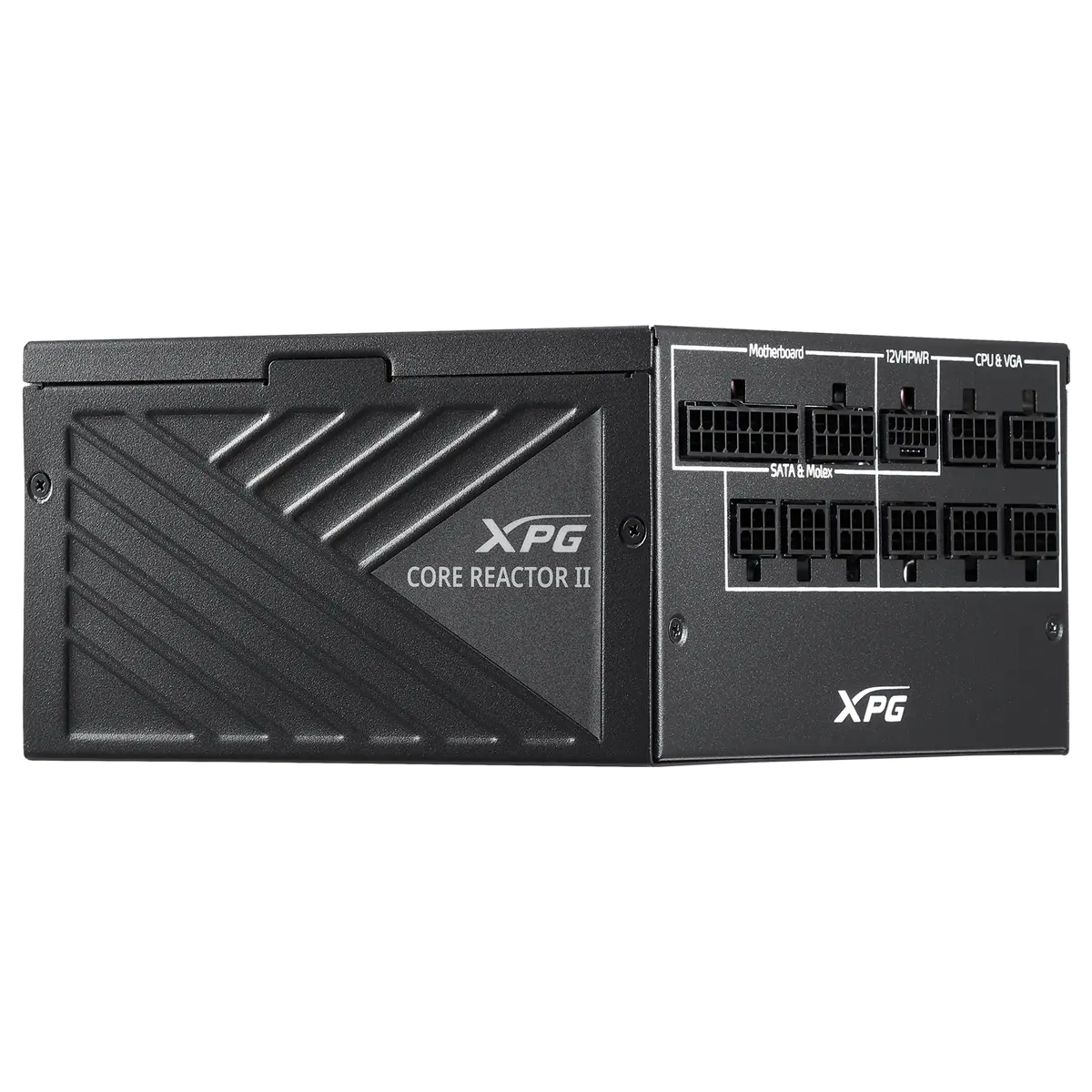

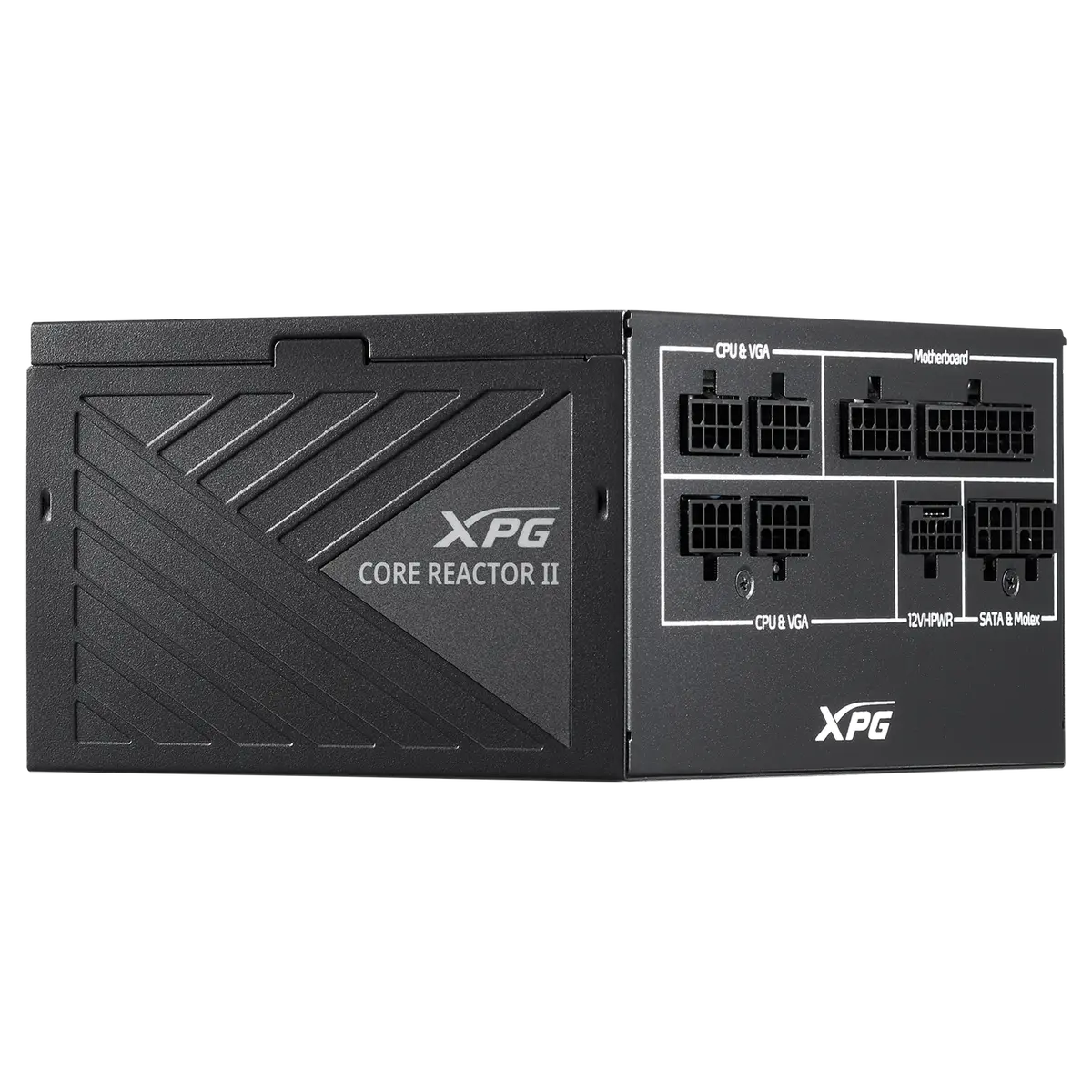

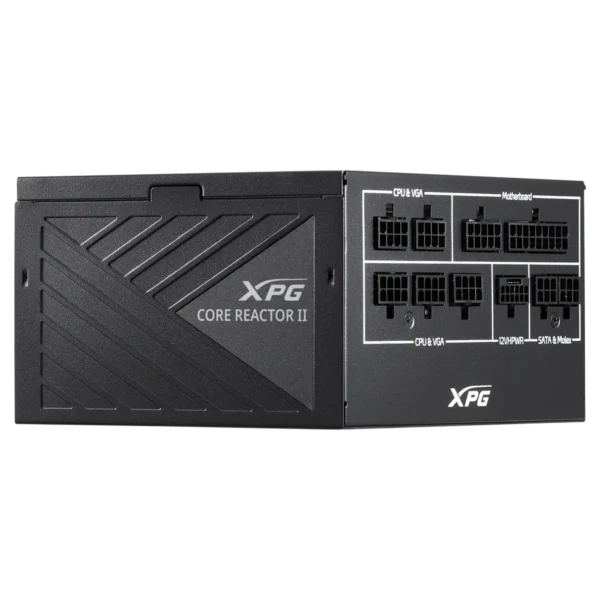

The unit features a fully modular cable design that allows users to customize their setup according to specific needs without compromising on flexibility. It includes essential connectors like a 24-pin ATX motherboard connector, four Molex peripheral connectors, eight SATA power connectors, one EPS power connector, and multiple PCI Express (PCI-E) power connectors.

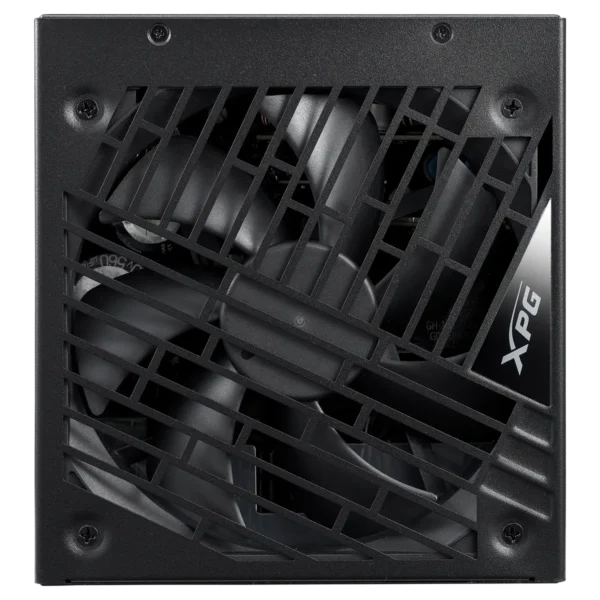

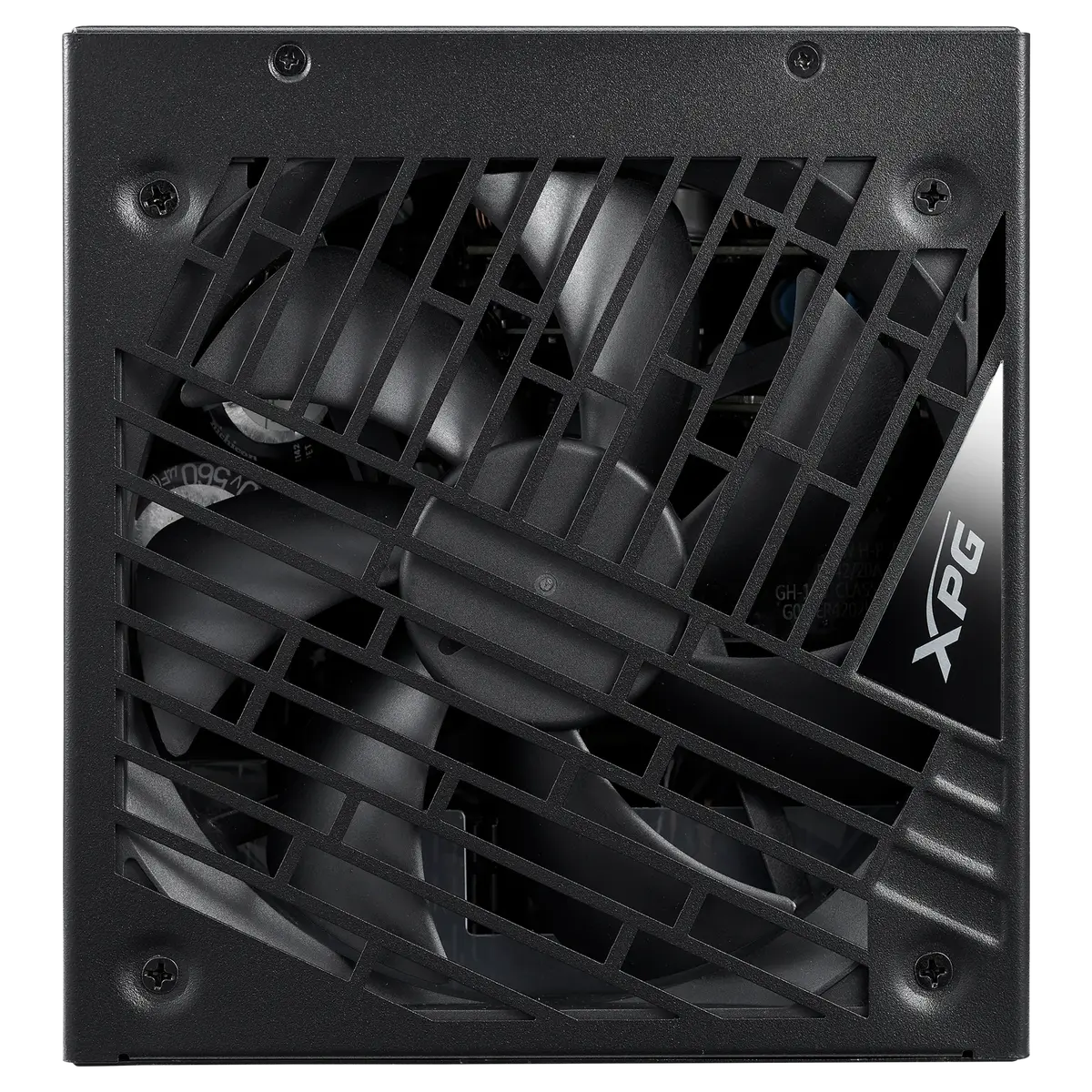

Additionally, its Active cooling system equipped with a 12 cm fan ensures optimal performance even under heavy loads, contributing to better thermal management within your computer case. Compliance with international standards such as BSMI, CB, CE, China Compulsory Certification (CCC), EAC, FCC, Norma Oficial Mexicana (NOM), RCM, cTUVus, TUV S-Zeichen, NOM, BSMI, UKCA, EAC, CCC, and RCM guarantees this product meets stringent safety requirements in different regions around the globe.

Feature summary

  • Model: XPG COREREACTOR II 650W Power Supply
  • Colour: Black
  • Weight: 1.3 kg
  • Width: 140 mm
  • Depth: 150 mm
  • Height: 86 mm
  • Package weight: 2.78 kg
  • sku: 75261173

Additional information

Total power

650 W

AC input voltage

100 – 240 V

AC input frequency

47 – 63 Hz

Input current

10 A

Power factor

0.99

Max output current (+3.3V)

20 A

Max output current (-12V)

0.3 A

Max output current (+5V)

20 A

Max output current (+5Vsb)

3 A

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

Motherboard power connector

24-pin ATX

Peripheral (Molex) power connectors (4-pin)

4

Number of SATA power connectors

8

EPS power connector (8-pin)

Yes

PCI Express power connectors (6+2 pin)

4

ATX Power connector (24-pin)

Yes

ATX power connector (12+4 pin)

Yes

Cabling type

Fully-Modular

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

ATX version

3.0

EPS version

2.92

Bearing technology

FDB

Mean time between failures (MTBF)

100000 h

Product colour

Black

Cooling type

Active

Fan diameter

12 cm

Number of fans

1 fan(s)

Compliance certificates

BSMI, CB, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RCM, cTUVus, UKCA

Certification

CE, CB, FCC(IC), TUV, cTUVus, TUV S-Zeichen, NOM, BSMI, UKCA, EAC, CCC, RCM

Width

140 mm

Depth

150 mm

Height

86 mm

Weight

1.3 kg

Package width

210 mm

Package depth

338 mm

Package height

157 mm

Package weight

2.78 kg
