TP-Link TL-WN822N WLAN 300 Mbit/s

TP-Link TL-WN822N, Wireless, Mini-USB, WLAN, Wi-Fi 4 (802.11n), 300 Mbit/s, White

Documentation:

SKU: TL-WN822N V5 Category: Brand:

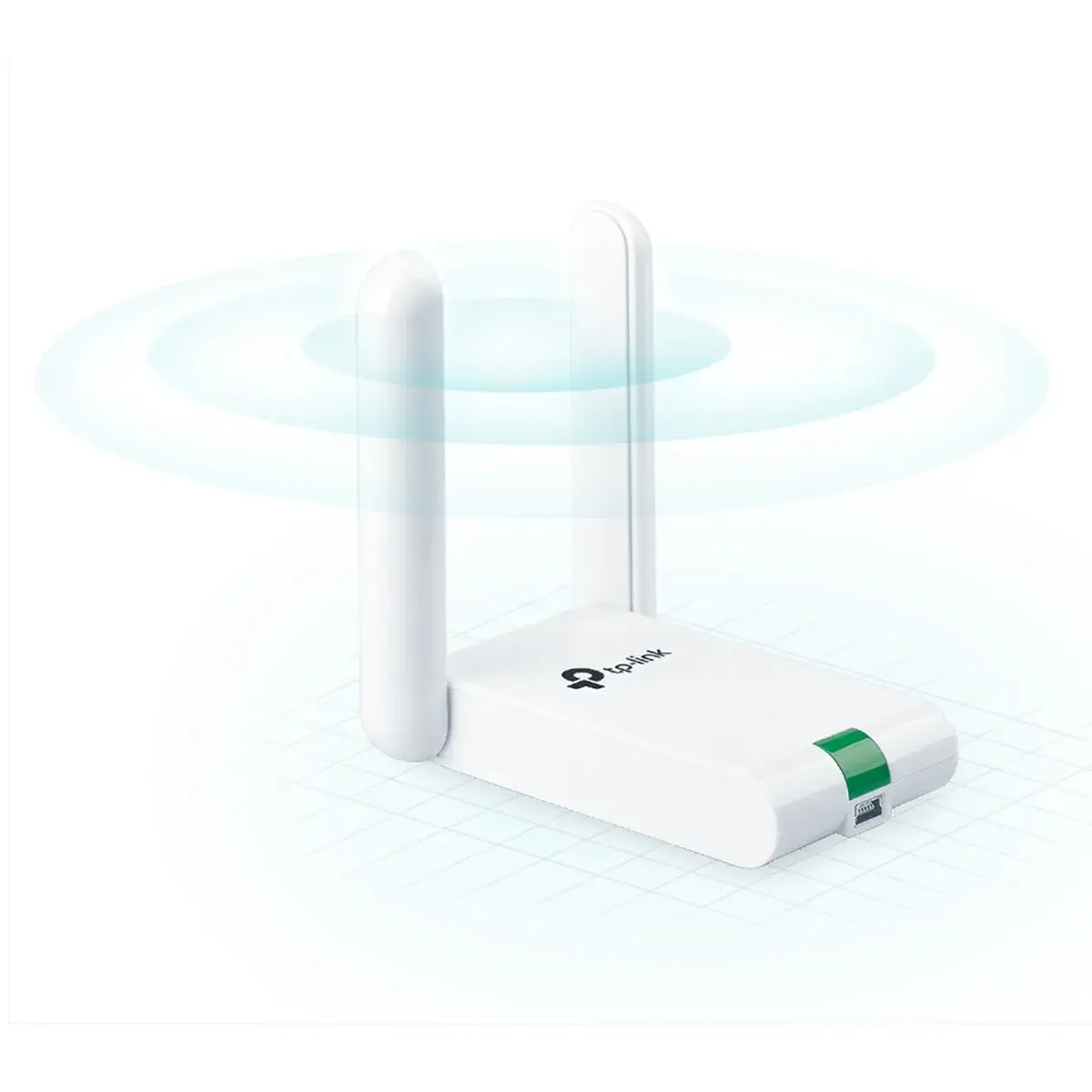

The TP-Link TL-WN822N is a wireless network adapter designed for connectivity via Mini-USB interface. It supports Wi-Fi 4 standard operating on the single-band frequency range of 2.4 GHz. This device offers data transfer rates up to 300 Mbit/s through its two external omnidirectional antennas.

With CE, FCC, and RoHS certifications, it’s compatible across various Windows versions including Windows XP, Vista, 7, 8, 8.1, and Linux systems. Its dimensions are 90mm wide by 68mm deep by 16.8mm high, making it compact yet powerful enough for home networks. Included in the package are necessary cables and documentation for quick setup and usage instructions.

Additionally, this product adheres to compliance industry standards set forth by IEEE 802.11b/g/n protocols. Overall, the TP-Link TL-WN822N provides reliable internet access within specified temperature ranges from -40°C to +70°C, ensuring optimal performance under diverse environmental conditions.

Technical details

  • Model: TP-Link TL-WN822N WLAN 300 Mbit/s
  • Colour: White
  • Dimensions (W×D×H): 90 x 68 x 16.8 mm
  • Width: 90 mm
  • Depth: 68 mm
  • Height: 16.8 mm
  • Package weight: 210 g
  • Wi-Fi: Yes

Additional information

Connectivity technology

Wireless

Host interface

Mini-USB

Interface

WLAN

USB ports quantity

1

USB version

2.0

Maximum data transfer rate

300 Mbit/s

Networking standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Wi-Fi

Yes

Wi-Fi band

Single-band (2.4 GHz)

Frequency range

2.4 – 2.4835 GHz

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

WLAN data transfer rates supported

11,54,300 Mbit/s

Modulation

16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM

Security algorithms

64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK

Internal

No

Product colour

White

Antenna

Yes

Antenna design

External

Antenna type

2x Omni

Antenna direction type

Omni-directional

Antenna gain level (max)

3 dBi

Receiver sensitivity

270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Certification

CE, FCC, RoHS

Compatible operating systems

Windows 2000 / XP / Vista / 7

Windows operating systems supported

Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Operating temperature (T-T)

32 – 104 °F

Storage temperature (T-T)

-40 – 70 °C

Operating relative humidity (H-H)

10 – 90%

Storage relative humidity (H-H)

5 – 90%

Width

90 mm

Depth

68 mm

Height

16.8 mm

Package width

200 mm

Package depth

150 mm

Package height

39 mm

Package weight

210 g

Cables included

USB

Resource CD

Yes

Quick installation guide

Yes

Harmonized System (HS) code

85176990

Gain

3 dBi

Compliance industry standards

IEEE 802.11b/g/n

Dimensions (WxDxH)

90 x 68 x 16.8 mm

Cable length

1.5 m

Dimensions (W x D x H) (imperial)

88.9 x 68.6 x 17.8 mm (3.5 x 2.7 x 0.7")
