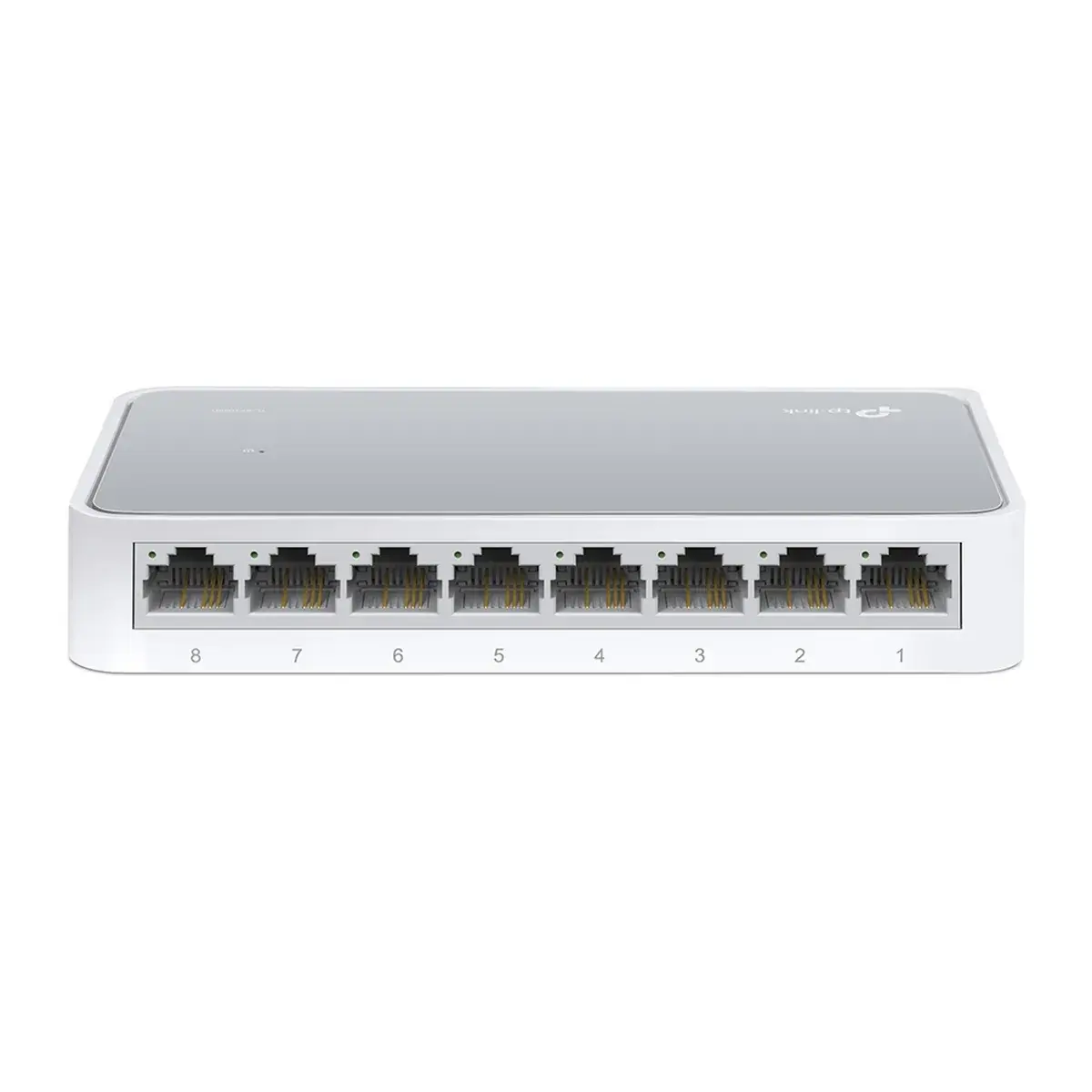

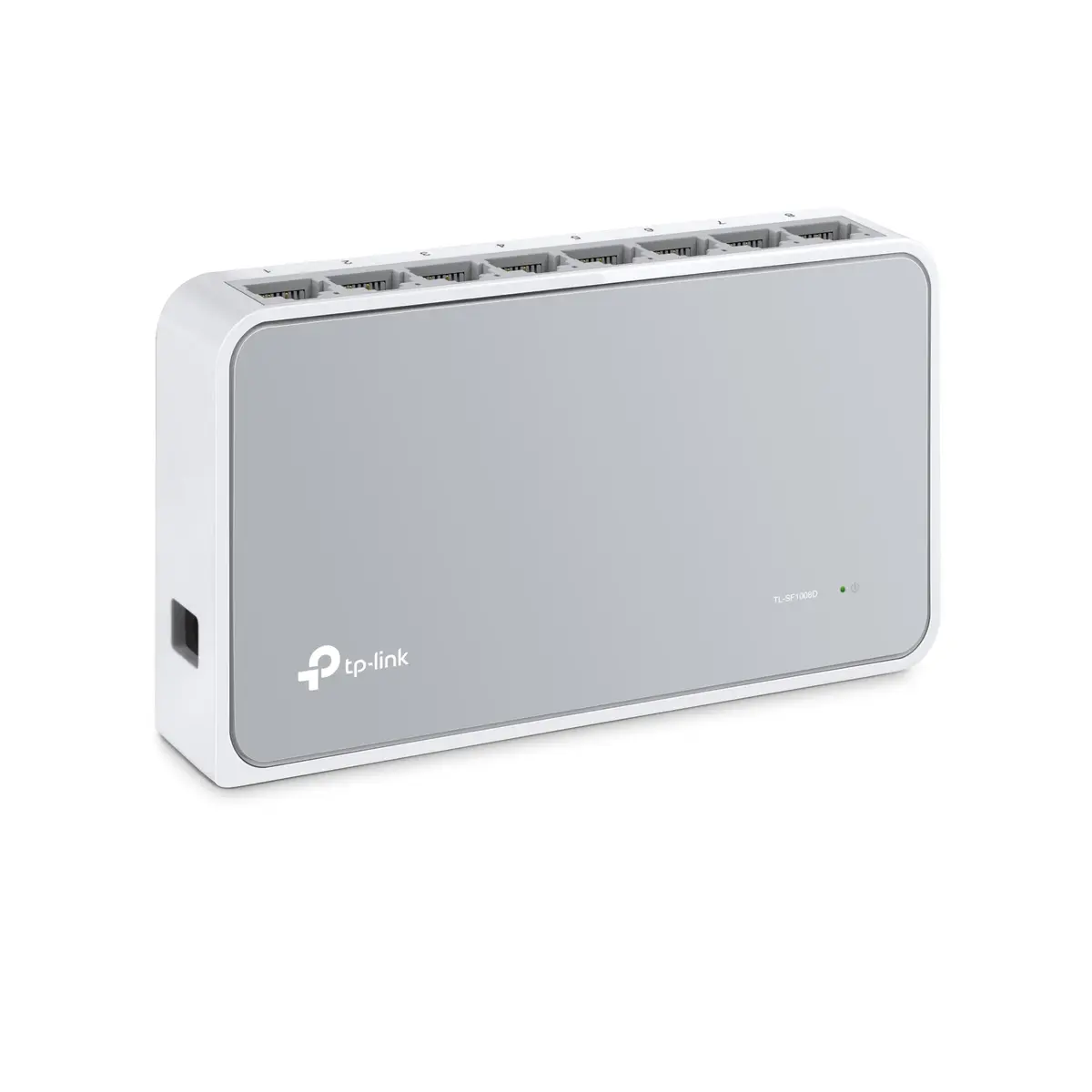

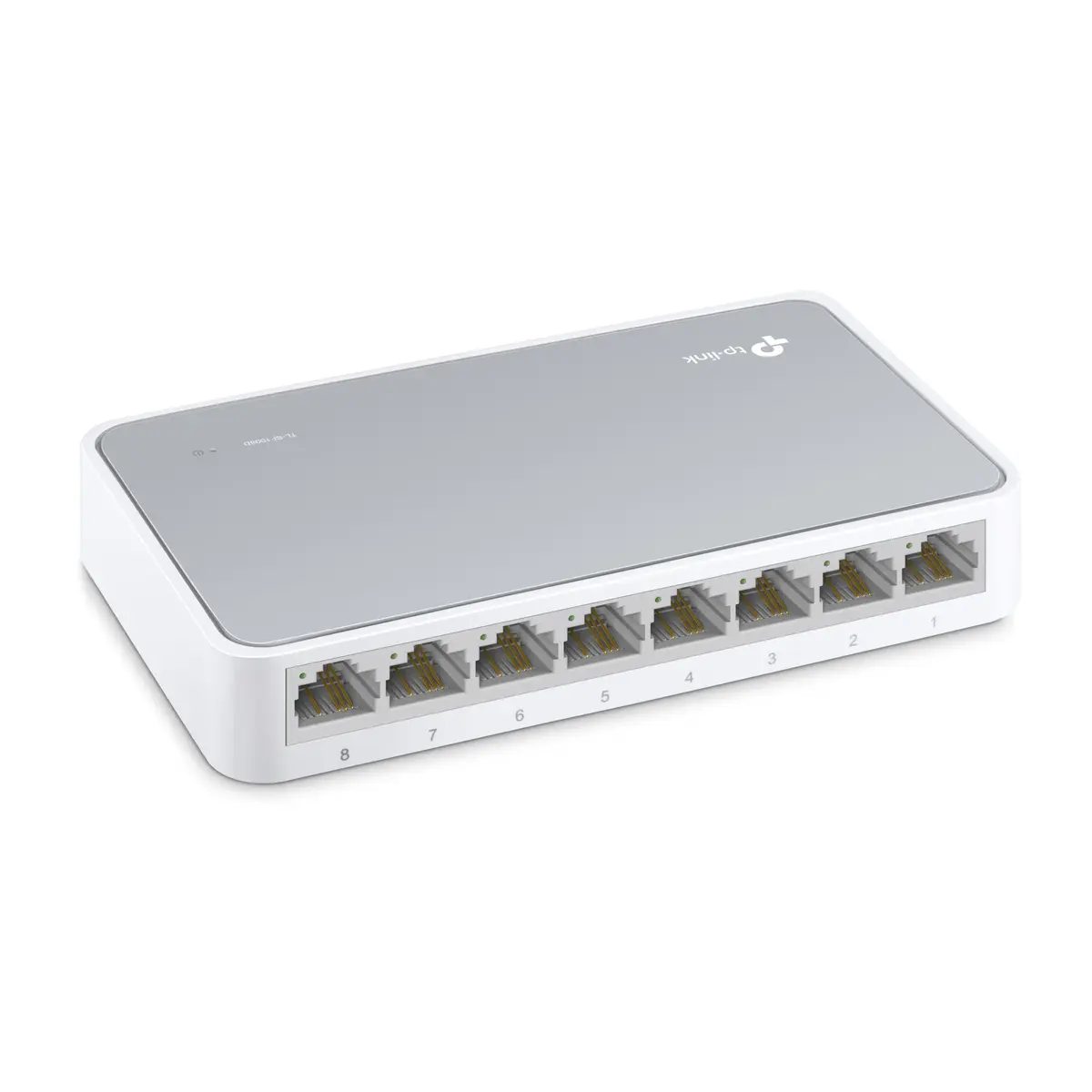

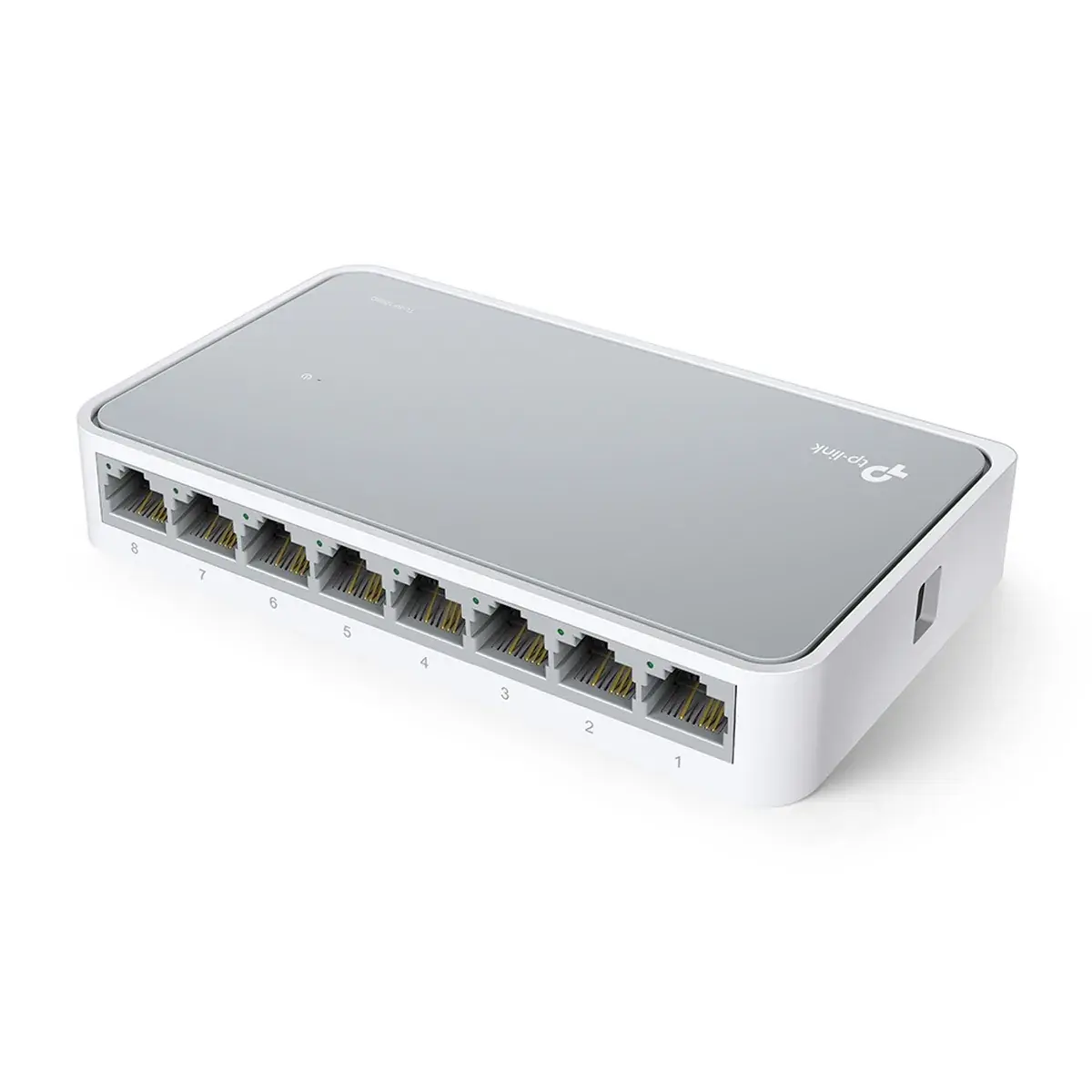

TP-Link 8-Port 10/100Mbps Desktop Network Switch

The TP-Link TL-SF1008D V1 is an unmanaged network switch designed for desktop environments. It features eight RJ-45 ports that support Fast Ethernet speeds of up to 10/100 Mbps in both full and half duplex modes. This switch supports IEEE 802.3 standards and includes a MAC address table capable of storing up to 1000 entries.

With a switching capacity of 1.6 Gbit/s and packet buffer memory of 2 MB, it ensures efficient data transfer rates even under heavy loads. The device operates within temperatures ranging from 0°C to 40°C during use and can be stored at temperatures between -40°C and 70°C without damage. Its dimensions are compact at 140 x 87 x 27.5 mm, making it suitable for small office networks.

The power connector is a DC-in jack, requiring a supply voltage of 5V and input current of 0.6A, consuming a maximum of 2.2W when active. This switch comes equipped with LED indicators for easy monitoring and offers certifications such as FCC, CE, and RoHS. A quick start guide is included along with a box package measuring approximately 139mm wide by 100mm deep by 85mm high, weighing around 240g.

Essential specs

• Model: TP-Link 8-Port 10/100Mbps Desktop Network Switch
• Colour: White
• Dimensions (W×D×H): 140 x 87 x 27.5 mm
• Width: 134 mm
• Depth: 79 mm
• Height: 23 mm
• Package weight: 240 g
• Input voltage: 5 V
