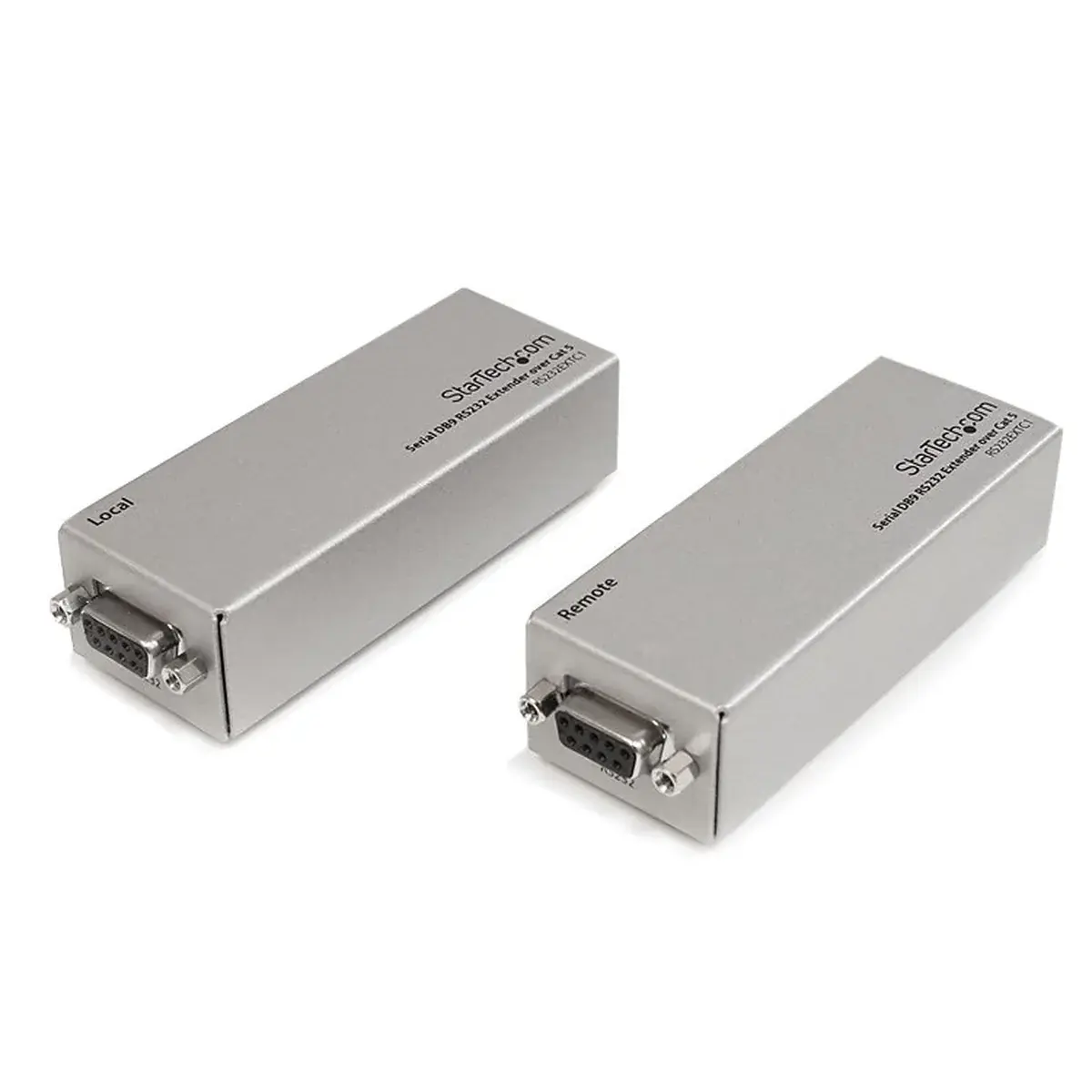

StarTech.com Serial DB9 RS232 Extender over Cat 5 – Up to 3300 ft (1000 meters)

The StarTech.com Serial DB9 RS232 Extender over Cat 5 is an efficient solution for extending RS-232 communication distances up to 1000 meters using standard Category 5 cables. This device supports data transfer rates of 0.23 Mbps and includes two serial ports on each side, making it suitable for various applications such as networking equipment, industrial automation systems, and more.

The extender features a compact design measuring just 34mm wide by 92mm deep by 22mm high, which allows easy integration into smaller spaces without compromising functionality. It can operate within operating temperatures ranging from 0°C to 70°C and storage conditions between 0°C and 85°C, ensuring reliable performance under diverse environmental settings.

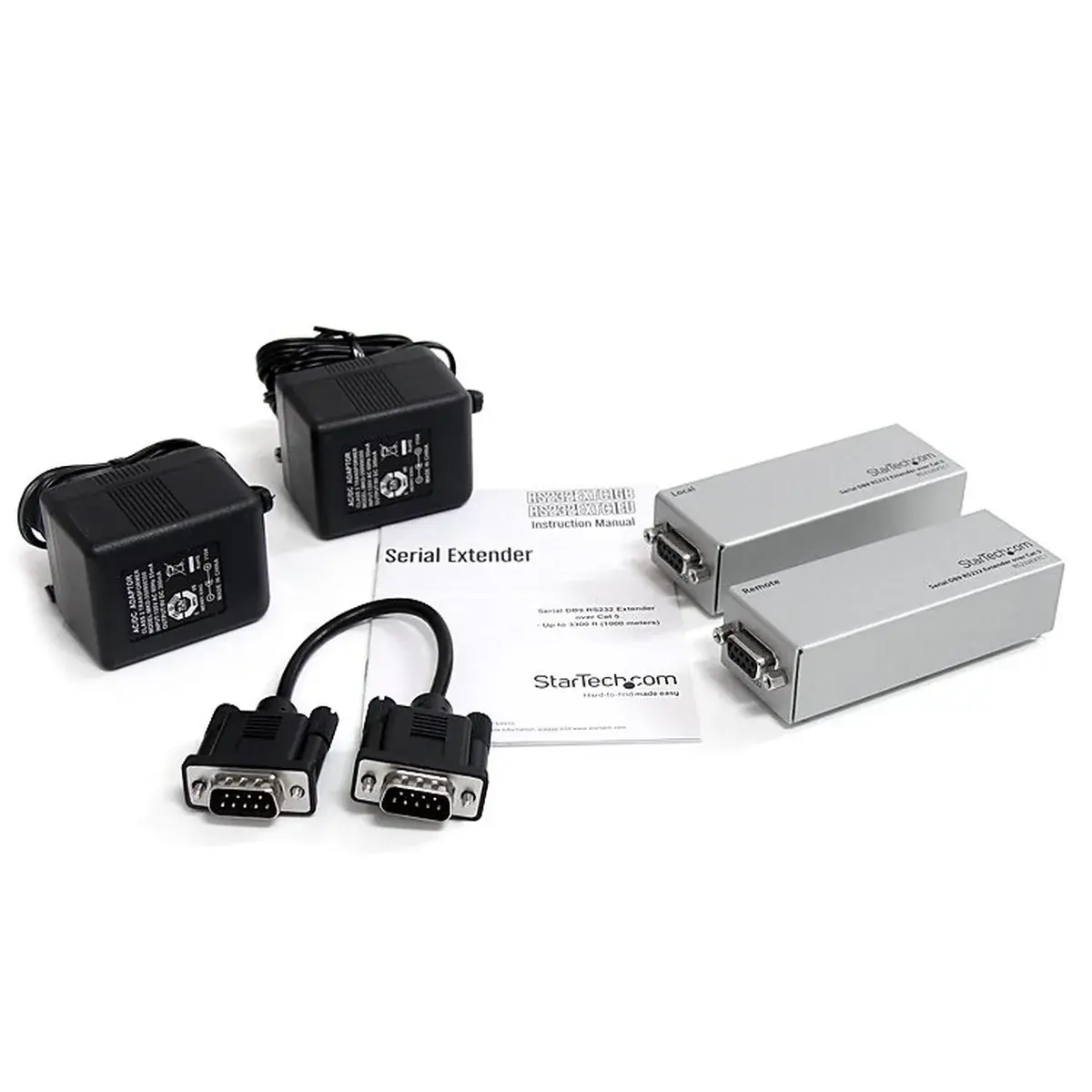

For power supply, this unit requires input voltages between 100VAC and 240VAC at currents of approximately 0.055A, while delivering output voltage at 9VDC capable of handling outputs up to 0.3A current draw. Additionally, included in its package are essential accessories like AC adapters that ensure uninterrupted operation during extended periods.

Technical details

• Model: StarTech.com Serial DB9 RS232 Extender over Cat 5 – Up to 3300 ft (1000 meters)
• Colour: Silver
• Weight: 65 g
• Width: 34 mm
• Depth: 92 mm
• Height: 22 mm
• Package weight: 1 kg
• Input voltage: 100 – 240 V
