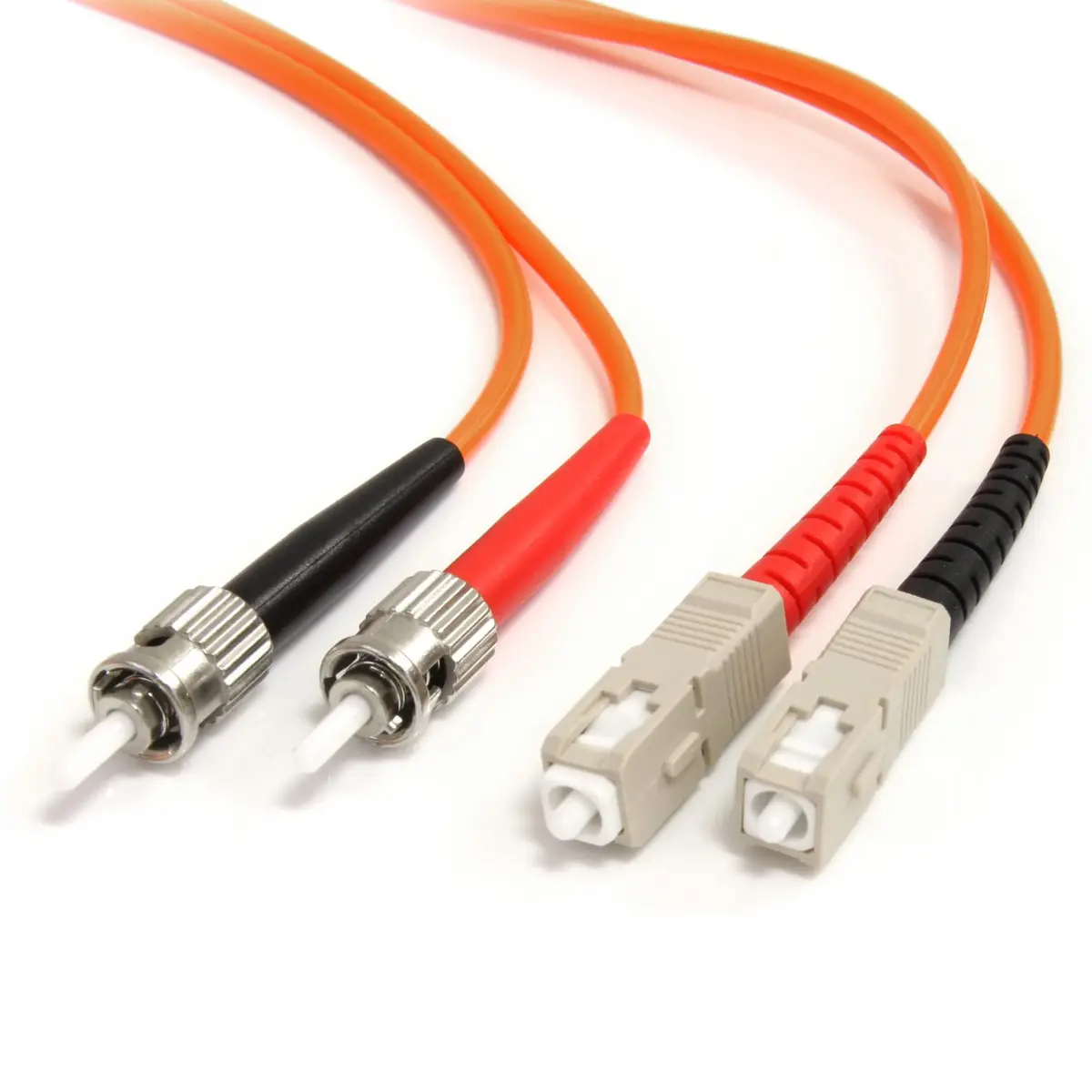

StarTech.com Fiber Optic Cable – Multimode Duplex 62.5/125 – LSZH – ST/SC – 1 m

A StarTech.com Fiber Optic Cable designed for multimode applications is available in this product description. It features an LSZH jacket to ensure low smoke and zero halogen emissions during operation, enhancing safety compliance. The cable supports data transfers up to speeds of 10 Gbit/s over its OM1 fiber optic type, making it suitable for various networking environments where high-speed communication is required.

The connector configuration includes both ST and SC types on each side, allowing flexibility in network termination options. Both connectors are male, ensuring easy integration into existing systems without additional adapters needed. This particular model has a core diameter of 62.5 µm and a cladding diameter of 125 µm, adhering to industry standards that optimize performance within specific frequency bands.

Operating temperatures range from -20°C to +60°C, providing robustness against environmental conditions typically encountered in indoor settings. Storage temperature also spans this wide range (-20°C to +60°C), offering reliable storage capabilities under varying ambient conditions. This cable’s dimensions make it compact yet versatile enough for installation purposes; it measures approximately 216mm width by 200mm depth when packaged individually but can be efficiently stored using the provided outer cases which measure 480mm length x 317mm height at their tallest point.

Notable features

• Model: StarTech.com Fiber Optic Cable – Multimode Duplex 62.5/125 – LSZH – ST/SC – 1 m
• Colour: Orange
• sku: FIBSTSC1
• Cable length: 1 m
• Connector 1: ST
• Connector 2: SC
• Connector 1 gender: Male
• Connector 2 gender: Male
