StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention

StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention

StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention, USB Type-B, Serial, RS-232/422/485, Grey, Power, FTDI – FT2232H

Documentation:

Startech Com 2 Port Usb To Rs232 Rs422 Rs485 Serial Adapter With Com Retention Manual (download PDF)

SKU: ICUSB2324852 Category: Interface Cards/Adapters Brand: StarTech.com

. The StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter is designed for versatile serial communication needs across various platforms. It supports multiple baud rates up to 921.6 Kbit/s through its FTDI – FT2232H chipset, making it suitable for applications requiring high-speed data transfer.

The adapter features LED indicators that provide visual feedback on power status, ensuring easy monitoring of operation. With compatibility spanning from Windows 98SE to Windows 11, as well as macOS versions ranging from Yosemite to Big Sur, this device offers broad support for different operating environments.

Additionally, it includes drivers and manuals for comprehensive setup assistance. This product comes in a compact design measuring 44.2 mm wide by 82.3 mm deep by 23 mm tall, weighing just 300 grams per unit. A pack contains one unit, packaged efficiently within dimensions of 144 mm width by 208 mm depth by 40 mm height, weighing slightly over 310 grams.

Notable features

Model: StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention
Colour: Grey
Weight: 300 g
Width: 44.2 mm
Depth: 82.3 mm
Height: 23 mm
Package weight: 310 g
sku: ICUSB2324852

Additional information

Host interface	USB Type-B
Output interface	Serial
Serial ports quantity	1
Serial interface type	RS-232/422/485
Internal	No
Product colour	Grey
LED indicators	Power
Chipset	FTDI – FT2232H
Baud rate	921.6 Kbit/s
FIFO (First In, First Out)	128 B
Data bits	7, 8
Stop bits	1, 2
Parity bit	Even, Mark, No, Odd, Space
Flow Control type	No, XON/XOFF
Output voltage	5 V
Operating temperature (T-T)	0 – 55 °C
Storage temperature (T-T)	-25 – 85 °C
Operating relative humidity (H-H)	5 – 95%
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	Windows XP Embedded
Compliance certificates	CE, RoHS
Width	44.2 mm
Depth	82.3 mm
Height	23 mm
Weight	300 g
Quantity per pack	1 pc(s)

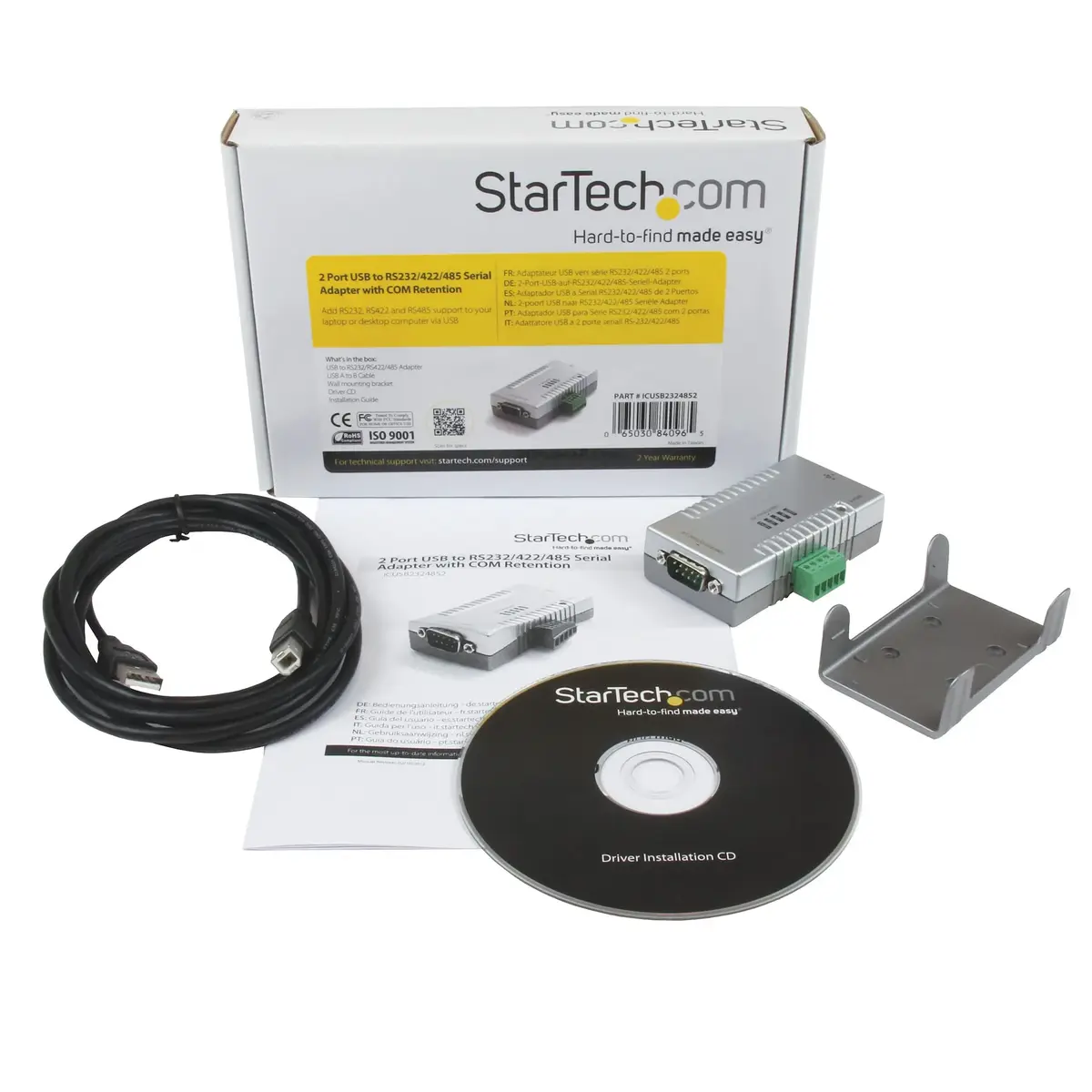

Cables included	USB Type-A to USB Type-B
Mounting brackets included	Yes
Drivers included	Yes
Manual	Yes
Package width	144 mm
Package depth	208 mm
Package height	40 mm
Package weight	310 g
Harmonized System (HS) code	84733020
Products per master (outer) case	40 pc(s)
Master (outer) case width	395 mm
Master (outer) case length	514 mm
Master (outer) case height	329 mm
Compatible operating systems	Windows 98SE/ ME/ 2000/ XP(32/64bit)/ 2003(32/64bit)/ Vista(32/64bit)/ Server 2008(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Mac 9.8/OS X, Linux 2.4.x; Windows XP Embedded, CE 4.2/ 5.2/ 6.0, PocketPC 2003, Mobile 5, 6
Sustainability compliance	Yes
