StarTech.com 1U Universal Server Rack Rails, Adjustable Depth Server Mounting Rails, 19inch Rack Mount Rails

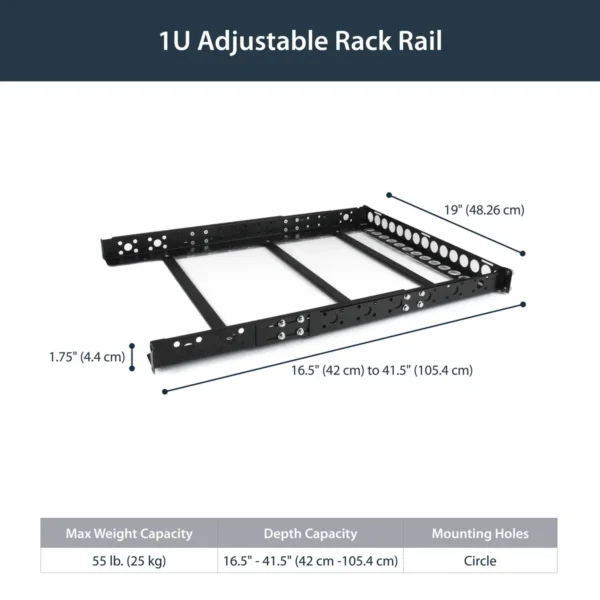

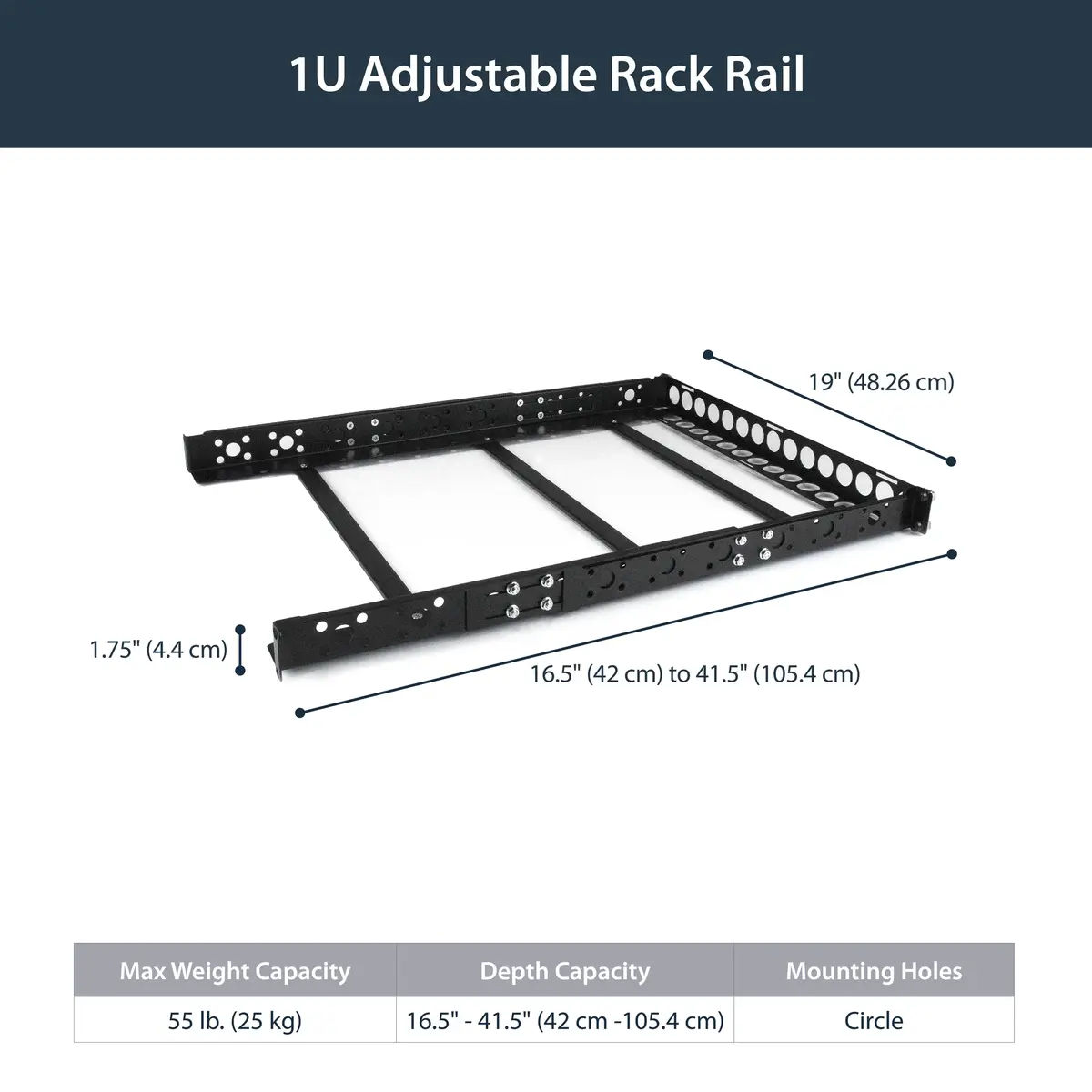

The StarTech.com Universal Server Rack Rails are designed for easy installation into standard 19-inch racks, offering adjustable mounting depths from 42 to 105.4 centimeters. These rails come in black and feature steel construction, ensuring durability and reliability. They have a maximum weight capacity of 25 kilograms and can support up to one unit (U) of server equipment.

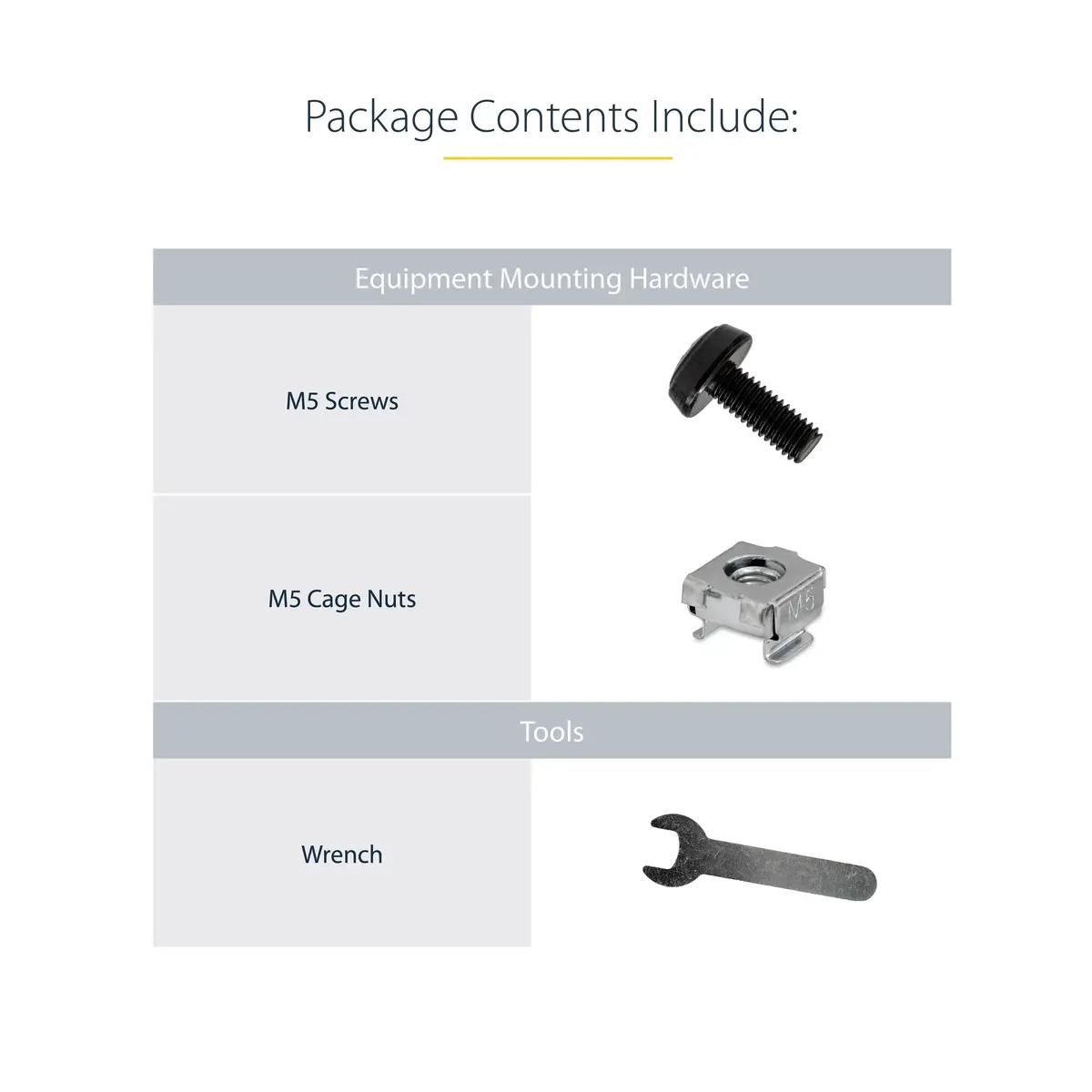

Each rail measures approximately 48.3 centimeters wide by 110 centimeters deep and is mounted on top of a base that has dimensions of 481 millimeters wide, 42 millimeters high, and extends down to a depth of 42 centimeters at its minimum. The product includes an adjustable mounting system with eight screws (M5) pre-installed for quick setup.

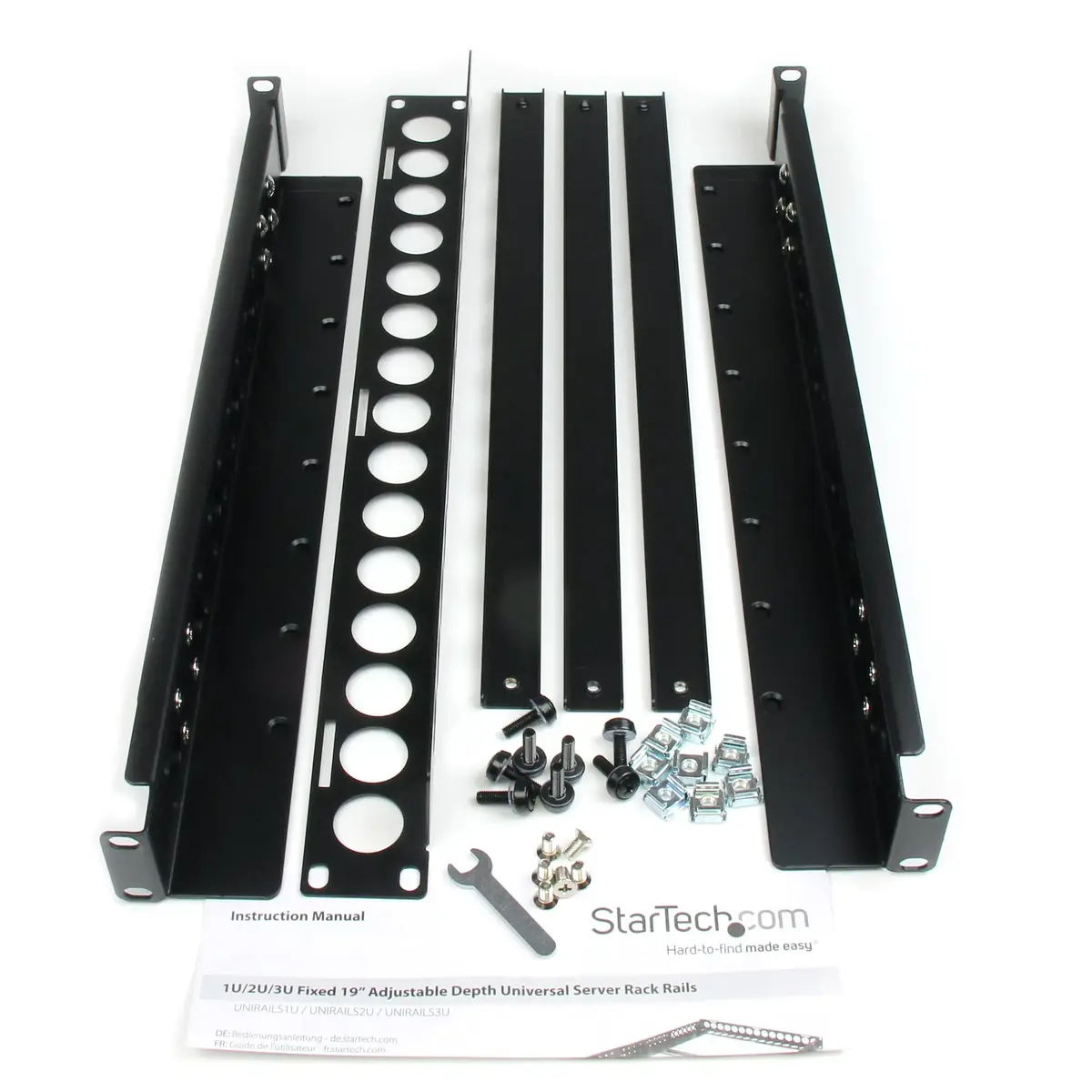

Additionally, it comes equipped with eight cage nuts to further secure your server within the rack. The package itself weighs about 2.6 kg when empty but increases slightly upon adding all included components. Compliance certificates such as CE and RoHS ensure safety standards are met.

Main specifications

• Model: StarTech.com 1U Universal Server Rack Rails, Adjustable Depth Server Mounting Rails, 19inch Rack Mount Rails
• Colour: Black
• Weight: 2.6 kg
• Width: 481 mm
• Depth: 1100 mm
• Height: 42 mm
• Package weight: 2.9 kg
• sku: UNIRAILS1U
