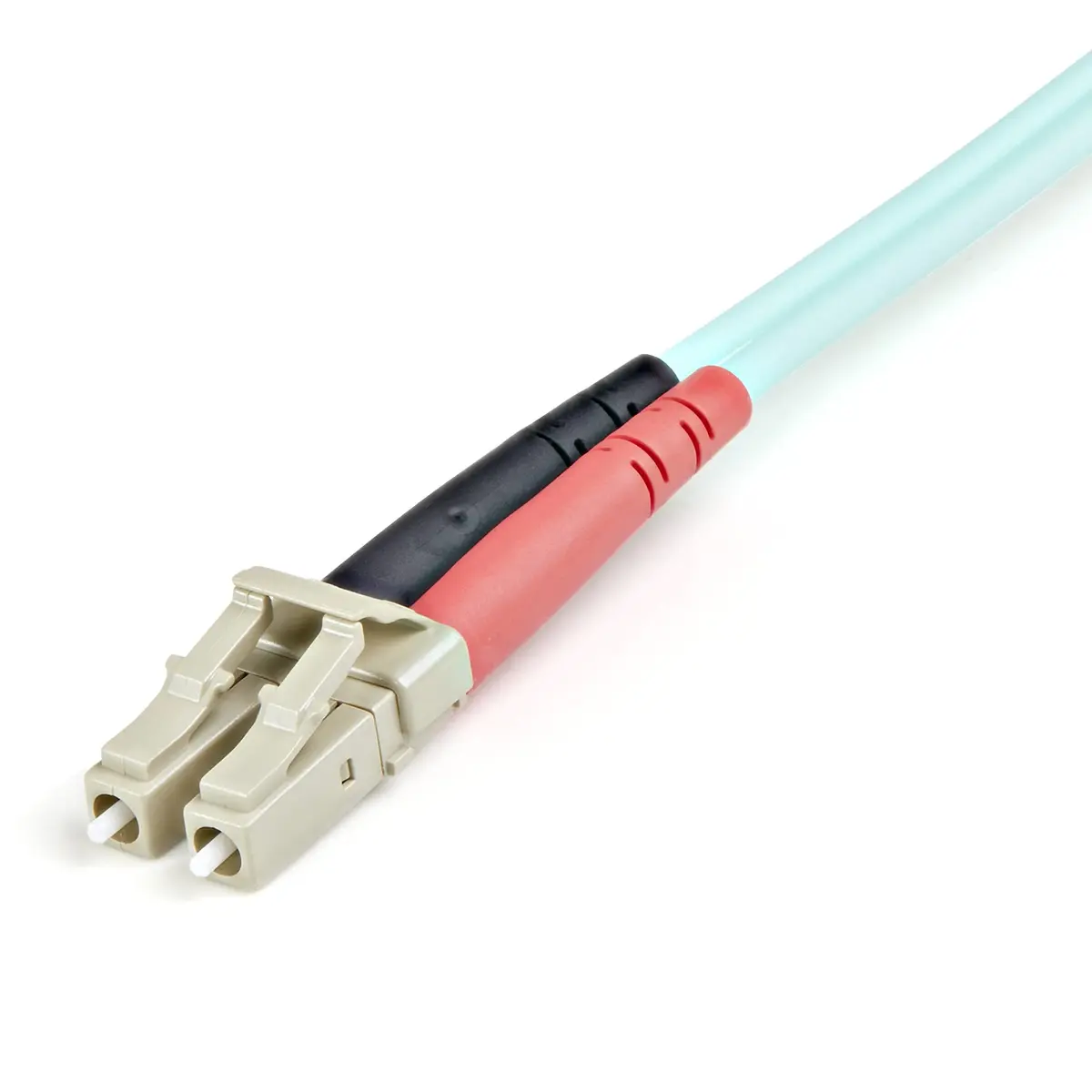

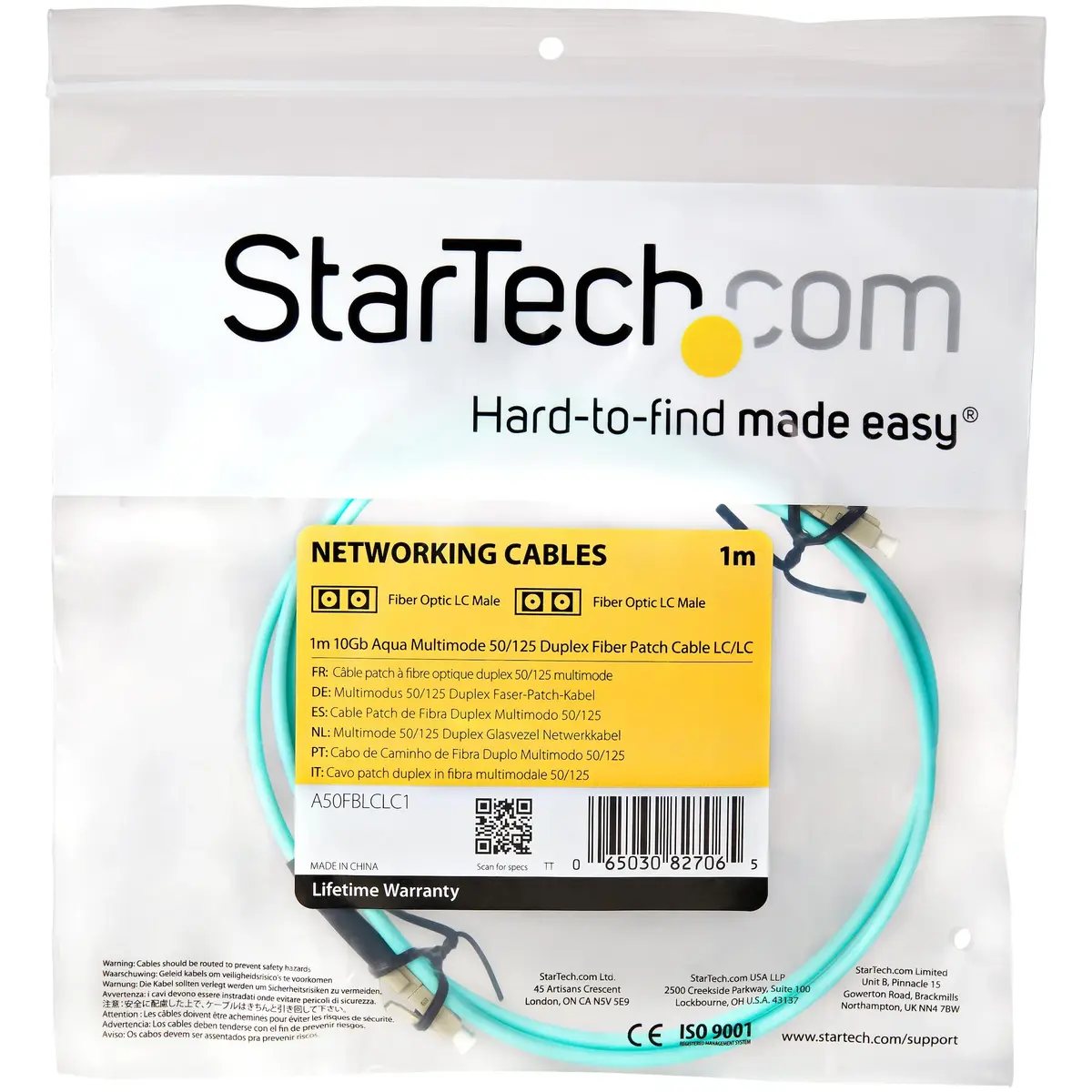

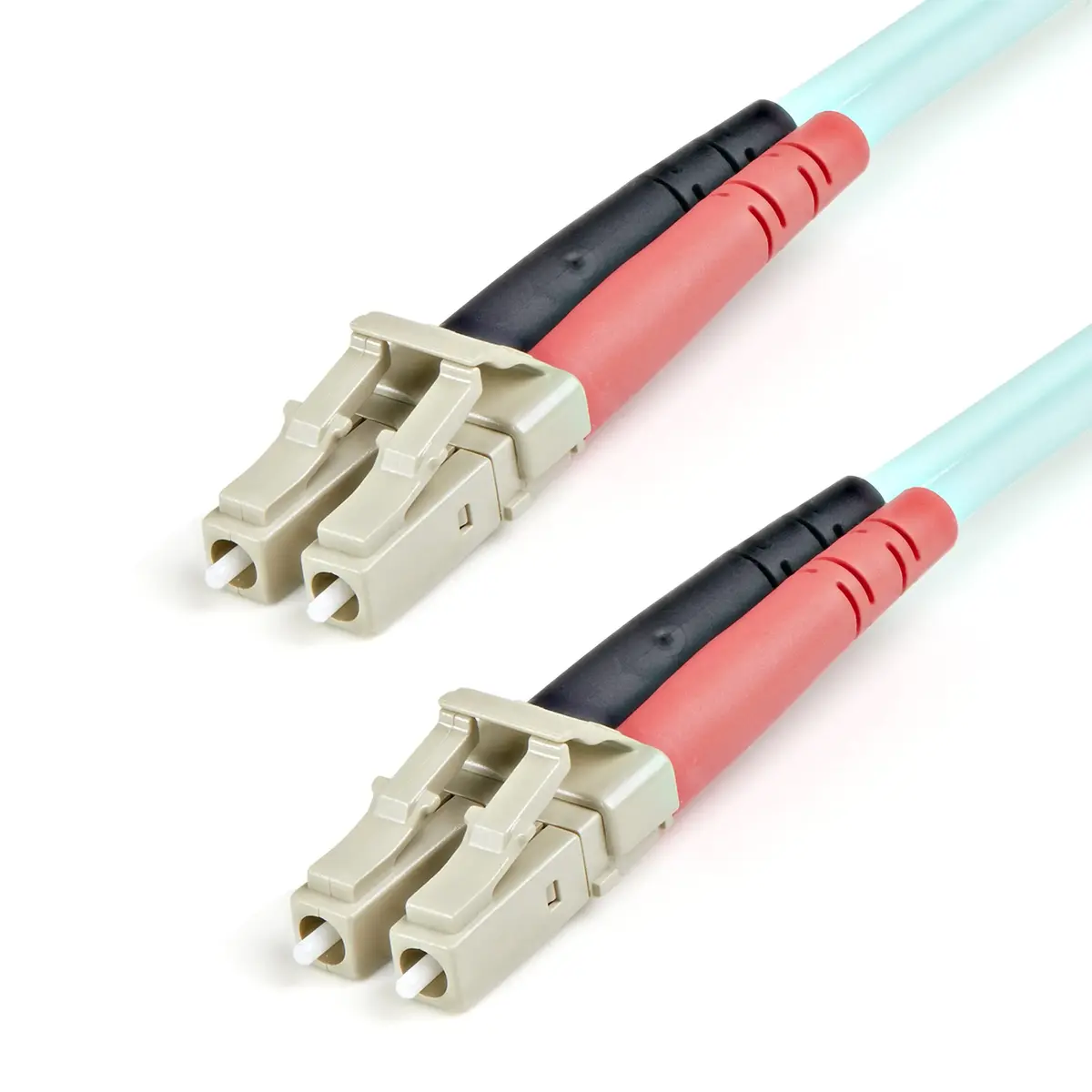

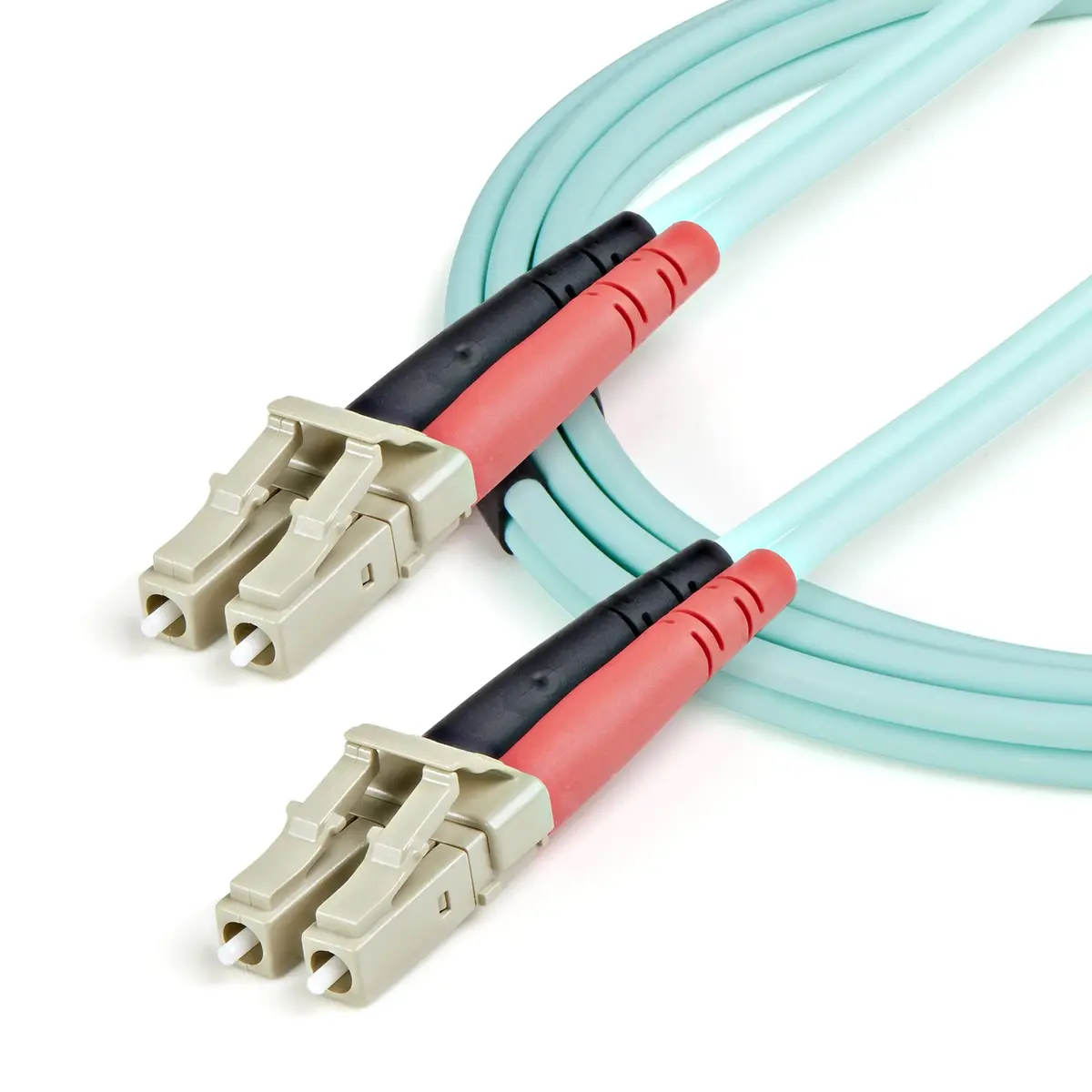

The StarTech.com 1m (3ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable is designed for full-duplex data transmission at speeds up to 100Gbit/s over an OM3 multimode fiber optic cable. This cable features low insertion loss and uses LSZH jacket material that does not contain halogens, ensuring it meets compliance standards such as REACH and RoHS.
It supports wavelengths of 850 nm and operates within operating temperatures ranging from -20°C to +60°C, making it suitable for various environments including indoor installations. The cable has a core diameter of 50 µm and a cladding diameter of 125 µm, adhering to multi-mode fiber mode structure specifications.
Each connector on both ends is male LC type, providing compatibility with standard optical connectors commonly used in networking applications. Available in an Aqua color, this product offers clear visibility while maintaining its performance characteristics under different environmental conditions. The package dimensions are Width x Depth x Height = 200mm x 220mm x 14mm, weighing approximately 24g when packaged individually.
Feature summary
- Model: StarTech.com 1m (3ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord
- Colour: Aqua colour
- Weight: 15 g
- Package weight: 24 g
- sku: A50FBLCLC1
- Cable length: 1 m
- Connector 1: LC
- Connector 2: LC
