Sharp PN-V601A Signage Display Digital signage flat panel 152.4 cm (60″) LED 700 cd/m² WXGA

Sharp PN-V601A Signage Display Digital signage flat panel 152.4 cm (60″) LED 700 cd/m² WXGA

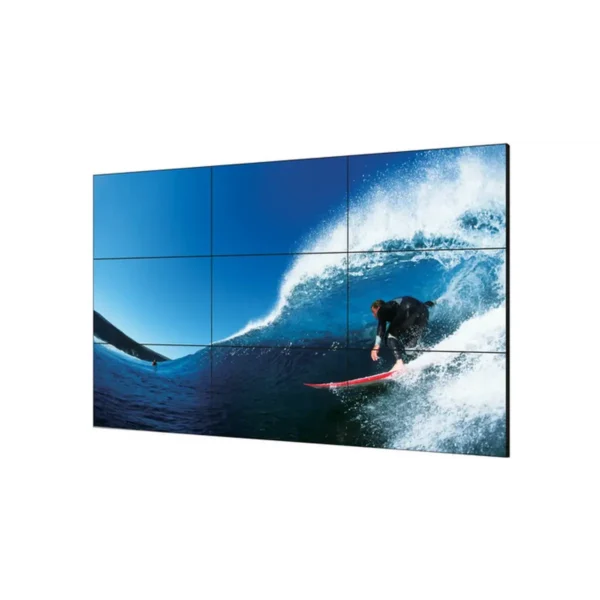

The Sharp PN-V600A is a digital signage flat panel display that measures 152.4 cm (60″) diagonally. It features an LED display technology capable of producing high brightness at 450 cd/m². With a resolution of 1366 x 768 pixels in WXGA format, this screen provides clear visuals suitable for various applications such as advertising, information displays, and presentations.

The display boasts a native aspect ratio of 16:9, which optimizes viewing experience across different content formats. Its response time of just 6 ms ensures smooth motion without blurring, making it ideal for dynamic content playback. The contrast ratio of 4000:1 enhances color vibrancy and detail clarity, while its wide viewing angles of up to 176° both horizontally and vertically make it accessible from multiple perspectives.

Equipped with one HDMI port, two RS-232 interfaces, and built-in speakers for audio output, the PN-V600A offers versatile connectivity options. Additionally, it supports HDCP for secure content protection and includes VESA mounting capabilities for flexible installation solutions. Measuring 1335.9 mm in width, 149.3 mm deep, and 754.2 mm tall, the unit weighs 40.9 kg when fully assembled but requires minimal space due to its compact design.

Main characteristics

  • Model: Sharp PN-V600A Signage Display Digital signage flat panel 152.4 cm (60") LED 450 cd/m² WXGA Black
  • Colour: Black
  • Weight: 40.9 kg
  • Width: 1335.9 mm
  • Depth: 149.3 mm
  • Height: 754.2 mm
  • Package weight: 51.9 kg
  • Typical power consumption: 310 W

Additional information

Display diagonal

152.4 cm (60")

Display technology

LED

Display resolution

1366 x 768 pixels

Display brightness

450 cd/m²

HD type

WXGA

Native aspect ratio

16:9

Response time

6 ms

Contrast ratio (typical)

4000:1

Viewing angle, horizontal

176°

Viewing angle, vertical

176°

Display number of colours

16.78 million colours

Pixel pitch

0.973 x 0.973 mm

Supported graphics resolutions

1280 x 1024 (SXGA), 1366 x 768, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080)

HDMI ports quantity

1

USB port

No

Ethernet LAN

No

VGA (D-Sub) input ports

1

Audio (L/R) in

1

Audio (L/R) out

1

RS-232 interface

Yes

RS-232C

Yes

Number of built-in speakers

2

Product design

Digital signage flat panel

Product colour

Black

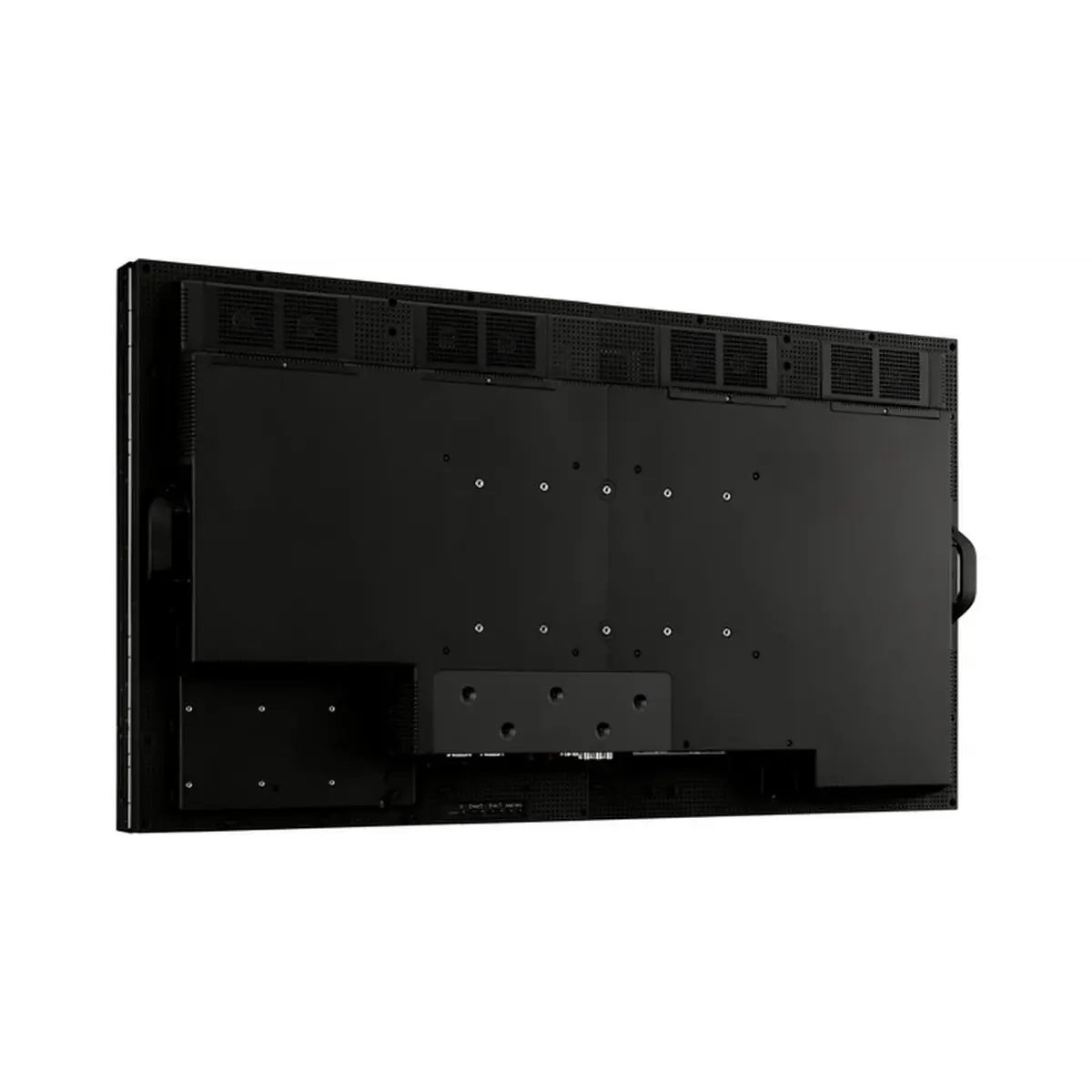

VESA mounting

Yes

Panel mounting interface

200 x 200 mm

TV tuner integrated

No

HDCP

Yes

Power consumption (typical)

310 W

Power consumption (standby)

0.9 W

AC input voltage

100 – 240 V

AC input frequency

50 – 60 Hz

Computer system

No

Width

1335.9 mm

Depth

149.3 mm

Height

754.2 mm

Weight

40.9 kg

Package width

1580 mm

Package depth

381 mm

Package height

932 mm

Package weight

51.9 kg

Operating temperature (T-T)

0 – 40 °C

Operating relative humidity (H-H)

20 – 80%

Certification

UL 60950, FCC Class A

Sustainability certificates

ENERGY STAR

Plug and Play

Yes
