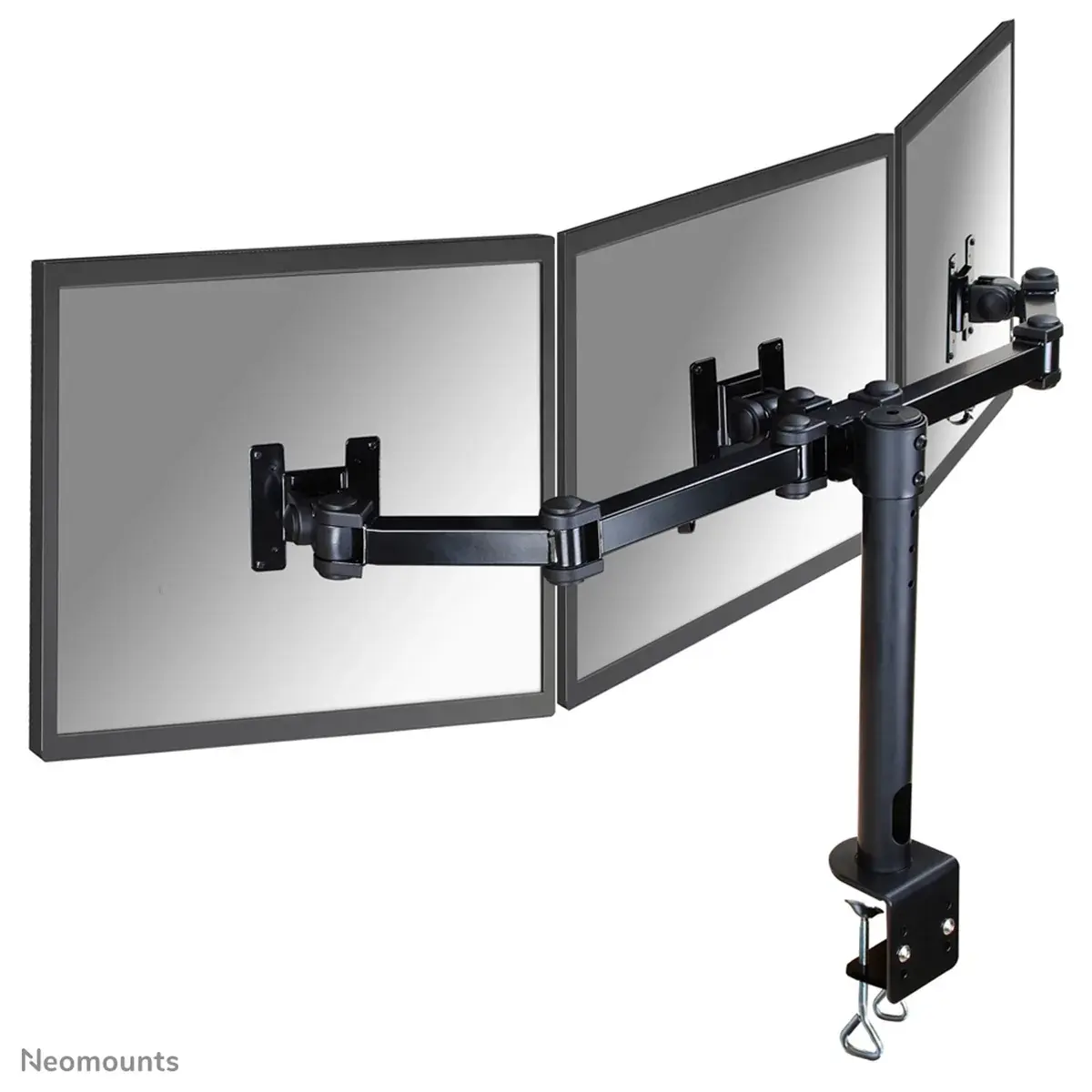

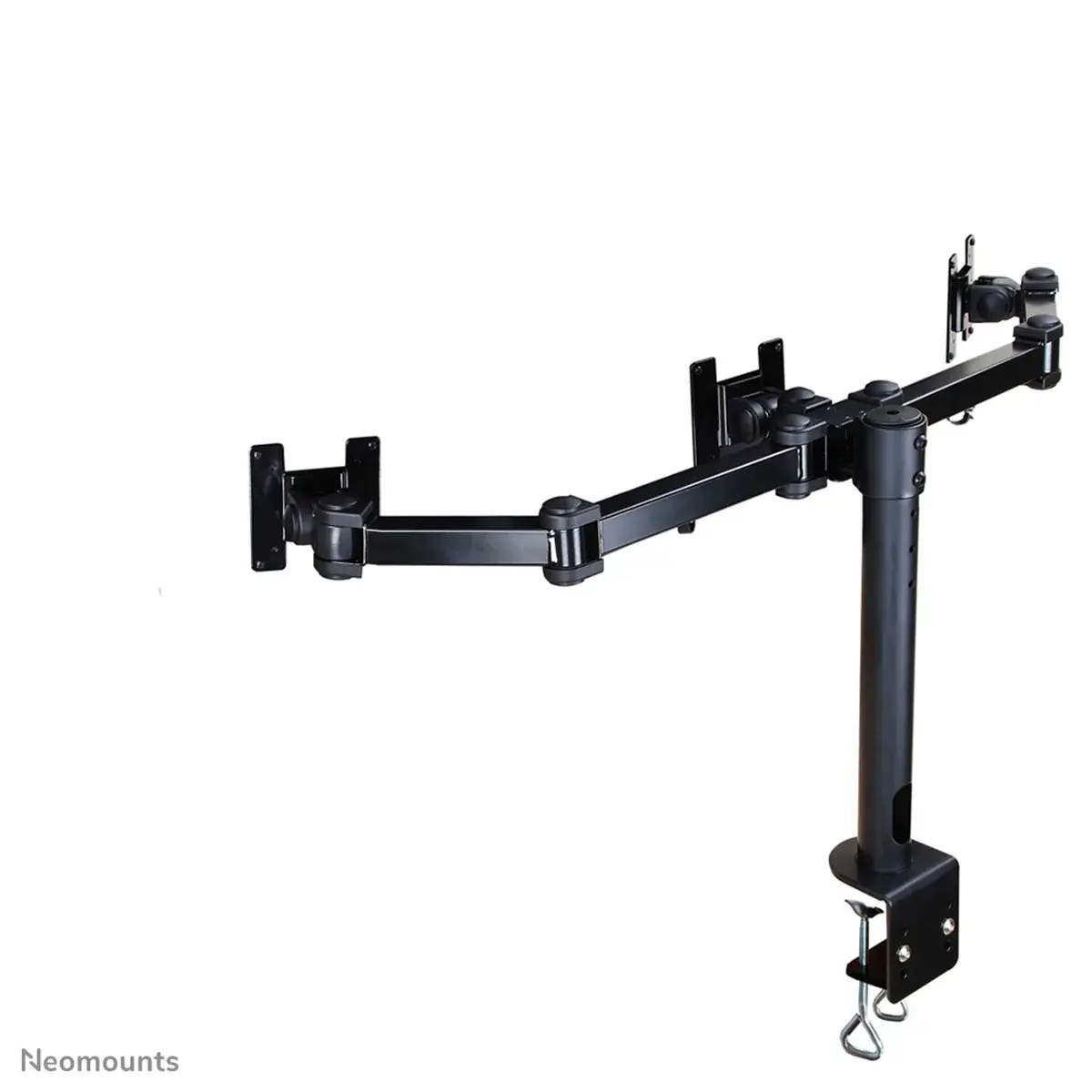

The Neomounts FPMA-D960D3 Monitor arm is designed for mounting displays ranging from 10″ to 21″. It supports up to three displays simultaneously, each weighing no more than 6kg. This monitor arm features various adjustable settings including height adjustment, tilt angle range from -180° to +180°, swivel capability allowing rotation by 180°, and an additional 360° rotational movement.

Its maximum screen size support extends from 25.4 cm (10″) to 53.3 cm (21″), while it can accommodate VESA mounts between 75 x 75 mm and 100 x 100 mm. The product comes in a black color scheme made of steel material. It has dimensions of 1430mm width, 450mm depth, and 7.17kg weight when assembled.

Each unit weighs approximately 8.9kg packed into its outer case which measures 695mm wide, 390mm long, and 365mm high. A single master outer case holds two units totaling around 20.5kg gross weight but netted down at about 18.9kg once removed from packaging. This versatile display mount offers flexibility through manual height adjustments spanning from 0-450mm along with deep adjustment capabilities reaching depths of 100-430mm.

Product highlights

  • Model: Neomounts FPMA-D960D3 Monitor arm 10-21"
  • Colour: Black
  • Weight: 7.17 kg
  • Depth: 1430 mm
  • Height: 450 mm
  • Package weight: 8.9 kg
  • sku: FPMA-D960D3
  • Number of displays supported: 3

Additional information

Number of displays supported

3

Maximum weight capacity (per display)

6 kg

Maximum screen size

53.3 cm (21")

Mounting type

Desk

Maximum weight capacity

6 kg

Minimum screen size

25.4 cm (10")

Minimum VESA mount

75 x 75 mm

Maximum VESA mount

100 x 100 mm

Mounting

Clamp

Panel mounting interface

100 x 100,75 x 75 mm

Desk thickness (min)

3 cm

Desk thickness (max)

10 cm

Distance to the wall (min)

10 cm

Distance to the wall (max)

43 cm

Height adjustment

Yes

Height adjustment type

Manual

Height adjustment range

0 – 450 mm

Depth adjustment range

100 – 430 mm

Tilt adjustment

Yes

Tilt angle range

0 – 180°

Swivelling

Yes

Swivel angle

180°

Rotating

Yes

Angle of rotation

360°

Cable management

Yes

Product colour

Black

Housing material

Steel

Depth

1430 mm

Height

450 mm

Weight

7.17 kg

Package width

670 mm

Package depth

352 mm

Package height

155 mm

Package weight

8.9 kg

Master (outer) case width

695 mm

Master (outer) case length

390 mm

Master (outer) case height

365 mm

Master (outer) case gross weight

20.5 kg

Products per master (outer) case

2 pc(s)

Country of origin

Taiwan

Master (outer) case net weight

18.9 kg

Harmonized System (HS) code

7326909890

Products per pallet (EU)

30 pc(s)
