Documentation:

SKU: 460835 Category: Brand:

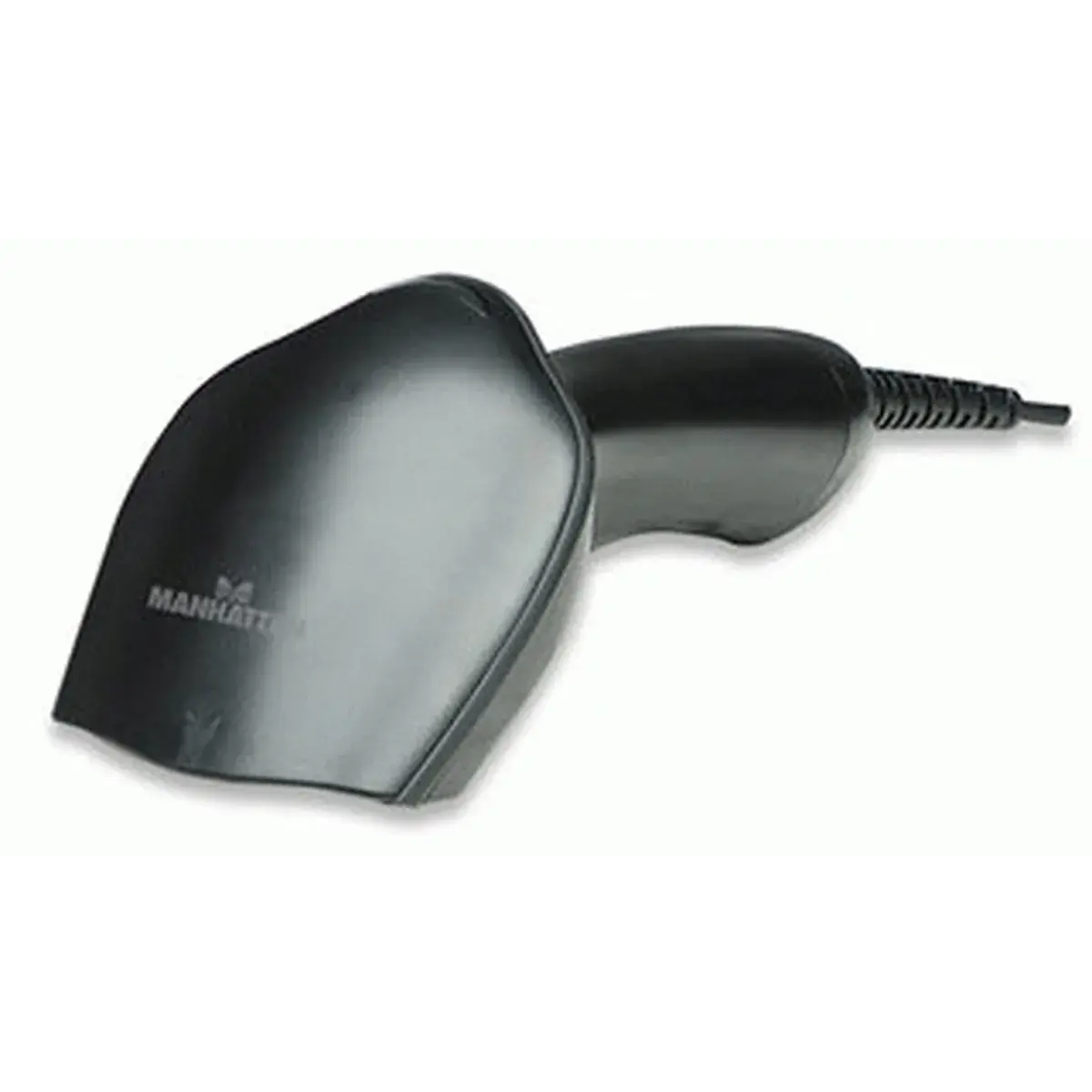

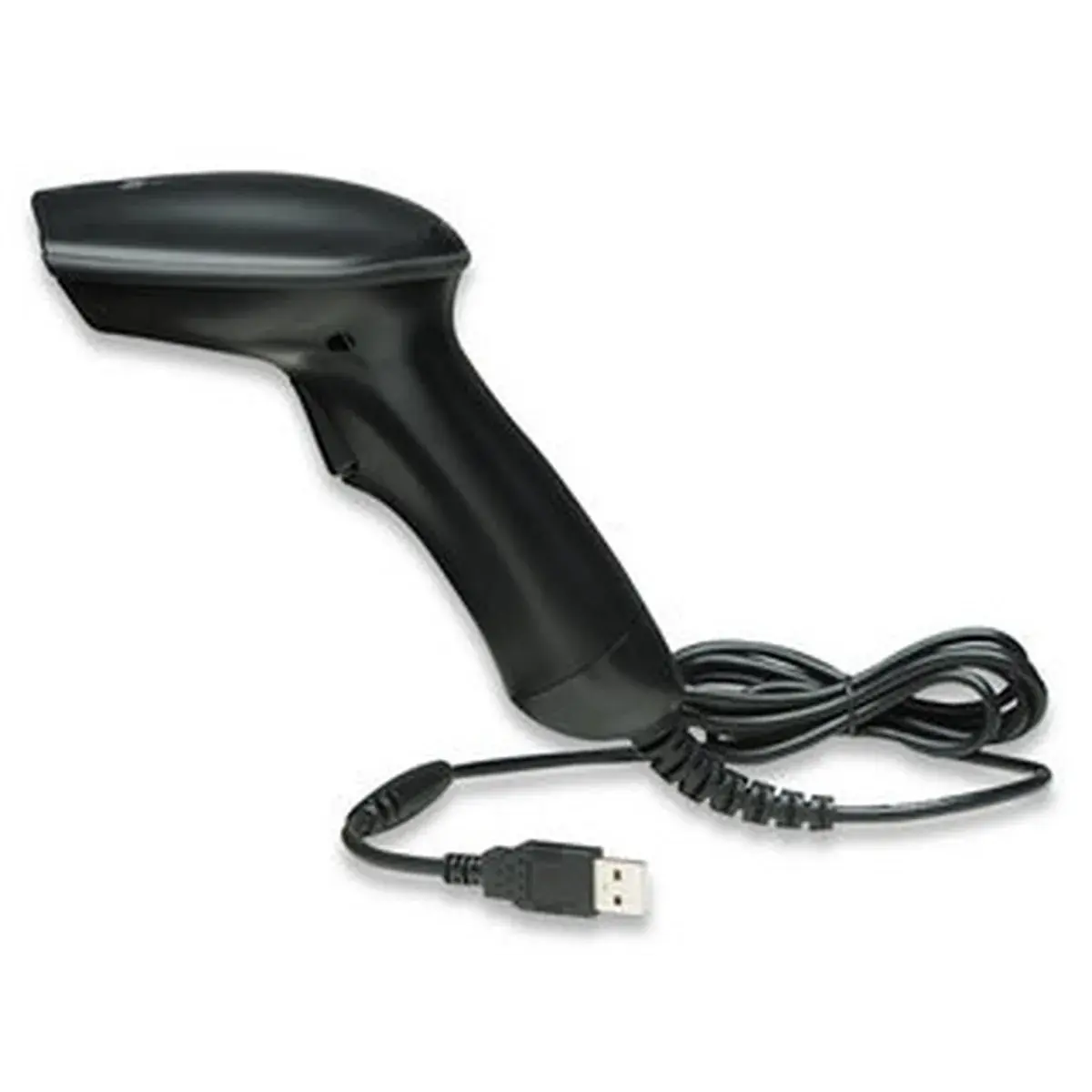

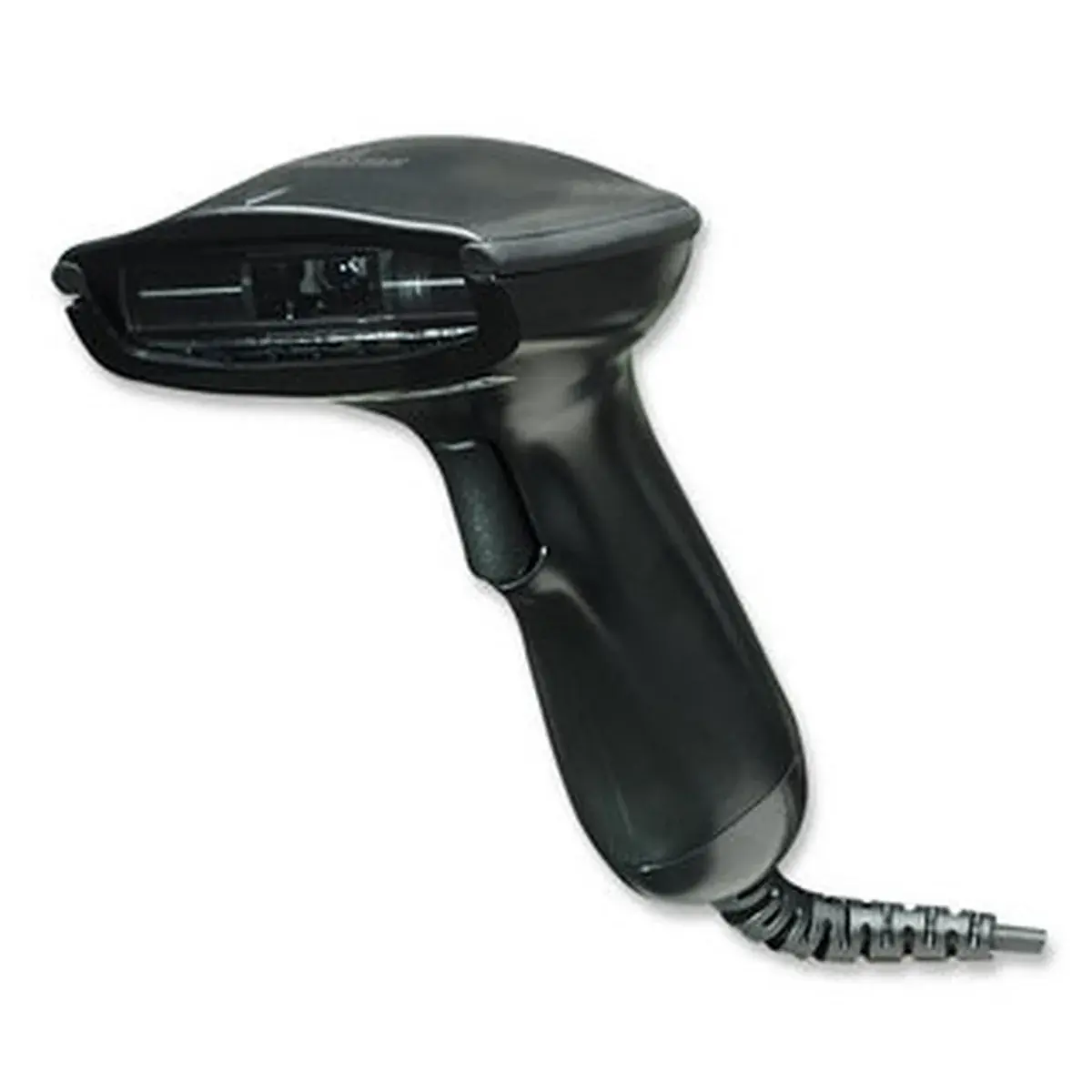

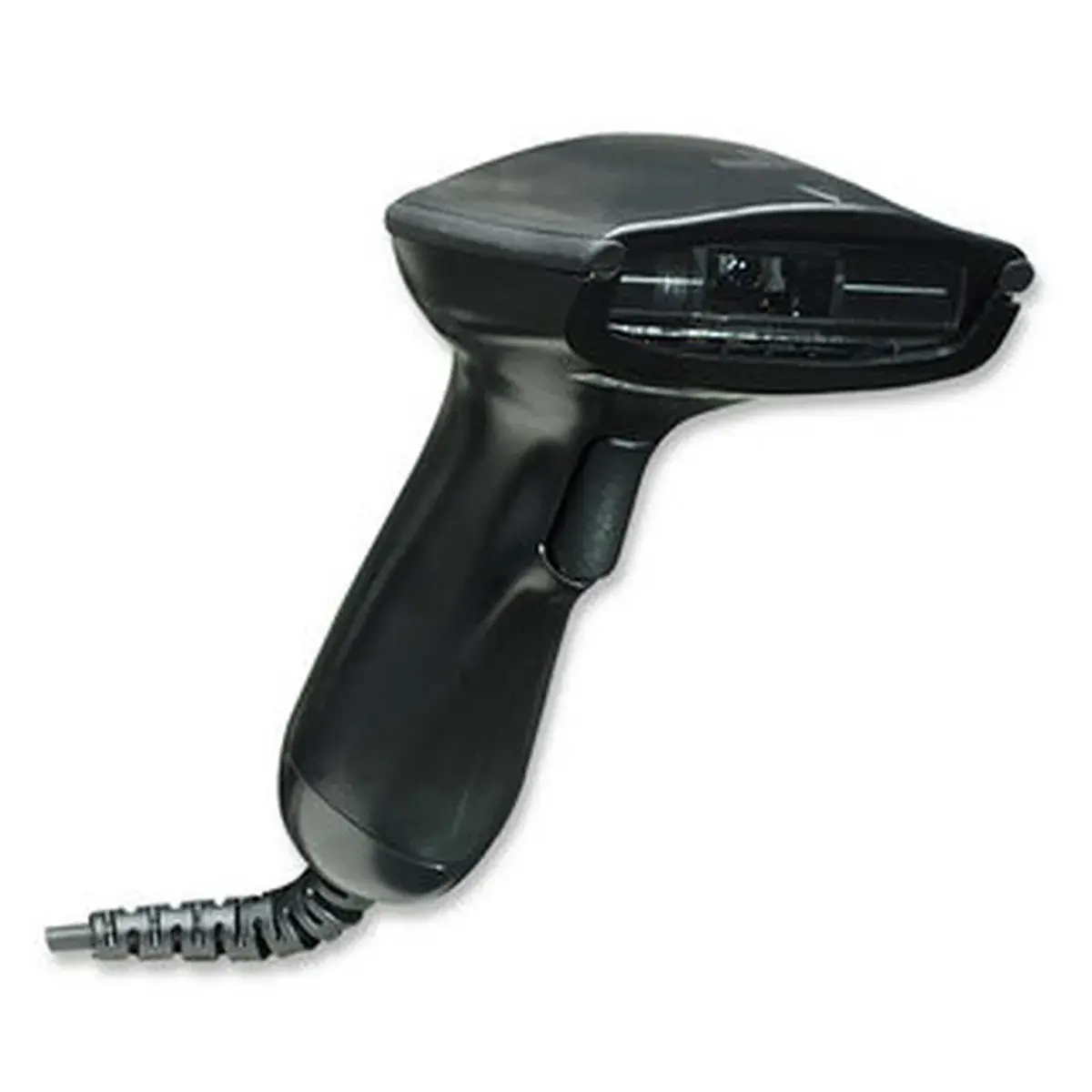

A Manhattan Long Range CCD Handheld Barcode Scanner is an advanced barcode scanning device designed for professional use in various environments. With its impressive scan depth of up to 500mm, this scanner can read codes from far distances without compromising accuracy. It supports linear (1D) barcodes such as Codabar, Code 11, Code 128, among others, making it versatile for different applications.

The scanner’s sensor uses a Charge-Coupled Device (CCD) which ensures high resolution at 0.1 millimeters, allowing precise reading even on fine print labels. Its lightweight design with dimensions of 90 x 193 x 72 mm makes it easy to carry around while working. The scanner operates within a wide range of temperatures (-20°C to +50°C), ensuring reliability during outdoor work sessions under extreme conditions.

For connectivity purposes, the Manhattan offers wired communication through USB standard interfaces, providing stable data transfer speeds suitable for demanding tasks requiring quick access to information. Additionally, it comes equipped with a durable housing made from Acrylonitrile Butadiene Styrene (ABS) plastic and rubber components that offer protection against impacts and environmental factors like dust and moisture.

Main specifications

  • Model: Manhattan Long Range CCD Handheld Barcode Scanner, USB, 500mm Scan Depth, Cable 1.5m, Max Ambient Light 30,000 lux (sunlight), Black, Three Year Warranty
  • Colour: Black
  • Weight: 440 g
  • Width: 90 mm
  • Depth: 193 mm
  • Height: 72 mm
  • Power consumption: 150 mA
  • Input voltage: 5 V

Additional information

Type

Handheld bar code reader

Scanner type

1D

Sensor type

CCD

Linear (1D) barcodes supported

Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, Industrial 2 of 5, Interleaved 2 of 5, JAN, MSI, Plessey, Telepen

2D (matrix & stacked) barcodes supported

Not supported

Scanner resolution

0.1 mm

Read rate (max)

500 reads/s

Light levels (direct sunlight)

0 – 30000 lx

Connectivity technology

Wired

Standard interfaces

USB

Cable length

1.5 m

Product colour

Black

Housing material

Acrylonitrile butadiene styrene (ABS), Rubber

Certification

FCC
CE

Power source type

USB

Input voltage

5 V

Power consumption

150 mA

Weight

440 g

Width

90 mm

Depth

193 mm

Height

72 mm

Operating temperature (T-T)

0 – 50 °C

Storage temperature (T-T)

-20 – 70 °C

Operating relative humidity (H-H)

20 – 95%

Harmonized System (HS) code

84716070
