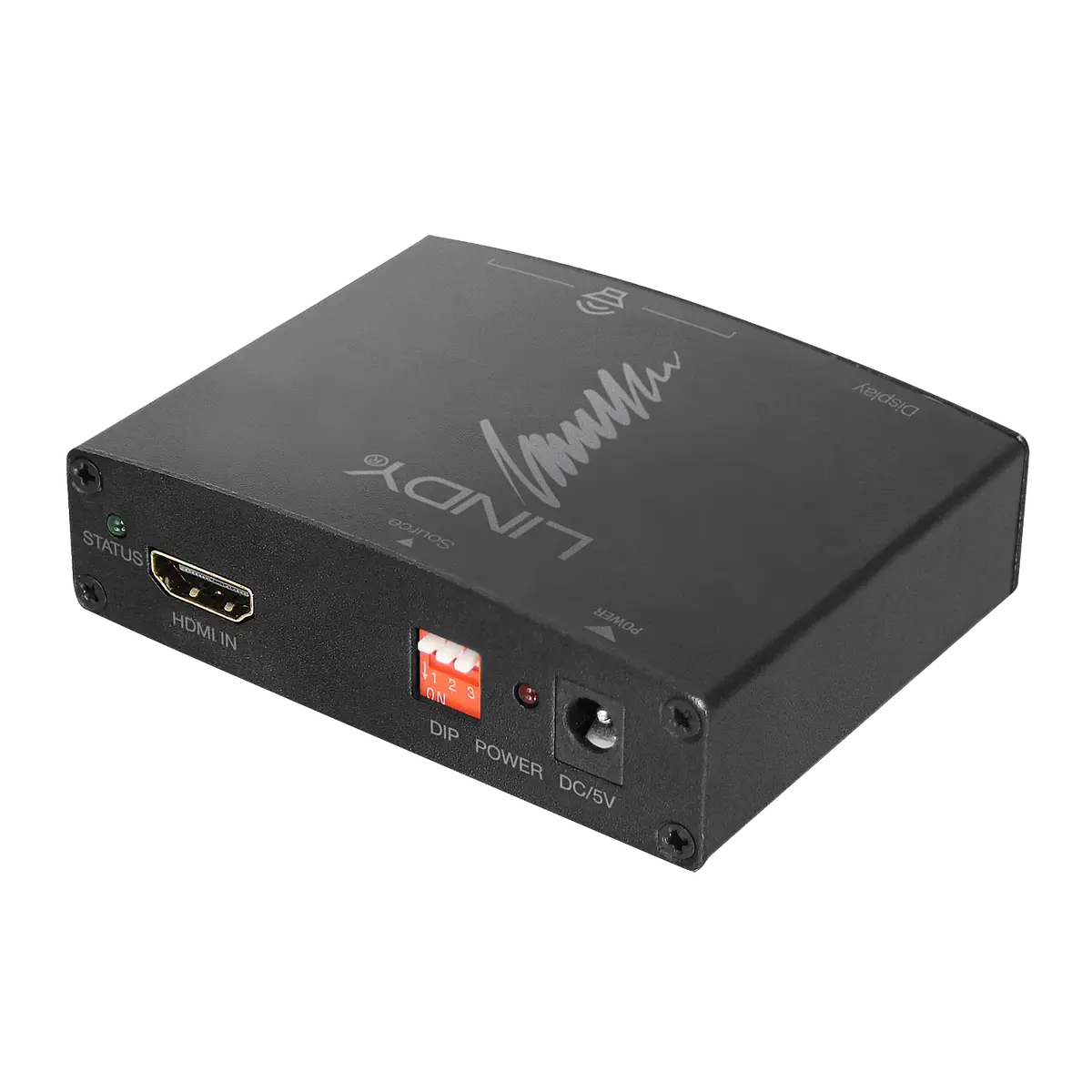

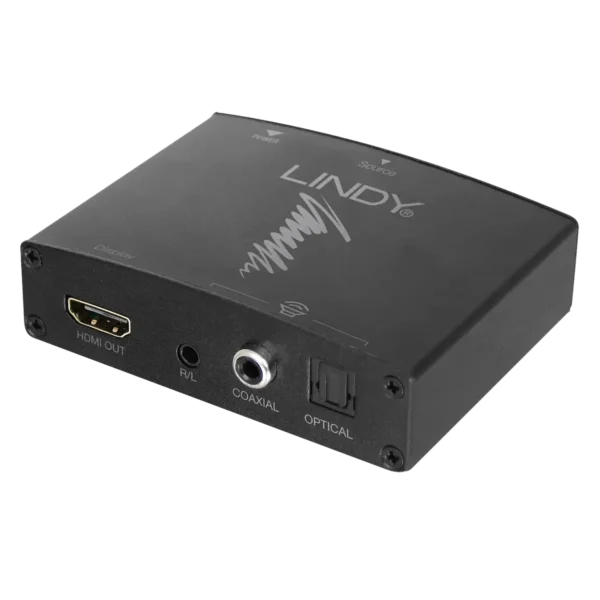

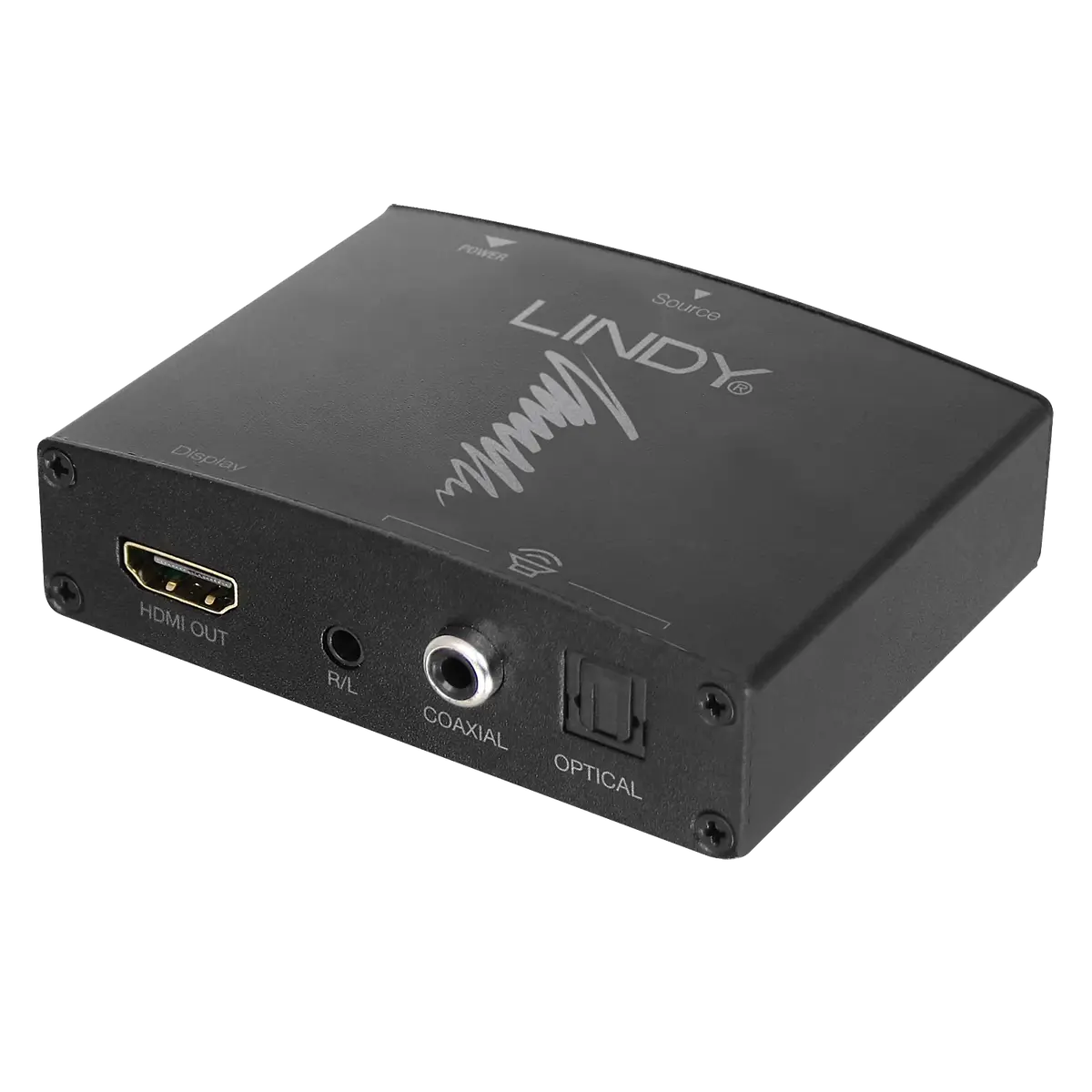

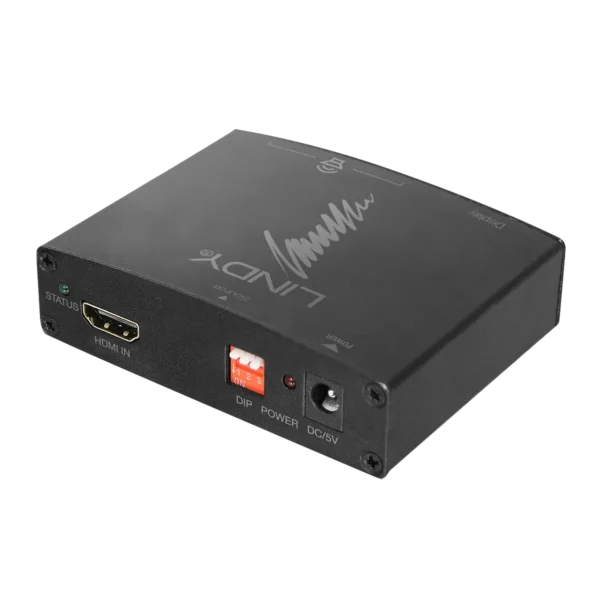

Lindy HDMI 4K30 Audio Extractor

Lindy HDMI 4K30 Audio Extractor, 5 W, 5.5/2.1mm DC, 65 mm, 88 mm, 24 mm, 118 g

Documentation:

SKU: 38167 Category: Brand:

The Lindy HDMI 4K30 Audio Extractor is an essential device for anyone looking to extract audio from their HDMI connections while maintaining high-quality sound output. This compact extractor features multiple digital audio outputs including coaxial and optical types, as well as S/PDIF out port, ensuring compatibility with various audio equipment like home theaters and surround systems.

Equipped with an EP91A2E chipset supporting HDMI version 1.4, this device can handle data transfer rates up to 10200 Mbit/s, making it suitable for high-resolution content playback such as 4K video at 30 frames per second. It supports Dolby Digital 2/5.1 and DTS-HD audio codecs, providing rich and immersive listening experiences.

Additionally, its metal housing ensures durability and reliability in demanding environments. The Lindy HDMI 4K30 Audio Extractor comes fully equipped with necessary cables; specifically, includes one DC to USB Type-A cable which allows easy connection via standard power outlets. Its dimensions are quite manageable – measuring just 65mm wide by 88mm deep and 24mm tall, fitting comfortably into most spaces without taking up too much room.

Notable features

  • Model: Lindy HDMI 4K30 Audio Extractor
  • Colour: Black
  • Weight: 118 g
  • Width: 65 mm
  • Depth: 88 mm
  • Height: 24 mm
  • Package weight: 250 g
  • Typical power consumption: 5 W

Additional information

HDMI in

1

DC-in jack

Yes

Audio (L/R) out

1

Digital audio coaxial out

1

Digital audio optical out

1

S/PDIF out port

Yes

Number of HDMI outputs

1

Maximum data transfer rate

10200 Mbit/s

HDCP

Yes

HDCP version

1.4

Chipset

EP91A2E

HDMI version

1.4

HDMI pass-through

Yes

CEC pass-through

Yes

Input impedance

100 Ω

Output impedance

100 Ω

Supported sample rates

192 kHz

Supported chroma subsampling

4:4:4

Audio codecs

Dolby Digital 2/5.1, DTS-HD

Accuracy

0.1 dB

Product colour

Black

Maximum resolution

4096 x 2160 pixels

Audio recording formats

LPCM

Housing material

Metal

Compliance certificates

REACH, RoHS

Certification

CE, UKCA, FCC, RoHS, REACH

Power consumption (typical)

5 W

Power note

5.5/2.1mm DC

Width

65 mm

Depth

88 mm

Height

24 mm

Weight

118 g

Operating temperature (T-T)

-15 – 55 °C

Storage temperature (T-T)

-20 – 60 °C

Operating relative humidity (H-H)

10 – 90%

Quantity

1

Cables included

DC to USB Type-A

Manual

Yes

Package width

202 mm

Package depth

144 mm

Package height

55 mm

Package weight

250 g

Package type

Box

Harmonized System (HS) code

85176990
