LevelOne HDSpider™ 4-Port HDMI over Cat.5 Transmitter

The LevelOne HDSpider™ is an AV transmitter designed to transmit high-definition video signals over Cat.5 cables up to a maximum resolution of 1920 x 1080 pixels. It supports various cable types including Cat5, Cat5e, and Cat6 for flexible installation options. The device operates within a wide operating temperature range from 0°C to 40°C and can be stored in temperatures ranging from -20°C to 60°C.

Its dimensions are compact at 85mm wide by 215mm deep by 40mm high, making it easy to integrate into various setups without occupying much space. For power requirements, this HDMI over CAT5 transceiver requires a DC input voltage of 5V with a max current draw of 4A, consuming a total of 10W when active.

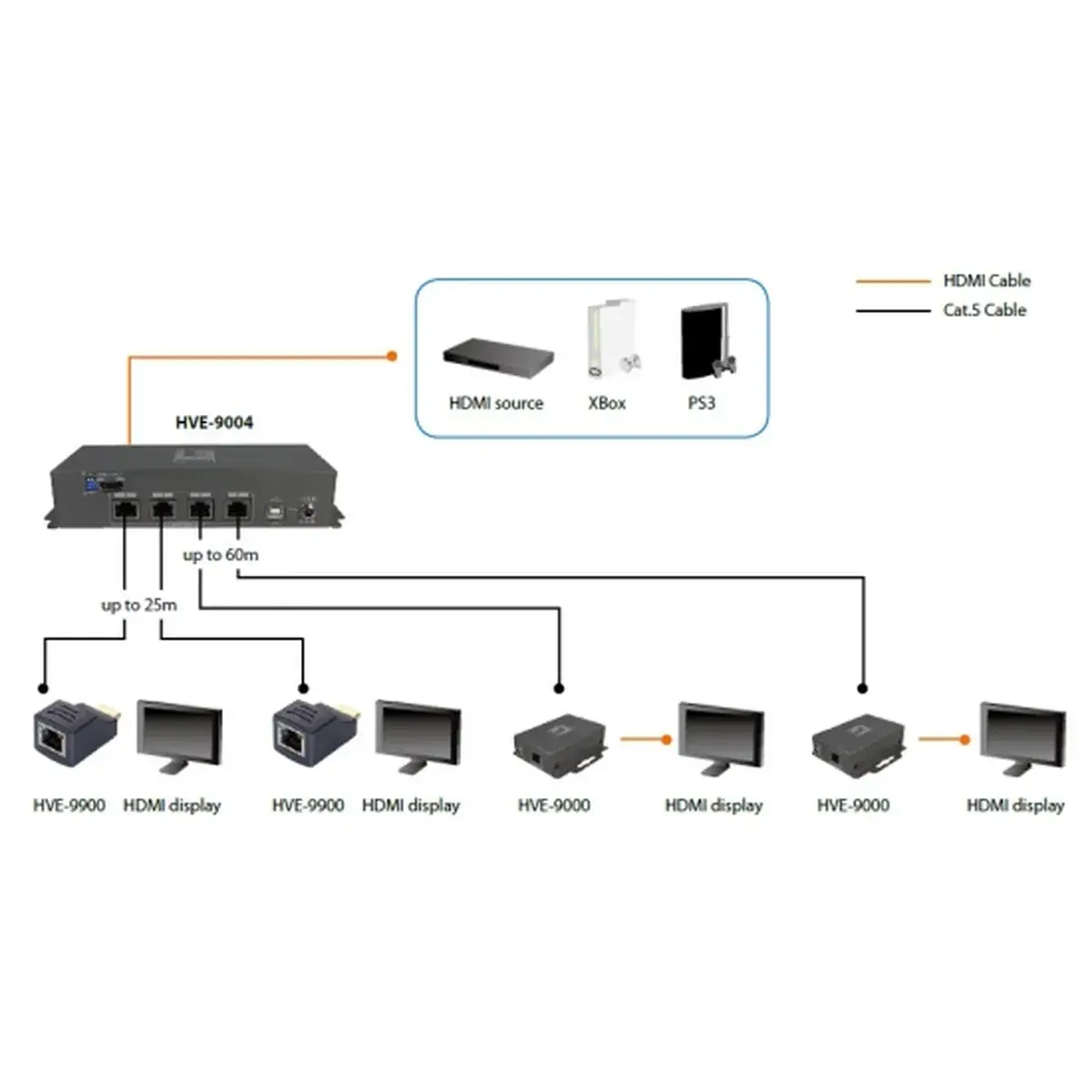

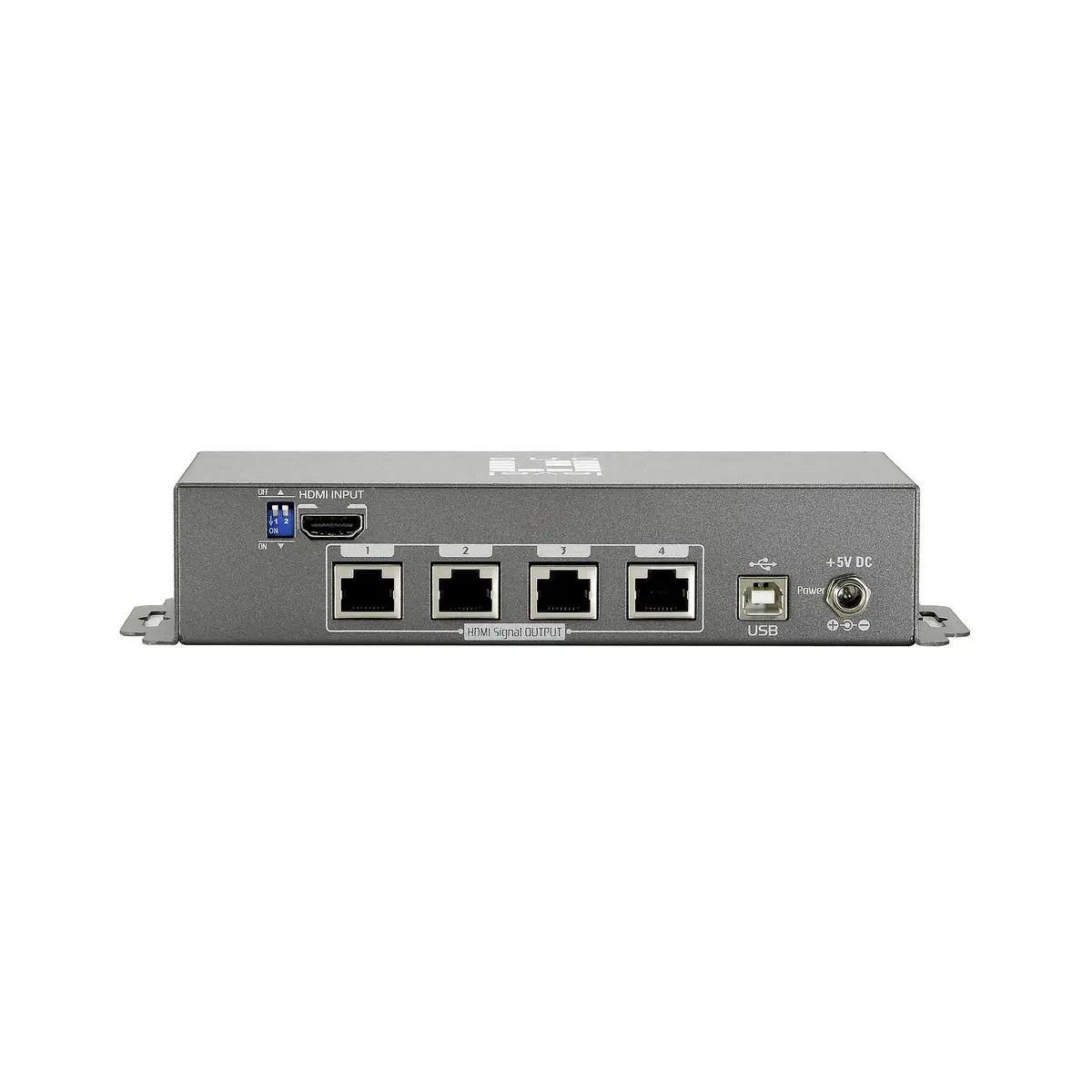

An external power adapter is provided as part of the package which includes both a manual and AC adapter ensuring convenient operation. With its RJ-45 output ports supporting four channels and one HDMI input port compatible with version 1.3c, the LevelOne HDSpider™ offers versatile connectivity solutions suitable for home theater systems, gaming consoles, and other multimedia applications requiring reliable transmission distances up to 60 meters.

Product highlights

• Model: LevelOne HDSpider™ 4-Port HDMI over Cat.5 Transmitter
• Colour: Grey
• Weight: 550 g
• Dimensions (W×D×H): 85 x 215 x 40 mm
• Width: 85 mm
• Depth: 215 mm
• Height: 40 mm
• Package weight: 990 g
