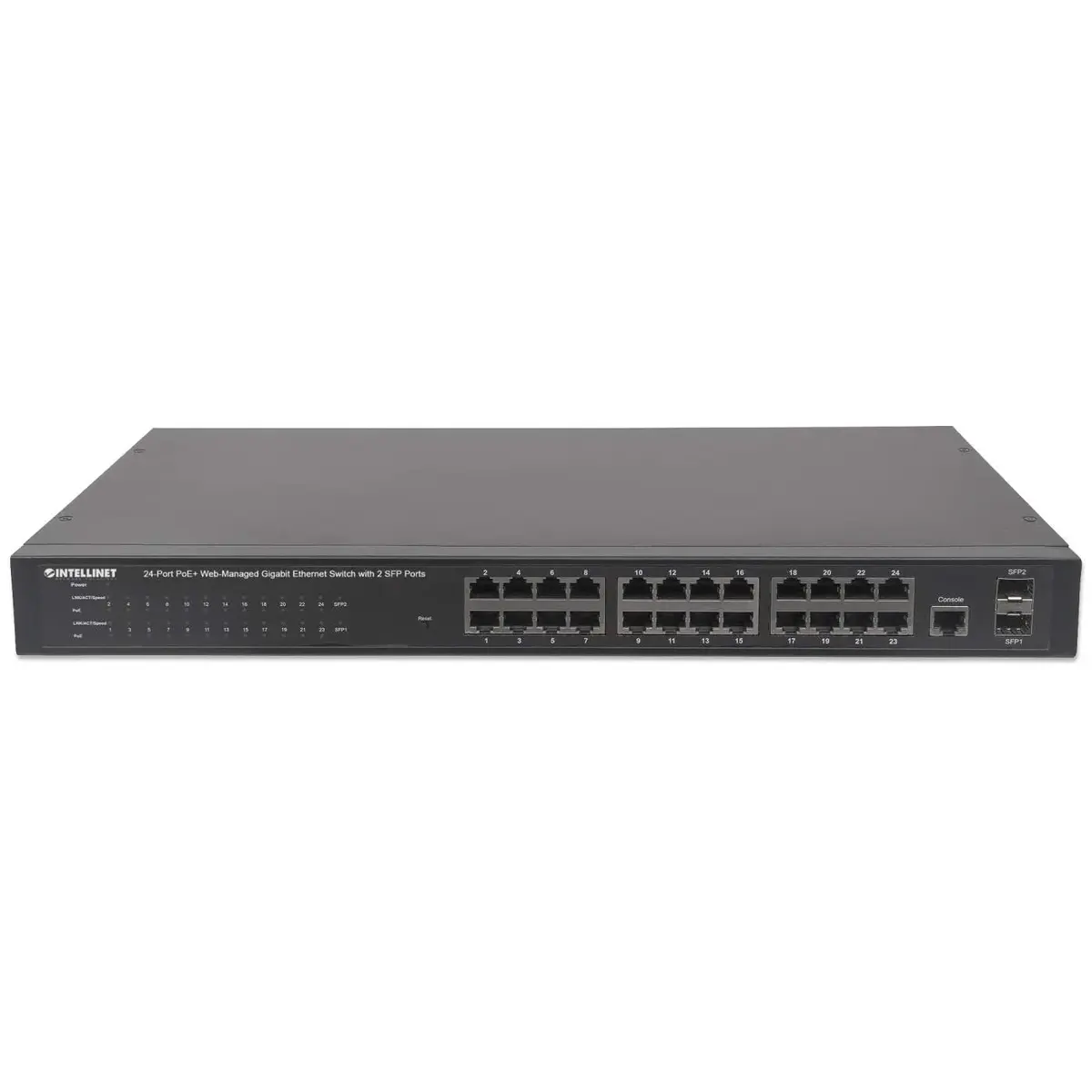

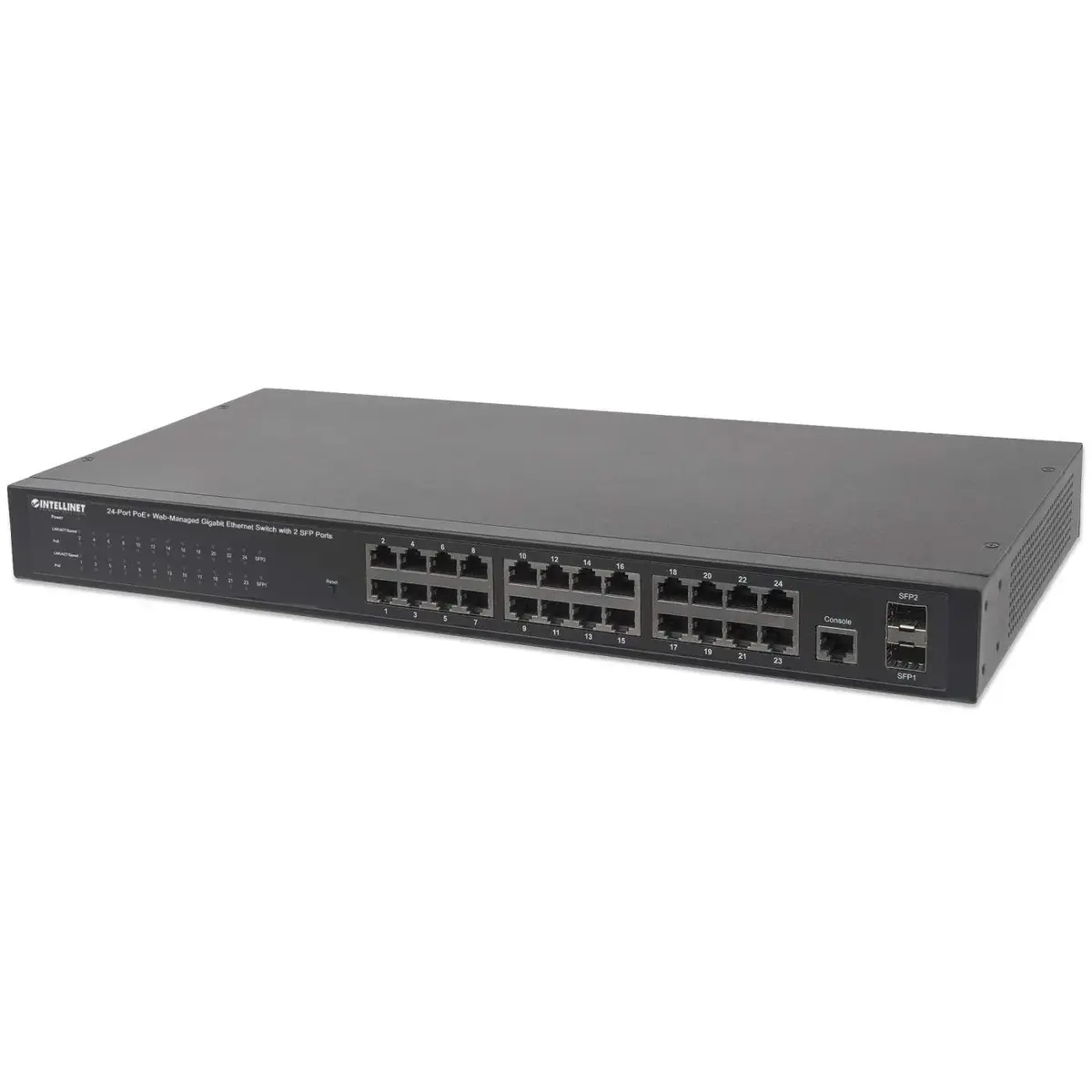

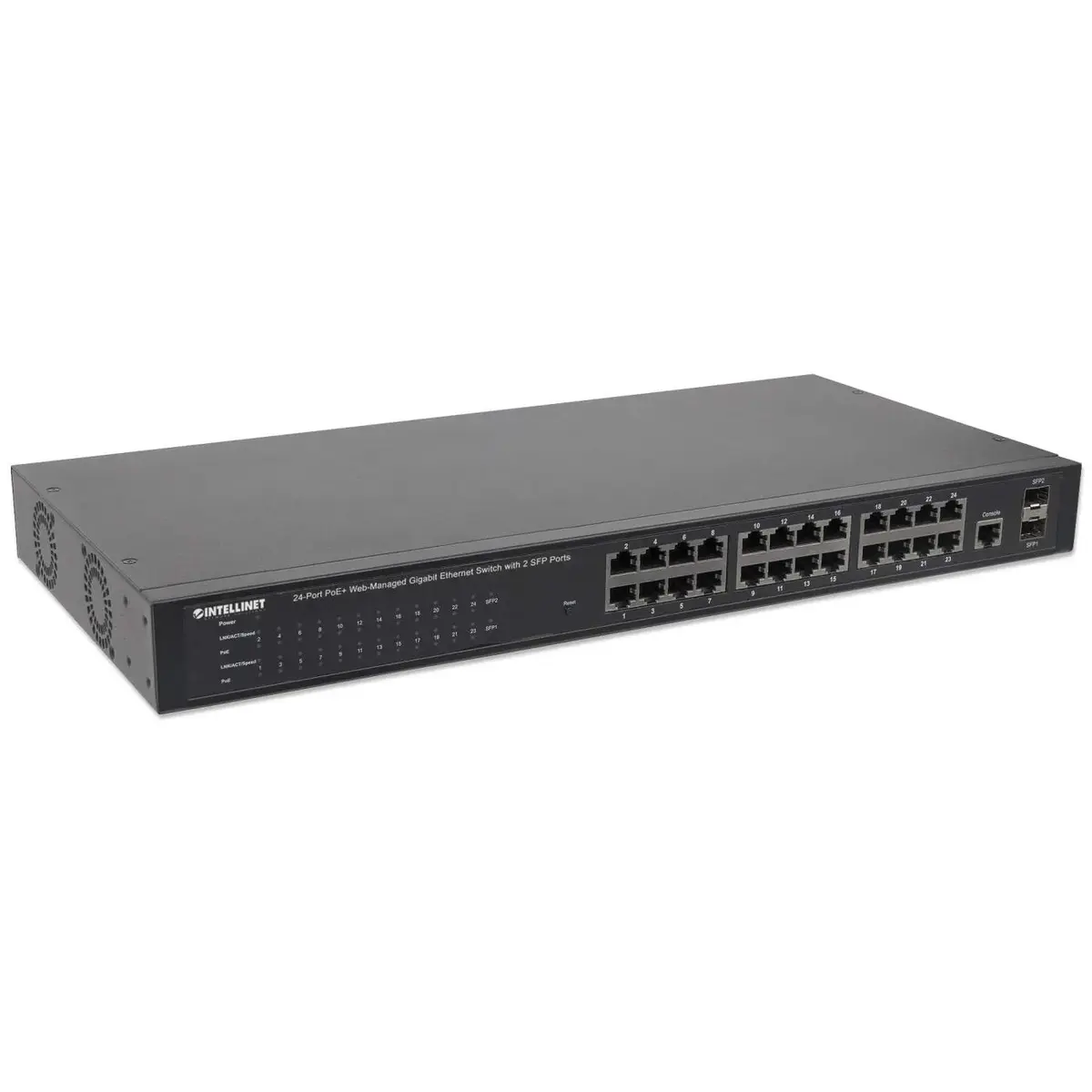

Intellinet 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports, 24 x PoE ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), 2 x SFP, Endspan, 19″ Rackmount

The Intellinet 24-Port Gigabit Ethernet PoE+ Web-Managed Switch is designed for network administrators seeking high-performance switching capabilities in their infrastructure. Equipped with 24 Gigabit RJ-45 ports supporting IEEE 802.3at/af standards, this switch offers efficient power distribution to PoE devices such as IP cameras, wireless access points, and other POE-enabled equipment.

It includes two SFP slots that can be used for fiber optic connections, enhancing scalability and connectivity options. The device supports advanced networking protocols including IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p Priority queuing, IEEE 802.1Q VLAN tagging, IEEE 802.1w Quick start-up, IEEE 802.3X flow control, and more, ensuring robust performance across various network environments.

With a MAC address table capacity of up to 8000 entries and a switching capacity of 52 Gbit/s, it provides excellent bandwidth utilization and fast data forwarding rates of over 1.488 Mpps. This managed switch features QoS support, LED indicators for status monitoring, and comes with an AC input voltage range from 90 – 260 V at frequencies between 50 – 60 Hz.

Main characteristics

• Model: Intellinet 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports, 24 x PoE ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), 2 x SFP, Endspan, 19" Rackmount
• Colour: Black
• Weight: 3.55 kg
• Width: 440 mm
• Depth: 208 mm
• Height: 44 mm
• Power source: AC
• sku: 560559
