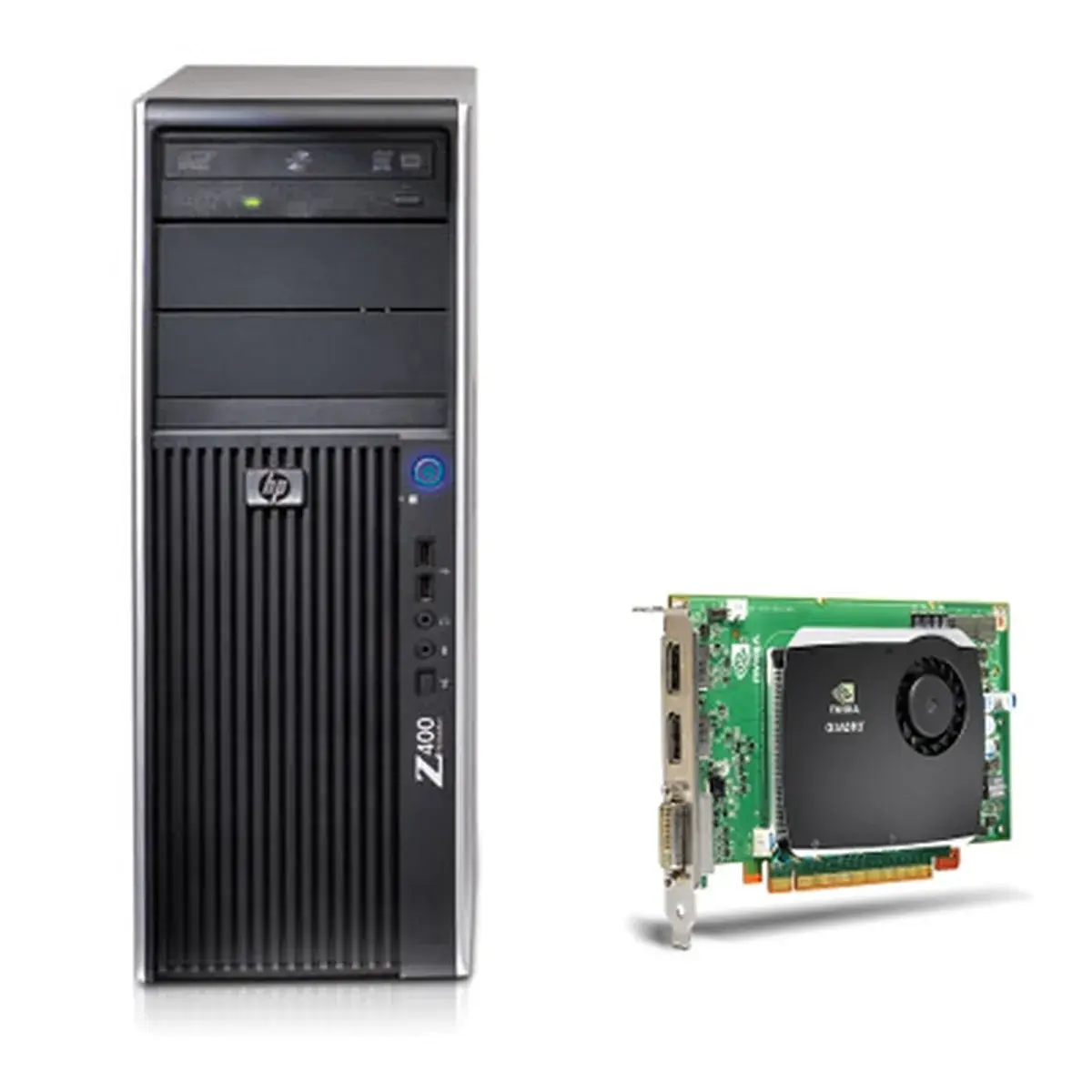

HP Z400 + NVIDIA Quadro FX 580, 2.93 GHz, Intel® Xeon® 3000 Sequence, W3540, 6 GB, DDR3-SDRAM, DVD Super Multi

Documentation:

SKU: KK548ET+FY945ET Category: Brand:

The HP Z400 + NVIDIA Quadro FX 580 is an Intel® Xeon® 3000 Sequence-based workstation designed for demanding professional environments. Equipped with a powerful W3540 processor running at 2.93 GHz, this system offers robust performance suitable for complex tasks such as video editing, rendering, and high-end graphics work.

It features a minimum of 6GB of DDR3 SDRAM, expandable up to 16GB, ensuring ample memory for multitasking applications. The workstation includes essential connectivity options like two USB 2.0 ports, one RJ-45 Ethernet port, and built-in microphone input/output capabilities. Additionally, it supports a single hard disk drive (HDD) with a capacity of 1TB and operates on a 7200 RPM spindle, providing reliable storage solutions.

With its compact minitower design, the HP Z400 + NVIDIA Quadro FX 580 combines efficiency with power, making it ideal for professionals who require both speed and reliability in their computing needs. This model also integrates a DVD Super Multi optical drive and comes equipped with integrated card readers, enhancing versatility for multimedia handling.

Product highlights

  • Model: HP Z400 + NVIDIA Quadro FX 580 Intel® Xeon® 3000 Sequence W3540 6 GB DDR3-SDRAM Minitower Workstation
  • Processor: W3540
  • CPU frequency: 2.93 GHz
  • sku: KK548ET+FY945ET
  • Processor family: Intel® Xeon® 3000 Sequence
  • Processor manufacturer: Intel
  • Processor cores: 4
  • Processor threads: 8

Additional information

Processor family

Intel® Xeon® 3000 Sequence

Processor manufacturer

Intel

Processor model

W3540

Processor frequency

2.93 GHz

Processor cores

4

Processor threads

8

Processor boost frequency

3.2 GHz

Processor socket

Socket B (LGA 1366)

Processor cache

8 MB

Processor cache type

Smart Cache

System bus rate

4.8 GT/s

Bus type

QPI

FSB Parity

No

Processor lithography

45 nm

Processor operating modes

64-bit

Processor series

Intel Xeon 3500 Series

Processor codename

Bloomfield

Thermal Design Power (TDP)

130 W

Processor system type

Up

Tcase

67.9 °C

Number of processors installed

1

Number of Processing Die Transistors

731 M

Processing Die size

263 mm²

Stepping

D0

CPU multiplier (bus/core ratio)

22

Processor core voltage (AC)

0.800 – 1.225 V

Maximum internal memory supported by processor

24 GB

Memory types supported by processor

DDR3 800/1066

Memory bandwidth supported by processor (max)

25.6 GB/s

ECC supported by processor

Yes

Internal memory

6 GB

Maximum internal memory

16 GB

Internal memory type

DDR3-SDRAM

Memory clock speed

1333 MHz

ECC

Yes

Memory channels

Triple-channel

Optical drive type

DVD Super Multi

Number of HDDs installed

1

HDD capacity

1 TB

HDD interface

SATA

HDD speed

7200 RPM

Card reader integrated

Yes

USB 2.0 ports quantity

8

PS/2 ports quantity

2

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Headphone outputs

1

Chassis type

Minitower

Country of origin

China
