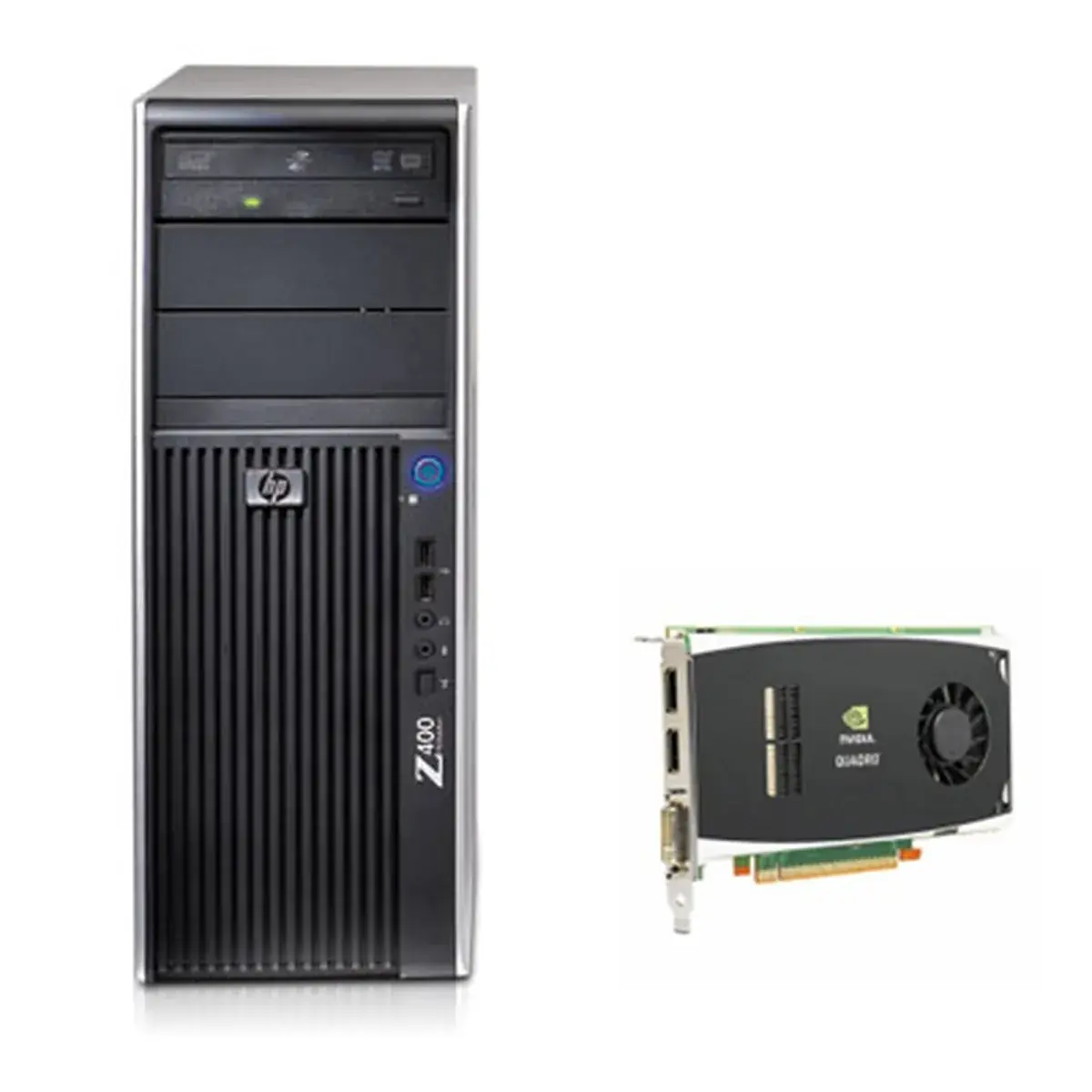

HP Z400 + NVIDIA Quadro FX 1800 Intel® Xeon® 3000 Sequence W3520 6 GB DDR3-SDRAM Minitower Workstation

HP Z400 + NVIDIA Quadro FX 1800, 2.66 GHz, Intel® Xeon® 3000 Sequence, W3520, 6 GB, DDR3-SDRAM, DVD Super Multi

Documentation:

SKU: KK547ET+FY946ET Category: Brand:

HP Z400 + NVIDIA Quadro FX 1800 workstation is equipped with an Intel® Xeon® 3000 Sequence W3520 processor running at 2.66 GHz frequency, featuring four cores and eight threads. It supports up to 24GB of DDR3-SDRAM memory operating at 1333MHz, providing ample RAM for demanding workloads. The system has a total power supply capability of 475W and comes as a minitower chassis designed for efficient use space.

The optical drive offers support for DVD Super Multi media formats, enhancing data storage flexibility. With its configuration including one hard disk drive capable of handling 500GB of storage on a 7200RPM SATA interface, this workstation can accommodate various applications requiring robust internal storage solutions.

Additionally, it boasts multiple connectivity options such as two PS/2 ports, eight USB 2.0 ports, and one RJ-45 Ethernet port for network access, ensuring versatile peripheral integration capabilities. This setup is ideal for professionals needing high-performance computing environments that combine processing power, memory capacity, and reliable I/O interfaces efficiently.

Technical details

  • Model: HP Z400 + NVIDIA Quadro FX 1800 Intel® Xeon® 3000 Sequence W3520 6 GB DDR3-SDRAM Minitower Workstation
  • Processor: W3520
  • CPU frequency: 2.66 GHz
  • sku: KK547ET+FY946ET
  • Processor family: Intel® Xeon® 3000 Sequence
  • Processor manufacturer: Intel
  • Processor cores: 4
  • Processor threads: 8

Additional information

Processor family

Intel® Xeon® 3000 Sequence

Processor manufacturer

Intel

Processor model

W3520

Processor frequency

2.66 GHz

Processor cores

4

Processor threads

8

Processor boost frequency

2.93 GHz

Processor socket

Socket B (LGA 1366)

Processor cache

8 MB

Processor cache type

Smart Cache

Processor front side bus

1066 MHz

System bus rate

4.80 GT/s

Bus type

QPI

FSB Parity

No

Processor lithography

45 nm

Processor operating modes

64-bit

Processor series

Intel Xeon 3500 Series

Processor codename

Bloomfield

Thermal Design Power (TDP)

130 W

Processor system type

Up

Tcase

67.9 °C

Number of processors installed

1

Number of Processing Die Transistors

731 M

Processing Die size

263 mm²

Stepping

D0

CPU multiplier (bus/core ratio)

20

Processor core voltage (AC)

0.800 – 1.225 V

Maximum internal memory supported by processor

24 GB

Memory types supported by processor

DDR3-SDRAM

Memory clock speeds supported by processor

800,1066 MHz

Memory bandwidth supported by processor (max)

25.6 GB/s

ECC supported by processor

Yes

Internal memory

6 GB

Maximum internal memory

16 GB

Internal memory type

DDR3-SDRAM

Memory layout (slots x size)

3 x 2 GB

Memory clock speed

1333 MHz

ECC

Yes

Memory channels

Triple-channel

Optical drive type

DVD Super Multi

Number of HDDs installed

1

HDD capacity

500 GB

HDD interface

SATA

HDD speed

7200 RPM

Card reader integrated

No

USB 2.0 ports quantity

8

PS/2 ports quantity

2

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes
