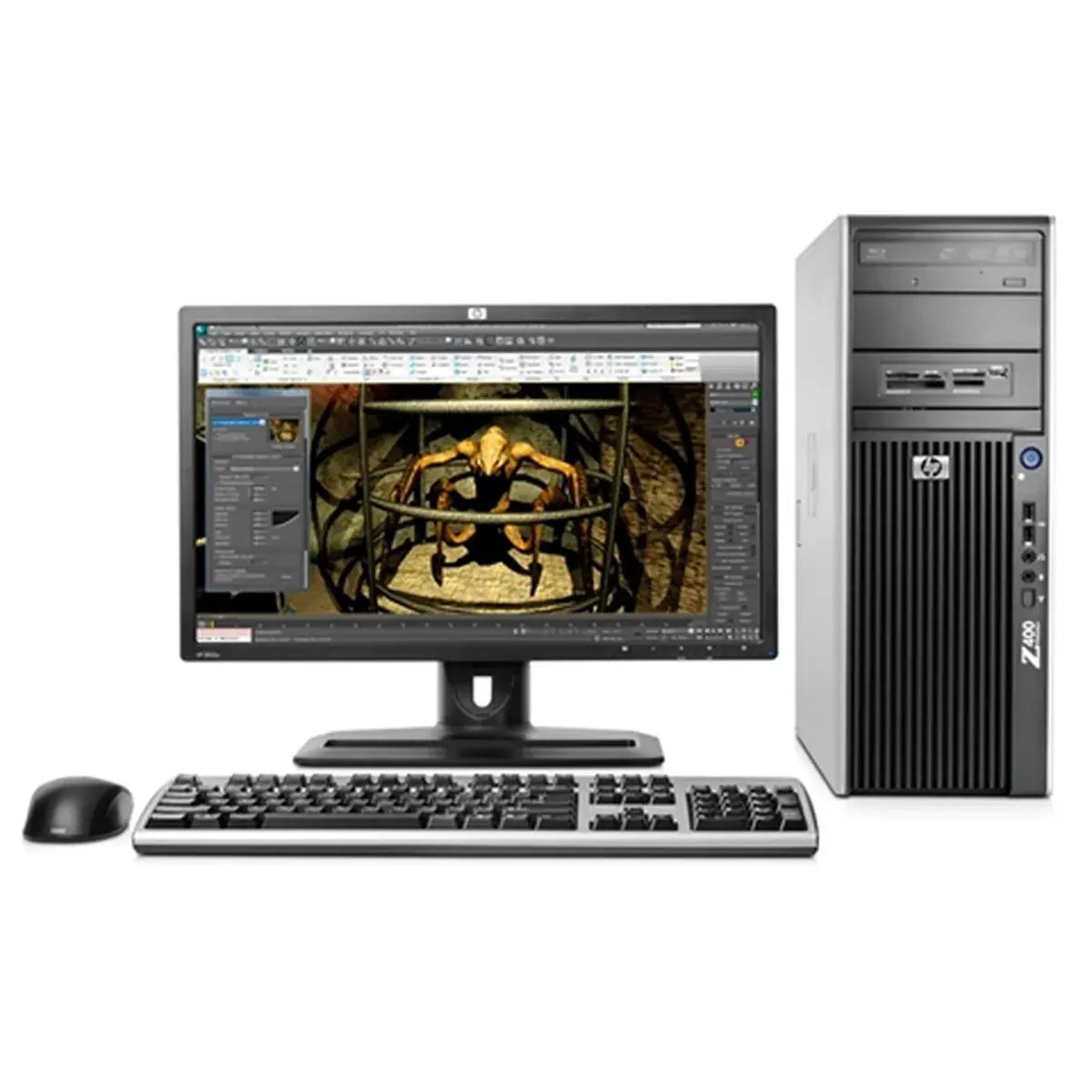

HP Z400 + LP2275w Intel® Xeon® 3000 Sequence W3540 6 GB DDR3-SDRAM Minitower Workstation

HP Z400 + LP2275w, 2.93 GHz, Intel® Xeon® 3000 Sequence, W3540, 6 GB, DDR3-SDRAM, DVD Super Multi

Documentation:

SKU: KK548ET+KE289AT Category: Brand:

HP Z400 + LP2275w workstation is equipped with an Intel® Xeon® W3540 processor running at 2.93 GHz, featuring 4 cores and 8 threads. It supports up to 16GB of DDR3 SDRAM operating at 1333MHz, including support for ECC memory. The system has a maximum TDP of 130W and operates on a QPI bus with a rate of 4.8GT/s.

The workstation includes a single optical drive capable of reading DVDs and CDs using multi-layer technology. For storage needs, it offers one hard disk drive (HDD) with a capacity of 1TB and rotational speeds reaching 7200 RPM. Additionally, there are multiple connectivity options such as eight USB 2.0 ports, two PS/2 ports, one RJ-45 Ethernet port, and built-in microphone input/output capabilities.

This setup provides robust performance suitable for demanding work environments like high-end computing tasks or professional applications requiring extensive processing power and data handling capability. With its comprehensive hardware specifications tailored towards enhancing productivity and efficiency across various industries, this HP Z400 + LP2275w workstation stands out as an ideal choice for professionals seeking reliable computational solutions.

Product highlights

  • Model: HP Z400 + LP2275w Intel® Xeon® 3000 Sequence W3540 6 GB DDR3-SDRAM Minitower Workstation
  • Processor: W3540
  • CPU frequency: 2.93 GHz
  • sku: KK548ET+KE289AT
  • Processor family: Intel® Xeon® 3000 Sequence
  • Processor manufacturer: Intel
  • Processor cores: 4
  • Processor threads: 8

Additional information

Processor family

Intel® Xeon® 3000 Sequence

Processor manufacturer

Intel

Processor model

W3540

Processor frequency

2.93 GHz

Processor cores

4

Processor threads

8

Processor boost frequency

3.2 GHz

Processor socket

Socket B (LGA 1366)

Processor cache

8 MB

Processor cache type

Smart Cache

System bus rate

4.8 GT/s

Bus type

QPI

FSB Parity

No

Processor lithography

45 nm

Processor operating modes

64-bit

Processor series

Intel Xeon 3500 Series

Processor codename

Bloomfield

Thermal Design Power (TDP)

130 W

Processor system type

Up

Tcase

67.9 °C

Number of processors installed

1

Number of Processing Die Transistors

731 M

Processing Die size

263 mm²

Stepping

D0

CPU multiplier (bus/core ratio)

22

Processor core voltage (AC)

0.800 – 1.225 V

Maximum internal memory supported by processor

24 GB

Memory types supported by processor

DDR3 800/1066

Memory bandwidth supported by processor (max)

25.6 GB/s

ECC supported by processor

Yes

Internal memory

6 GB

Maximum internal memory

16 GB

Internal memory type

DDR3-SDRAM

Memory clock speed

1333 MHz

ECC

Yes

Memory channels

Triple-channel

Optical drive type

DVD Super Multi

Total HDDs capacity

1 TB

Number of HDDs installed

1

HDD capacity

1 TB

HDD interface

SATA

HDD speed

7200 RPM

Card reader integrated

Yes

USB 2.0 ports quantity

8

PS/2 ports quantity

2

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Headphone outputs

1

Chassis type

Minitower
