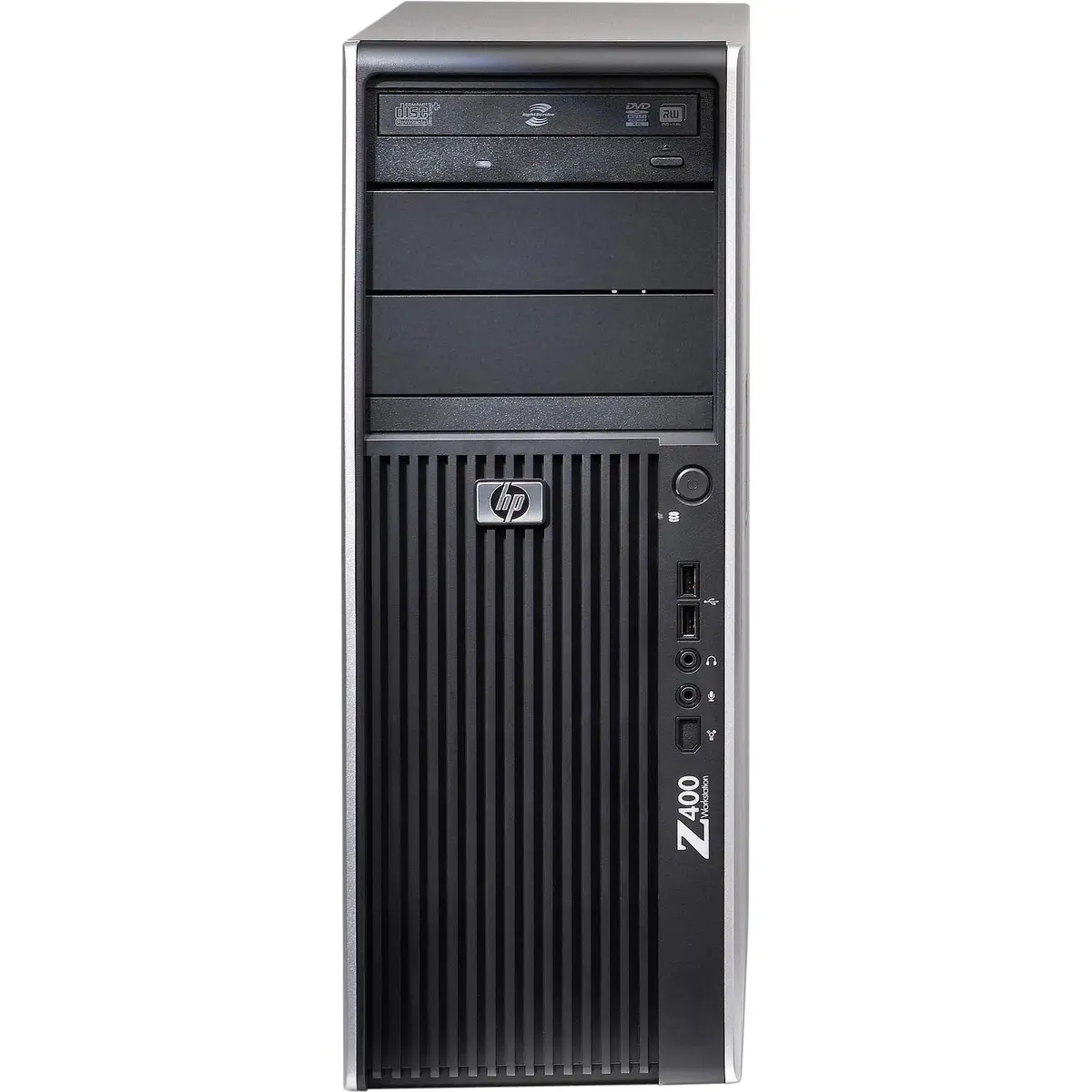

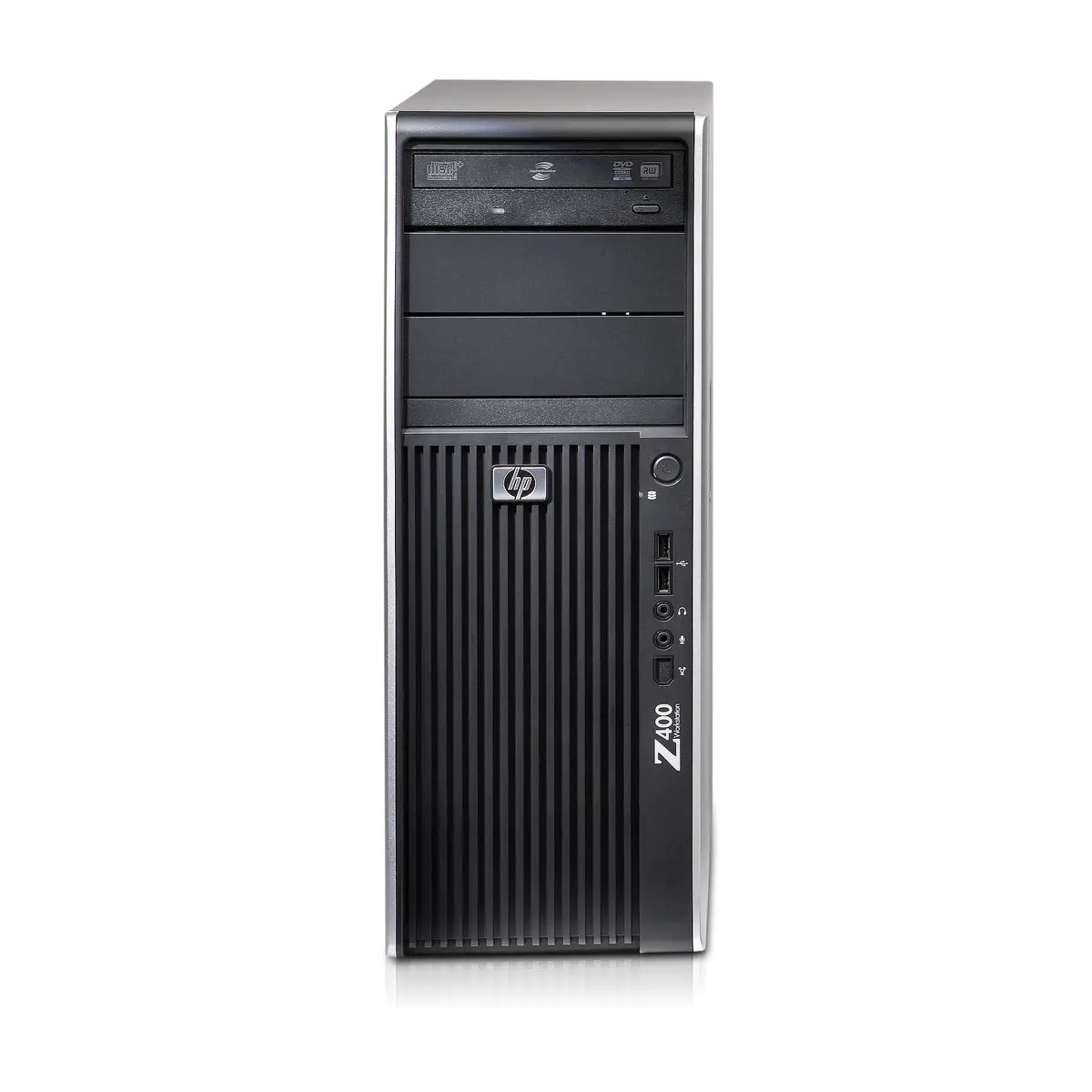

The HP Z400 workstation is equipped with an Intel® Xeon® W3520 processor running at 2.66 GHz, featuring 4 cores and 8 threads. It supports up to 24GB of DDR3 SDRAM operating at 1333MHz, providing ample memory for demanding workloads. With a TDP of 130W and a maximum bus rate of 4.8GT/s, this system offers robust performance suitable for professional applications.

The workstation includes a standard power supply rated at 475W and comes in a black minitower chassis designed for compact space-saving solutions. Equipped with Windows XP Professional as its operating system, it provides reliable software compatibility across various tasks. A DVD Super Multi optical drive ensures easy data access and backup options are available through supported RAID configurations ranging from basic level 0 to advanced level 10 setups.

Additionally, there’s one internal hard disk (HDD) capable of holding up to 500GB of storage on a 7200RPM SATA interface. Although no card readers are included, the workstation supports multiple USB 2.0 ports for peripheral connectivity needs. Overall, the HP Z400 strikes a balance between hardware capabilities and user requirements making it ideal for professionals needing powerful computing resources without compromising ease-of-use or efficiency.

Essential specs

  • Model: HP Z400 Intel® Xeon® 3000 Sequence W3520 6 GB DDR3-SDRAM Windows XP Professional Minitower Workstation Black
  • Processor: W3520
  • CPU frequency: 2.66 GHz
  • sku: KK617ET
  • Processor family: Intel® Xeon® 3000 Sequence
  • Processor manufacturer: Intel
  • Processor cores: 4
  • Processor threads: 8

Additional information

Processor family

Intel® Xeon® 3000 Sequence

Processor manufacturer

Intel

Processor model

W3520

Processor frequency

2.66 GHz

Processor cores

4

Processor threads

8

Processor boost frequency

2.93 GHz

Processor socket

Socket B (LGA 1366)

Processor cache

8 MB

Processor cache type

Smart Cache

Processor front side bus

1066 MHz

System bus rate

4.80 GT/s

Bus type

QPI

FSB Parity

No

Processor lithography

45 nm

Processor operating modes

64-bit

Processor series

Intel Xeon 3500 Series

Processor codename

Bloomfield

Thermal Design Power (TDP)

130 W

Processor system type

Up

Tcase

67.9 °C

Number of processors installed

1

Number of Processing Die Transistors

731 M

Processing Die size

263 mm²

Stepping

D0

CPU multiplier (bus/core ratio)

20

Processor core voltage (AC)

0.800 – 1.225 V

Maximum internal memory supported by processor

24 GB

Memory types supported by processor

DDR3-SDRAM

Memory clock speeds supported by processor

800,1066 MHz

Memory bandwidth supported by processor (max)

25.6 GB/s

ECC supported by processor

Yes

Internal memory

6 GB

Maximum internal memory

16 GB

Internal memory type

DDR3-SDRAM

Memory layout (slots x size)

3 x 2 GB

Memory slots

6x DIMM

Memory clock speed

1333 MHz

ECC

Yes

Memory channels

Triple-channel

Optical drive type

DVD Super Multi

Number of HDDs installed

1

HDD capacity

500 GB

HDD interface

SATA

HDD speed

7200 RPM

Card reader integrated

No

RAID support

Yes

RAID levels

0, 1, 5, 10

USB 2.0 ports quantity

8
