HP Z400 + ATI FirePro V5700, 2.66 GHz, Intel® Xeon® 3000 Sequence, W3520, 6 GB, DDR3-SDRAM, DVD Super Multi

Documentation:

SKU: KK547ET+FY947ET Category: Brand:

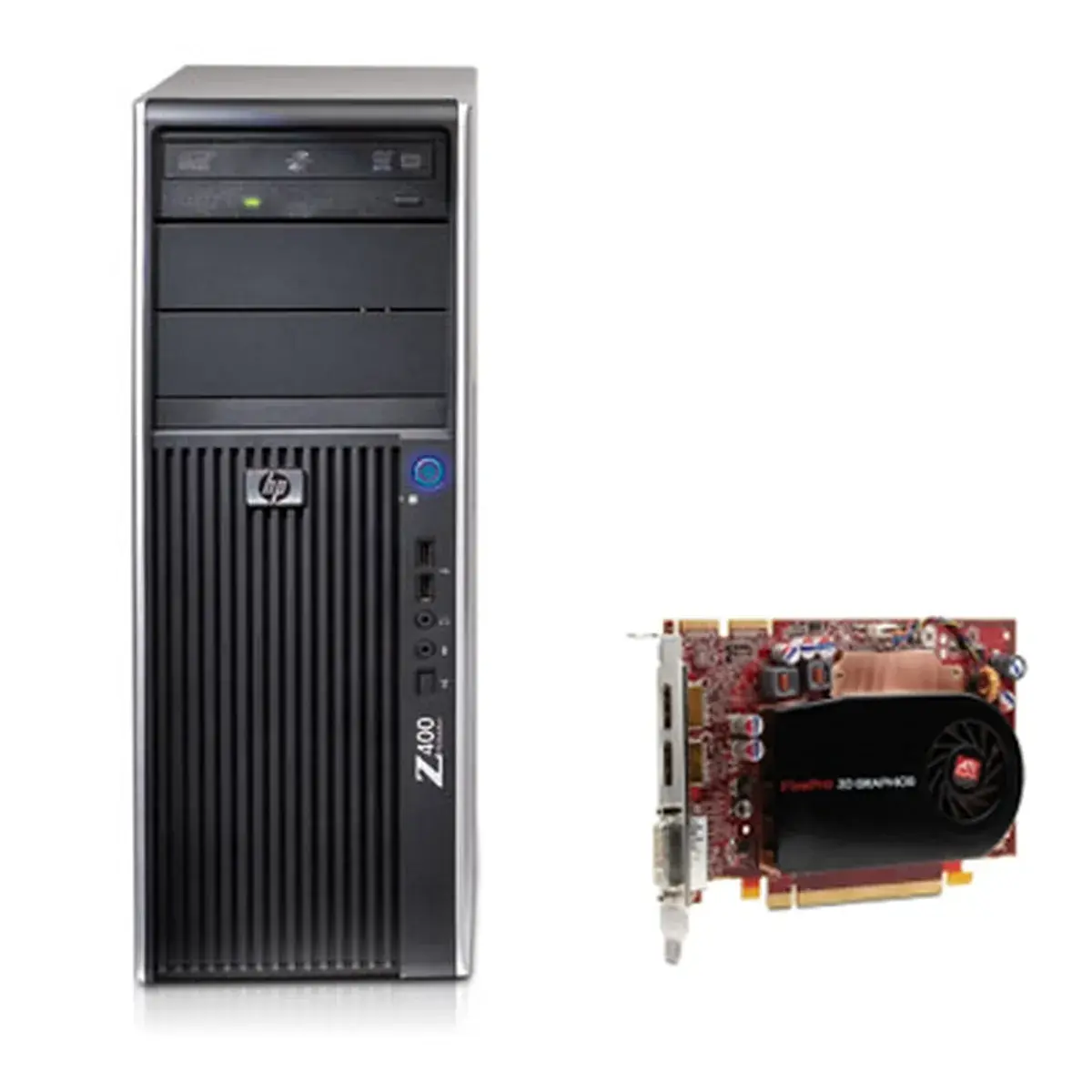

HP Z400 + ATI FirePro V5700 is an advanced workstation designed for demanding professional environments. Equipped with an Intel® Xeon® W3520 processor running at 2.66 GHz, this system delivers high performance suitable for complex tasks such as rendering, video editing, and scientific simulations. The workstation features 6GB of DDR3 SDRAM operating at 1333MHz, providing ample memory to handle large datasets efficiently.

For data storage needs, it supports up to 16GB of onboard memory through its triple-channel DDR3 SDRAM configuration. Additionally, you can expand your memory by connecting additional RAM modules if needed. An internal optical drive allows for easy media handling without needing external devices.

With a power supply rated at 475W, this workstation ensures stable operation even during intensive workloads. The HP Z400 + ATI FirePro V5700 comes pre-installed with Windows 7 Professional, offering reliable software support for various applications. Its compact design makes it ideal for small office settings where space efficiency is crucial while maintaining powerful computing capabilities.

Main characteristics

  • Model: HP Z400 + ATI FirePro V5700 Intel® Xeon® 3000 Sequence W3520 6 GB DDR3-SDRAM Minitower Workstation
  • Processor: W3520
  • CPU frequency: 2.66 GHz
  • sku: KK547ET+FY947ET
  • Processor family: Intel® Xeon® 3000 Sequence
  • Processor manufacturer: Intel
  • Processor cores: 4
  • Processor threads: 8

Additional information

Processor family

Intel® Xeon® 3000 Sequence

Processor manufacturer

Intel

Processor model

W3520

Processor frequency

2.66 GHz

Processor cores

4

Processor threads

8

Processor boost frequency

2.93 GHz

Processor socket

Socket B (LGA 1366)

Processor cache

8 MB

Processor cache type

Smart Cache

Processor front side bus

1066 MHz

System bus rate

4.80 GT/s

Bus type

QPI

FSB Parity

No

Processor lithography

45 nm

Processor operating modes

64-bit

Processor series

Intel Xeon 3500 Series

Processor codename

Bloomfield

Thermal Design Power (TDP)

130 W

Processor system type

Up

Tcase

67.9 °C

Number of processors installed

1

Number of Processing Die Transistors

731 M

Processing Die size

263 mm²

Stepping

D0

CPU multiplier (bus/core ratio)

20

Processor core voltage (AC)

0.800 – 1.225 V

Maximum internal memory supported by processor

24 GB

Memory types supported by processor

DDR3-SDRAM

Memory clock speeds supported by processor

800,1066 MHz

Memory bandwidth supported by processor (max)

25.6 GB/s

ECC supported by processor

Yes

Internal memory

6 GB

Maximum internal memory

16 GB

Internal memory type

DDR3-SDRAM

Memory layout (slots x size)

3 x 2 GB

Memory clock speed

1333 MHz

ECC

Yes

Memory channels

Triple-channel

Optical drive type

DVD Super Multi

Number of HDDs installed

1

HDD capacity

500 GB

HDD interface

SATA

HDD speed

7200 RPM

Card reader integrated

No

USB 2.0 ports quantity

8

PS/2 ports quantity

2

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes
