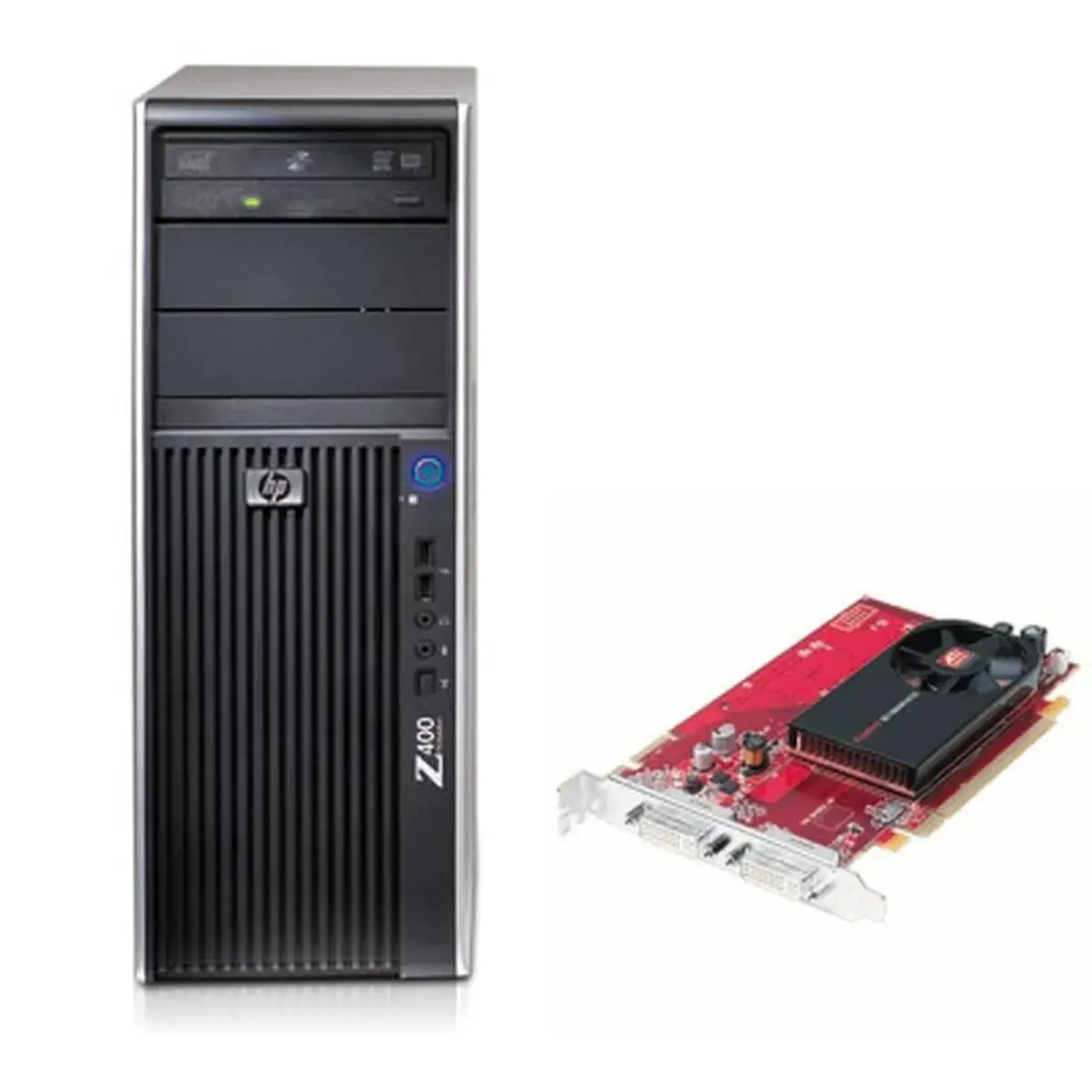

HP Z400 + ATI FirePro V3700 Intel® Xeon® 3000 Sequence W3520 3 GB DDR3-SDRAM Minitower Workstation

HP Z400 + ATI FirePro V3700, 2.66 GHz, Intel® Xeon® 3000 Sequence, W3520, 3 GB, DDR3-SDRAM, DVD Super Multi

Documentation:

SKU: KK546ET+FY944ET Category: Brand:

HP Z400 + ATI FirePro V3700 workstation is equipped with an Intel® Xeon® 3000 Sequence W3520 processor running at 2.66 GHz frequency. It features four cores and eight threads, supporting Smart Cache for enhanced performance. The system has a maximum TDP of 130W and operates on a front side bus rate of 4.80 GT/s using QPI technology.

This workstation includes three gigabytes of DDR3-SDRAM operating at 1333 MHz with support for ECC error correction. It supports up to 24GB of internal memory but currently ships with 3GB pre-installed. An optical drive type DVD Super Multi provides versatile data storage options.

Additionally, it comes with one hard disk drive (HDD), capable of handling 320GB of storage space at 7200 RPM speeds via a SATA interface. For connectivity, there are two PS/2 ports, one RJ-45 Ethernet port, and no card readers included. There are also eight USB 2.0 ports available for peripheral connections.

Feature summary

  • Model: HP Z400 + ATI FirePro V3700 Intel® Xeon® 3000 Sequence W3520 3 GB DDR3-SDRAM Minitower Workstation
  • Processor: W3520
  • CPU frequency: 2.66 GHz
  • sku: KK546ET+FY944ET
  • Processor family: Intel® Xeon® 3000 Sequence
  • Processor manufacturer: Intel
  • Processor cores: 4
  • Processor threads: 8

Additional information

Processor family

Intel® Xeon® 3000 Sequence

Processor manufacturer

Intel

Processor model

W3520

Processor frequency

2.66 GHz

Processor cores

4

Processor threads

8

Processor boost frequency

2.93 GHz

Processor socket

Socket B (LGA 1366)

Processor cache

8 MB

Processor cache type

Smart Cache

Processor front side bus

1066 MHz

System bus rate

4.80 GT/s

Bus type

QPI

FSB Parity

No

Processor lithography

45 nm

Processor operating modes

64-bit

Processor series

Intel Xeon 3500 Series

Processor codename

Bloomfield

Thermal Design Power (TDP)

130 W

Processor system type

Up

Tcase

67.9 °C

Number of processors installed

1

Number of Processing Die Transistors

731 M

Processing Die size

263 mm²

Stepping

D0

CPU multiplier (bus/core ratio)

20

Processor core voltage (AC)

0.800 – 1.225 V

Maximum internal memory supported by processor

24 GB

Memory types supported by processor

DDR3-SDRAM

Memory clock speeds supported by processor

800,1066 MHz

Memory bandwidth supported by processor (max)

25.6 GB/s

ECC supported by processor

Yes

Internal memory

3 GB

Maximum internal memory

16 GB

Internal memory type

DDR3-SDRAM

Memory layout (slots x size)

3 x 1 GB

Memory clock speed

1333 MHz

ECC

Yes

Memory channels

Triple-channel

Optical drive type

DVD Super Multi

Number of HDDs installed

1

HDD capacity

320 GB

HDD interface

SATA

HDD speed

7200 RPM

Card reader integrated

No

USB 2.0 ports quantity

8

PS/2 ports quantity

2

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes
