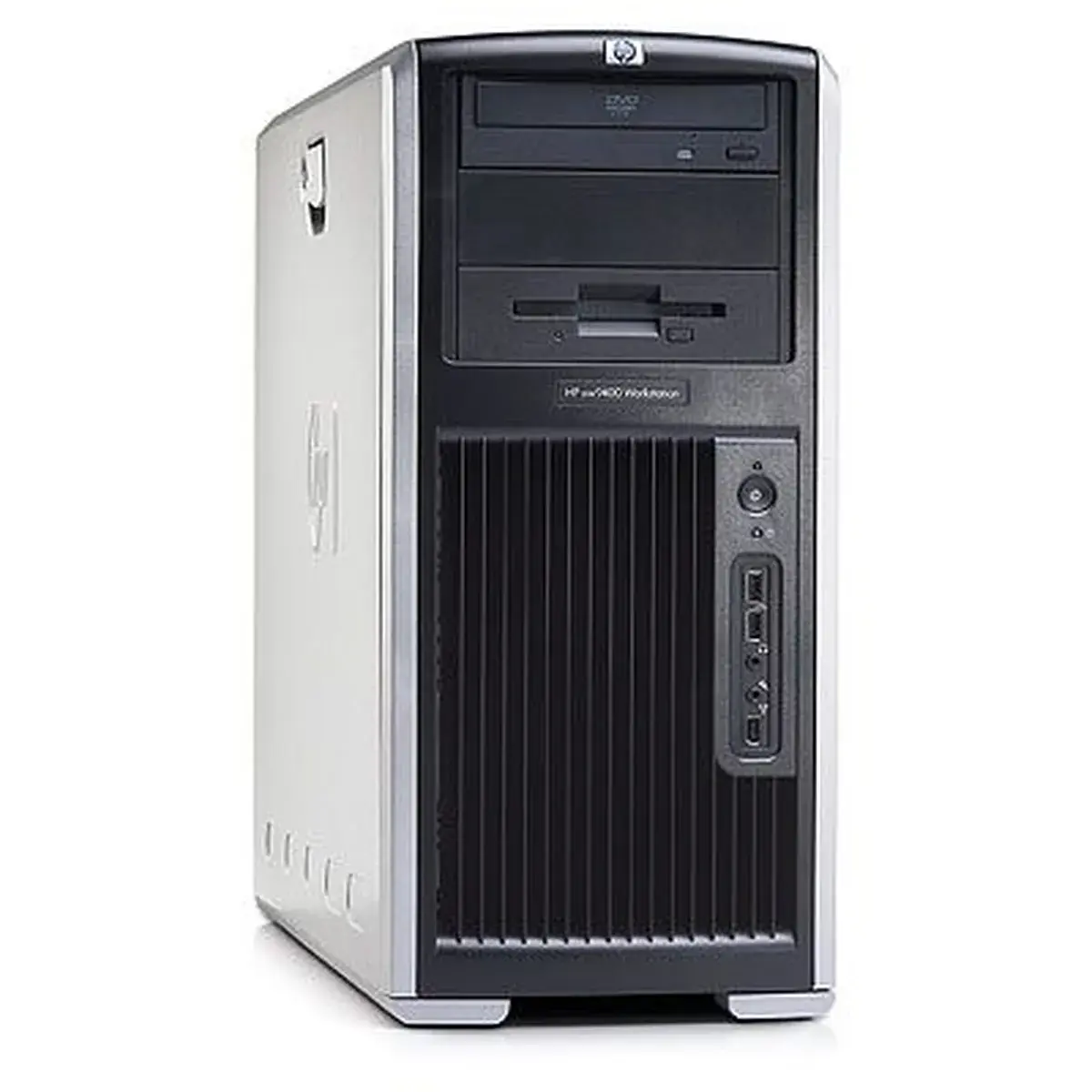

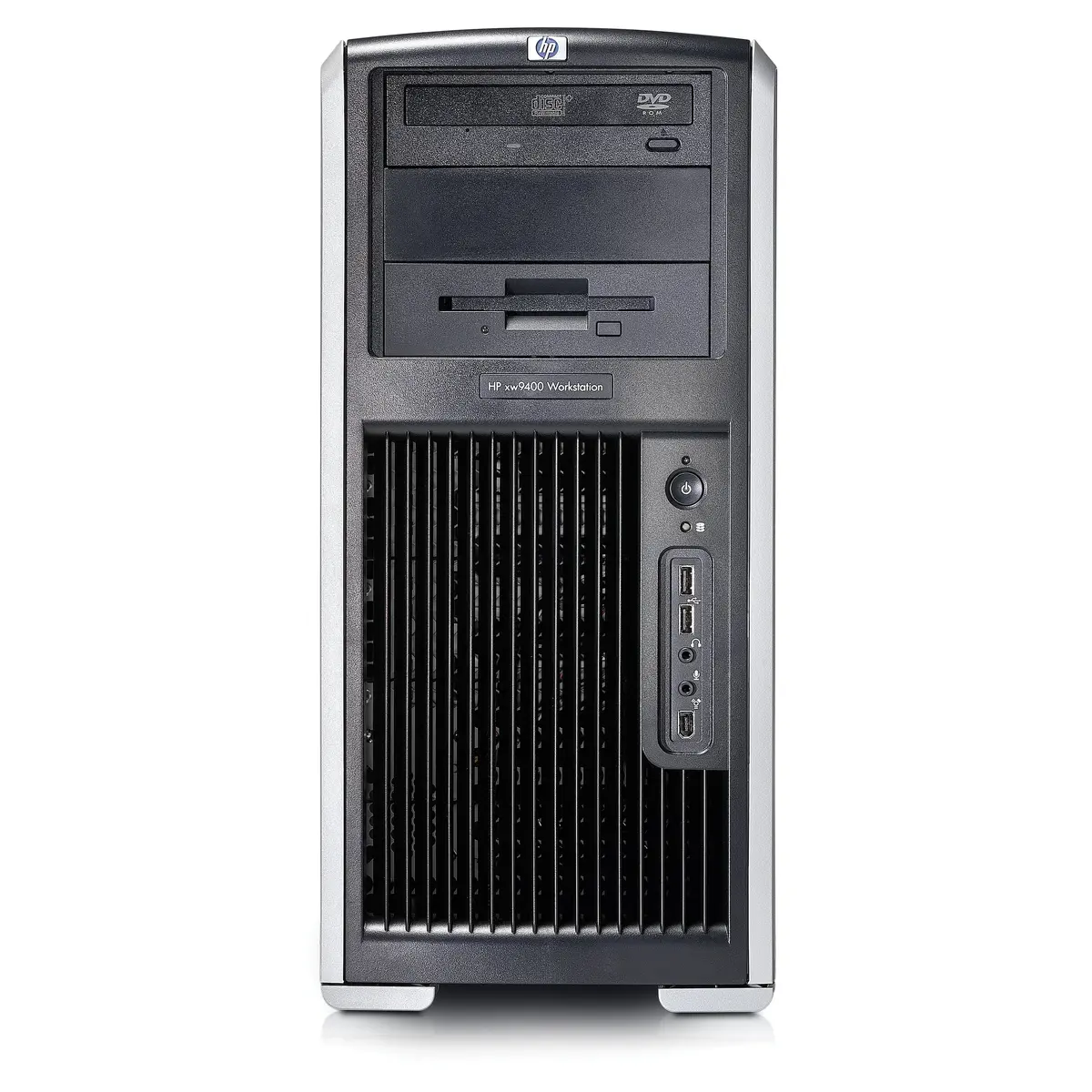

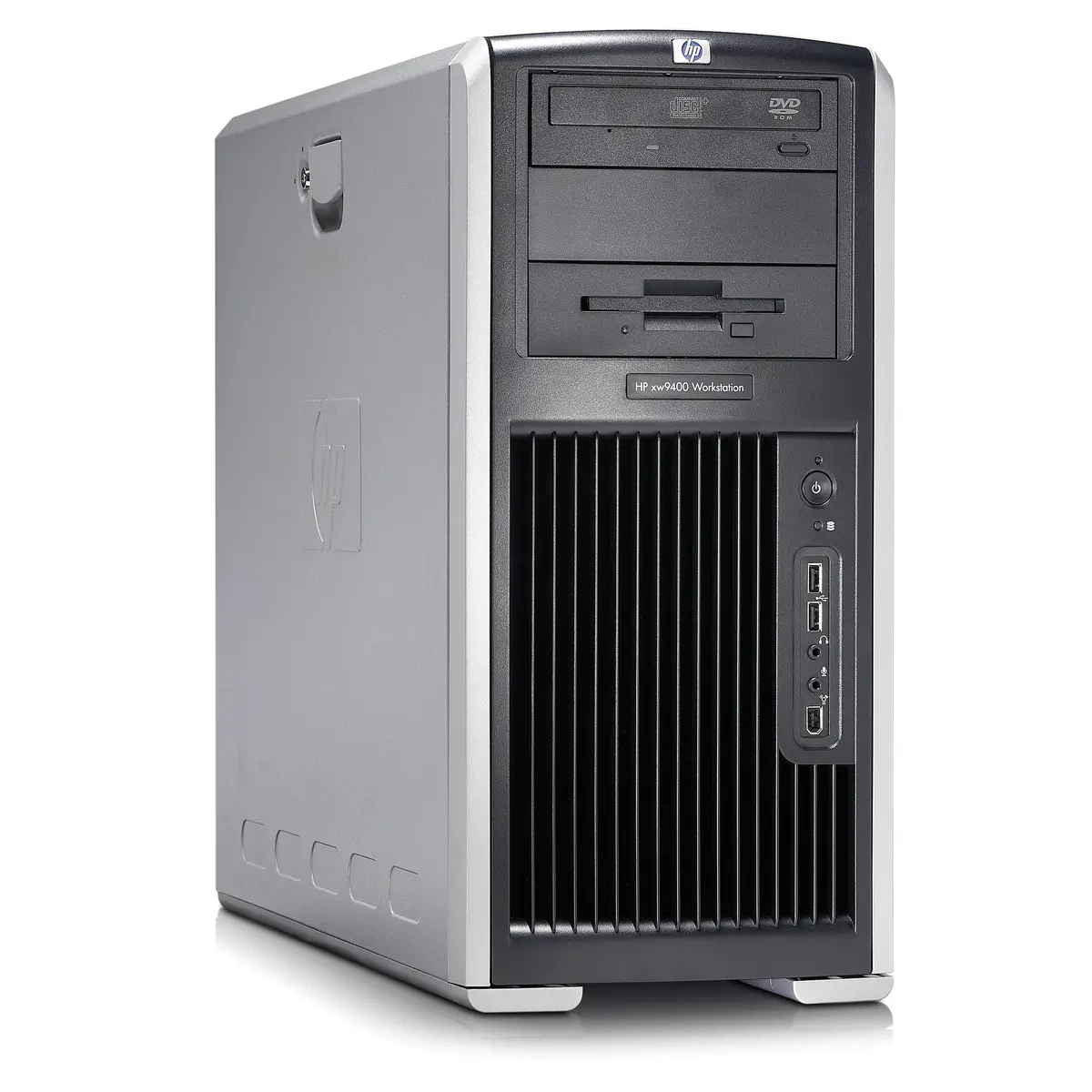

. The HP xw9400 is a workstation featuring an AMD Opteron Duo processor running at 2.4 GHz with 2 cores and L2 cache of 2 MB. It has DDR2 SDRAM internal memory configured for 2GB but supports up to 64GB.

The system comes equipped with a 7200 RPM hard disk offering 250GB storage space using SATA II interface. For graphics processing, it includes a Quadro FX 1500 video card capable of handling 256MB of dedicated VRAM. Connectivity options are diverse, including multiple USB ports on both front and rear panels, two FireWire slots, Ethernet connections via RJ-45 connectors, and standard serial port.

Audio support is provided through built-in high-definition sound capabilities. Powering this machine requires an external power supply rated at 800 watts suitable for various environments from operating temperatures between 5°C and 35°C down to -40°C and up to 60°C. Its compact design measures in dimensions Width × Depth × Height as 210 mm × 525 mm × 454 mm respectively, weighing approximately 19 kg when fully assembled.

Main specifications

  • Model: HP xw9400 AMD Opteron Duo 2×2.40GHz 2GB/250GB DVD+/-RW DL WXP Pro Workstation DDR2-SDRAM Windows XP Professional Mini Tower
  • Product type: Workstation
  • Weight: 19 kg
  • Width: 210 mm
  • Depth: 525 mm
  • Height: 454 mm
  • Package weight: 14 kg
  • CPU frequency: 2.4 GHz

Additional information

Processor family

AMD Opteron

Processor manufacturer

AMD

Processor frequency

2.4 GHz

Processor cache

2 MB

Processor cache type

L2

Processor front side bus

1000 MHz

Number of processors installed

2

Internal memory

2 GB

Maximum internal memory

64 GB

Internal memory type

DDR2-SDRAM

ECC

Yes

HDD capacity

250 GB

HDD interface

SATA II

HDD speed

7200 RPM

Maximum graphics card memory

0.256 GB

USB 2.0 ports quantity

8

PS/2 ports quantity

2

Firewire (IEEE 1394) ports

2

Ethernet LAN (RJ-45) ports

2

Microphone in

Yes

Headphone outputs

1

Serial ports quantity

1

Chassis type

Mini Tower

Country of origin

China

Product type

Workstation

Audio system

High Definition Audio

Operating system installed

Windows XP Professional

Compatible operating systems

HP Installer Kit for Linux for optional Red Hat Enterprise Linux WS 3 or WS 4

Power supply

800 W

Operating temperature (T-T)

5 – 35 °C

Storage temperature (T-T)

-40 – 60 °C

Operating relative humidity (H-H)

8 – 85%

Storage relative humidity (H-H)

8 – 90%

Relative humidity

8 – 85%

Non-operating altitude

9100

Width

210 mm

Depth

525 mm

Height

454 mm

Weight

19 kg

Package weight

14 kg

Display included

No

Power requirements

800 watts

Pointing device

HP optical mouse
2-button scroll mouse (USB optical or PS/2 mechanical) or 3-button mouse (USB optical) or USB SpaceMouse or USB SpaceBall or USB SpacePilot

Graphics card

Quadro FX 1500

I/O ports

Front: Headphone, microphone, 2 USB 2.0 and 1 IEEE 1394; Rear: 6 USB 2.0, 1 standard serial 9-pin port, 1 IEEE 1394, PS/2 keyboard and mouse, 2 RJ-45 to integrated Gigabit LAN, 1 audio in, 1 audio out, 1 mic in; 2 USB 2.0 (internal)

Video card features

NVIDIA Quadro FX 1500 PCIe (256 MB)

Non-operating relative humidity (non-condensing)

8 – 90%

Storage drive controller

SATA 3Gb/s NCQ

Disk subsystem controller

Integrated 6 channel SATA 3 Gb/s controller with RAID capability, integrated 8 channel SAS controller with RAID capability

Memory upgrade

64 GB
