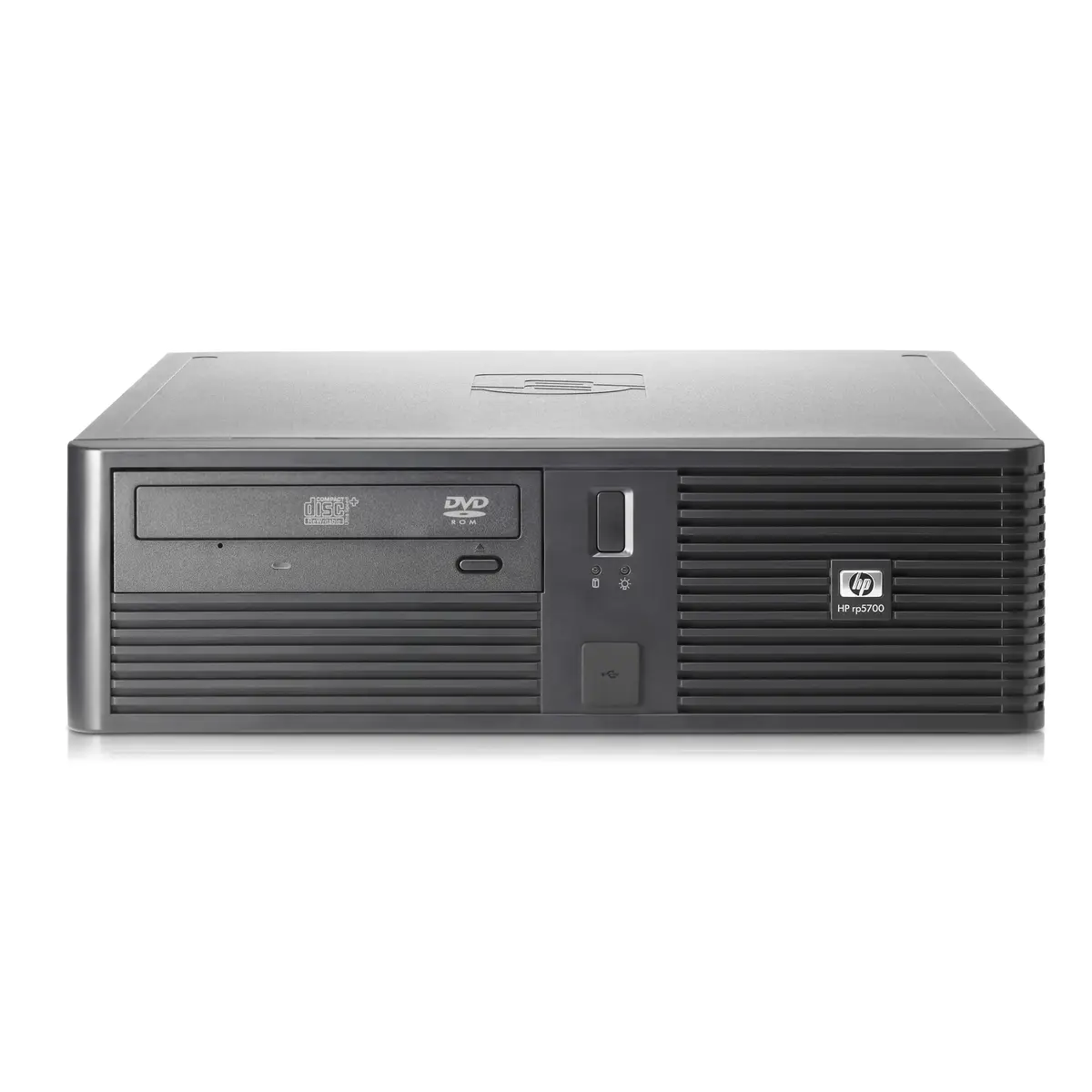

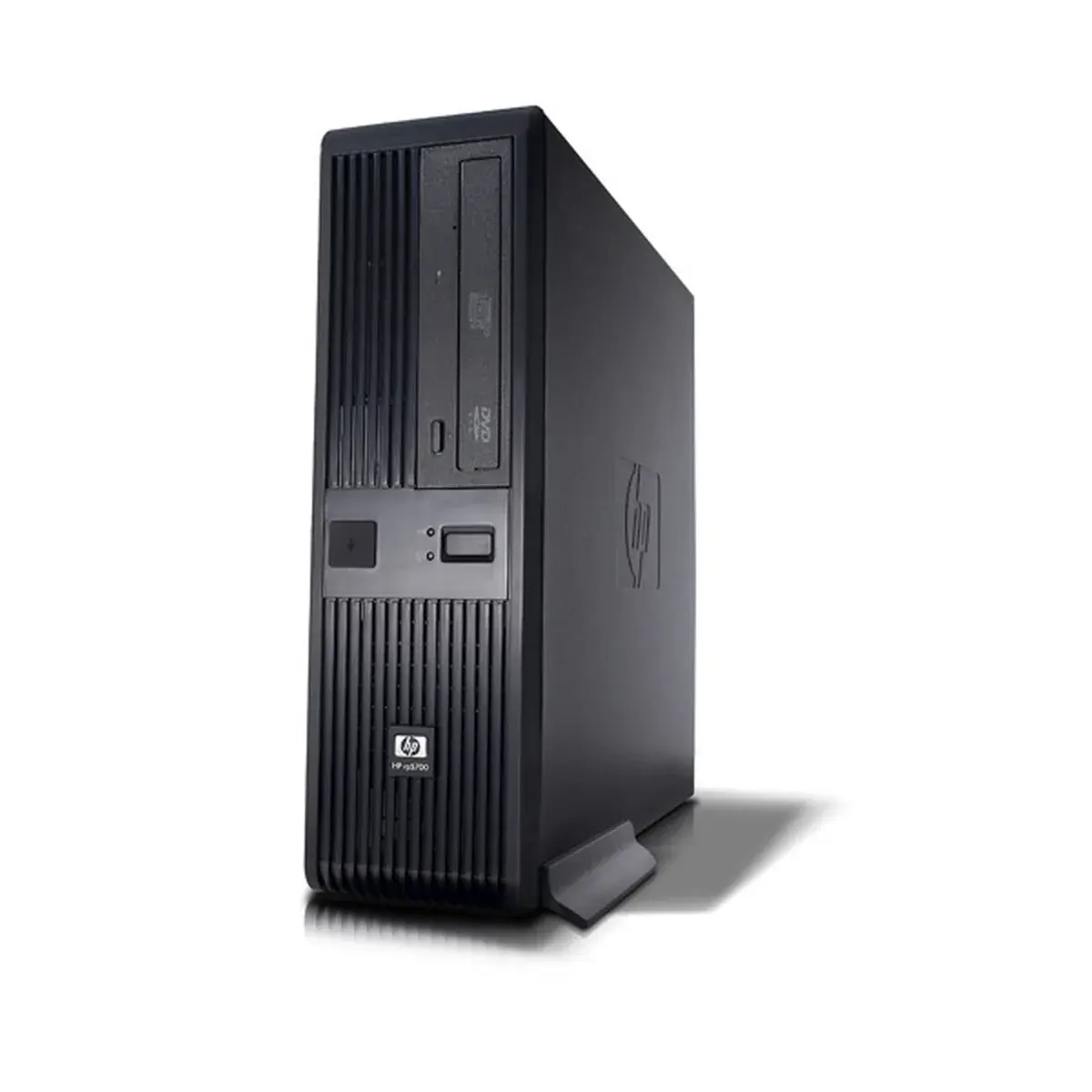

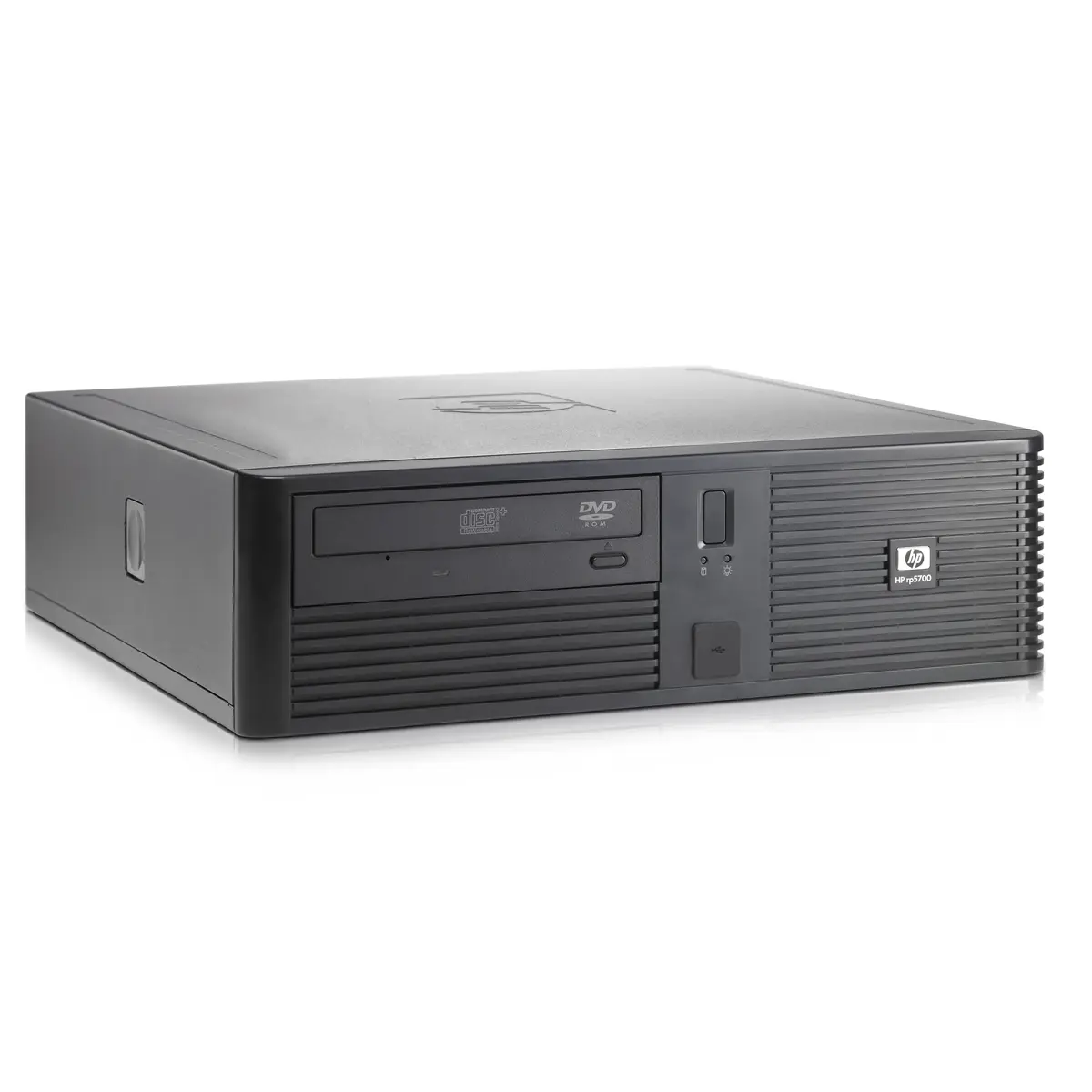

HP rp rp5700 Point of Sale System E2160 1.8 GHz

HP rp rp5700 Point of Sale System, E2160, 1.8 GHz, 1 MB, 800 MHz, Intel® Q963 Express, 2 GB

Documentation:

SKU: NN516EA Category: Brand:

HP rp rp5700 Point of Sale System is equipped with an E2160 processor running at 1.8 GHz with a cache size of 1 MB. It features integrated High Definition audio powered by Realtek ALC262 codec, supporting a DVD Super Multi optical drive. The system has 2 GB of DDR2 PC2-5300 memory and supports up to 4 GB of internal memory expansion through 4 DIMM slots.

Its storage capacity can reach up to 250 GB on a 160 GB HDD spinning at 7200 RPM. The hardware includes a Broadcom NetXtreme Gigabit Ethernet NIC for networking connectivity, supported operating temperatures ranging from -30°C to +60°C, and dimensions measuring 340x380x100 mm. With power requirements of 90 – 264 VAC, it offers various security options including Kensington Cable Locks and Smart Card Managers.

This point-of-sale solution also comes bundled with software such as Roxio Easy Media Creator, Intervideo WinDVD, FreeDOS, and others tailored specifically for retail environments. Additionally, it provides optional preloaded software like Microsoft Office 2007 Basic, Professional, Small Business versions along with Symantec AntiVirus and Intel(R) Matrix Storage Manager among other utilities designed for enhanced productivity and management capabilities in business settings.

Notable features

  • Model: HP rp rp5700 Point of Sale System E2160 1.8 GHz
  • Weight: 8.9 kg
  • Dimensions (W×D×H): 340 x 380 x 100 mm
  • Typical power consumption: 240 W
  • Processor: E2160
  • CPU frequency: 1.8 GHz
  • sku: NN516EA
  • Processor cache: 1 MB

Additional information

Processor model

E2160

Processor frequency

1.8 GHz

Processor cache

1 MB

Processor front side bus

800 MHz

Motherboard chipset

Intel® Q963 Express

Internal memory

2 GB

Internal memory type

PC2-5300 (DDR2-667)

Maximum internal memory

4 GB

Memory clock speed

667 MHz

HDD capacity

160 GB

HDD speed

7200 RPM

Maximum HDD capacity

250 GB

Graphics card

GMA 3000

Maximum graphics card memory

256 MB

Audio system

Integrated High Definition audio with Realtek 2 channel ALC262 codec with internal speaker

Optical drive type

DVD Super Multi

Operating system installed

FreeDOS

Bundled software

Roxio Easy Media Creator (included with DVD Writer drives), Intervideo WinDVD (supplied with DVD drive), HP Backup and Recovery Manager, HP Insight Diagnostics
HP Client Management Solutions, HP Backup and Recovery Manager, Symantec AntiVirus with 60 day Live Update, PDF complete, Microsoft Internet Explorer, Altiris Deployment Solution Agent (Preloaded), HP Open View Radia Management Agent, Intel(R) Matrix Storage Manager(with RAID); Optional preloaded software, only for certain configurations: Microsoft Office 2007 Basic, Microsoft Office 2007 Professional, Microsoft Office 2007 Small Business

Power supply

240 W

Power consumption (typical)

240 W

Operating relative humidity (H-H)

20 – 85%

Operating temperature (T-T)

10 – 40 °C

Storage temperature (T-T)

-30 – 60 °C

Storage relative humidity (H-H)

5 – 90%

Non-operating altitude

9144

Weight

8.9 kg

Security features

Kensington Cable Lock, Smart Card Manager (sold separately), HP Desktop Security Lock Kit (lock and cable) (sold separately), Wall Mount/Security Sleeve (sold separately)

Dimensions (WxDxH)

340 x 380 x 100 mm

Memory slots

4 DIMM

Modem type

N

Pointing device

HP PS/2 2-Button Optical Scroll Mouse

Power requirements

Input voltage 90 – 264 VAC, 50/60 Hz, 47 – 63 Hz, active PFC
Active Power Factor Correction (PFC) 90 to 264 VAC operating voltage range; 100 to 240 VAC rated voltage range; 50-60 Hz rated line frequency; 47-63 Hz operating line frequency range; 80-mm power supply fan – variable speed for optimum acoustics; Power Consumption in ES Mode – Suspend to RAM (S3) (Instantly Available PC)

Power supply type

90 – 264 VAC, 50/60 Hz

Networking features

Integrated Broadcom NetXtreme Gigabit Ethernet NIC

Minimum storage drive space

80 GB

Memory upgrade

4 GB

Storage drive controller

SMART III SATA 3.0 GB/s

Storage drive type

160 GB 7200 rpm SATA 3.0 Gb/s NCQ, Smart III
160 GB

Diskette drive

N

HDD controller type

SATA 3.0-Gb/s (7200 rpm)

Video card features

RAMDAC integrated (400-MHz); Controller Clock Speed: 667 MHz; Overlay Planes: One 16 bit video overlay plane; Max Color Depth: 32-bits/pixel; Multi-display Support: Support for one VGA and one DVI-I, in conjunction with an ADD2 card, clone and extended desktop modes are supported.
Integrated Intel Graphics Media Accelerator 3000
Maximum Vertical Refresh Rate: 75Hz at 2048×1536

Video adapter, bus

SDVO (Serial Digital Video Output) connector on system board

Audio included

Integrated High Definition audio with Realtek 2 channel ALC262 codec with internal speaker

Driver LAN

Microsoft Windows Vista, Microsoft Windows XP, Microsoft Windows 2000, FreeDos, WEPOS

Drive bays

1 external 5.25 inch optical drive bay
2 internal 3.5 inch ATA Hard Drive

Acoustic power emissions

IDLE (Fixed disk drive spinning): LWAd = 3.6 Bels; FIXED DISK (Random write): LWAd = 3.8 Bels; OPTICAL DRIVE (Sequential Reads): LWAd = 4.9 Bels

Security management description

Optional HP ProtectTools with TPM (except for Russia), Smart Card manager, HP BIOS configuration, Credential Manager, Vista Bit-Locker Ready, HP Stable Platform Program with Product, Change Notification, Business-to-Business Portals, Factory Express Deployment and Lifecycle Services (sold separately); Kensington Cable Lock, Smart Card Manager (sold separately), HP Desktop Security Lock Kit (lock and cable) (sold separately), Wall Mount/Security Sleeve (sold separately)

I/O ports

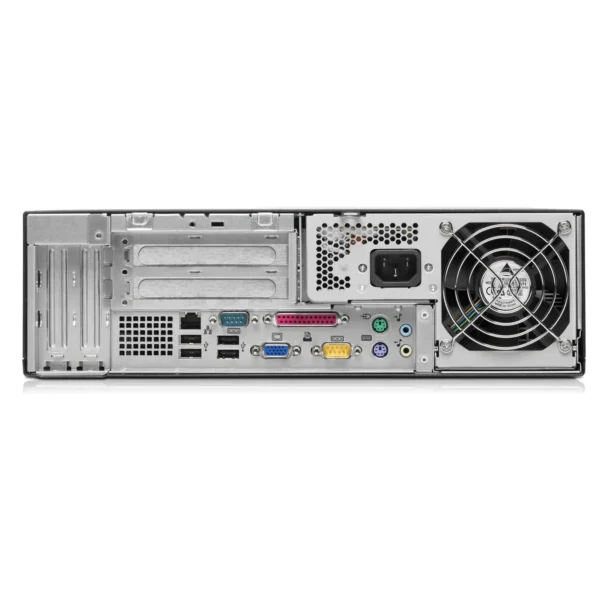

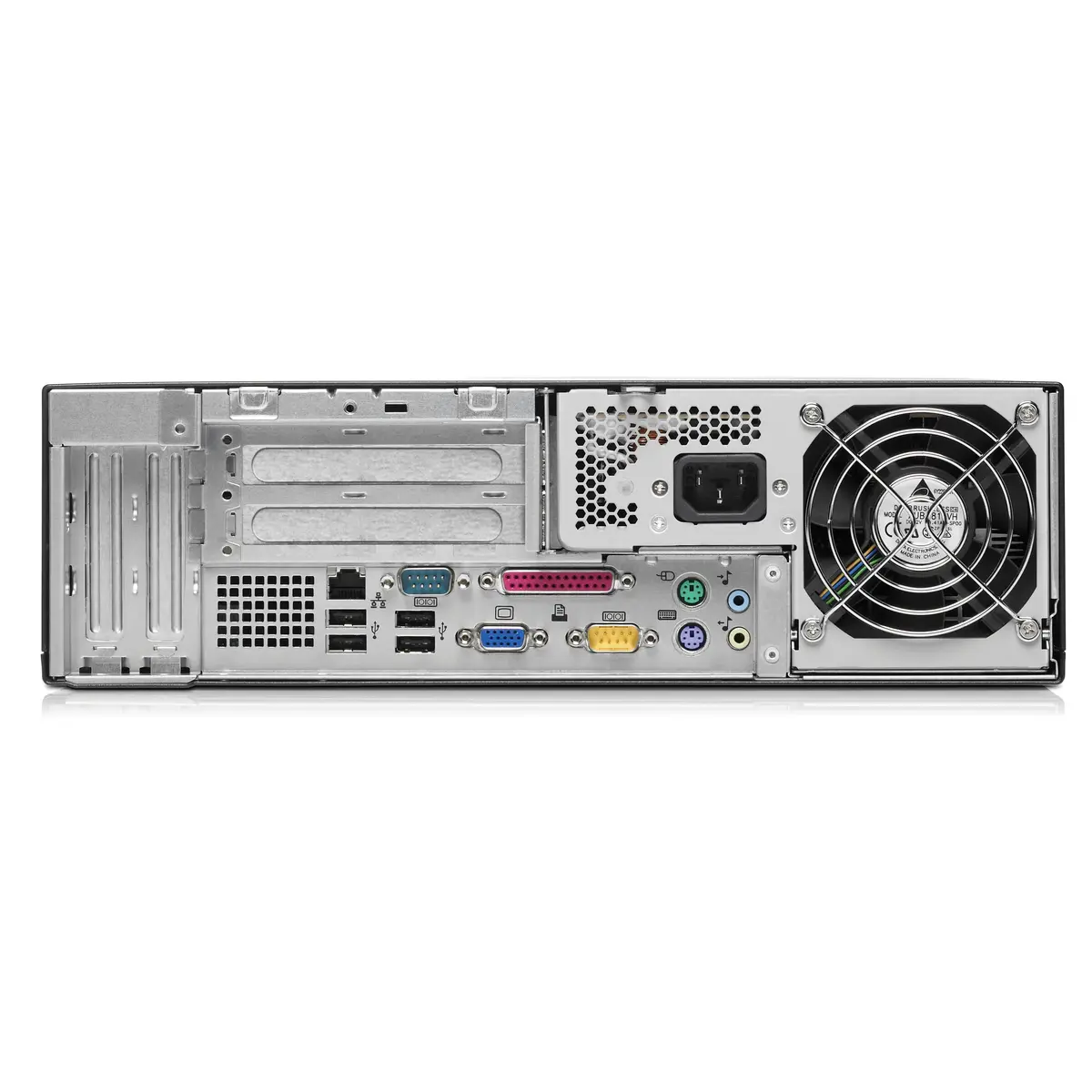

Rear: 4 USB 2.0, 2 standard serial ports, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out; Front: 2 USB 2.0

Expansion slots

2 full-height PCI, 1 low-profile PCI Express x1 and 1 SDVO/ADD2 connector

Keyboard type

HP PS/2 Standard Keyboard
