HP rp rp5700 E2160 1.8 GHz

HP rp rp5700 E2160 1.8 GHz

HP rp rp5700 Point of Sale System E2160 1.8 GHz

HP rp rp5700 Point of Sale System, E2160, 1.8 GHz, 800 MHz, Intel® Q963 Express, From 512 MB to 4 GB DDR2 Synch DRAM PC2-5300 non-ECC (667 MHz), 4 GB

Documentation:

SKU: NN519EA Category: Brand:

HP rp rp5700 Point of Sale System is equipped with an Intel® Q963 Express motherboard featuring an E2160 processor running at 1.8 GHz with a front side bus speed of 800 MHz. It supports DDR2 Synch DRAM PC2-5300 non-ECC memory up to 4 GB, paired with a 250 GB HDD operating at 7200 RPM. The system includes GMA 3000 graphics card with a maximum memory allocation of 256 MB for enhanced visual performance.

The hardware specifications also encompass integrated High Definition audio capabilities via Realtek ALC262 codec, supporting both internal speakers and external devices like DVD Super Multi optical drives. This point-of-sale solution comes preloaded with essential software such as Roxio Easy Media Creator, Intervideo WinDVD, HP Backup and Recovery Manager, and Symantec AntiVirus among others, catering to various business needs.

Additional security measures are available through Kensington Cable Locks, Smart Card Managers, and other optional accessories designed to enhance data protection and manageability. With dimensions measuring approximately 34 cm (13.4″) in width by 380 mm in height, this compact yet powerful device offers robust networking support including Broadcom NetXtreme Gigabit Ethernet NIC, ensuring seamless connectivity within retail environments.

Product highlights

  • Model: HP rp rp5700 Point of Sale System E2160 1.8 GHz
  • Weight: 8.9 kg
  • Dimensions (W×D×H): 340 x 380 x 100 mm
  • Typical power consumption: 240 W
  • Processor: E2160
  • CPU frequency: 1.8 GHz
  • sku: NN519EA
  • Processor front side bus: 800 MHz

Additional information

Processor model

E2160

Processor frequency

1.8 GHz

Processor front side bus

800 MHz

Motherboard chipset

Intel® Q963 Express

Internal memory type

From 512 MB to 4 GB DDR2 Synch DRAM PC2-5300 non-ECC (667 MHz)

Maximum internal memory

4 GB

HDD capacity

250 GB

HDD speed

7200 RPM

Maximum HDD capacity

250 GB

Graphics card

GMA 3000

Maximum graphics card memory

256 MB

Audio system

Integrated High Definition audio with Realtek 2 channel ALC262 codec with internal speaker

Optical drive type

DVD Super Multi

Chassis type

Point of Sale

Operating system installed

Windows 7 Professional

Bundled software

Roxio Easy Media Creator (included with DVD Writer drives), Intervideo WinDVD (supplied with DVD drive), HP Backup and Recovery Manager, HP Insight Diagnostics
HP Client Management Solutions, HP Backup and Recovery Manager, Symantec AntiVirus with 60 day Live Update, PDF complete, Microsoft Internet Explorer, Altiris Deployment Solution Agent (Preloaded), HP Open View Radia Management Agent, Intel(R) Matrix Storage Manager(with RAID); Optional preloaded software, only for certain configurations: Microsoft Office 2007 Basic, Microsoft Office 2007 Professional, Microsoft Office 2007 Small Business

Power consumption (typical)

240 W

Operating relative humidity (H-H)

20 – 85%

Operating temperature (T-T)

50 – 104 °F

Storage temperature (T-T)

-30 – 60 °C

Storage relative humidity (H-H)

5 – 90%

Non-operating altitude

9144

Weight

8.9 kg

Security features

Kensington Cable Lock, Smart Card Manager (sold separately), HP Desktop Security Lock Kit (lock and cable) (sold separately), Wall Mount/Security Sleeve (sold separately)

Dimensions (WxDxH)

340 x 380 x 100 mm

Memory slots

4 DIMM

Modem type

N

Pointing device

HP PS/2 2-Button Optical Scroll Mouse

Power requirements

Input voltage 90 – 264 VAC, 50/60 Hz, 47 – 63 Hz, active PFC
Active Power Factor Correction (PFC) 90 to 264 VAC operating voltage range; 100 to 240 VAC rated voltage range; 50-60 Hz rated line frequency; 47-63 Hz operating line frequency range; 80-mm power supply fan – variable speed for optimum acoustics; Power Consumption in ES Mode – Suspend to RAM (S3) (Instantly Available PC)

Networking features

Integrated Broadcom NetXtreme Gigabit Ethernet NIC

Size (imperial)

34 cm (13.4")

Minimum storage drive space

80 GB

Memory upgrade

4 GB

Storage drive controller

SMART III SATA 3.0 GB/s

Storage drive type

250 GB 7200 rpm SATA 3.0 Gb/s
80, 160 or 250 GB SATA 3.0 GB/s

Diskette drive

N

HDD controller type

SATA 3.0-Gb/s (7200 rpm)

Video card features

Maximum Vertical Refresh Rate: 75Hz at 2048×1536

Video adapter, bus

SDVO (Serial Digital Video Output) connector on system board

Audio included

Integrated High Definition audio with Realtek 2 channel ALC262 codec with internal speaker

Driver LAN

Microsoft Windows Vista, Microsoft Windows XP, Microsoft Windows 2000, FreeDos, WEPOS

Drive bays

1 external 5.25 inch optical drive bay
2 internal 3.5 inch ATA Hard Drive

Weight (imperial)

8.81 kg (19.4 lbs)

Acoustic power emissions

IDLE (Fixed disk drive spinning): LWAd = 3.6 Bels; FIXED DISK (Random write): LWAd = 3.8 Bels; OPTICAL DRIVE (Sequential Reads): LWAd = 4.9 Bels

Security management description

Optional HP ProtectTools with TPM (except for Russia), Smart Card manager, HP BIOS configuration, Credential Manager, Vista Bit-Locker Ready, HP Stable Platform Program with Product, Change Notification, Business-to-Business Portals, Factory Express Deployment and Lifecycle Services (sold separately)

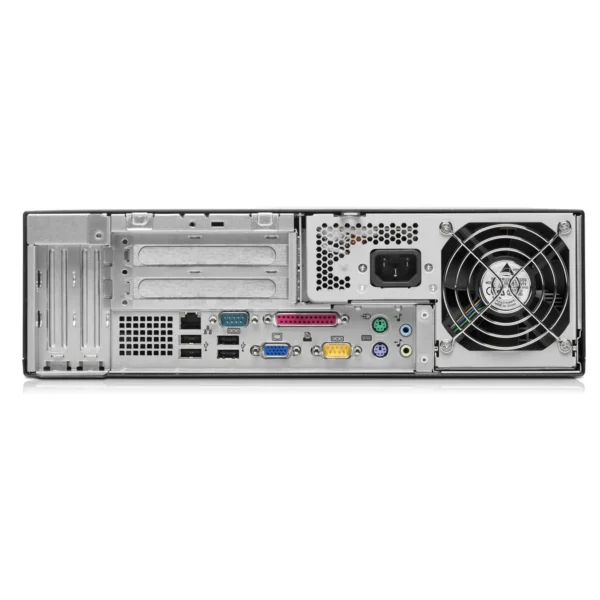

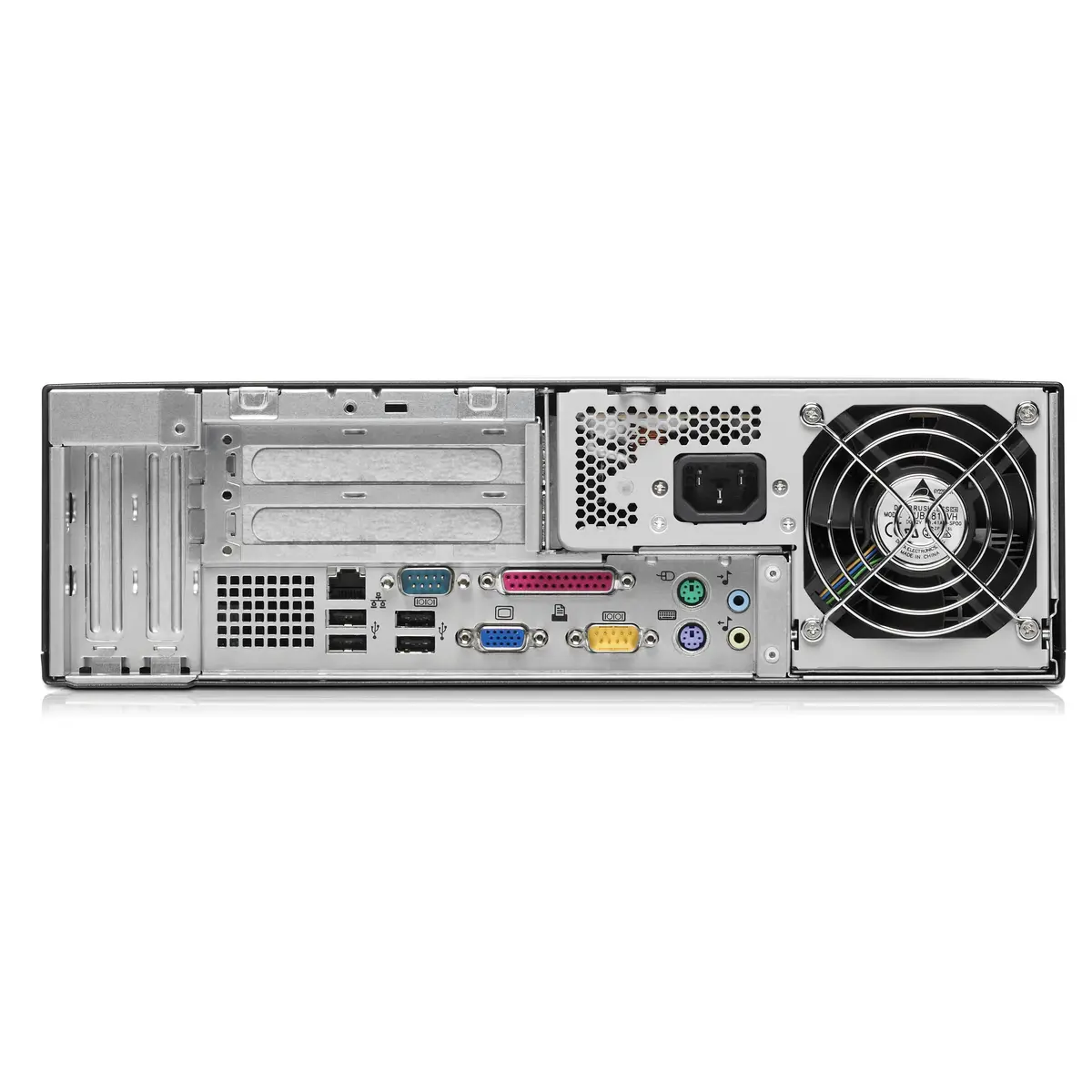

I/O ports

Rear: 4 USB 2.0, 2 standard serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1VGA, audio in/out, on some models: 4 powered USB optional ports, 2 optional powered serial port, Front: 2 USB 2.0

Expansion slots

2 full-height PCI, 1 low-profile PCI Express x1 and 1 SDVO/ADD2 connector

Keyboard type

HP PS/2 Standard Keyboard

Manageability features

5-Year Life Cycle, Steel Chassis
